Surge Protection Devices (SPDs)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Form | Number of Poles | Voltage - Continuous Operating (Max) (MCOV) | Current - Discharge (Nom) (8/20µS) | Current - Discharge (Max) (8/20µS) | Operating Temperature | Voltage - Protection Rating (VPR) | Voltage - Protection Level (VP) (2416) | Operating Temperature | Features | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1420A-PV-600-DSPD TYP 2/TYP 4 700V MCOV 2 POLE |
4,275 |
|
Datasheet |
1420A | Box | Active | Type 2, Type 4 | Base + Module | 2 | 700V | 20 kA | 50 kA | 50 kA | 1.8 kV | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
1250A-3S-230SPD TYP 2/TYP 4 275V MCOV 3 POLE |
1,938 |
|
Datasheet |
1250A | Box | Active | Type 2, Type 4 | Base + Module | 3 | 275V | 20 kA | 50 kA | 200 kA | 1 kV | - | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
RDS1A-6SPD 200V MCOV 1 POLE |
148 |
|
Datasheet |
- | Box | Active | - | Module Only | 1 | 200V | - | - | - | - | - | -40°C ~ 85°C | - | DIN Rail | - |
|
|
RDS1B-6SPD 200V MCOV 1 POLE |
119 |
|
Datasheet |
- | Box | Active | - | Module Only | 1 | 200V | - | - | - | - | - | -40°C ~ 85°C | - | DIN Rail | - |
|
BSP3-277-20KA-TNSPD 320VAC/420VDC MCOV 3 POLE |
297 |
|
Datasheet |
BSP3 | Box | Active | - | Module Only | 3 | 320VAC, 420VDC | 20 kA | 20 kA | - | - | - | - | - | Free Hanging | CE, cURus, UL |
|

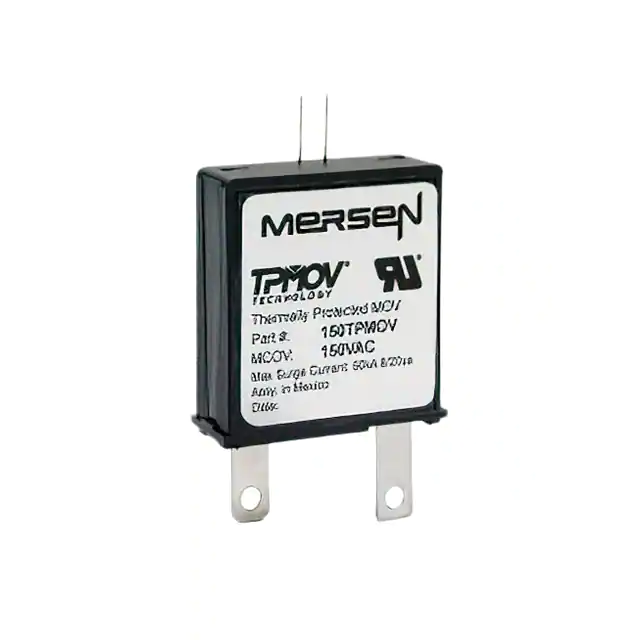

150TPMOVSLSPD TYPE 1 150VAC MCOV 1 POLE |
459 |
|
Datasheet |
- | Box | Active | Type 1 | Module Only | 1 | 150VAC | 20 kA | - | 200 kA | 600 V | - | -40°C ~ 85°C | Thermally Protected | - | cURus, UL |
|
|
ASISP150-1PSPD 150V MCOV 1 POLE |
4,266 |
|
Datasheet |
- | Retail Package | Active | - | Base + Module | 1 | 150V | 20 kA | 50 kA | 200 kA | 700 V | - | -40°C ~ 80°C | - | DIN Rail | CE, cURus |
|
|
ASISP150-PNSPD 150VAC MCOV 1 POLE |
1,039 |
|
Datasheet |
SP | Retail Package | Active | - | Base + Module | 1 | 150VAC | 20 kA | 50 kA | 200 kA | - | - | -40°C ~ 80°C | Thermally Protected | DIN Rail | CE, cURus |
|
|
ASISP150-2PSPD 150V MCOV 2 POLE |
2,576 |
|
Datasheet |
- | Retail Package | Active | - | Base + Module | 2 | 150V | 20 kA | 50 kA | 200 kA | 1.5 kV | - | -40°C ~ 80°C | - | DIN Rail | CE, cURus |
|
TFYR-100.5-30SPD 600VAC MCOV 1 POLE |
4,904 |
|
Datasheet |
- | Box | Active | - | Module Only | 1 | 600VAC | - | - | - | - | - | -40°C ~ 85°C | - | DIN Rail | cURus, UL |
|

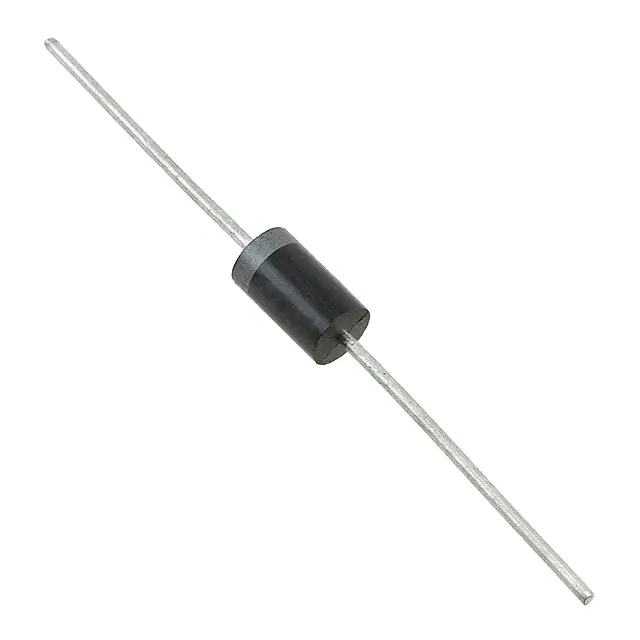

STRVS280X02FSPD |
3,000 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FODEKOV05M510Onboard Surge Protection Module |
480 |
|
Datasheet |
KOV05M | Bulk | Active | Surge Protection Module | Module Only | 1 | 510VAC | 5 kA | 5 kA | - | - | 2 kV | -40°C ~ 85°C | Thermally Protected | PCB Mount | CE, TUV |
|
|
FODEKOV05M150Onboard Surge Protection Module |
480 |
|
Datasheet |
KOV05M | Bulk | Active | Surge Protection Module | Module Only | 1 | 150VAC | 5 kA | 10 kA | - | - | 800 V | -40°C ~ 85°C | Thermally Protected | PCB Mount | CE, TUV |
|
|
FODEKOV05M420Onboard Surge Protection Module |
480 |
|
Datasheet |
KOV05M | Bulk | Active | Surge Protection Module | Module Only | 1 | 420VAC | 5 kA | 10 kA | - | - | 1.5 kV | -40°C ~ 85°C | Thermally Protected | PCB Mount | CE, TUV |
|
|
FODEKOV05M320Onboard Surge Protection Module |
480 |
|
Datasheet |
KOV05M | Bulk | Active | Surge Protection Module | Module Only | 1 | 320VAC | 5 kA | 10 kA | - | - | 1.2 kV | -40°C ~ 85°C | Thermally Protected | PCB Mount | CE, TUV |
|
|
FODEKOV05M275Onboard Surge Protection Module |
480 |
|
Datasheet |
KOV05M | Bulk | Active | Surge Protection Module | Module Only | 1 | 275VAC | 5 kA | 10 kA | - | - | 1 kV | -40°C ~ 85°C | Thermally Protected | PCB Mount | CE, TUV |
|
|
FODEKOV05M550Onboard Surge Protection Module |
480 |
|
Datasheet |
KOV05M | Bulk | Active | Surge Protection Module | Module Only | 1 | 550VAC | 5 kA | 10 kA | - | - | 2.5 kV | -40°C ~ 85°C | Thermally Protected | PCB Mount | CE, TUV |
|
|
FODEKOV10M150Onboard Surge Protection Module |
480 |
|
Datasheet |
KOV10M | Bulk | Active | Type 2 | Module Only | 1 | 150VAC | 10 kA | 20 kA | - | - | 800 V | -40°C ~ 85°C | Thermally Protected | PCB Mount | CE, TUV |
|
|
FODEKOV10M550Onboard Surge Protection Module |
480 |
|
Datasheet |
KOV10M | Bulk | Active | Type 2 | Module Only | 1 | 550VAC | 10 kA | 20 kA | - | - | 2.5 kV | -40°C ~ 85°C | Thermally Protected | PCB Mount | CE, TUV |
|
|
FODEKOV10M420Onboard Surge Protection Module |
480 |
|
Datasheet |
KOV10M | Bulk | Active | Type 2 | Module Only | 1 | 420VAC | 10 kA | 20 kA | - | - | 1.8 kV | -40°C ~ 85°C | Thermally Protected | PCB Mount | CE, TUV |
