Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A127S1YZ3QSWITCH TOGGLE SPDT 6A 125V |
2,273 |
|
Datasheet |
A | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 6A (AC/DC) | 125 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
WT121M1D9ABSWITCH TOGGLE SPDT 0.5VA 28V |
1,373 |
|
Datasheet |
WT | Bulk | Active | Through Hole, Right Angle | SPDT | On-Off-On | 0.5VA (AC/DC) | 28 V | 28 V | Standard Round | 7.60mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -30°C ~ 85°C |
|
|
WT121S1YZQSWITCH TOGGLE SPDT 6A 125V |
3,047 |
|
Datasheet |
WT | Bulk | Active | Panel Mount | SPDT | On-Off-On | 6A (AC/DC) | 125 V | 28 V | Standard Round | 12.90mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
WT123M1YCQSWITCH TOGGLE SPDT 6A 125V |
2,117 |
|
Datasheet |
WT | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Standard Round | 7.60mm | Non-Illuminated | - | - | PC Pin | - | 1/4-40 | - | - | -30°C ~ 85°C |
|
7101K12V3QESWITCH TOGGLE SPDT 5A 120V |
4,443 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Locking Lever | 18.59mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

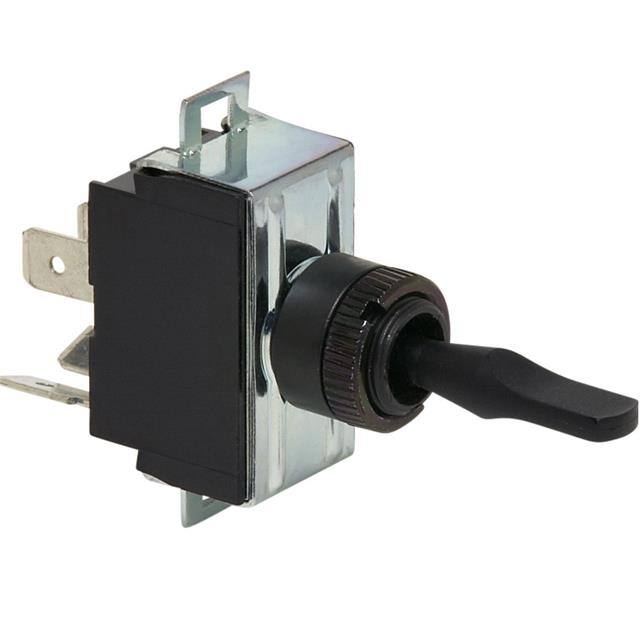

59024-33SWITCH TOGGLE SPST 25A 12V |
2,867 |
|
Datasheet |
59024 | Bulk | Active | Panel Mount | SPST | On-Off | 25A (DC) | - | 12 V | Paddle | 25.40mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 11.90mm Dia | 15/32-32 | - | - | - |
|
|
MAAOA-WH/ON-OFFSWITCH TOGGLE SPST 20A 125V |
4,005 |
|
Datasheet |
215 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Paddle | 10.67mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Rectangular - 30.94mm x 16.66mm | Unthreaded | - | - | 0°C ~ 85°C |
|
|
MAAOA-BL/ON-OFFSWITCH TOGGLE SPST 20A 125V |
2,424 |
|
Datasheet |
215 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Paddle | 10.67mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Rectangular - 30.94mm x 16.66mm | Unthreaded | - | - | 0°C ~ 85°C |
|
|
215-BL/ON-OFF/HDW ASSMSWITCH TOGGLE SPST 20A 125V |
3,105 |
|
Datasheet |
215 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Paddle | 10.67mm | Non-Illuminated | - | - | Screw Terminal | Rectangular - 30.94mm x 16.66mm | Unthreaded | - | - | 0°C ~ 85°C |
|
|
215-WH/ON-OFFSWITCH TOGGLE SPST 20A 125V |
3,254 |
|
Datasheet |
215 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Paddle | 10.67mm | Non-Illuminated | - | - | Screw Terminal | Rectangular - 30.94mm x 16.66mm | Unthreaded | - | - | 0°C ~ 85°C |
|
|
7101P4YCQE22SWITCH TOGGLE SPDT 5A 120V |
1,958 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 6.35mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Black Actuator | -30°C ~ 85°C |
|
|
5247ADBTOGGLE SWITCH 5000 MINIATURE |
3,025 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
T103P3TAGESWITCH TOGGLE SPDT 2A 120V |
4,255 |
|
Datasheet |
T | Tray | Active | Panel Mount, Right Angle | SPDT | On-Off-On | 2A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 12.45mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7201MPDCQESWITCH TOGGLE DPDT 5A 120V |
3,198 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Anti-Rotation | 6.86mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

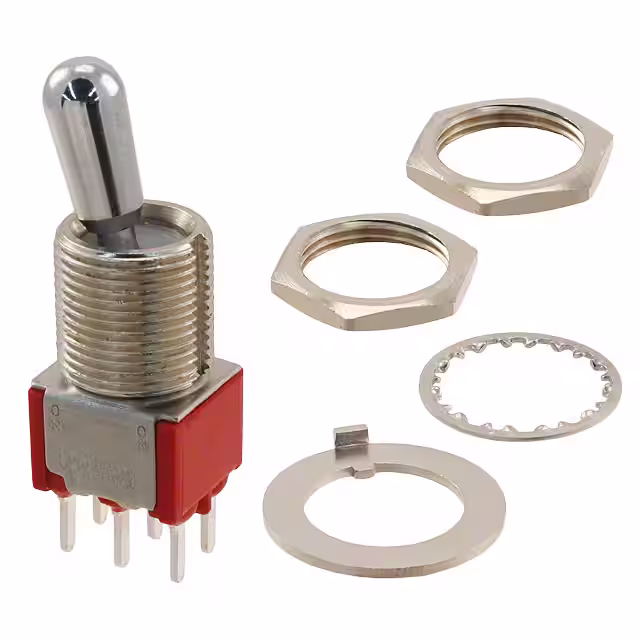

7201T1CWCQESWITCH TOGGLE DPDT 5A 120V |
2,228 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 12.37mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2FA54-57SWITCH TOGGLE SPST 15A 125V |
4,543 |
|
Datasheet |
F | Bulk | Active | Panel Mount | SPST | On-Off | 15A (AC) | 125 V | - | Standard Round | 10.31mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | -17.8°C ~ 65.6°C |
|
|
CA205-78SWITCH TOGGLE SPST 20A 125V |
3,034 |
|
Datasheet |
C | Bulk | Active | Panel Mount | SPST | On-Off | 20A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Wire Leads | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
7203SD9AQESWITCH TOGGLE DPDT 5A 120V |
4,543 |
|
Datasheet |
7000 | Bulk | Active | Through Hole, Right Angle | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 12.45mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
E201SD1AQETOGGLE SWITCHES DP ON-NONE-ON RA |
4,610 |
|
Datasheet |
E | Tray | Active | Through Hole, Right Angle | DPDT | On-On | 7.5A (AC/DC) | 125 V | 28 V | Standard Round | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | - | -30°C ~ 85°C |
|
|
2GK51-NBL3SWITCH TOGGLE DPST 15A 125V |
4,424 |
|
Datasheet |
G | Bulk | Active | Panel Mount | DPST | On-Off | 15A (AC) | 125 V | - | Paddle | 17.45mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
