Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2FB63-78SWITCH TOGGLE SPDT 6A 125V |
1,572 |
|
Datasheet |
F | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.70mm Dia | 15/32-32 | - | - | -17.8°C ~ 65.6°C |
|
|
5639ADBSWITCH TOGGLE SPDT 6A 125V |
4,657 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
EHTSLSWITCH TOGGLE DPDT |
1,571 |
|
Datasheet |
EH | Bulk | Active | Panel Mount | DPDT | On-On | - | - | - | Standard Round | - | Non-Illuminated | - | - | Solder Lug | - | - | - | - | - |
|

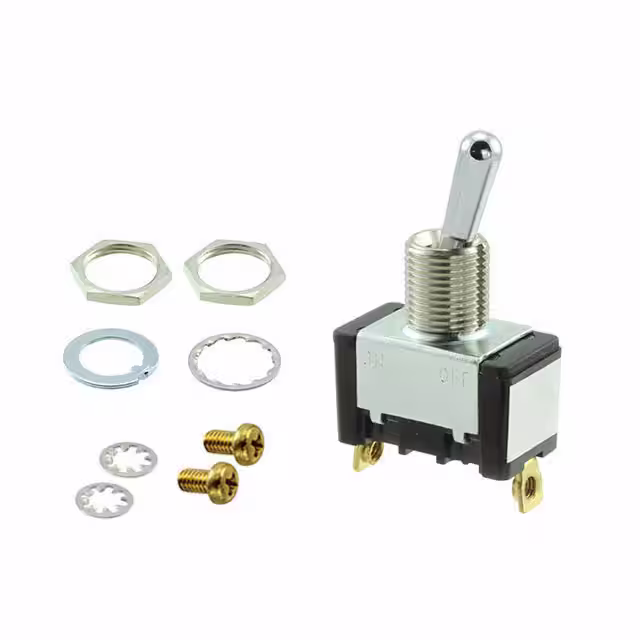

ET115A10-ZSWITCH TOGGLE SPST 15A 125V |
4,885 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | SPST | On-Off | 15A (AC) | 125 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|

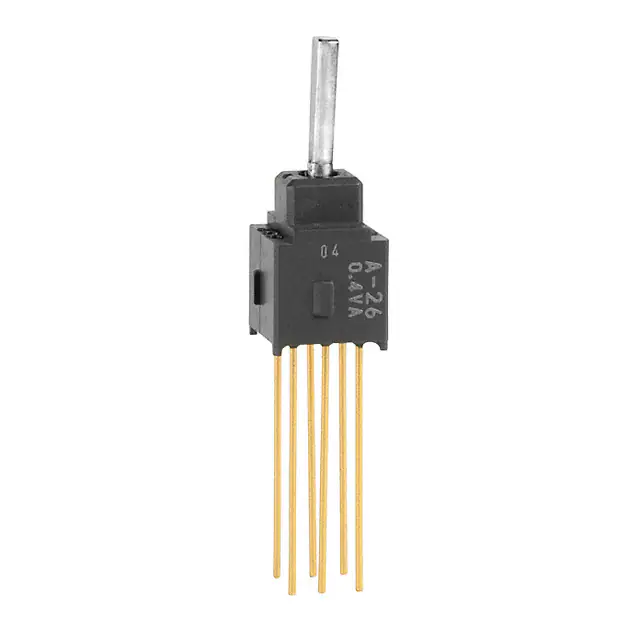

A26EWSWITCH TOGGLE SP3T 0.4VA 28V |
2,710 |
|
Datasheet |
A | Tube | Active | Through Hole | SP3T | Mom-On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Flatted | 10.00mm | Non-Illuminated | - | - | Wire Wrap | - | Unthreaded, Square | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
A26HWSWITCH TOGGLE SP3T 0.4VA 28V |
1,898 |
|
Datasheet |
A | Bulk | Active | Through Hole | SP3T | Mom-On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Flatted | 6.30mm | Non-Illuminated | - | - | Wire Wrap | - | Unthreaded, Square | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|

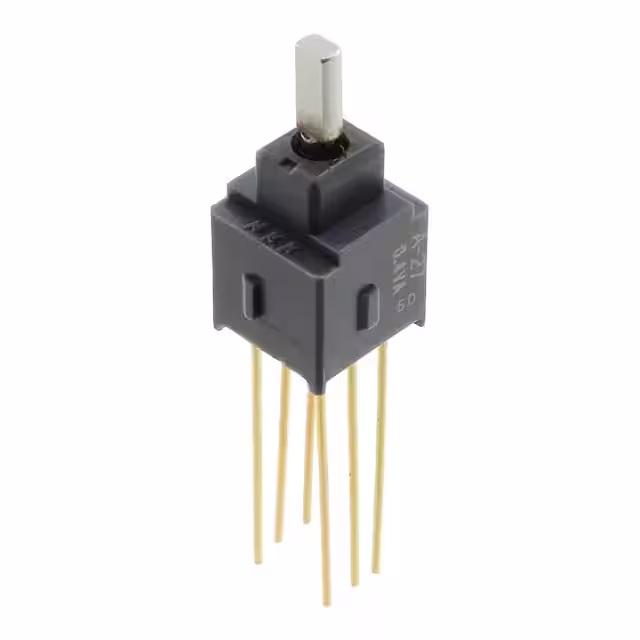

A27HWSWITCH TOGGLE SP3T 0.4VA 28V |
4,359 |
|
Datasheet |
A | Bulk | Active | Through Hole | SP3T | On-On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Flatted | 6.30mm | Non-Illuminated | - | - | Wire Wrap | - | Unthreaded, Square | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
7101MPYAQESWITCH TOGGLE SPDT 5A 120V |
3,100 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Right Angle | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Anti-Rotation | 5.08mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2015SA2G13BRACKET PC MOUNT MINIATURE TOGGL |
2,341 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 12.28mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
MN12SA2W13-BASWITCH TOGGLE |
1,426 |
|
Datasheet |
M | Bulk | Active | Through Hole | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -30°C ~ 85°C |
|
|
MN12SA2W13-BCSWITCH TOGGLE |
4,831 |
|
Datasheet |
M | Bulk | Active | Through Hole | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -30°C ~ 85°C |
|
T101MHCQESWITCH TOGGLE SPDT 3A 120V |
2,877 |
|
Datasheet |
T | Tray | Active | Panel Mount | SPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Standard Round | 5.44mm | Non-Illuminated | - | - | PC Pin | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7201MD9CBESWITCH TOGGLE DPDT 0.4VA 20V |
2,891 |
|
Datasheet |
7000 | Tray | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
MTA8106DVRASWITCH TOGGLE SPDT 6A 125V |
4,824 |
|
Datasheet |
MTA Green | Bulk | Obsolete | Panel Mount, Right Angle, Vertical | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 10.49mm | Non-Illuminated | - | - | PC Pin | Circular - 6.40mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 85°C |
|
M2015LL1G01SWITCH TOGGLE SPDT 0.4VA 28V |
4,496 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
MN18SS1G40ANGLE PC MOUNT MINIATURE TOGGLE |
2,446 |
|
Datasheet |
M | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
|
ET01SD1WBESWITCH TOGGLE SPDT 0.4VA 20V |
4,762 |
|
Datasheet |
ET | Tray | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.16mm | Non-Illuminated | - | - | Wire Wrap | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7105SYCBESWITCH TOGGLE SPDT 0.4VA 20V |
3,469 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.67mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

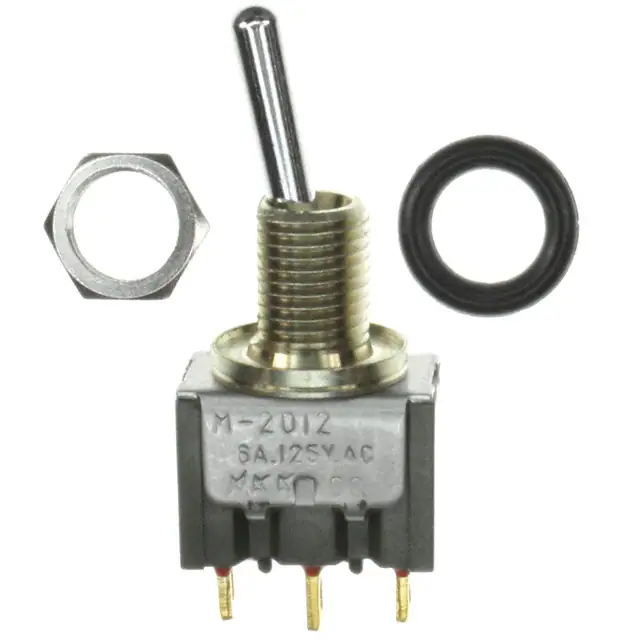

M2012SD3A01SWITCH TOGGLE SPDT 6A 125V |
1,564 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
B22KP-BASWITCH TOGGLE DPDT 0.4VA 28V |
2,062 |
|
Datasheet |
B | Bulk | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Snap On Paddle | 14.20mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Black Actuator | -30°C ~ 85°C |
