Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
56A30-01-1-12N-FSWITCH ROTARY 12POS 200MA 115V |
2,319 |
|
Datasheet |
56 | Bulk | Active | 12 | Fixed | 1 | 1 | SP12T | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 12.19mm |
|
|
56A36-01-1-04SSWITCH ROTARY 4POS 200MA 115V |
4,670 |
|
Datasheet |
56 | Bulk | Active | 4 | Fixed | 1 | 1 | SP4T | Shorting (MBB) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Brass | Silver | Panel Mount | Solder Lug | - | 12.19mm |
|
|
56A36-01-1-06SSWITCH ROTARY 6POS 200MA 115V |
3,392 |
|
Datasheet |
56 | Bulk | Active | 6 | Fixed | 1 | 1 | SP6T | Shorting (MBB) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Brass | Silver | Panel Mount | Solder Lug | - | 12.19mm |
|
|
56A36-01-1-08SSWITCH ROTARY 8POS 200MA 115V |
1,950 |
|
Datasheet |
56 | Bulk | Active | 8 | Fixed | 1 | 1 | SP8T | Shorting (MBB) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Brass | Silver | Panel Mount | Solder Lug | - | 12.19mm |
|
|
56A36-01-1-10S-CSWITCH ROTARY 10POS 200MA 115V |
2,574 |
|
Datasheet |
56 | Bulk | Active | 10 | Continuous | 1 | 1 | SP10T | Shorting (MBB) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Brass | Silver | Panel Mount | Solder Lug | - | 12.19mm |
|
|
56A36-01-1-10S-FSWITCH ROTARY 10POS 200MA 115V |
2,022 |
|
Datasheet |
56 | Bulk | Active | 10 | Fixed | 1 | 1 | SP10T | Shorting (MBB) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Brass | Silver | Panel Mount | Solder Lug | - | 12.19mm |
|

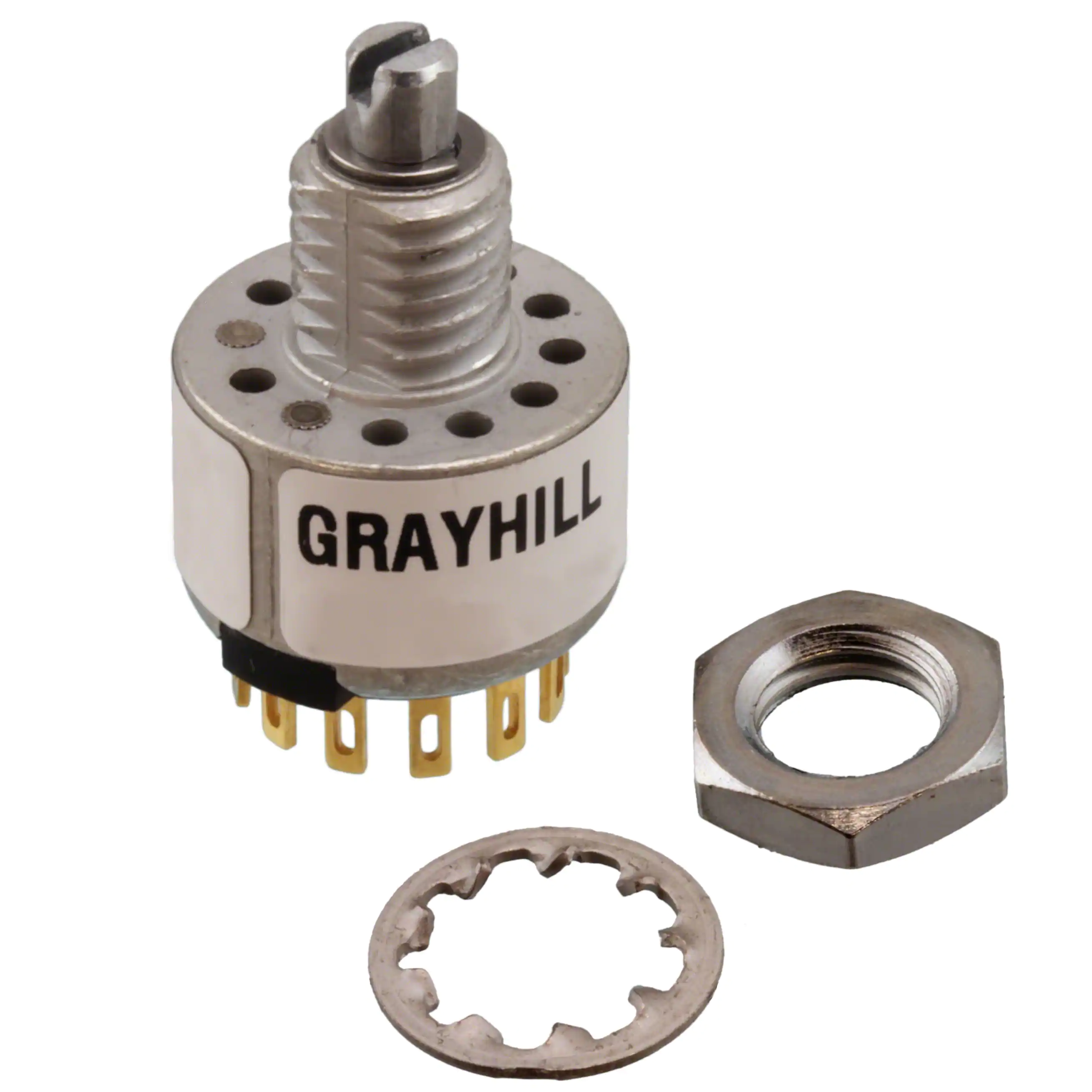

56B30-01-1-02NSWITCH ROTARY 2POS 200MA 115V |
1,388 |
|
Datasheet |
56 | Bulk | Active | 2 | Fixed | 1 | 1 | SPDT | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Screwdriver Slot | 3.18mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 12.19mm |
|
|
56B30-01-1-03NSWITCH ROTARY 3POS 200MA 115V |
3,872 |
|
Datasheet |
56 | Bulk | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Screwdriver Slot | 3.18mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 12.19mm |
|
|
56B30-01-1-06NSWITCH ROTARY 6POS 200MA 115V |
2,200 |
|
Datasheet |
56 | Bulk | Active | 6 | Fixed | 1 | 1 | SP6T | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Screwdriver Slot | 3.18mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 12.19mm |
|
|
56B30-01-1-12N-FSWITCH ROTARY 12POS 200MA 115V |
2,385 |
|
Datasheet |
56 | Bulk | Active | 12 | Fixed | 1 | 1 | SP12T | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Screwdriver Slot | 3.18mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 12.19mm |
|
|
56B36-01-1-10S-FSWITCH ROTARY 10POS 200MA 115V |
4,326 |
|
Datasheet |
56 | Bulk | Active | 10 | Fixed | 1 | 1 | SP10T | Shorting (MBB) | 200mA (AC/DC) | 115 V | 30 V | Screwdriver Slot | 3.18mm | 36° | Brass | Silver | Panel Mount | Solder Lug | - | 12.19mm |
|
|
56BP36-01-1-03NSWITCH ROTARY 3POS 200MA 115V |
1,474 |
|
Datasheet |
56 | Bulk | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Screwdriver Slot | 3.18mm | 36° | Brass | Silver | Panel Mount, Through Hole | PC Pin | - | 9.58mm |
|
|
56BP36-01-1-08NSWITCH ROTARY 8POS 200MA 115V |
1,391 |
|
Datasheet |
56 | Bulk | Active | 8 | Fixed | 1 | 1 | SP8T | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Screwdriver Slot | 3.18mm | 36° | Brass | Silver | Panel Mount, Through Hole | PC Pin | - | 9.58mm |
|
|
56BP36-01-1-10N-CSWITCH ROTARY 10POS 200MA 115V |
1,534 |
|
Datasheet |
56 | Bulk | Active | 10 | Continuous | 1 | 1 | SP10T | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Screwdriver Slot | 3.18mm | 36° | Brass | Silver | Panel Mount, Through Hole | PC Pin | - | 9.58mm |
|
|
56P36-01-1-02NSWITCH ROTARY 2POS 200MA 115V |
2,498 |
|
Datasheet |
56 | Bulk | Active | 2 | Fixed | 1 | 1 | SPDT | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Brass | Silver | Panel Mount, Through Hole | PC Pin | - | 9.58mm |
|
|
56P36-01-1-03NSWITCH ROTARY 3POS 200MA 115V |
2,887 |
|
Datasheet |
56 | Bulk | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Brass | Silver | Panel Mount, Through Hole | PC Pin | - | 9.58mm |
|
|
56P36-01-1-08NSWITCH ROTARY 8POS 200MA 115V |
1,944 |
|
Datasheet |
56 | Bulk | Active | 8 | Fixed | 1 | 1 | SP8T | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Brass | Silver | Panel Mount, Through Hole | PC Pin | - | 9.58mm |
|
A20642MNMCBESWITCH ROTARY 6POS 0.4VA 20V |
4,059 |
|
Datasheet |
A | Tray | Active | 6 | Fixed | 1 | 2 | DP6T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | Round (6mm Dia) | 42.00mm | 30° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | Modular Base | 14.48mm |
|
|
MC07L1NCGFROTARY SWITCHES ROTARY |
1,462 |
|
Datasheet |
M | Tray | Active | 7 | Fixed | 1 | 1 | SP7T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | Flatted (3.17mm Dia) | 10.16mm | 30° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | 14.22mm |
|
MB00L1NZGDSWITCH ROTARY 5POS 250MA 125V |
2,132 |
|
Datasheet |
M | Tray | Active | 5 | Continuous | 1 | 2 | DP5T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | 36° | Copper Alloy | Gold | Panel Mount | Solder Lug | - | 14.86mm |
