Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A10803MNCBFSWITCH ROTARY 8POS 0.4VA 20V |
2,837 |
|
Datasheet |
A | Tray | Active | 8 | Fixed | 1 | 1 | SP8T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | Splashproof Bushing Seal | 14.48mm |
|
|
A11003RNCBESWITCH ROTARY 10POS 0.4VA 20V |
4,862 |
|
Datasheet |
A | Tray | Active | 10 | Fixed | 1 | 1 | SP10T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | Epoxy Sealed Terminals | 14.48mm |
|
|
A20405RNZQESWITCH ROTARY 4POS 2.5A 125V |
2,798 |
|
Datasheet |
A | Tray | Active | 4 | Fixed | 1 | 2 | DP4T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Epoxy Sealed Terminals | 20.83mm |
|
A10503RNCQKSWITCH ROTARY 5POS 2.5A 125V |
2,405 |
|
Datasheet |
A | Bulk | Active | 5 | Fixed | 1 | 1 | SP5T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | Epoxy Sealed Terminals, Splashproof Bushing Seal | 14.48mm |
|
|
A20605RNMCBSWITCH ROTARY 6POS 0.4VA 20V |
2,630 |
|
Datasheet |
A | Tray | Active | 6 | Fixed | 1 | 2 | DP6T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | Modular Base | 14.48mm |
|
|
C5P0403N-RASWITCH ROTARY 2-3POS 1A 125V |
4,936 |
|
Datasheet |
C5 | Bulk | Active | 2 ~ 3 | Adjustable | 1 | 4 | 4P3T | Non-Shorting (BBM) | 1A (AC/DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 14.29mm | 30° | Brass | Silver | Panel Mount, Through Hole | PC Pin | Sealed | 14.10mm |
|
|
A10603MNZQESWITCH ROTARY 6POS 2.5A 125V |
3,792 |
|
Datasheet |
A | Bulk | Active | 6 | Fixed | 1 | 1 | SP6T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Epoxy Sealed Terminals | 19.18mm |
|
|
A20303RNZQKSWITCH ROTARY 3POS 2.5A 125V |
3,151 |
|
Datasheet |
A | Tray | Active | 3 | Fixed | 1 | 2 | DP3T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Epoxy Sealed Terminals, Splashproof Bushing Seal | 20.83mm |
|
|
A20305RNCQKSWITCH ROTARY 3POS 2.5A 125V |
3,380 |
|
Datasheet |
A | Tray | Active | 3 | Fixed | 1 | 2 | DP3T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | Epoxy Sealed Terminals, Splashproof Bushing Seal | 14.48mm |
|
|
A11005MNCQKSWITCH ROTARY 10POS 2.5A 125V |
2,449 |
|
Datasheet |
A | Tray | Active | 10 | Fixed | 1 | 1 | SP10T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | Epoxy Sealed Terminals, Splashproof Bushing Seal | 14.48mm |
|
|
A30415RNZQESWITCH ROTARY 4POS 2.5A 125V |
1,105 |
|
Datasheet |
A | Tray | Active | 4 | Fixed | 1 | 3 | 3P4T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | 30° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Epoxy Sealed Terminals | 20.83mm |
|
|
A10315RSZGSWITCH ROTARY 3POS 2.5A 125V |
1,178 |
|
Datasheet |
A | Tray | Active | 3 | Fixed | 1 | 1 | SP3T | Shorting (MBB) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | 30° | Silver (Ag) | Gold | Panel Mount | Solder Lug | - | 20.83mm |
|
R20515RS02QESWITCH ROTARY 5POS 5A 125V |
3,879 |
|
Datasheet |
R | Bag | Active | 5 | Fixed | 1 | 2 | DP5T, Adjacent Contact | Non-Shorting (BBM) | 5A (AC), 500mA (DC) | 125 V | 125 V | Screwdriver Slot | Flush | 36° | Copper | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals | 10.29mm |
|
|
A304S1RNCQKSWITCH ROTARY 4POS 2.5A 125V |
1,577 |
|
Datasheet |
A | Tray | Active | 4 | Fixed | 1 | 3 | 3P4T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Screwdriver Slot | Flush | 30° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | Epoxy Sealed Terminals, Splashproof Bushing Seal | 14.48mm |
|
|
A10003RNCGRROTARY SWITCHES ROTARY |
3,352 |
|
Datasheet |
A | Tray | Active | 12 | Continuous | 1 | 1 | SP12T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver (Ag) | Gold | Panel Mount, Through Hole | PC Pin | - | 14.48mm |
|
|
A30305RNCQESWITCH ROTARY 3POS 2.5A 125V |
3,028 |
|
Datasheet |
A | Tray | Active | 3 | Fixed | 1 | 3 | 3P3T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | Epoxy Sealed Terminals | 14.48mm |
|
|
A11203RNZBSWITCH ROTARY 12POS 0.4VA 20V |
4,084 |
|
Datasheet |
A | Tray | Active | 12 | Fixed | 1 | 1 | SP12T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Copper Alloy | Gold | Panel Mount | Solder Lug | - | 20.83mm |
|
|
A12405MNZBSWITCH ROTARY 4POS 0.4VA 20V |
2,339 |
|
Datasheet |
A | Tray | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | Flatted (6.35mm Dia) | 12.70mm | 90° | Copper Alloy | Gold | Panel Mount | Solder Lug | - | 20.83mm |
|
|
A10003RNCQKSWITCH ROTARY 12POS 2.5A 125V |
2,440 |
|
Datasheet |
A | Bulk | Active | 12 | Continuous | 1 | 1 | SP12T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | Epoxy Sealed Terminals, Splashproof Bushing Seal | 14.48mm |
|

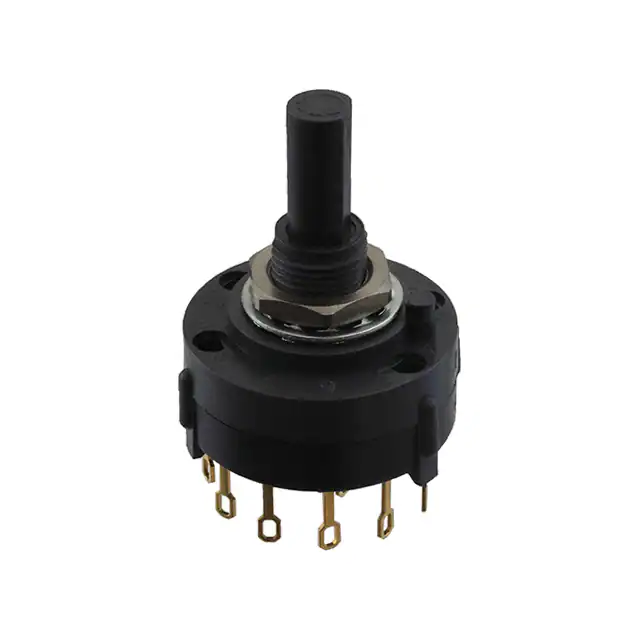

A10705RSZBSWITCH ROTARY 7POS 0.4VA 20V |
4,186 |
|
Datasheet |
A | Tray | Active | 7 | Fixed | 1 | 1 | SP7T | Shorting (MBB) | 0.4VA (AC/DC) | 20 V | 20 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Copper Alloy | Gold | Panel Mount | Solder Lug | - | 20.83mm |
