Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

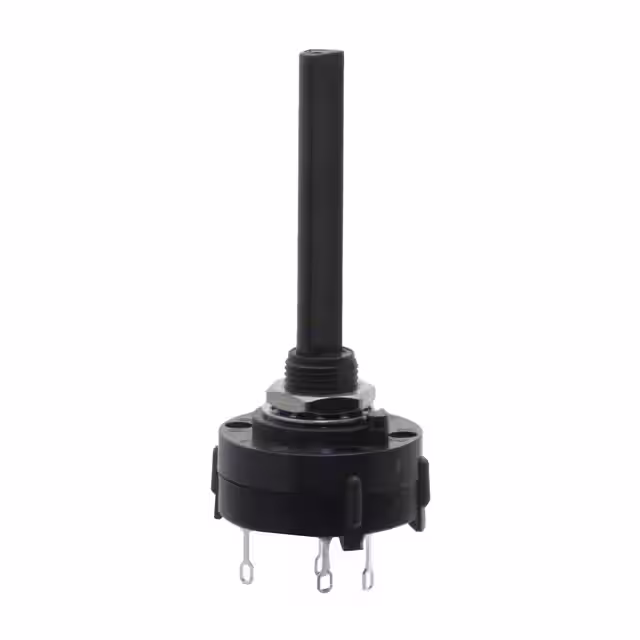

A11514RNZQSWITCH ROTARY 3POS 2.5A 125V |
3,525 |
|
Datasheet |
A | Tray | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | 45° | Silver (Ag) | Silver | Panel Mount | Solder Lug | - | 20.83mm |
|

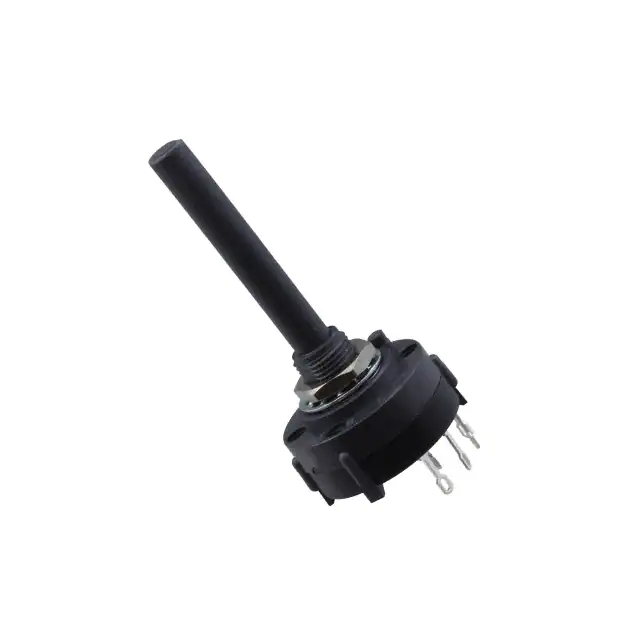

A10415RNZQSWITCH ROTARY 4POS 2.5A 125V |
2,173 |
|
Datasheet |
A | Tray | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | 30° | Silver (Ag) | Silver | Panel Mount | Solder Lug | - | 20.83mm |
|

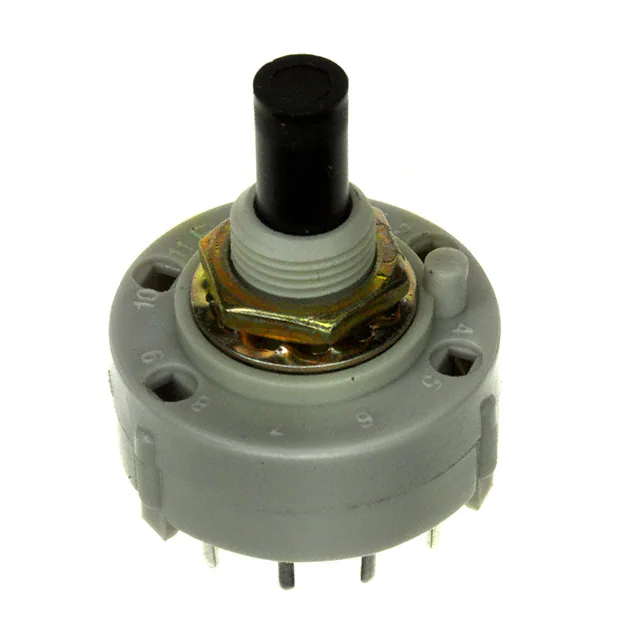

KC52B10.001NPSSWITCH ROTARY 12POS 350MA 125V |
4,358 |
|
Datasheet |
KC | Bulk | Active | 12 | Fixed | 1 | 1 | SP12T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Round (6mm Dia) | 10.00mm | 30° | Copper Alloy | Silver | Panel Mount, Through Hole | PC Pin | - | 14.20mm |
|
MC03L1NCGDSWITCH ROTARY 3POS 250MA 125V |
3,495 |
|
Datasheet |
M | Tray | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | 30° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | - | 10.42mm |
|

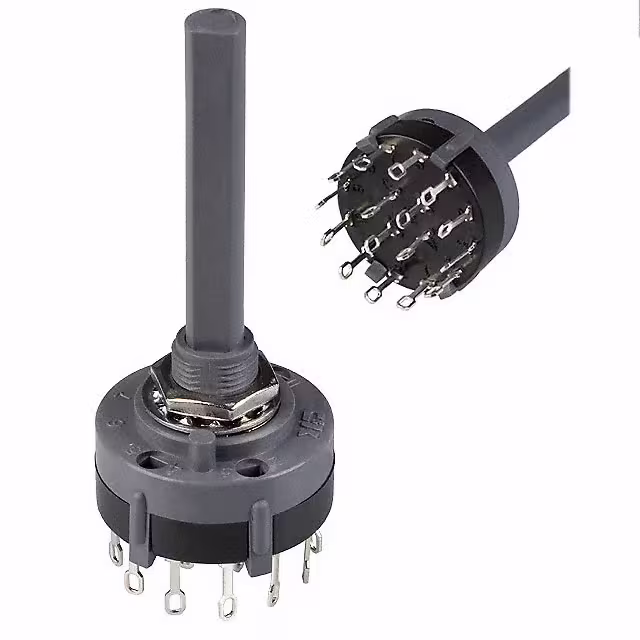

A40315RNZQSWITCH ROTARY 3POS 2.5A 125V |
1,216 |
|
Datasheet |
A | Tray | Active | 3 | Fixed | 1 | 4 | 4P3T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | 30° | Silver (Ag) | Silver | Panel Mount | Solder Lug | - | 20.83mm |
|
A20605RNCQKSWITCH ROTARY 6POS 2.5A 125V |
1,379 |
|
Datasheet |
A | Tray | Active | 6 | Fixed | 1 | 2 | DP6T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | Epoxy Sealed Terminals, Splashproof Bushing Seal | 14.48mm |
|
A20405RNCQKSWITCH ROTARY 4POS 2.5A 125V |
4,257 |
|
Datasheet |
A | Tray | Active | 4 | Fixed | 1 | 2 | DP4T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | Epoxy Sealed Terminals, Splashproof Bushing Seal | 14.48mm |
|

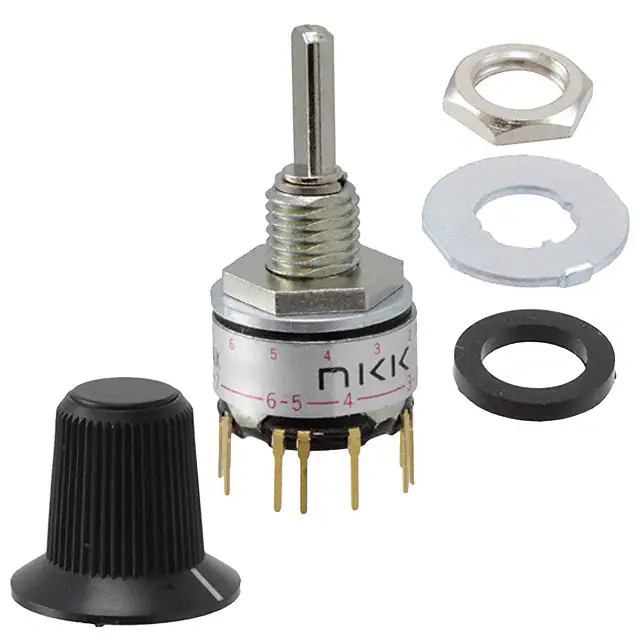

MRK112-BASWITCH ROTARY 2-12POS 0.4VA 28V |
2,400 |
|
Datasheet |
MR | Bulk | Active | 2 ~ 12 | Adjustable | 1 | 1 | SP12T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Knob | 14.30mm | 30° | Phosphor Bronze | Gold | Panel Mount, Through Hole | PC Pin | Process Sealed | 10.10mm |
|
MRX204-CASWITCH ROTARY 2-4POS 2A 125V |
3,833 |
|
Datasheet |
MR | Bulk | Active | 2 ~ 4 | Adjustable | 1 | 2 | DP4T | Non-Shorting (BBM) | 2A (AC), 1A (DC) | 125 V | 30 V | Knob | 15.80mm | 45° | Silver Alloy | - | Panel Mount, Through Hole | PC Pin | Sealed - Flux Protection | 27.30mm |
|
71AD36-01-1-AJNSWITCH ROTARY 2-10POS 250MA 115V |
2,866 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 10 | Adjustable | 1 | 1 | SP10T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Silver Alloy | - | Panel Mount | Solder Lug | - | 19.33mm |
|
71BDF36-01-1-AJNSWITCH ROTARY 2-10POS 250MA 115V |
2,127 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 10 | Adjustable | 1 | 1 | SP10T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 36° | Silver Alloy | - | Panel Mount, Through Hole, Right Angle | PC Pin | - | 19.33mm |
|
51P22-01-2-08NSWITCH ROTARY 8POS 150MA 115V |
3,679 |
|
Datasheet |
51 | Bulk | Active | 8 | Fixed | 1 | 2 | DP8T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 22.5° | - | Gold | Panel Mount, Through Hole | PC Pin | - | 13.64mm |
|

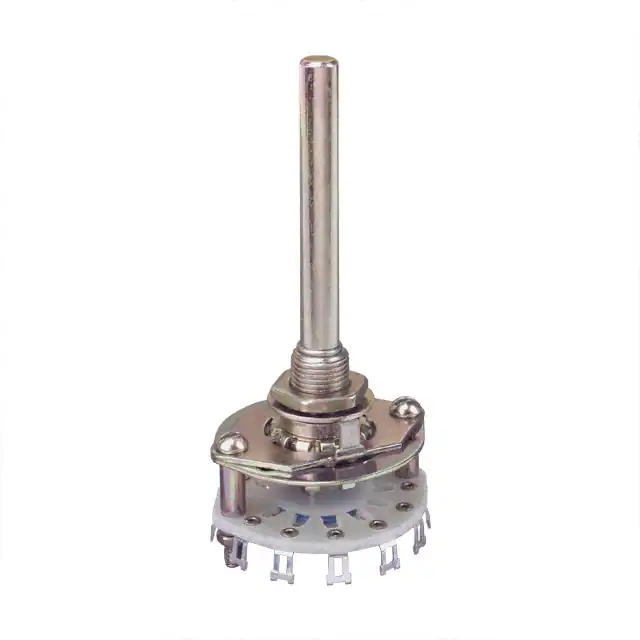

D4G0303NSWITCH ROTARY 2-3POS 500MA 115V |
3,340 |
|
Datasheet |
D4 | Bulk | Active | 2 ~ 3 | Adjustable | 1 | 3 | 3P3T | Non-Shorting (BBM) | 500mA (AC), 1.5A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 14.27mm |
|

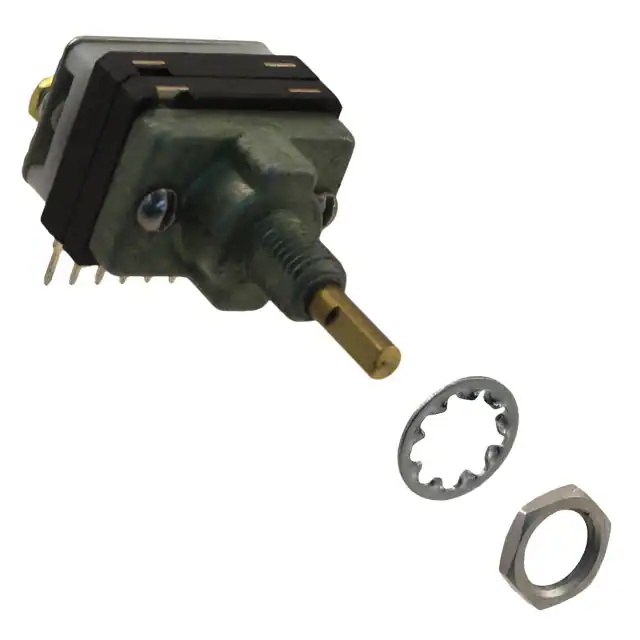

C2P0108N-ASWITCH ROTARY 2-8POS 100MA 125V |
2,027 |
|
Datasheet |
C2 | Bulk | Active | 2 ~ 8 | Adjustable | 1 | 1 | SP8T | Non-Shorting (BBM) | 100mA (AC), 250mA (DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 9.52mm | 30° | Brass | Silver | Panel Mount, Through Hole, Right Angle | PC Pin | - | 22.38mm |
|

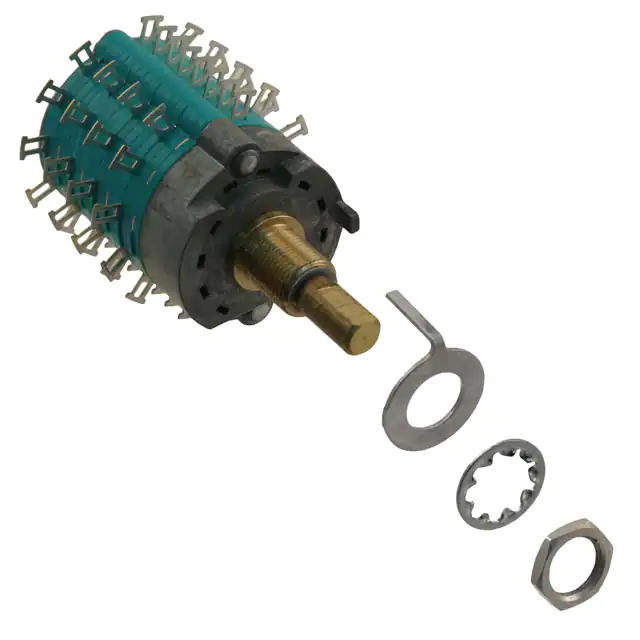

C4D0806N-ASWITCH ROTARY 2-6POS 300MA 125V |
1,041 |
|
Datasheet |
C4 | Bulk | Active | 2 ~ 6 | Adjustable | 4 | 2 | DP6T | Non-Shorting (BBM) | 300mA (AC), 500mA (DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 41.76mm |
|

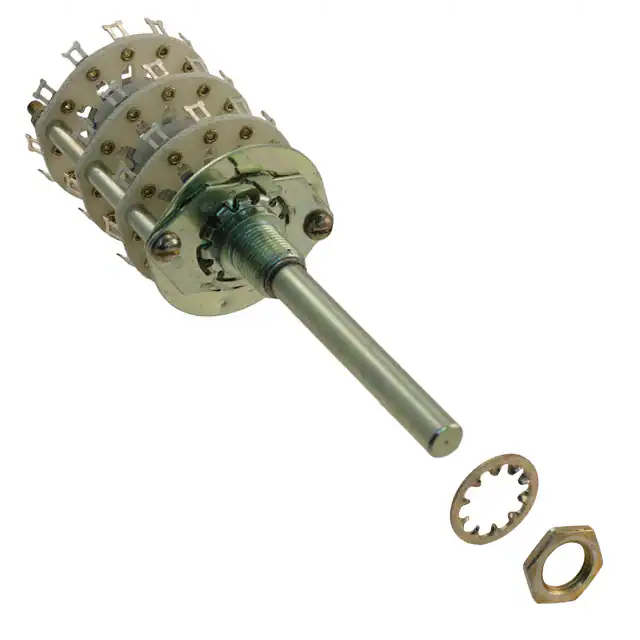

D4G0311NSWITCH ROTARY 2-11POS 500MA 115V |
1,824 |
|
Datasheet |
D4 | Bulk | Active | 2 ~ 11 | Adjustable | 3 | 1 | SP11T | Non-Shorting (BBM) | 500mA (AC), 1.5A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 42.82mm |
|

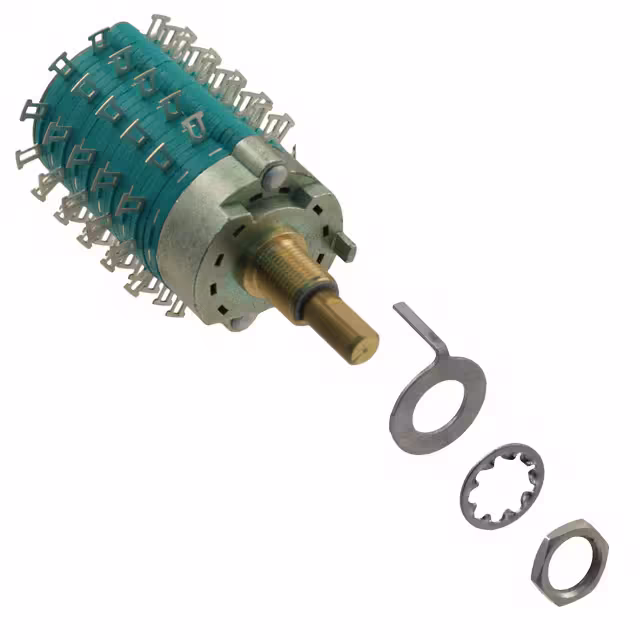

C4D1006N-ASWITCH ROTARY 2-6POS 300MA 125V |
4,995 |
|
Datasheet |
C4 | Bulk | Active | 2 ~ 6 | Adjustable | 5 | 2 | DP6T | Non-Shorting (BBM) | 300mA (AC), 500mA (DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 48.97mm |
|
C7D0223NSWITCH ROTARY 23POS 500MA 125V |
3,483 |
|
Datasheet |
C7 | Bulk | Active | 23 | Fixed | 2 | 1 | SP23T | Non-Shorting (BBM) | 500mA (AC), 1A (DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 14.29mm | 15° | Brass | Silver | Panel Mount | Solder Lug | - | 32.49mm |
|

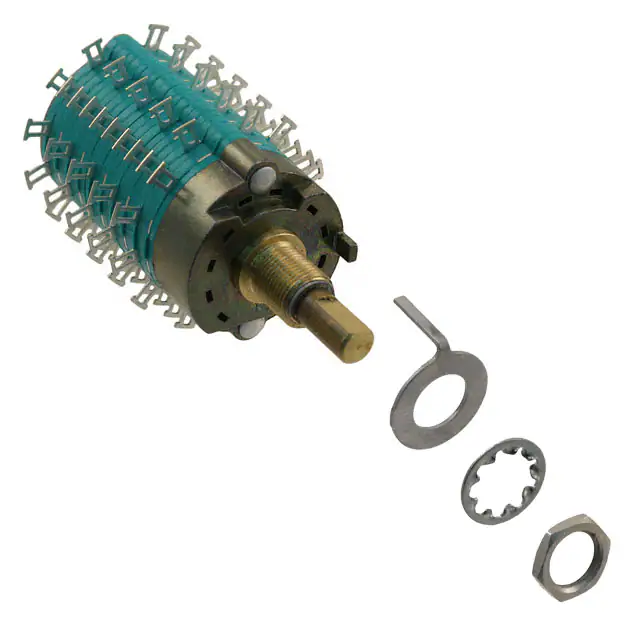

C4D1504N-ASWITCH ROTARY 2-4POS 300MA 125V |
2,505 |
|
Datasheet |
C4 | Bulk | Active | 2 ~ 4 | Adjustable | 5 | 3 | 3P4T | Non-Shorting (BBM) | 300mA (AC), 500mA (DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 48.97mm |
|

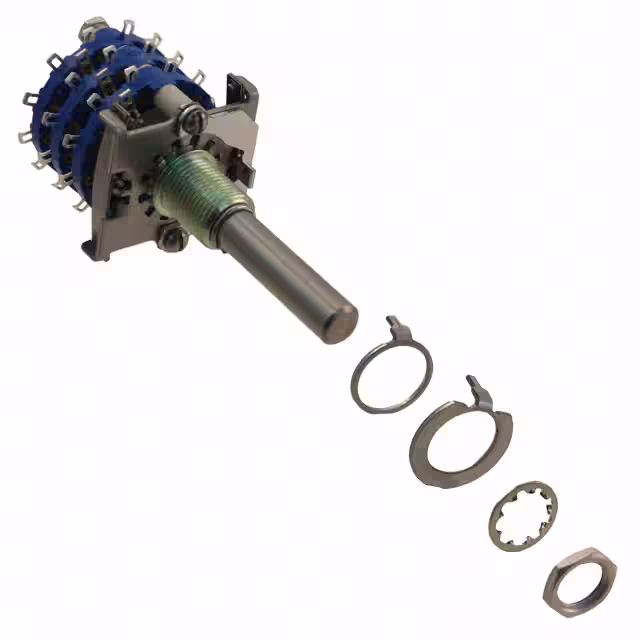

D2D0312NSWITCH ROTARY 2-12POS 250MA 115V |
3,647 |
|
Datasheet |
D2 | Bulk | Active | 2 ~ 12 | Adjustable | 3 | 1 | SP12T | Non-Shorting (BBM) | 250mA (AC), 550mA (DC) | 115 V | 28 V | Round (6.35mm Dia) | 25.40mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 24.69mm |
