RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HG5817Y-NF-1ANTYAGI 5.8GHZ 16.5DBI |
1,296 |
|
Datasheet |
HG | Bag | Active | General ISM, WiFi | SHF (f > 4GHz) | 5.775GHz | 5.725GHz ~ 5.825GHz | Yagi | 1 | 1.5 | - | 16.5dBi | 100 W | Cable - 254mm | N Type Female | - | - | - | Mast Mount | 13.600" (345.44mm) | 802.11a/n, ISM, UNII, WLAN |
|
|
GPS-TMG-26NMSCLGPS ANTENNA, 26DB, N-FEMALE W/MO |
3,493 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Dome | 1 | 1.5 | - | 3.5dBic | - | - | N Type Female | - | - | - | Bracket Mount | 5.000" (127.00mm) | GPS |
|
|
HG2408UR-NMANTOMNI 2.4GHZ 7.4DBI FLEX |
4,577 |
|
Datasheet |
HG | Bag | Active | Cellular, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 2 | - | 7.4dBi | 50 W | - | N Type Male | - | - | - | Connector Mount | 17.500" (444.50mm) | 802.11b/g, ISM, Wi-Fi, WLAN |
|
|
HG3510U-PRO3300-3800 MHZ 10 DBI OMNI ANTENN |
3,407 |
|
Datasheet |
HG | Bag | Active | Cellular | UHF (3GHz ~ 4GHz) | 3.55GHz | 3.3GHz ~ 3.8GHz | Whip, Straight | 1 | 2 | - | 10dBi | 100 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Mast Mount | 24.800" (629.92mm) | 5G, LTE |
|
|
1399.19.02251399.19.0225 |
2,303 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 780MHz, 1.94GHz, 2.495GHz | 698MHz ~ 862MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz | Dome | 3 | 1.8 | - | 2dBi, 5dBi, 3dBi | - | Cable - 1m | SMA Male | - | - | - | Panel Mount | 1.307" (33.20mm) | GNSS, LTE |
|
|
LCANKIT1014ANTOMNI 900MHZ 6DBI CARP-SMA M/N |
4,294 |
|
Datasheet |
LCAN | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 914MHz | 900MHz ~ 928MHz | Whip, Straight | 1 | - | - | 6dBi | - | Cable - 3.05m | RP-SMA Male | - | - | - | Bracket Mount | - | IoT, ISM, LoRa, LoRaWAN, LPWAN, M2M |
|
|
YEGM011AAGNSS L1/L2/L5 EXTERNAL ANTENNA W |
1,561 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.19GHz, 1.59GHz | 1.17GHz ~ 1.23GHz, 1.56GHz ~ 1.61GHz | Module | 2 | - | - | - | - | Cable - 4m | TNC Female | - | - | - | Magnetic, Threaded | 2.559" (65.00mm) | GLONASS, GNSS, GPS |
|
|
AN868-915A-1-IP67IP67 LORA ANTENNA, 15.3" (4.5 DB |
1,924 |
|
Datasheet |
MultiTech Conduit® IP67 | Bulk | Active | General ISM | - | - | - | - | - | - | - | 4.5dBi | - | - | - | IP67 | - | - | - | 15.300" (388.62mm) | LoRa |
|

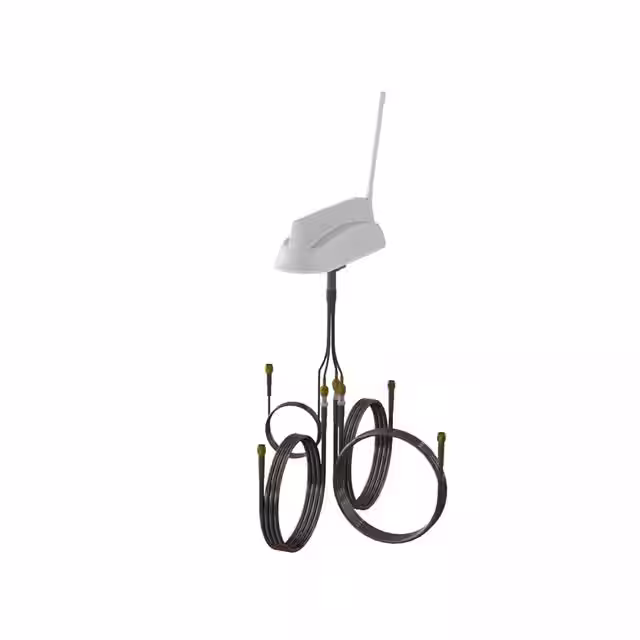

VFQ69383W2NJU-518SANT LOW PROFILE 4-PORT SHARKFIN |
1,721 |
|
Datasheet |
- | Bulk | Obsolete | Cellular, General ISM, Navigation | Wide Band | 450MHz, 752MHz, 859MHz, 920MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.785GHz, 1.92GHz, 2.045GHz, 2.4GHz, 2.6GHz, 3.55GHz | 380MHz ~ 520MHz, 698MHz ~ 806MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.69GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.91GHz ~ 2.18GHz, 2.3GHz ~ 2.5GHz, 2.5GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz | Dome | 13 | 1.9, 2, 2.1, 2.2, 2.4, 2.5 | - | 0.8dBi, 0.5dBi, -0.6dBi, 0.4dBi, 3.9dBi, 4.9dBi, 2.5dBi, 3.3dBi, 3.3dBi, 2.6dBi, 2.7dBi, 3.9dBi, 5.6dBi | 60 W | Cable - 4.9m, LNA | SMA Male (3) | IP67 | - | - | Panel Mount | 1.890" (48.00mm) | 3G, 4G, 5G, Beidou, GLONASS, GNSS, GPS, ISM, LTE |
|
|
FG1480RF ANT 150MHZ WHIP STR N FEM 68" |
3,936 |
|
Datasheet |
- | Bulk | Active | - | VHF (f < 300MHz) | 150MHz | 148MHz ~ 152MHz | Whip, Straight | 1 | 2 | - | 0dBd | 150 W | - | N Type Female | - | - | - | Bracket Mount | 68.000" (172.72cm) | - |
|

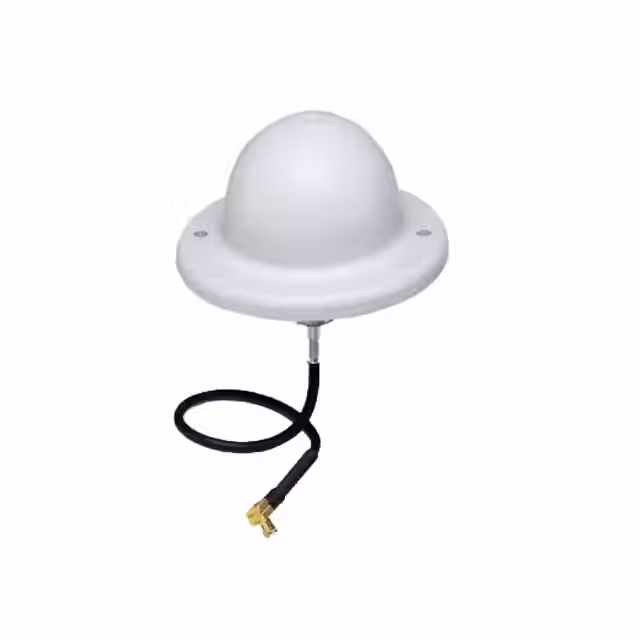

2885702RF ANT 2.4GHZ DOME MCX ML PNL MT |
4,909 |
|
Datasheet |
- | Bulk | Obsolete | - | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Dome | 1 | - | - | 3dBi | - | Cable - 1.5m | MCX Male | IP55 | - | - | Panel Mount | 1.693" (43.00mm) | - |
|
|
6001126HIGH GAIN DIRECTIONAL ANTENNA - |
3,739 |
|
Datasheet |
AirLink® - Accessory | Box | Obsolete | Cellular | UHF (2GHz ~ 3GHz) | 2.249GHz | 698MHz ~ 3.8GHz | Module | 1 | - | - | 6dBi, 9dBi | - | Cable - 5m | - | - | - | - | Chassis Mount | - | LTE |
|
|
EB4500RF ANT 481MHZ WHIP STR NMO BASE |
2,967 |
|
Datasheet |
- | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz) | 481MHz | 450MHz ~ 512MHz | Whip, Straight | 1 | 2 | - | 0dBi | 200 W | - | NMO | - | - | - | Base Mount | - | GSM |
|
|
16061.2GSM-ANTENNA |
2,618 |
|
Datasheet |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HG4964-16DP-654.9-5.9GHZ, 2-PORT, H/V POLARIZA |
3,192 |
|
Datasheet |
HG | Bag | Active | WiFi | SHF (f > 4GHz) | 5.15GHz, 5.65GHz, 6.15GHz | 4.9GHz ~ 5.4GHz, 5.4GHz ~ 5.9GHz, 5.9GHz ~ 6.4GHz | Sector | 1 | 1.5 | - | 17dBi | 100 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female (2) | - | - | - | Bracket Mount | 2.690" (68.33mm) | 802.11n, WiMax™, WLAN |
|
|
9112138891121388 |
3,104 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 392.5MHz | 380MHz ~ 405MHz | Dome | 1 | 2 | - | 2dBi | - | - | N Type Female | IP30 | - | - | Panel Mount | 3.031" (77.00mm) | General Purpose |
|
|
FMANKIT1014ANTENNA KIT 6 DBI 10 FT LOW LOSS |
4,947 |
|
Datasheet |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 914MHz | 900MHz ~ 928MHz | Whip, Straight | 1 | 1.5 | - | 6dBi | 50 W | Cable - 3.05m | N Type Female | - | - | - | Bracket Mount | 39.764" (1010.00mm) | IoT, ISM, LoRa, LoRaWAN, LPWAN, M2M |
|

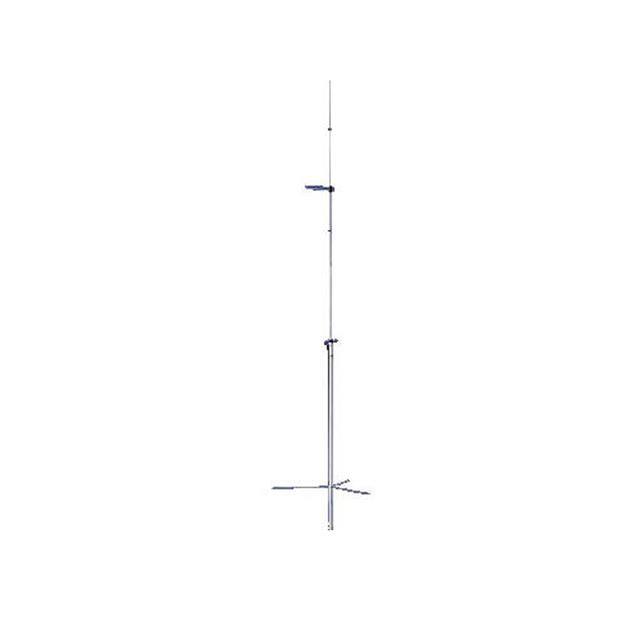

CRX450BRF ANT 460MHZ WHIP STR UHF FEM |
2,423 |
|
Datasheet |
- | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Whip, Straight | 1 | 1.5 | - | 7dBi | 500 W | - | UHF Female | - | - | - | Bracket Mount | 54.000" (137.16cm) | - |
|

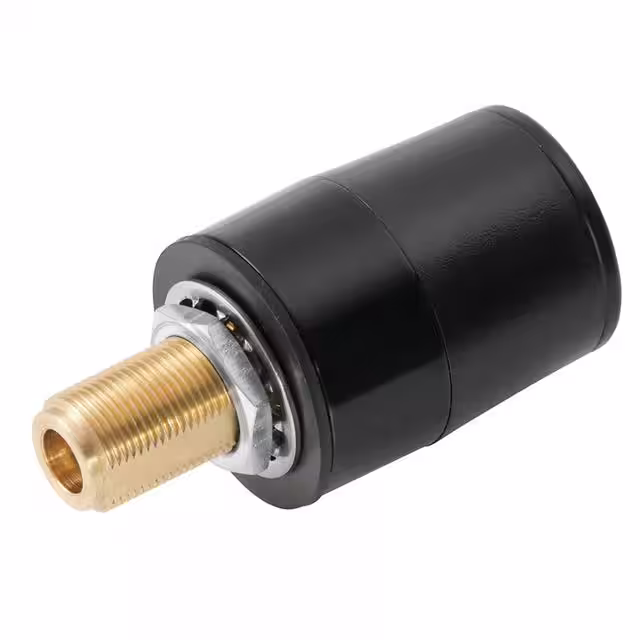

1491170000IE-ANT-3G-806-2500-4-NF |
4,274 |
|
Datasheet |
- | Bulk | Active | Cellular, WiFi | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 883MHz, 2.105GHz | 806MHz ~ 960MHz, 1.71GHz ~ 2.5GHz | Panel | 2 | - | - | 3dBi, 4dBi | 100 W | - | N Type Female | IP66 | - | - | Screw Mount | 1.890" (48.00mm) | GSM, UMTS, WLAN |
|
|
ANT-MD24-12RF ANT 2.4GHZ PANEL N FEM BRKT |
1,101 |
|
Datasheet |
- | Bulk | Obsolete | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483GHz | Panel | 1 | 1.5 | - | 12dBi | 100 W | - | N Type Female | - | - | - | Bracket Mount | 4.016" (102.00mm) | WLAN |
