RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AETC01M02XS-SSLTE 4G/5G & WI-FI 6E WHIP ANTENN |
297 |
|
Datasheet |
AETC | Bag | Active | 802.15.4, Bluetooth, Cellular, WiFi | Wide Band | 788.5MHz, 2.071GHz, 4.575GHz, 6.5GHz | 617MHz ~ 960MHz, 1.452GHz ~ 2.69GHz, 3.3GHz ~ 5.85GHz, 5.85GHz ~ 7.15GHz | Whip, Straight | 4 | 2.5, 2, 2, 2.5 | 12dB | 1dBi, 4dBi, 3dBi, 3dBi | 500 mW | Cable - 1.5m | SMA Male | - | - | - | Surface Mount | 0.213" (5.40mm) | 4G, 5G, Bluetooth, LTE, Wi-Fi, WLAN, Zigbee™ |
|
|
ST0543-00-406-URF ANTENNA ACTIVE GNSS PATCH 157 |
533 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz | Ceramic Patch | 2 | - | -10dB | -5.5dBi, -2dBi | - | Cable - 214mm, LNA | I-PEX MHF1 | - | - | - | - | 0.252" (6.40mm) | GLONASS, GNSS, GPS |
|
|
YCGA013AAGNSS L1/L5 PATCH ANTENNA, 45 MM |
998 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.18GHz, 1.59GHz | 1.17GHz ~ 1.19GHz, 1.56GHz ~ 1.61GHz | Ceramic Patch | 2 | - | - | - | - | - | - | - | - | - | - | 0.394" (10.00mm) | GNSS |
|
|
L000618-03ANTENNA LTE VDP ADHESIVE BK 3M S |
999 |
|
Datasheet |
- | Bag | Active | Cellular, General ISM, Navigation, WiFi | Wide Band | 657.5MHz, 750.5MHz, 875.5MHz, 1.581GHz, 1.955GHz, 2.35GHz, 2.442GHz, 2.593GHz, 3.55GHz, 3.625GHz, 3.95GHz, 4.965GHz | 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 960MHz, 1.553GHz ~ 1.609GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.4GHz ~ 2.485GHz, 2.496GHz ~ 2.69GHz, 3.3GHz ~ 3.7GHz, 3.55GHz ~ 3.8GHz, 3.7GHz ~ 4.2GHz, 4. | Flat Bar | 12 | 1.3, 1.4, 1.5, 1.6, 1.7, 2.2, 2.5 | - | 4.2dBi, 4.9dBi, 4.9dBi, 4.2dBi, 3.9dBi, 1.8dBi, 4.5dBi, 4.5dBi, 1.3dBi, 0dBi, -0.6dBi, -3.3dBi | 10 W | Cable - 3m | SMA Male | IP67 | - | - | Adhesive | 0.340" (8.64mm) | 5G, CBRS, IoT, ISM, GNSS, GPS, LTE, Wi-Fi, UMTS |
|
|
DBA6171C2-BSMAMDIPOLE,SMAM,SWIVEL,617-7125MHZ,I |
119 |
|
Datasheet |
- | Box | Active | Cellular | Wide Band | 657.5MHz, 829MHz, 1.516GHz, 1.955GHz, 2.5GHz, 3.75GHz, 5.575GHz | 617MHz ~ 698MHz, 698MHz ~ 960MHz, 1.427GHz ~ 1.606GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz, 5.15GHz ~ 6GHz | Whip, Straight | 7 | 2, 2.3, 2.5, 3.5 | - | 0dBi, 1dBi, 1dBi, 2.1dBi, 2.1dBi, 3.9dBi, 4.4dBi | 5 W | - | SMA Male | - | - | - | Connector Mount | 7.244" (184.00mm) | 4G, 5G, LTE |
|
|
DBA6171C1-BSMAMDIPOLE,SMAM,SWIVEL,617-7125MHZ,I |
119 |
|
Datasheet |
- | Box | Active | Cellular | Wide Band | 657.5MHz, 829MHz, 1.516GHz, 1.955GHz, 2.5GHz, 3.75GHz, 5.575GHz | 617MHz ~ 698MHz, 698MHz ~ 960MHz, 1.427GHz ~ 1.606GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz, 5.15GHz ~ 6GHz | Whip, Straight | 7 | 2, 2.3, 2.5, 3.5 | - | 0dBi, 1dBi, 1dBi, 2.1dBi, 2.1dBi, 3.9dBi, 4.4dBi | 5 W | - | SMA Male | - | - | - | Connector Mount | 7.244" (184.00mm) | 4G, 5G, LTE |
|
|
2195892-1ANTENNA EXTERNAL 433MHZ SGL BAND |
2,969 |
|
Datasheet |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | 423MHz ~ 443MHz | Whip, Right Angle | 1 | 3.1 | - | -3.5dBi | 10 W | - | SMA Female | - | - | - | Chassis Mount | 1.850" (47.00mm) | ISM |
|
|
X1005800-W5DRMBEXTERNAL OUTDOOR WI-FI 6E/7 ANTE |
996 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Whip, Tilt | 3 | 1.4, 1.7, 2.1 | - | 4dBi, 5.3dBi, 5.6dBi | 2 W | - | RP-SMA | IPX7 | - | - | Connector Mount | 6.433" (163.40mm) | Bluetooth, IoT, M2M, Wi-Fi, WLAN, ZigBee™ |
|

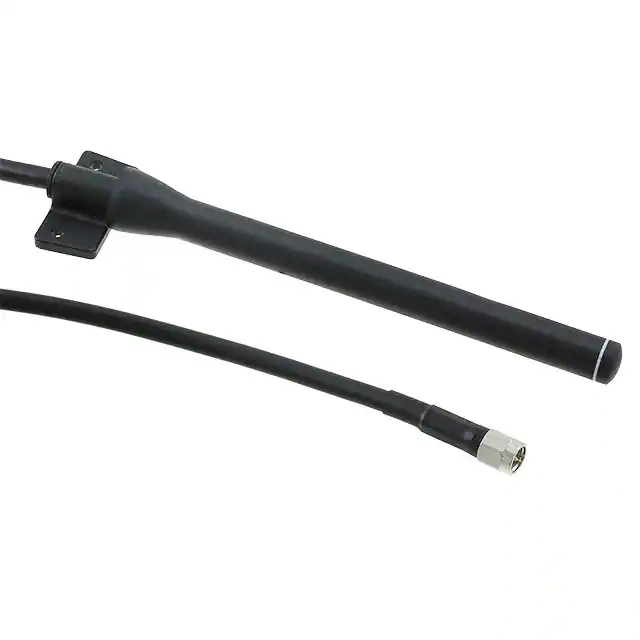

ANT-868-ID-1000-SMARF ANT 868MHZ WHIP STR BRKT 1M |
199 |
|
Datasheet |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 848MHz ~ 898MHz | Whip, Straight | 1 | 1.9 | - | 0.6dBi | - | Cable - 1m | SMA Male | IP67 | - | - | Bracket Mount | 4.906" (124.60mm) | ISM, LoRa, Sensor Networks, SigFox |
|
|
FXUB50.A.07.C.001WIDE BAND FLEX 4X4 MIMO ANTENNA |
498 |
|
Datasheet |
- | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
APARC1807A-SG3RF ANT 1561/1575/1602MHZ PATCH |
416 |
|
Datasheet |
APAR | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.561GHz ~ 1.602GHz | Ceramic Patch | 1 | 2 | - | -6.5dBi, -6.5dBi, -6.0dBi | - | Cable - 68mm | I-PEX | - | - | - | Surface Mount | 0.299" (7.60mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
|
ST1228-30-501-ARF ANTENNA EXTERNAL WI-FI6/6E 24 |
932 |
|
Datasheet |
- | Box | Active | WiFi | Wide Band | 2.45GHz, 5.4875GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.825GHz, 5.925GHz ~ 7.125GHz | Whip, Right Angle | 3 | - | -10dB, -5dB | 2.5dBi, 4dBi, 4.2dBi | 1 W | - | RP-SMA | IP67 | - | - | Connector Mount | 4.870" (123.70mm) | Wi-Fi |
|
|
AEMF3108A-FANTENNA WIFI 6E EXTERNAL DOME |
294 |
|
Datasheet |
- | Bag | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz, 6.53GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.93GHz ~ 7.13GHz | Dome | 3 | 2 | - | 3dBi, 6dBi, 5dBi | - | Cable - 200mm | N Type Female | - | - | - | Panel Mount | 3.150" (80.00mm) | 802.11b/be/g/n/ac/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
ASGPDF254.AACTIVE DUAL FEED GNSS L1 SMD PAT |
182 |
|
Datasheet |
- | Bulk | Active | Navigation | Wide Band | 1.561GHz, 1.575GHz, 1.603GHz | - | Ceramic Patch | 3 | - | -10dB | 1.23dBi, 4.36dBi, 3.55dBi | - | LNA, Filter | Solder | - | - | - | Surface Mount | 0.252" (6.40mm) | BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS |
|
|
9003212GPS L1/L5 25X25X11.9MM ACTIVE CE |
400 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AEMF3108X-FLTE 5G WIDEBAND EXTERNAL DOME AN |
125 |
|
Datasheet |
AEMF | Bag | Active | Cellular/LTE | Wide Band | 788.5MHz, 2.05GHz, 3.85GHz, 5.2GHz | 617MHz ~ 6GHz | Dome | 4 | 3 | - | 1.9dBi, 5.3dBi, 6.9dBi, 5.4dBi | 5 W | - | NF(BH) | IP67 | - | - | Screw Mount | 3.150" (80.00mm) | 5G, LTE-M, Cat M, Cat M1, NB-IoT, IOT, CBRS |
|
|
GSA.8842.A.105111GSA.8842.A.105111 WIDEBAND 5G/4G |
176 |
|
Datasheet |
- | Bulk | Active | Cellular, General ISM, Navigation, WiFi | Wide Band | 657.5MHz, 829MHz, 1.5885GHz, 1.85GHz, 2.045GHz, 2.45GHz, 2.6GHz, 5.375GHz | 617MHz ~ 698MHz, 698MHz ~ 960MHz, 1.565GHz ~ 1.612GHz, 1.71GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 2.5GHz ~ 2.7GHz, 4.9GHz ~ 5.85GHz | Module | 8 | 3 | - | -1.9dBi, -1.75dBi, -5.76dBi, -1.67dBi, -1.73dBi, -1.91dBi, -1.79dBi, -2.79dBi | 5 W | Cable - 1m | SMA Male | IP65 | - | - | Adhesive | 0.535" (13.60mm) | 3G, 4G, 5G, GPS, ISM, Wi-Fi |
|
|
APKG5012GD-0100CANTENNA ACTIVE GNSS STACKED PATC |
311 |
|
Datasheet |
APK | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.18GHz, 1.21GHz, 1.56GHz, 1.58GHz, 1.6GHz | 1.6GHz ~ 1.61GHz | Ceramic Patch | 5 | 2 | - | 3.5dBi, 4dBi | - | Cable - 105mm, LNA | SMA Male | - | - | - | Surface Mount | 0.654" (16.60mm) | Beidou, Galileo, GLONASS, GNSS, GPS, IRNSS, NavIC, QZSS, SBAS |
|
APARC2511X-SG3L5ANTENNA ACTIVE GNSS STACKED PATC |
360 |
|
Datasheet |
APAR | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.561GHz, 1.575GHz, 1.602GHz | 1.166GHz ~ 1.186GHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.594GHz ~ 1.61GHz | Ceramic Patch | 4 | 2 | - | -2dBi, 0dBi, 2dBi, -2dBi | - | Cable - 100mm, LNA | I-PEX | - | - | - | Surface Mount | 0.512" (13.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
|
X9001492-GNDNMWGPS/GLONASS ACTIVE EXTERNAL ANTE |
1,021 |
|
Datasheet |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | - | Dome | 2 | 2 | - | 26.8dBi, 30dBi | - | LNA | N Type Male | IP67 | - | - | Screw | 1.870" (47.50mm) | GLONASS, GPS |
