Reed Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H12-1B83RELAY REED 3A 12V |
2,561 |
|
Datasheet |
H | Bag | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 3 A | 7500VAC, 7500VDC - Max | 66.7 mA | Non Latching | - | PC Pin | - | 8.4 VDC | 1 VDC | 3 ms | 1.5 ms | -20°C ~ 70°C | - |
|
|
SIL24-1A75-71LREED RELAY SPST 0.5A 24V |
1,182 |
|
Datasheet |
SIL | Bag | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 500VAC, 500VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 16.8 VDC | 3.6 VDC | 0.7 ms | 0.1 ms | -20°C ~ 70°C | - |
|
|
MSS21A05RELAY REED SPST 2A 5V THRU-HOLE |
1,227 |
|
Datasheet |
MSS2 | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 2 A | 500VAC, 500VDC - Max | 35.7 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.5 VDC | 1.2 ms | 1 ms | -38°C ~ 75°C | - |
|
|
MSS21A05BRELAY REED SPST 2A 5V THRU-HOLE |
1,590 |
|
Datasheet |
MSS2 | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 2 A | 500VAC, 500VDC - Max | 35.7 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.5 VDC | 1.2 ms | 1 ms | -38°C ~ 75°C | - |
|

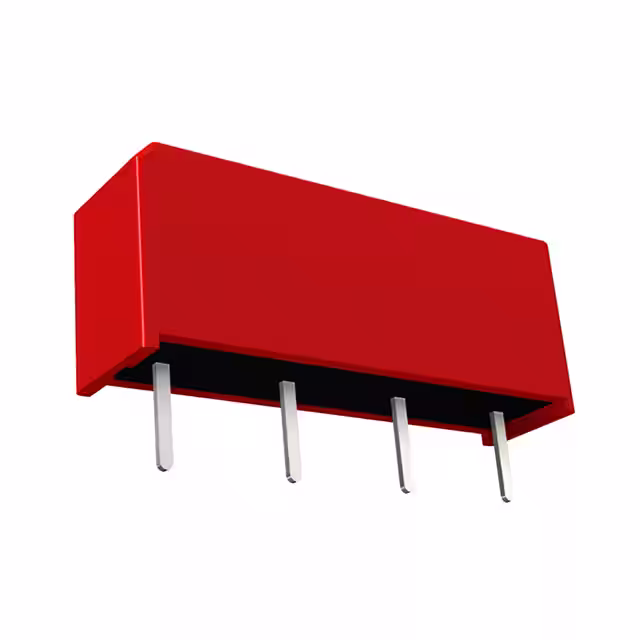

9006-05-00RELAY REED SPST 500MA 5V |
3,268 |
|
Datasheet |
9006 | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 10 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 3.75 VDC | 0.4 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C | - |
|
|
9006-05-01RELAY REED SPST 500MA 5V |
2,572 |
|
Datasheet |
9006 | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 10 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | 3.75 VDC | 0.4 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C | - |
|
|
9006-12-00RELAY REED SPST 500MA 12V |
2,056 |
|
Datasheet |
9006 | Tube | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 12 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 9 VDC | 1 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C | - |
|
1-1393771-5JWD-171-23=REED RELAYS |
1,566 |
|
Datasheet |
JWD | Box | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 100VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 9.6 VDC | 1 VDC | 1.5 ms | 0.5 ms | -35°C ~ 85°C | Ruthenium (Ru) |
|
|
1380-12-01RELAY REED |
4,660 |
|
Datasheet |
- | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
7001-5312RELAY REED |
1,605 |
|
Datasheet |
- | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
7002-5247RELAY REED |
1,043 |
|
Datasheet |
- | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9000-0170RELAY REED |
3,403 |
|
Datasheet |
- | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9090-0037RELAY REED |
4,885 |
|
Datasheet |
- | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9000-0332RELAY REED |
1,218 |
|
Datasheet |
- | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9104-0023RELAY REED |
2,435 |
|
Datasheet |
- | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2902-12-321RELAY 12VOLT 1 FORM A |
3,521 |
|
Datasheet |
- | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2200-2314-05RELAY REED 2000 |
1,300 |
|
Datasheet |
- | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9012-0006RELAY REED |
2,937 |
|
Datasheet |
- | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1240-0117RELAY REED |
1,786 |
|
Datasheet |
- | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9300-0019RELAY REED |
3,121 |
|
Datasheet |
- | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
