Reed Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7142-05-1011RELAY REED DPDT 250MA 5V |
3,531 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 5VDC | DPDT (2 Form C) | 250 mA | 150VAC, 150VDC - Max | 77 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 3.75 VDC | 0.4 VDC | 2 ms | 2.5 ms | -20°C ~ 85°C | - |
|
|
7142-12-1100RELAY REED DPDT 250MA 12V |
3,300 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 12VDC | DPDT (2 Form C) | 250 mA | 150VAC, 150VDC - Max | 24.5 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 2 ms | 2.5 ms | -20°C ~ 85°C | - |
|
|
7142-12-1111RELAY REED DPDT 250MA 12V |
4,906 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 12VDC | DPDT (2 Form C) | 250 mA | 150VAC, 150VDC - Max | 24.5 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 9 VDC | 1 VDC | 2 ms | 2.5 ms | -20°C ~ 85°C | - |
|
|
7142-24-1010RELAY REED DPDT 250MA 24V |
1,631 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 250 mA | 150VAC, 150VDC - Max | 15.5 mA | Non Latching | Electrostatic Shield | PC Pin | - | 18 VDC | 2 VDC | 2 ms | 2.5 ms | -20°C ~ 85°C | - |
|
|
7143-05-1000RELAY REED 3PDT 250MA 5V |
4,439 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 5VDC | 3PDT (3 Form C) | 250 mA | 150VAC, 150VDC - Max | 90.9 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.4 VDC | 2 ms | 2.5 ms | -20°C ~ 85°C | - |
|
|
7143-05-1010RELAY REED 3PDT 250MA 5V |
4,301 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 5VDC | 3PDT (3 Form C) | 250 mA | 150VAC, 150VDC - Max | 90.9 mA | Non Latching | Electrostatic Shield | PC Pin | - | 3.75 VDC | 0.4 VDC | 2 ms | 2.5 ms | -20°C ~ 85°C | - |
|
|
7143-12-1000RELAY REED 3PDT 250MA 12V |
3,189 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 12VDC | 3PDT (3 Form C) | 250 mA | 150VAC, 150VDC - Max | 40 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 2 ms | 2.5 ms | -20°C ~ 85°C | - |
|
|
7143-12-1010RELAY REED 3PDT 250MA 12V |
2,041 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 12VDC | 3PDT (3 Form C) | 250 mA | 150VAC, 150VDC - Max | 40 mA | Non Latching | Electrostatic Shield | PC Pin | - | 9 VDC | 1 VDC | 2 ms | 2.5 ms | -20°C ~ 85°C | - |
|
|
7143-24-1011RELAY REED 3PDT 250MA 24V |
3,638 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 24VDC | 3PDT (3 Form C) | 250 mA | 150VAC, 150VDC - Max | 17.8 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 18 VDC | 2 VDC | 2 ms | 2.5 ms | -20°C ~ 85°C | - |
|
|
7150-05-1000RELAY REED SPST 500MA 5V |
3,068 |
|
Datasheet |
7000 | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 9.1 mA | Latching, Dual Coil | - | PC Pin | - | 3.75 VDC | - | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7150-05-1011RELAY REED SPST 500MA 5V |
3,425 |
|
Datasheet |
7000 | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 9.1 mA | Latching, Dual Coil | Diode, Electrostatic Shield | PC Pin | - | 3.75 VDC | - | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|

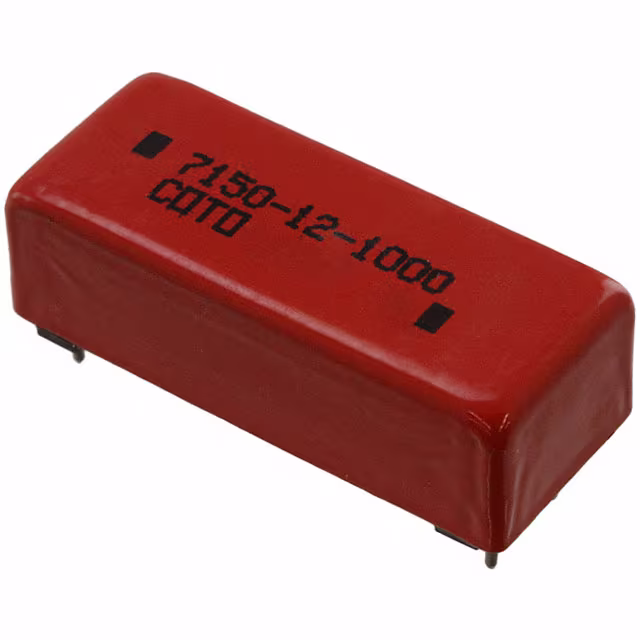

7150-12-1000RELAY REED SPST 500MA 12V |
2,922 |
|
Datasheet |
7000 | Tube | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 6.9 mA | Latching, Dual Coil | - | PC Pin | - | 9 VDC | - | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7160-24-1010RELAY REED DPST 500MA 24V |
3,336 |
|
Datasheet |
7000 | Tube | Obsolete | Through Hole | 24VDC | DPST-NO/NC (1 Form A, 1 Form B) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | Electrostatic Shield | PC Pin | - | 18 VDC | 2 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7201-12-1001RELAY REED SPST 1A 12V |
2,912 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 500VAC, 500VDC - Max | 26.7 mA | Non Latching | Diode | PC Pin | - | 9 VDC | 1 VDC | 2 ms | 1 ms | -20°C ~ 85°C | - |
|
|
7201-12-1011RELAY REED SPST 1A 12V |
3,556 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 500VAC, 500VDC - Max | 26.7 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 9 VDC | 1 VDC | 2 ms | 1 ms | -20°C ~ 85°C | - |
|
|
7201-12-1101RELAY REED SPST 1A 12V |
4,045 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 500VAC, 500VDC - Max | 26.7 mA | Non Latching | Diode | PC Pin | - | 9 VDC | 1 VDC | 2 ms | 1 ms | -20°C ~ 85°C | - |
|
|
7201-24-1000RELAY REED SPST 1A 24V |
4,555 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 500VAC, 500VDC - Max | 13.4 mA | Non Latching | - | PC Pin | - | 18 VDC | 2 VDC | 2 ms | 1 ms | -20°C ~ 85°C | - |
|
|
7201-24-1100RELAY REED SPST 1A 24V |
1,641 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 500VAC, 500VDC - Max | 13.4 mA | Non Latching | - | PC Pin | - | 18 VDC | 2 VDC | 2 ms | 1 ms | -20°C ~ 85°C | - |
|
|
7202-05-1010RELAY REED DPST 1A 5V |
1,541 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 5VDC | DPST-NO (2 Form A) | 1 A | 500VAC, 500VDC - Max | 83.3 mA | Non Latching | Electrostatic Shield | PC Pin | - | 3.75 VDC | 0.4 VDC | 2 ms | 1 ms | -20°C ~ 85°C | - |
|
|
7202-12-1000RELAY REED DPST 1A 12V |
1,781 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 12VDC | DPST-NO (2 Form A) | 1 A | 500VAC, 500VDC - Max | 35.2 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 2 ms | 1 ms | -20°C ~ 85°C | - |
