Reed Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DAT70515-HRRELAY REED SPST-NO 2A 5V |
3,830 |
|
Datasheet |
D-HR | Tray | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 2 A | 10000VAC, 10000VDC - Max | 313 mA | Non Latching | - | PC Pin | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
DAT70515FRELAY REED SPST-NO 2A 5V |
3,203 |
|
Datasheet |
DA | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 2 A | 10000VAC, 10000VDC - Max | 313 mA | Non Latching | - | PC Pin, Wire Leads | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
DAT70515PRELAY REED SPST-NO 2A 5V |
3,528 |
|
Datasheet |
DA | Tray | Active | Chassis Mount | 5VDC | SPST-NO (1 Form A) | 2 A | 10000VAC, 10000VDC - Max | 313 mA | Non Latching | - | Solder Turret | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
DAT71215TRELAY REED HV 15KV N/O 12VDC PCB |
3,029 |
|
Datasheet |
D | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 2 A | 1000VAC, 1000VDC - Max | 126.3 mA | Non Latching | - | PC Pin, Solder Turret | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|

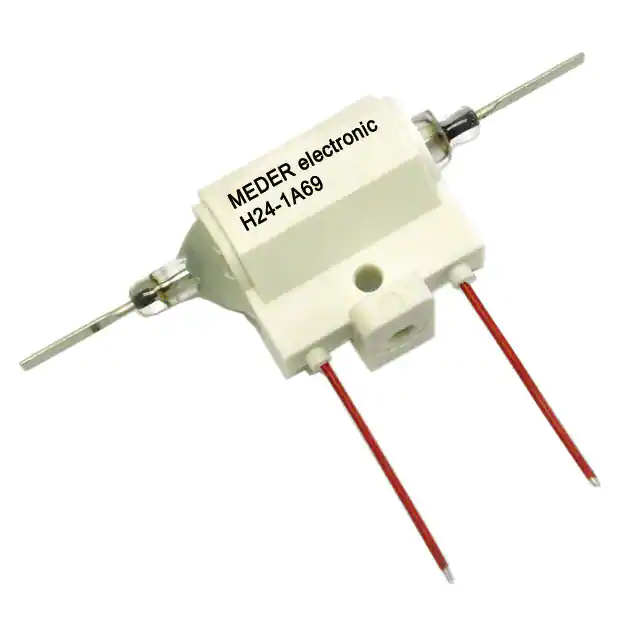

H24-1A69RELAY REED SPST 3A 24V |
3,562 |
|
Datasheet |
H | Bulk | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 3 A | 10000VAC, 10000VDC - Max | 34.3 mA | Non Latching | - | Wire Leads | - | 16.8 VDC | 3.6 VDC | 3 ms | 1.5 ms | -20°C ~ 70°C | - |
|
DAT72415F-HRRELAY REED SPST-NO 2A 24V |
3,724 |
|
Datasheet |
D-HR | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 2 A | 10000VAC, 10000VDC - Max | 68.6 mA | Non Latching | - | PC Pin, Wire Leads | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|

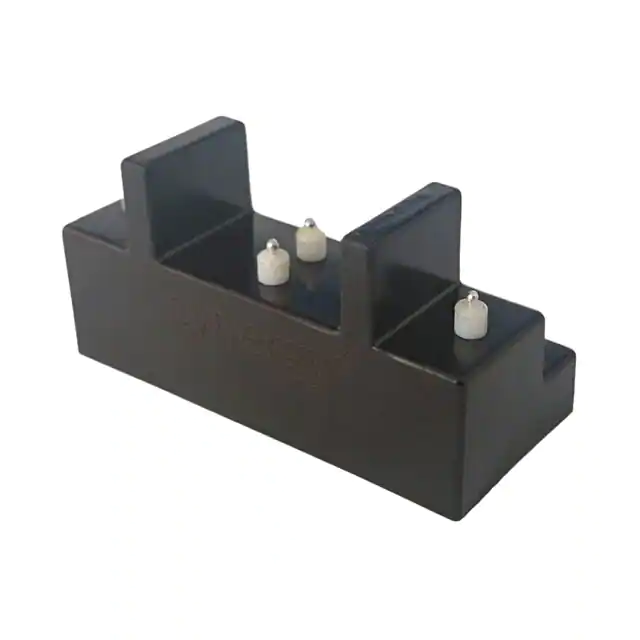

6HV1A100HV REED RELAY SPST NO 10KV 6V |
2,934 |
|
Datasheet |
XXHV | Bulk | Active | Chassis Mount | 6VDC | SPST-NO (1 Form A) | 3 A | 5000VDC - Max | 240 mA | Non Latching | - | Solder Turret | - | 5 VDC | 0.5 VDC | - | - | - | - |
|
|
B41-0011RELAY BGA ROHS STANDARD |
2,498 |
|
Datasheet |
B41 | Tape & Reel (TR) | Active | Surface Mount | 5VDC | 4PST-NO (4 Form A) | 250 mA | 125VAC, 125VDC - Max | 31.3 mA | Non Latching | - | BGA | - | 3.8 VDC | 0.4 VDC | 200 µs | 50 µs | -20°C ~ 85°C | - |
|
|
6HV1B100HV REED RELAY SPST NC 10KV 6V |
2,689 |
|
Datasheet |
XXHV | Bulk | Active | Chassis Mount | 6VDC | SPST-NC (1 Form B) | 3 A | 5000VDC - Max | 240 mA | Non Latching | - | Solder Turret | - | 5 VDC | 0.5 VDC | - | - | - | - |
|
|
787299-01RELAY REPLACEMENT KIT FOR COTO 9 |
4,953 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | Non Latching | - | - | - | - | - | - | - | - | - |
|
|
R1343L13REED RELAY 1NO/5000VDC/50W=121R2 |
3,698 |
|
Datasheet |
- | Box | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 200 mA | 5000VDC - Max | 20 mA | Non Latching | - | PC Pin | - | 17.6 VDC | 2 VDC | 4 ms | 0.5 ms | -25°C ~ 70°C | - |
|
|
R1329L87REED RELAY 1NO/7500VDC/50W=121R1 |
2,632 |
|
Datasheet |
- | Box | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 200 mA | 7500VDC - Max | 40 mA | Non Latching | - | PC Pin | - | 8.8 VDC | 1 VDC | 4 ms | 0.5 ms | -25°C ~ 70°C | - |
|
|
R1329L00REED RELAY 1NO/7500VDC/50W=121R1 |
1,067 |
|
Datasheet |
- | Box | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 200 mA | 7500VDC - Max | 40 mA | Non Latching | - | PC Pin | - | 8.8 VDC | 1 VDC | 4 ms | 0.5 ms | -25°C ~ 70°C | - |
|
|
R1343L00REED RELAY 1NO/7500VDC/50W=121R2 |
4,440 |
|
Datasheet |
- | Box | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 200 mA | 7500VDC - Max | 20 mA | Non Latching | - | PC Pin | - | 17.6 VDC | 2 VDC | 4 ms | 0.5 ms | -25°C ~ 70°C | - |
|
|
781678-01RELAY REPLACEMENT KIT FOR IM42PN |
1,998 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | Non Latching | - | - | - | - | - | - | - | - | - |
|
|
781450-10RELAY REPLACEMENT KIT FOR MS05-B |
3,672 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | Non Latching | - | - | - | - | - | - | - | - | - |
|
|
780386-01RELAY REPLACEMENT KIT FOR G6KU-2 |
3,364 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | Non Latching | - | - | - | - | - | - | - | - | - |
|
|
780383-01RELAY REPLACEMENT KIT FOR G6JU-2 |
4,808 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | Non Latching | - | - | - | - | - | - | - | - | - |
|
|
786914-01RELAY REPLACEMENT KIT,UMS05-BV51 |
4,945 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | Non Latching | - | - | - | - | - | - | - | - | - |
|
|
781089-10RELAY REPLACEMENT KIT FOR IM02PN |
1,302 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | Non Latching | - | - | - | - | - | - | - | - | - |
