Counters, Hour Meters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Operating Mode | Count Rate | Time Format | Number of Characters Per Row | Display Type | Display Characters - Height | Input Type | Output Type | Voltage - Supply | Reset | Panel Cutout Dimensions | Mounting Type | Termination Style | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H7CX-R11D1-N DC12-24/AC24TACHOMETER LCD 6 CHAR 24V PNL MT |
2,505 |
|
Datasheet |
H7CX | Bulk | Obsolete | Tachometer | Up | 30Hz, 10kHz | - | 6, 6 | LCD - Dual Color Characters, Backlight | 0.394" (10.00mm), 0.236" (6.00mm) | No Voltage, Voltage | Relay | 24VAC, 12 ~ 24VDC | Non-Resettable | Square - 45.00mm x 45.00mm | Panel Mount | Plug In, 11 Pin (Octal) | IP66 - Dust Tight, Water Resistant |
|
|
LGPB0200COUNTER LCD 8 CHAR 115/230V PNL |
3,726 |
|
Datasheet |
Legend+ | Box | Obsolete | Batch, Preset, Tachometer, Totalizer | Up, Down, Command, Individual, Quadrature | 15kHz | - | 8, 8 | LCD - Dual Color Characters, Backlight | 0.300" (7.62mm) | No Voltage, Voltage | Relay, Solid State | 115/230VAC, ±12VDC | Front Panel, Programmable | Square - 68.00mm x 68.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
H7BR-B-AC100-240COUNTER LCD 6 CHAR 100-240V PNL |
2,115 |
|
Datasheet |
H7BR | Bulk | Obsolete | Batch, Preset, Totalizer | Up, Down, Command, Individual, Quadrature | 30Hz, 1kHz, 5kHz, 10kHz | - | 6, 6 | LCD - Black Characters, Green Backlight | - | No Voltage, Voltage | Relay, Solid State | 100 ~ 240VAC | External, Front Panel, Programmable | Square - 68.00mm x 68.00mm | Panel Mount | Screw Terminal | IP54 - Dust Protected, Water Resistant |
|
|
H7BR-BV-30 AC100-240COUNTER LCD 6 CHAR 100-240V PNL |
2,396 |
|
Datasheet |
H7BR | Bulk | Obsolete | Batch, Preset, Totalizer | Up, Down, Command, Individual, Quadrature | 30Hz, 1kHz, 5kHz, 10kHz | - | 6, 6 | LCD - Black Characters, Green Backlight | - | Voltage | Relay, Solid State | 100 ~ 240VAC | External, Front Panel, Programmable | Square - 68.00mm x 68.00mm | Panel Mount | Screw Terminal | IP54 - Dust Protected, Water Resistant |
|
|
H7BR-BW-AC100-240COUNTER LCD 6 CHAR 100-240V PNL |
4,639 |
|
Datasheet |
H7BR | Bulk | Obsolete | Batch, Preset, Totalizer | Up, Down, Command, Individual, Quadrature | 30Hz, 1kHz, 5kHz, 10kHz | - | 6, 6 | LCD - Black Characters, Green Backlight | - | No Voltage, Voltage | Relay, Solid State | 100 ~ 240VAC | External, Front Panel, Programmable | Square - 68.00mm x 68.00mm | Panel Mount | Screw Terminal | IP54 - Dust Protected, Water Resistant |
|
|
K3HB-RNB 100-240VACCOUNTER LCD 5 CHAR 100-240V PNL |
3,007 |
|
Datasheet |
K3HB-R | Bulk | Active | Tachometer | Up | 50kHz | - | 5, 5 | LCD - Dual Color Characters, Backlight | 0.560" (14.20mm), 0.192" (4.90mm) | No Voltage, Voltage | Option Cards Available | 100 ~ 240VAC | External | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
K3HB-RNB 24VAC/VDCCOUNTER LCD 5 CHAR 24V PANEL MT |
4,117 |
|
Datasheet |
K3HB-R | Bulk | Active | Tachometer | Up | 50kHz | - | 5, 5 | LCD - Dual Color Characters, Backlight | 0.560" (14.20mm), 0.192" (4.90mm) | No Voltage, Voltage | Option Cards Available | 24VAC/DC | External | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
K3HB-PNB 100-240VACCOUNTER LCD 5 CHAR 100-240V PNL |
2,566 |
|
Datasheet |
K3HB-P | Bulk | Active | Time Counter | Up | 50kHz | - | 5, 5 | LCD - Dual Color Characters, Backlight | 0.560" (14.20mm), 0.192" (4.90mm) | No Voltage, Voltage | Option Cards Available | 100 ~ 240VAC | External | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
K3HB-RPB 100-240VACCOUNTER LCD 5 CHAR 100-240V PNL |
3,478 |
|
Datasheet |
K3HB-R | Bulk | Active | Tachometer | Up | 50kHz | - | 5, 5 | LCD - Dual Color Characters, Backlight | 0.560" (14.20mm), 0.192" (4.90mm) | No Voltage | Option Cards Available | 100 ~ 240VAC | External | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
K3HB-PNB 24VAC/VDCCOUNTER LCD 5 CHAR 24V PANEL MT |
4,694 |
|
Datasheet |
K3HB-P | Bulk | Active | Time Counter | Up | 50kHz | - | 5, 5 | LCD - Dual Color Characters, Backlight | 0.560" (14.20mm), 0.192" (4.90mm) | No Voltage, Voltage | Option Cards Available | 24VAC/DC | External | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|

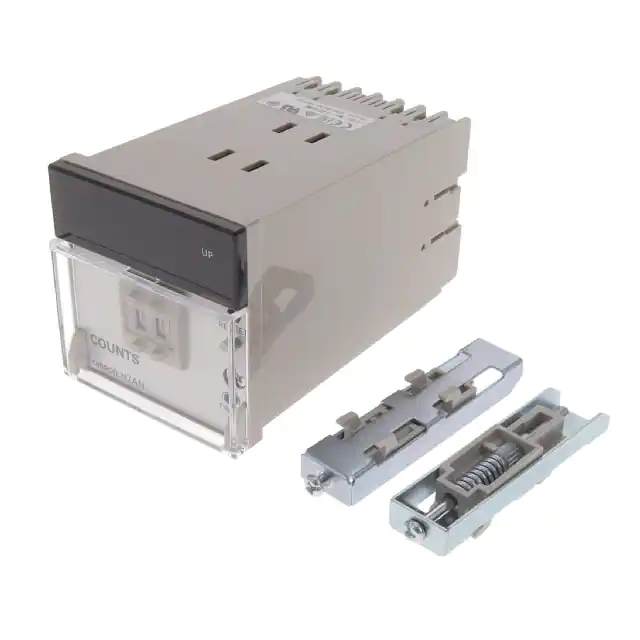

H7AN-2D DC12-24COUNTER LED 2 CHAR 12-24V PNL MT |
2,634 |
|
Datasheet |
H7AN | Bulk | Obsolete | Preset | Up, Down | 5kHz | - | 2 | LED - Red Characters | 0.394" (10.00mm) | No Voltage, Voltage | Relay, Solid State | 12 ~ 24VDC | External, Programmable | Square - 68.00mm x 68.00mm | Panel Mount | Screw Terminal | - |
|
|
K3HB-RPB 24VAC/VDCCOUNTER LCD 5 CHAR 24V PANEL MT |
4,036 |
|
Datasheet |
K3HB-R | Bulk | Active | Tachometer | Up | 50kHz | - | 5, 5 | LCD - Dual Color Characters, Backlight | 0.560" (14.20mm), 0.192" (4.90mm) | No Voltage | Option Cards Available | 24VAC/DC | External | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
K3HB-PPB 100-240VACCOUNTER LCD 5 CHAR 100-240V PNL |
1,098 |
|
Datasheet |
K3HB-P | Bulk | Active | Time Counter | Up | 50kHz | - | 5, 5 | LCD - Dual Color Characters, Backlight | 0.560" (14.20mm), 0.192" (4.90mm) | No Voltage | Option Cards Available | 100 ~ 240VAC | External | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
K3HB-PPB 24VAC/VDCCOUNTER LCD 5 CHAR 24V PANEL MT |
4,383 |
|
Datasheet |
K3HB-P | Bulk | Active | Time Counter | Up | 50kHz | - | 5, 5 | LCD - Dual Color Characters, Backlight | 0.560" (14.20mm), 0.192" (4.90mm) | No Voltage | Option Cards Available | 24VAC/DC | External | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
7940010243TACHOMETER LED 8 CHAR 24V PNL MT |
1,621 |
|
Datasheet |
Mann | Bulk | Obsolete | Tachometer, Totalizer | Up | 10kHz | - | 8 | LED - Red Characters | 0.283" (7.20mm) | Voltage | Solid State | 24VDC | External, Front Panel | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|

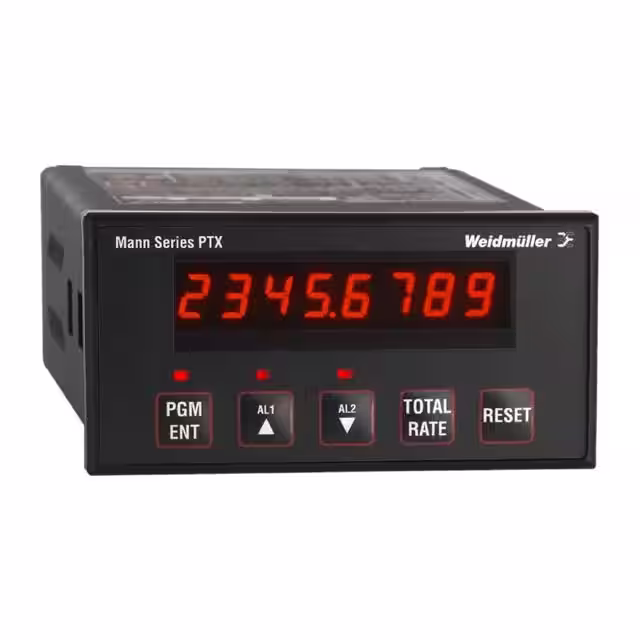

7940011133TACHOMETER LED 8 CHAR 24V PNL MT |
1,956 |
|
Datasheet |
Mann | Bulk | Obsolete | Tachometer, Totalizer | Up | 10kHz | - | 8 | LED - Red Characters | 0.283" (7.20mm) | No Voltage, Voltage | Solid State | 24VDC | External, Front Panel | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
K3HB-CNB 100-240VACCOUNTER LCD 5 CHAR 100-240V PNL |
3,919 |
|
Datasheet |
K3HB | Bulk | Active | Totalizer | Up, Down, Individual, Quadrature | 50kHz | - | 5, 5 | LCD - Dual Color Characters, Backlight | 0.560" (14.20mm), 0.192" (4.90mm) | No Voltage, Voltage | Option Cards Available | 100 ~ 240VAC | Front Panel, Programmable | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|

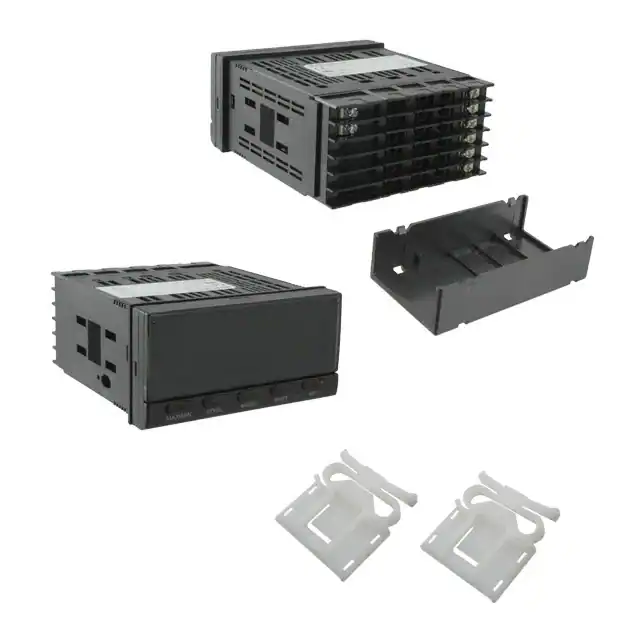

K3HB-CNB 24VAC/VDCCOUNTER LCD 5 CHAR 24V PANEL MT |
4,725 |
|
Datasheet |
K3HB | Bulk | Active | Totalizer | Up, Down, Individual, Quadrature | 50kHz | - | 5, 5 | LCD - Dual Color Characters, Backlight | 0.560" (14.20mm), 0.192" (4.90mm) | No Voltage, Voltage | Option Cards Available | 24VAC/DC | Front Panel, Programmable | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
H7BR-C-AC100-240COUNTER LCD 6 CHAR 100-240V PNL |
2,869 |
|
Datasheet |
H7BR | Bulk | Obsolete | Preset | Up, Down, Command, Individual, Quadrature | 30Hz, 1kHz, 5kHz, 10kHz | - | 6, 6 | LCD - Black Characters, Green Backlight | - | No Voltage, Voltage | Relay, Solid State | 100 ~ 240VAC | External, Front Panel | Square - 68.00mm x 68.00mm | Panel Mount | Screw Terminal | IP54 - Dust Protected, Water Resistant |
|
|
H7BR-CWV-AC100-240COUNTER LCD 6 CHAR 100-240V PNL |
3,170 |
|
Datasheet |
H7BR | Bulk | Obsolete | Preset | Up, Down, Command, Individual, Quadrature | 30Hz, 1kHz, 5kHz, 10kHz | - | 6, 6 | LCD - Black Characters, Green Backlight | - | Voltage | Relay, Solid State | 100 ~ 240VAC | External, Front Panel | Square - 68.00mm x 68.00mm | Panel Mount | Screw Terminal | IP54 - Dust Protected, Water Resistant |
