Triac, SCR Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Type | Zero Crossing Circuit | Number of Channels | Voltage - Isolation | Voltage - Off State | Static dV/dt (Min) | Current - LED Trigger (Ift) (Max) | Current - On State (It (RMS)) (Max) | Current - Hold (Ih) | Turn On Time | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PC1S3063NTZFOPTOISOLATOR 5KV TRIAC 6DIP |
4,887 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Obsolete | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 5mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | UL |
|
|
PC3SD11YTZAFOPTOISOLATOR 5KV TRIAC 6DIP |
3,616 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Discontinued at Digi-Key | Triac | No | 1 | 5000Vrms | 600 V | 1kV/µs | 10mA | 100 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | CSA, UR, VDE |
|
|
PR36MF21YSZFOPTOISOLATOR 4KV PWR TRIAC 6DIP |
2,421 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | Triac, Power | Yes | 1 | 4000Vrms | 600 V | 100V/µs | 10mA | 600 mA | 25mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 85°C | Through Hole | 6-DIP | CSA, UR, VDE |
|
PR36MF51NSZFOPTOISOLATOR 4KV PWR TRIAC 8DIP |
4,257 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Discontinued at Digi-Key | Triac, Power | No | 1 | 4000Vrms | 600 V | 100V/µs | 10mA | 600 mA | 25mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 85°C | Through Hole | 8-DIP | CSA, UR |
|
|
PR39MF22YSZFOPTOISOLATOR 4KV PWR TRIAC 8DIP |
1,024 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Obsolete | Triac, Power | Yes | 1 | 4000Vrms | 600 V | 100V/µs | 5mA | 900 mA | 25mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 85°C | Through Hole | 8-DIP | CSA, UR, VDE |
|
|
PR49MF11NSZFOPTOISOLATOR 4KV PWR TRIAC 8DIP |
3,348 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Obsolete | Triac, Power | No | 1 | 4000Vrms | 800 V | 50V/µs | 10mA | 900 mA | 50mA | 100µs (Max) | 1.2V | 50 mA | -25°C ~ 85°C | Through Hole | 8-DIP | CSA, UR |
|

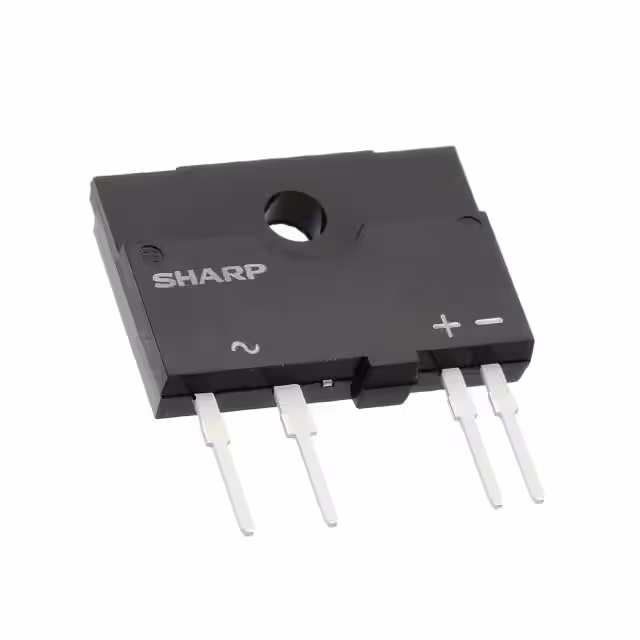

S208T01FOPTOISOLATOR 3KV PWR TRIAC 4SIP |
4,668 |
|
Datasheet |
- | 4-SIP | Tube | Obsolete | Triac, Power | No | 1 | 3000Vrms | 600 V | 30V/µs | 8mA | 8 A | 50mA | 1ms (Max) | 1.2V | 50 mA | -25°C ~ 100°C | Through Hole | 4-SIP | UL |
|
|
PC3SD11YXPCFOPTOISOLATOR 5KV TRIAC 6SMD |
4,297 |
|
Datasheet |
- | 5-SMD, Gull Wing | Tape & Reel (TR) | Discontinued at Digi-Key | Triac | No | 1 | 5000Vrms | 600 V | 1kV/µs | 5mA | 100 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 6-SMD | CSA, UR, VDE |
|
|
PC3SD12YTZAFOPTOISOLATOR 5KV TRIAC 6DIP |
2,481 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | Triac | No | 1 | 5000Vrms | 600 V | 1kV/µs | 10mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | CSA, UR, VDE |
|
|
PC3SD21NTZAFOPTOISOLATOR 5KV TRIAC 6DIP |
2,515 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tape & Reel (TR) | Discontinued at Digi-Key | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 10mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | CSA, UR |
|
|
PC3SF11YXPBFOPTOISOLATOR 5KV TRIAC 6SMD |
4,134 |
|
Datasheet |
- | 6-SMD | Tape & Reel (TR) | Obsolete | Triac | No | 1 | 5000Vrms | 600 V | 1kV/µs | 7mA | 100 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 6-SMD | BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE |
|
|
PC1S3063YTZFELECTRONIC COMPONENT OPTO |
4,125 |
|
Datasheet |
- | - | Bulk | Obsolete | Triac | Yes | 1 | 5000Vrms | 600 V | - | 5mA | 100 mA | - | - | - | - | - | Through Hole | - | BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE |
|
|
PC3SH11YFZVFELECTRONIC COMPONENT OPTO |
3,222 |
|
Datasheet |
* | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PC3SH21YFZVFELECTRONIC COMPONENT OPTO |
2,735 |
|
Datasheet |
* | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
.jpg)
|
BRT11-HPHOTOCOUPLER TRIAC 400V 6DIP |
3,012 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | Triac | No | 1 | 5300Vrms | 400 V | 10kV/µs | 2mA | 300 mA | 500µA | - | 1.1V | 20 mA | -40°C ~ 100°C | Through Hole | 6-DIP | CQC, UL |
|
|
BRT12-FPHOTOCOUPLER TRIAC 600V 6DIP |
1,855 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | Triac | No | 1 | 5300Vrms | 600 V | 10kV/µs | 1.2mA | 300 mA | 500µA | - | 1.1V | 20 mA | -40°C ~ 100°C | Through Hole | 6-DIP | CQC, UL |
|
|
BRT12-HPHOTOCOUPLER TRIAC 600V 6DIP |
3,241 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | Triac | No | 1 | 5300Vrms | 600 V | 10kV/µs | 2mA | 300 mA | 500µA | - | 1.1V | 20 mA | -40°C ~ 100°C | Through Hole | 6-DIP | CQC, UL |
|
|
BRT13-HPHOTOCOUPLER TRIAC 800V 6DIP |
1,640 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | Triac | No | 1 | 5300Vrms | 800 V | 10kV/µs | 2mA | 300 mA | 500µA | - | 1.1V | 20 mA | -40°C ~ 100°C | Through Hole | 6-DIP | CQC, UL |
|
|
BRT21-HPHOTOCOUPLER TRIAC 400V 6DIP |
1,477 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | Triac | Yes | 1 | 5300Vrms | 400 V | 10kV/µs | 2mA | 300 mA | 500µA | 35µs | 1.16V | 60 mA | -40°C ~ 100°C | Through Hole | 6-DIP | CQC, UL |
|
|
BRT22-FPHOTOCOUPLER TRIAC 600V 6DIP |
1,465 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | Triac | Yes | 1 | 5300Vrms | 600 V | 10kV/µs | 1.2mA | 300 mA | 500µA | 35µs | 1.16V | 60 mA | -40°C ~ 100°C | Through Hole | 6-DIP | CQC, UL |
