Triac, SCR Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Type | Zero Crossing Circuit | Number of Channels | Voltage - Isolation | Voltage - Off State | Static dV/dt (Min) | Current - LED Trigger (Ift) (Max) | Current - On State (It (RMS)) (Max) | Current - Hold (Ih) | Turn On Time | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MOC3083SR2M_F132OPTOISOLATOR 4.17KV TRIAC 6SMD |
4,848 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Triac | Yes | 1 | 4170Vrms | 800 V | 600V/µs | 5mA | - | 500µA (Typ) | - | 1.3V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UL |
|
K3023PGOPTOISOLATOR 5.3KV TRIAC 6DIP |
3,683 |
|
Datasheet |
- | 6-DIP (0.400", 10.16mm) | Tube | Obsolete | Triac | No | 1 | 5300Vrms | 400 V | 10V/µs (Typ) | 5mA | 100 mA | 200µA (Typ) | - | 1.3V | 80 mA | -55°C ~ 100°C | Through Hole | 6-DIP | BSI, CQC, CSA, cUR, UR, VDE |
|
EL3083OPTOISOLATOR 5KV TRIAC 6DIP |
2,870 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 5000Vrms | 800 V | 600V/µs | 5mA | 100 mA | 280µA (Typ) | - | 1.5V (Max) | 60 mA | -55°C ~ 100°C | Through Hole | 6-DIP | CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL |
|
TLP160G(TPR,U,F)OPTOISOLATOR 2.5KV TRIAC 6MFSOP |
2,304 |
|
Datasheet |
- | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tape & Reel (TR) | Obsolete | Triac | No | 1 | 2500Vrms | 400 V | 200V/µs | 10mA | 70 mA | 600µA (Typ) | 30µs | 1.15V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-MFSOP, 4 Lead | UR |
|

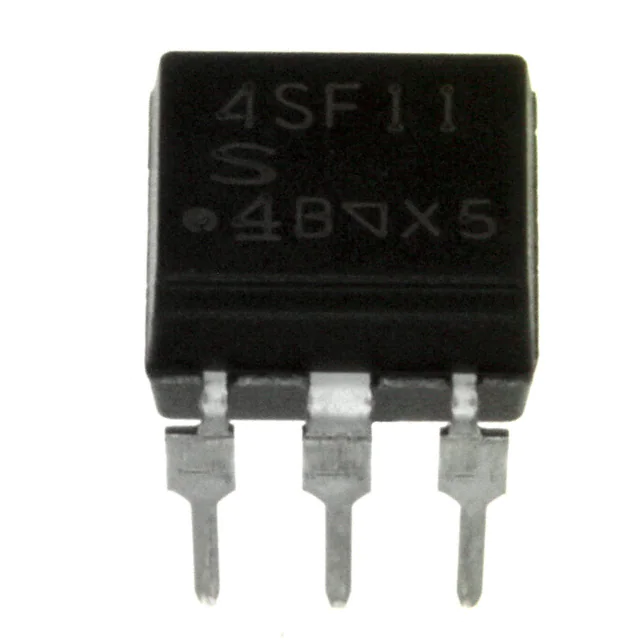

PC4SF11YTZBFOPTOISOLATOR 5KV TRIAC 6DIP |
1,910 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Discontinued at Digi-Key | Triac | No | 1 | 5000Vrms | 800 V | 50V/µs | 7mA | 100 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE |
|
|
MOC3062SMT&R6PIN ZERO CROSSING TRIAC OUTPUT, |
1,640 |
|
Datasheet |
MOC306 | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac, Power | Yes | 1 | 5300Vrms | 600 V | 600V/µs | 10mA | - | 400µA (Typ) | - | 1.2V | 50 mA | -40°C ~ 100°C | Surface Mount | - | UL, VDE |
|
EL3083MOPTOISOLATOR 5KV TRIAC 6DIP |
1,469 |
|
Datasheet |
- | 6-DIP (0.400", 10.16mm) | Tube | Active | Triac | Yes | 1 | 5000Vrms | 800 V | 600V/µs | 5mA | 100 mA | 280µA (Typ) | - | 1.5V (Max) | 60 mA | -55°C ~ 100°C | Through Hole | 6-DIP | CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL |
.jpg)
|
VO4256DOPTOISOLATOR 5.3KV TRIAC 6DIP |
1,426 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | No | 1 | 5300Vrms | 600 V | 5kV/µs | 1.6mA | 300 mA | - | - | 1.2V | 60 mA | -55°C ~ 100°C | Through Hole | 6-DIP | cUR, FIMKO, UR |
|
|
MOC3163TMOPTOISOLATOR 4.17KV TRIAC 6DIP |
1,725 |
|
Datasheet |
- | 6-DIP (0.400", 10.16mm) | Tube | Obsolete | Triac | Yes | 1 | 4170Vrms | 600 V | 1kV/µs | 5mA | - | 500µA (Typ) | - | 1.3V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | UL |
|
FODM3083R1OPTOISOLATOR 3.75KV TRIAC 4SMD |
3,347 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Triac | Yes | 1 | 3750Vrms | 800 V | 600V/µs | 5mA | 70 mA | 300µA (Typ) | - | 1.5V (Max) | 60 mA | -40°C ~ 100°C | Surface Mount | 4-SMD | cUL, UL |
|
FODM3010R3VOPTOISOLATOR 3.75KV TRIAC 4MFP |
2,560 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Triac | No | 1 | 3750Vrms | 250 V | 10V/µs (Typ) | 15mA | 70 mA | 300µA (Typ) | - | 1.2V | 60 mA | -40°C ~ 100°C | Surface Mount | 4-SMD | BSI, CSA, UL, VDE |
|
|
VO4254HOPTOISOLATOR 5.3KV TRIAC 6DIP |
1,761 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | Triac | No | 1 | 5300Vrms | 400 V | 5kV/µs | 2mA | 300 mA | - | - | 1.2V | 60 mA | -55°C ~ 100°C | Through Hole | 6-DIP | cUR, FIMKO, UR |
|
|
EL3062M-VOPTOISOLATOR 5KV TRIAC 6DIP |
4,125 |
|
Datasheet |
- | 6-DIP (0.400", 10.16mm) | Tube | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 10mA | 100 mA | 280µA (Typ) | - | 1.5V (Max) | 60 mA | -55°C ~ 100°C | Through Hole | 6-DIP | CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL, VDE |
|
|
MOC3162TVMOPTOISOLATOR 4.17KV TRIAC 6DIP |
2,341 |
|
Datasheet |
- | 6-DIP (0.400", 10.16mm) | Tube | Obsolete | Triac | Yes | 1 | 4170Vrms | 600 V | 1kV/µs | 10mA | - | 500µA (Typ) | - | 1.3V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | IEC/EN/DIN, UL |
|
|
APT1211SZOPTOISOLATOR 3.75KV TRIAC 4SOP |
2,331 |
|
Datasheet |
APT | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 3750Vrms | 600 V | 500V/µs | 10mA | 50 mA | 3.5mA | 100µs (Max) | 1.21V | 50 mA | -40°C ~ 100°C | Surface Mount | 4-SOP | cUR, VDE |
|
|
FODM3011R1_NF098OPTOISOLATOR 3.75KV TRIAC 4MFP |
3,633 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Triac | No | 1 | 3750Vrms | 250 V | 10V/µs (Typ) | 10mA | 70 mA | 300µA (Typ) | - | 1.2V | 60 mA | -40°C ~ 100°C | Surface Mount | 4-SMD | cUR, UR |
|
|
MOC3162SR2MOPTOISOLATOR 4.17KV TRIAC 6SMD |
2,174 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Triac | Yes | 1 | 4170Vrms | 600 V | 1kV/µs | 10mA | - | 500µA (Typ) | - | 1.3V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UL |
|
APT1211WAOPTOISOLATOR 5KV TRIAC 4DIP |
2,969 |
|
Datasheet |
APT | 4-SMD, Gull Wing | Tube | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 500V/µs | 10mA | 100 mA | 3.5mA | 100µs (Max) | 1.21V | 50 mA | -40°C ~ 100°C | Surface Mount | 4-DIP Gull Wing | cUR, VDE |
|
|
MOC3163SVMOPTOISOLATOR 4.17KV TRIAC 6SMD |
3,322 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tube | Obsolete | Triac | Yes | 1 | 4170Vrms | 600 V | 1kV/µs | 5mA | - | 500µA (Typ) | - | 1.3V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | IEC/EN/DIN, UL |
|
APT1232AZOPTOISOLATOR 5KV TRIAC 6DIP |
2,707 |
|
Datasheet |
APT | 5-SMD, Gull Wing | Tube | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 500V/µs | 10mA | 100 mA | 3.5mA | 100µs (Max) | 1.21V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-DIP Gull Wing | cUR, VDE |
