Photonics - Counters, Detectors, SPCM (Single Photon Counting Module)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Photon Detection Efficiency | Wavelength Range | Dark Count Rate | Wavelength - Peak | Max Count Rate | Dead Time | Voltage - Supply | Output | Detector Type | Active Area | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPCM-AQRH-16-FCPHOTON COUNT MODULE <25CPS FC |
1,726 |
|
Datasheet |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 25cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 2.2V | Avalanche Photodiode | 180μm | FC Fiber Adaptor | 5°C ~ 70°C |
|

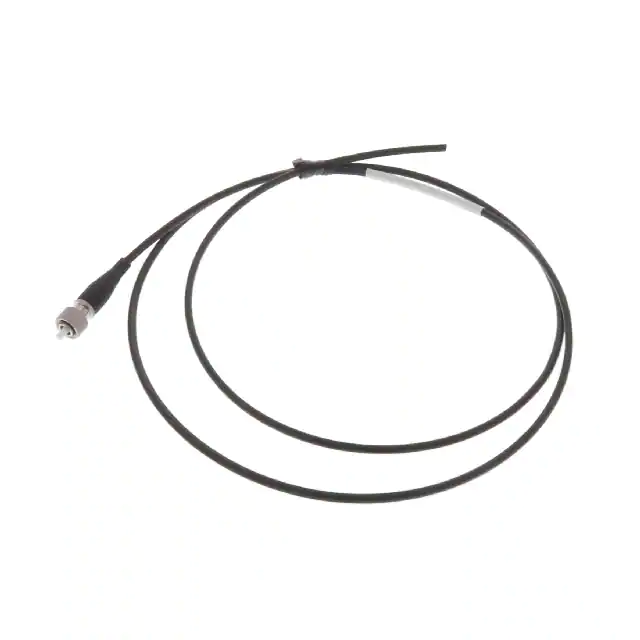

SPCM-QC4 FIBERSPCM-QC4 MULTIMODE 62.5 |
2,740 |
|
Datasheet |
SPCM-AQRH | Box | Active | Fiber Cable | - | - | - | - | - | - | - | - | - | - | - | - |
|
SPCM-AQRH-11PHOTON COUNT MODULE 1000CPS |
3,522 |
|
Datasheet |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 1000cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 2.2V | Avalanche Photodiode | 180μm | - | 5°C ~ 70°C |
|

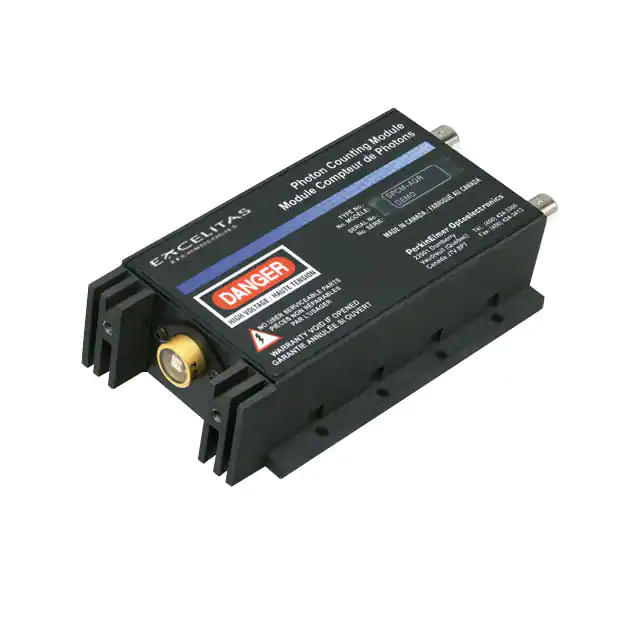

SPCM-AQRH-12PHOTON COUNT MODULE 500CPS |
2,046 |
|
Datasheet |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 500cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 2.2V | Avalanche Photodiode | 180μm | - | 5°C ~ 70°C |
|
1342-1POWER CABLE CIPRM MODULES |
4,392 |
|
Datasheet |
CIPRM | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1342-2SHIELDED POWER CABLE |
2,396 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SPCM-AQRH-20PHOTON COUNTING MODULE |
1,803 |
|
Datasheet |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 1500cps | 650nm | 37Mcps | 28ns | 5VDC | TTL 18ns 2.2V | Avalanche Photodiode | 180μm | - | 5°C ~ 70°C |
|
|
SPCM-AQRH-30PHOTON COUNTING MODULE |
4,827 |
|
Datasheet |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 1500cps | 650nm | 37Mcps | 35ns | 5VDC | TTL 28ns 2.2V | Avalanche Photodiode | 180μm | - | 5°C ~ 70°C |
|
|
SPCM-AQRH-40PHOTON COUNTING MODULE |
1,729 |
|
Datasheet |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 1500cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 4.4V | Avalanche Photodiode | 180μm | - | 5°C ~ 70°C |
|
|
SPCM-AQRH-50PHOTON COUNTING MODULE |
1,162 |
|
Datasheet |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 1500cps | 650nm | 37Mcps | 28ns | 5VDC | TTL 18ns 4.4V | Avalanche Photodiode | 180μm | - | 5°C ~ 70°C |
|
|
SPCM-AQRH-60PHOTON COUNTING MODULE |
3,625 |
|
Datasheet |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 1500cps | 650nm | 37Mcps | 35ns | 5VDC | TTL 28ns 4.4V | Avalanche Photodiode | 180μm | - | 5°C ~ 70°C |
|
|
SPCM-AQRH-10-BR1PHOTON COUNTING MODULE |
1,637 |
|
Datasheet |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 1500cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 2.2V | Avalanche Photodiode | 180μm | Tube Cage Mount Bracket | 5°C ~ 70°C |
|
|
SPCM-AQRH-10-BR2PHOTON COUNTING MODULE |
4,314 |
|
Datasheet |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 1500cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 2.2V | Avalanche Photodiode | 180μm | C-Mount Bracket | 5°C ~ 70°C |
|
|
SPCM-AQRH-20-BR1PHOTON COUNTING MODULE |
3,657 |
|
Datasheet |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 1500cps | 650nm | 37Mcps | 28ns | 5VDC | TTL 18ns 2.2V | Avalanche Photodiode | 180μm | Tube Cage Mount Bracket | 5°C ~ 70°C |
|
|
SPCM-AQRH-20-BR2PHOTON COUNTING MODULE |
4,343 |
|
Datasheet |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 1500cps | 650nm | 37Mcps | 28ns | 5VDC | TTL 18ns 2.2V | Avalanche Photodiode | 180μm | C-Mount Bracket | 5°C ~ 70°C |
|
|
SPCM-AQRH-30-BR1PHOTON COUNTING MODULE |
1,747 |
|
Datasheet |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 1500cps | 650nm | 37Mcps | 35ns | 5VDC | TTL 28ns 2.2V | Avalanche Photodiode | 180μm | Tube Cage Mount Bracket | 5°C ~ 70°C |
|
|
SPCM-AQRH-30-BR2PHOTON COUNTING MODULE |
2,706 |
|
Datasheet |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 1500cps | 650nm | 37Mcps | 35ns | 5VDC | TTL 28ns 2.2V | Avalanche Photodiode | 180μm | C-Mount Bracket | 5°C ~ 70°C |
|
|
SPCM-AQRH-40-BR1PHOTON COUNTING MODULE |
3,290 |
|
Datasheet |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 1500cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 4.4V | Avalanche Photodiode | 180μm | Tube Cage Mount Bracket | 5°C ~ 70°C |
|
|
SPCM-AQRH-40-BR2PHOTON COUNTING MODULE |
3,332 |
|
Datasheet |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 1500cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 4.4V | Avalanche Photodiode | 180μm | C-Mount Bracket | 5°C ~ 70°C |
|
|
SPCM-AQRH-50-BR1PHOTON COUNTING MODULE |
1,791 |
|
Datasheet |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 1500cps | 650nm | 37Mcps | 28ns | 5VDC | TTL 18ns 4.4V | Avalanche Photodiode | 180μm | Tube Cage Mount Bracket | 5°C ~ 70°C |
