Gyroscopes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Axis | Range °/s | Sensitivity (LSB/(°/s)) | Sensitivity (mV/°/s) | Bandwidth | Output Type | Voltage - Supply | Current - Supply | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

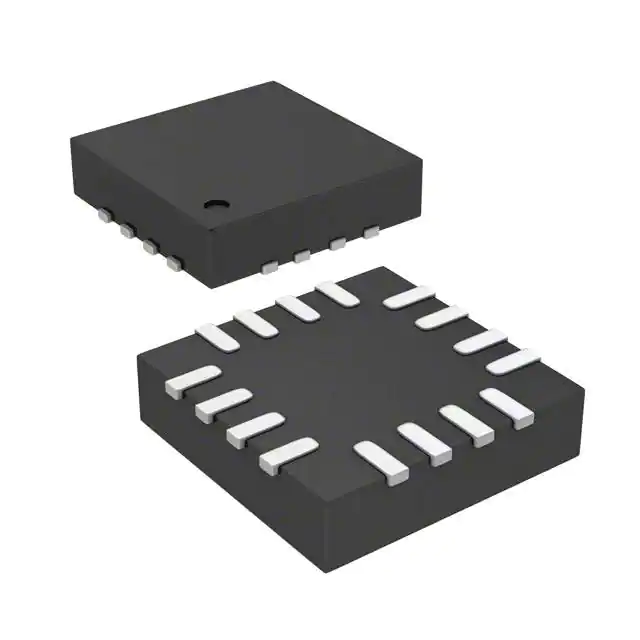

I3G4250DTRMEMS MOTION SENSOR 3AXIS 16LGA |
12,816 |
|
Datasheet |
- | 16-TFLGA | Tape & Reel (TR) | Active | Digital | X (Pitch), Y (Roll), Z (Yaw) | ±245, 500, 2000 | 8.75 ~ 70 | - | - | I2C, SPI | 2.4V ~ 3.6V | 6.1 mA | Adjustable Bandwidth, Selectable Scale, Temperature Sensor | -40°C ~ 85°C | - | - |
|
IAM-20380HTSENSOR ACCELEROMETER |
1,583 |
|
Datasheet |
- | 16-WFLGA Module | Tape & Reel (TR) | Active | Digital | X (Pitch), Y (Roll), Z (Yaw) | ±250, 500, 1000, 2000 | 16.4 ~ 131 | - | 5Hz ~ 250Hz | I2C, SPI | 1.71V ~ 3.6V | 2.6 mA | Adjustable Bandwidth, Selectable Scale, Sleep Mode, Temperature Sensor | -40°C ~ 85°C | Automotive | AEC-Q100 |
|
IAM-20380SENSOR GYROSCOPE |
19,014 |
|
Datasheet |
- | 16-WFLGA Module | Tape & Reel (TR) | Active | Digital | X (Pitch), Y (Roll), Z (Yaw) | ±250, 500, 1000, 2000 | 16.4 ~ 131 | - | 27kHz | I2C, SPI | 1.71V ~ 3.6V | - | Adjustable Bandwidth, Selectable Scale, Sleep Mode, Temperature Sensor | -40°C ~ 85°C | Automotive | AEC-Q100 |
|
|
A3G4250DTRIC MEMS MOTION SENSOR 16-LGA |
1,355 |
|
Datasheet |
- | 16-TFLGA | Tape & Reel (TR) | Active | Digital | X (Pitch), Y (Roll), Z (Yaw) | ±245 | 114 | - | 4.45Hz ~ 483Hz | I2C, SPI | 2.4V ~ 3.6V | 6.1 mA | Adjustable Bandwidth, Sleep Mode, Temperature Sensor | -40°C ~ 85°C | Automotive | AEC-Q100 |
|
SCR2100-D08-05GYROSCOPES |
239 |
|
Datasheet |
- | 24-SMD Module | Tape & Reel (TR) | Active | Digital | X (Pitch) | ±125 | 50 | - | 1.15kHz | SPI | 3V ~ 3.6V | 23.9 mA | Temperature Sensor | -40°C ~ 125°C | - | - |
|
ADXRS623BBGZ-RLIC GYROSCOPE YAW RATE 32CBGA |
984 |
|
Datasheet |
- | 32-BFCBGA | Tape & Reel (TR) | Active | Analog | Z (Yaw) | ±150 | - | 12.5 | 1Hz ~ 3kHz | Analog Voltage | 4.75V ~ 5.25V | 3.5 mA | Adjustable Bandwidth, Temperature Sensor | -40°C ~ 105°C | - | - |
|
|
ADXRS624BBGZ-RLIC GYROSCOPE YAW RATE 32CBGA |
235 |
|
Datasheet |
- | 32-BFCBGA | Tape & Reel (TR) | Active | Analog | Z (Yaw) | ±50 | - | 25 | 1Hz ~ 1kHz | Analog Voltage | 4.75V ~ 5.25V | 3.5 mA | Adjustable Bandwidth, Temperature Sensor | -40°C ~ 105°C | - | - |
|
|
ADXRS620BBGZ-RLIC GYROSCOPE YAW RATE 32-CBGA |
425 |
|
Datasheet |
- | 32-BFCBGA | Tape & Reel (TR) | Active | Analog | Z (Yaw) | ±300 | - | 6 | 0.01Hz ~ 2.5kHz | Analog Voltage | 4.75V ~ 5.25V | 3.5 mA | Adjustable Bandwidth, Temperature Sensor | -40°C ~ 105°C | - | - |
|
|
ADXRS642BBGZ-RLIC GYROSCOPE YAW RATE 32CBGA |
504 |
|
Datasheet |
- | 32-BFCBGA | Tape & Reel (TR) | Active | Analog | Z (Yaw) | ±250 | - | 7 | 2kHz | Analog Voltage | 4.75V ~ 5.25V | 3.5 mA | Adjustable Bandwidth, Temperature Sensor | -40°C ~ 105°C | - | - |
|

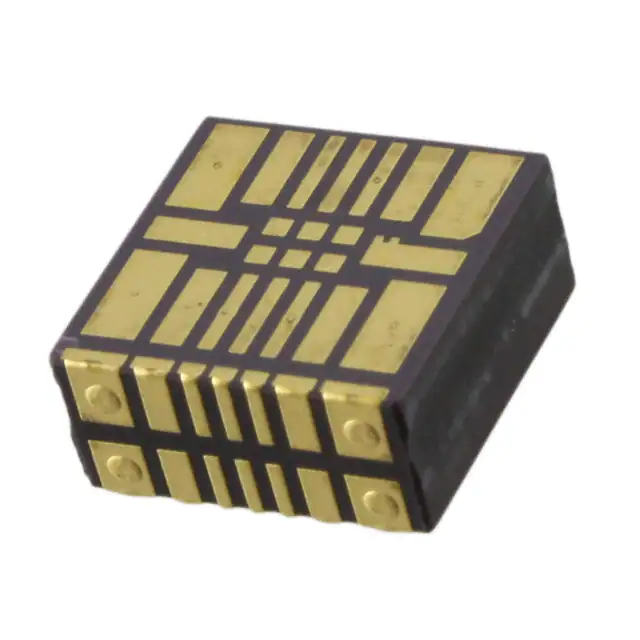

ADXRS450BEYZSENS GYRO 300DEG/S DGTL 14CLCC |
2,350 |
|
Datasheet |
- | 14-CLCC | Tube | Last Time Buy | Digital | X (Pitch), Y (Roll), Z (Yaw) | ±300 | 80 | - | 80Hz | SPI | 3.15V ~ 5.25V | 6 mA | Temperature Sensor | -40°C ~ 105°C | - | - |
|
ADXRS453BRGZIC GYROSCOPE ANGULAR 16SOIC |
2,890 |
|
Datasheet |
- | 16-SOIC (0.307", 7.80mm Width) | Tube | Active | Digital | Z (Yaw) | ±300 | 80 | - | 77.5Hz | SPI | 3.15V ~ 5.25V | 6 mA | Temperature Compensated | -40°C ~ 105°C | - | - |
|
|
ADXRS649BBGZIC GYROSCOPE YAW RATE 32CBGA |
114 |
|
Datasheet |
- | 32-BFCBGA | Tray | Active | Analog | Z (Yaw) | ±20000 | - | 0.1 | 2kHz | Analog Voltage | 4.75V ~ 5.25V | 3.5 mA | Temperature Sensor | -40°C ~ 105°C | - | - |
|
|
ADXRS453BEYZIC GYROSCOPE ANGULAR CLCC |
1,282 |
|
Datasheet |
- | 14-CLCC | Tube | Last Time Buy | Digital | X (Pitch), Y (Roll) | ±300 | 80 | - | 77.5Hz | SPI | 3.15V ~ 5.25V | 6 mA | Temperature Compensated | -40°C ~ 105°C | - | - |
|

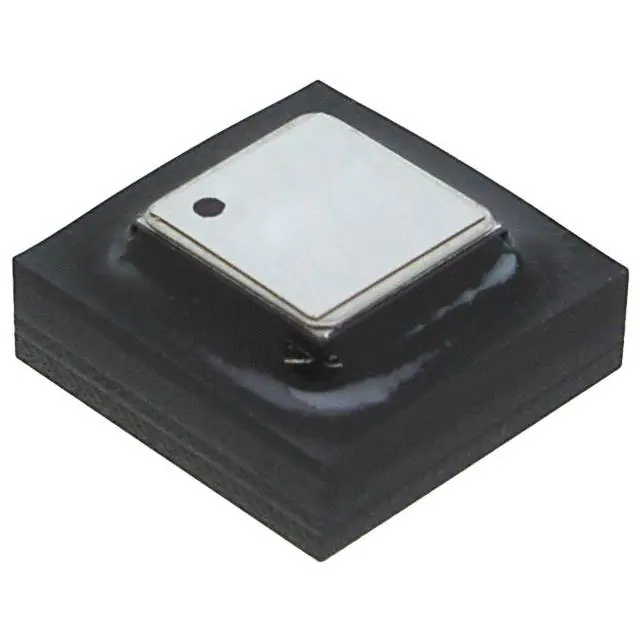

ADIS16265BCCZIC SENSOR GYRO PROGR 10MV 20LGA |
1,215 |
|
Datasheet |
- | 20-BFLGA | Tray | Active | Digital | Z (Yaw) | ±80, 160, 320 | 13 ~ 54 | - | 50Hz ~ 330Hz | SPI | 4.75V ~ 5.25V | 41 mA | Adjustable Bandwidth, Selectable Scale, Sleep Mode, Temperature Sensor | -40°C ~ 105°C | - | - |
|

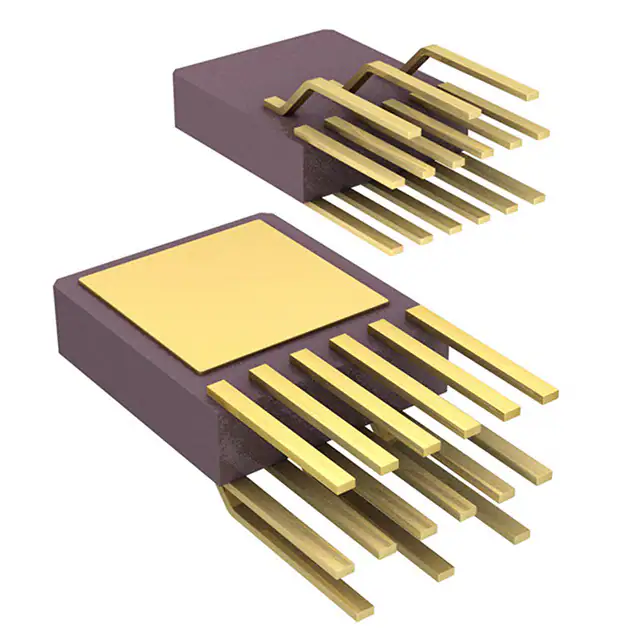

ADXRS645HDYZIC GYROSCOPE YAW RATE 32CBGA |
3,764 |
|
Datasheet |
- | 15-TRIIP | Tray | Active | Analog | X (Pitch) or Y (Roll) | ±2000 | - | 1 | 2kHz | Analog Voltage | 4.75V ~ 5.25V | 3.5 mA | Adjustable Bandwidth, Temperature Sensor | -40°C ~ 175°C | - | - |
.jpg)
|

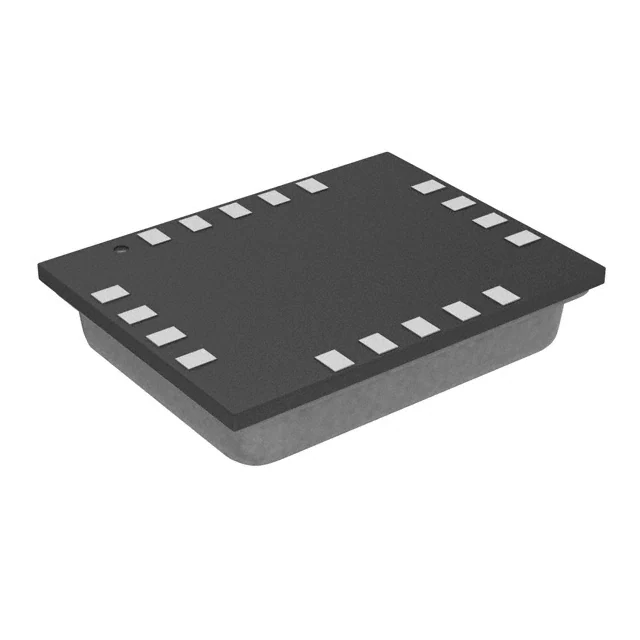

ADXRS290BCEZIC GYROSCOPE YAW RATE 18LGA |
1,594 |
|
Datasheet |
- | 18-LFLGA | Tray | Active | Digital | X (Pitch), Y (Roll) | ±100 | 200 | - | 20Hz ~ 480Hz | SPI | 2.7V ~ 5V | 7.8 mA | Adjustable Bandwidth, Sleep Mode | -25°C ~ 85°C | - | - |
|
|
ADXRS623BBGZIC GYROSCOPE YAW RATE 32CBGA |
119 |
|
Datasheet |
- | 32-BFCBGA | Tray | Active | Analog | Z (Yaw) | ±150 | - | 12.5 | 1Hz ~ 3kHz | Analog Voltage | 4.75V ~ 5.25V | 3.5 mA | Adjustable Bandwidth, Temperature Sensor | -40°C ~ 105°C | - | - |
|
|
ADXRS620BBGZIC GYROSCOPE YAW RATE 32-CBGA |
218 |
|
Datasheet |
- | 32-BFCBGA | Bulk | Active | Analog | Z (Yaw) | ±300 | - | 6 | 0.01Hz ~ 2.5kHz | Analog Voltage | 4.75V ~ 5.25V | 3.5 mA | Adjustable Bandwidth, Temperature Sensor | -40°C ~ 105°C | - | - |
|
|
ADXRS642BBGZIC GYROSCOPE YAW RATE 32CBGA |
3,610 |
|
Datasheet |
- | 32-BFCBGA | Tube | Active | Analog | Z (Yaw) | ±250 | - | 7 | 2kHz | Analog Voltage | 4.75V ~ 5.25V | 3.5 mA | Adjustable Bandwidth, Temperature Sensor | -40°C ~ 105°C | - | - |
|
|
ADXRS646BBGZIC GYROSCOPE YAW RATE 32CBGA |
3,432 |
|
Datasheet |
- | 32-BFCBGA | Bulk | Active | Analog | Z (Yaw) | ±250 | - | 9 | 1kHz | Analog Voltage | 5.75V ~ 6.25V | 4 mA | Temperature Sensor | -40°C ~ 105°C | - | - |
