Home > All Categories > Audio Products > Microphones

Microphones

Manufacturer	Series	Packaging	Product Status	Type	Output Type	Direction	Frequency Range	Sensitivity	S/N Ratio	Impedance	Voltage - Rated	Voltage Range	Current - Supply	Port Location	Ratings	Termination	Size / Dimension	Height (Max)	Shape	Grade	Qualification
3S (Solid State System) Analog Devices Inc. Analog Technologies, Inc. BeStar Technologies, Inc. BZBGEAR Challenge Electronics Cirrus Logic Inc. DB Unlimited Galco Industrial Electronics Goertek Microelectronics Huizhou N Acoustics Co., Ltd Infineon Technologies International Components Corp. Intervox Knowles Mallory Sonalert Products MPD Digital Ole Wolff Electronics Inc. onsemi Panasonic Electronic Components - Semiconductor Products PUI Audio, Inc. Raltron Electronics RDI, Inc. Same Sky (Formerly CUI Devices) Sanoxy Seltech Shure Soberton Inc. Soundskrit, Inc. SparkFun Electronics STMicroelectronics TDK InvenSense Technical Pro Top Shelf Acoustics Vesper	* - 3S MEMS 400 600 ADMP404 ADMP510 ADMP621 ADMP803 AMM ANM AOM AOW AUM BCM BEM BJ BL BT BTM BTO BU BW BXTM CMC CMEJ CMM CMR CS7250B CS7331P CU DFG DMM DOM DUM EA EK EL EM FB FB-BU FB-BW FB-DO FB-DR FB-DW FB-EI FB-EM FB-FO FB-MU FG FG45 FI GA HBO HD High-SNR SiSonic™ SPK HM IA ICS-40212 ICS-40300 ICS-40310 ICS-40730 ICS-40740 ICS-40800 ICS-41352 ICS-43434 ICS-51360 INMP401 INMP404 INMP405 INMP411 INMP421 INMP441 INMP504 INMP510 INMP521 INMP522 INMP621 MB MD MEO-627-02 MEO-94P-01 MEO-96P-04 MEOB-627PN-02-583 MM MMIC MQM MR MW NR PMM PMO PMOF PNM PNR POM PORT SISONIC™ POW PUM QM ROM SDM SiSonic™ SiSonic™ SP SiSonic™ SPA SiSonic™ SPG SiSonic™ SPH SiSonic™ SPK SiSonic™ SPM SiSonic™ SPU SiSonic™ SPV SiSonic™ SPW SiSonic™, Zero-Height Mic™, SPA SiSonic™, Zero-Height Mic™, SPH SiSonic™, Zero-Height Mic™, SPV SKM SMO SPH SPM T3902 T3903 T4086 T5818 T5919 TC TD TM TNM TO TOM TOS TP VEF-K VEK-F VEK-H Vesper VMM VWP WM-034C WM-52B WM-54B WM-55A103 WM-55D103 WM-56A103 WM-60A WM-61A WM-61B WM-63GN WM-63PR WM-64C WM-64K WM-64M WM-64MN WM-64PN WM-65A103 WM-E15B WM7121PE WM7132PE WM7133L WM7211E WM7216E WM7230E WM7236E WP XENSIV™	Bag Box Bulk Cut Tape (CT) Retail Package Strip Tape & Box (TB) Tape & Reel (TR) Tray Tube	Active Discontinued at BomKey Last Time Buy Not For New Designs Obsolete	- Boom Electret Condenser Electret Condenser, Matched Set Magnetic MEMS (Silicon) Piezo Piezo MEMS	- Analog Digital Digital, I2S Digital, PDM Digital, TDM I2S, PDM, TDM	- Cardioid Noise Cancelling Omnidirectional Supercardioid Unidirectional	- 1 kHz ~ 5.2 kHz 1 kHz ~ 6 kHz 1 kHz ~ 6.4 kHz 1 kHz ~ 7 kHz 10 Hz ~ 10 kHz 10 Hz ~ 10 MHz 10 Hz ~ 15 kHz 10 Hz ~ 17 kHz 10 kHz ~ 10 kHz 100 Hz ~ 1 kHz 100 Hz ~ 10 kHz 100 Hz ~ 100 kHz 100 Hz ~ 12 kHz 100 Hz ~ 15 kHz 100 Hz ~ 16 kHz 100 Hz ~ 2.4 kHz 100 Hz ~ 2.5 kHz 100 Hz ~ 20 kHz 100 Hz ~ 300 Hz 100 Hz ~ 4 kHz 100 Hz ~ 4.05 kHz 100 Hz ~ 4.2 kHz 100 Hz ~ 4.25 kHz 100 Hz ~ 4.5 kHz 100 Hz ~ 4.7 kHz 100 Hz ~ 4.8 kHz 100 Hz ~ 5 kHz 100 Hz ~ 5.1 kHz 100 Hz ~ 5.2 kHz 100 Hz ~ 5.4 kHz 100 Hz ~ 5.5 kHz 100 Hz ~ 5.8 kHz 100 Hz ~ 6 kHz 100 Hz ~ 6.25 kHz 100 Hz ~ 6.4 kHz 100 Hz ~ 7 kHz 100 Hz ~ 7.2 kHz 100 Hz ~ 7.4 kHz 100 Hz ~ 7.9 kHz 100 Hz ~ 8 kHz 100 Hz ~ 8.5 kHz 100 Hz ~ 80 kHz 100 Hz ~ 9.5 kHz 120 Hz ~ 16 kHz 15 Hz ~ 16 kHz 17 Hz ~ 16 kHz 20 Hz ~ 10 kHz 20 Hz ~ 15 kHz 20 Hz ~ 16 kHz 20 Hz ~ 18 kHz 20 Hz ~ 19 kHz 20 Hz ~ 20 kHz 20 Hz ~ 8 kHz 200 Hz ~ 1 kHz 200 Hz ~ 10 kHz 200 Hz ~ 15 kHz 25 Hz ~ 16 kHz 25 Hz ~ 20 kHz 250 Hz ~ 10 kHz 27 Hz ~ 18 kHz 27 Hz ~ 20 kHz 28 Hz ~ 1 kHz 28 Hz ~ 20 kHz 280 Hz ~ 5 kHz 30 Hz ~ 10 kHz 30 Hz ~ 15 kHz 30 Hz ~ 8 kHz 300 Hz ~ 4 kHz 300 Hz ~ 4.7 kHz 300 Hz ~ 5 kHz 300 Hz ~ 5.1 kHz 300 Hz ~ 5.2 kHz 300 Hz ~ 5.5 kHz 300 Hz ~ 5.7 kHz 300 Hz ~ 5.8 kHz 300 Hz ~ 6 kHz 300 Hz ~ 6.2 kHz 300 Hz ~ 7.3 kHz 32 Hz ~ 20 kHz 35 Hz ~ 1.5 kHz 35 Hz ~ 13 kHz 35 Hz ~ 15 kHz 35 Hz ~ 18.5 kHz 35 Hz ~ 20 kHz 40 Hz ~ 10 kHz 40 Hz ~ 15 kHz 40 Hz ~ 20 kHz 40 Hz ~ 9 kHz 45 Hz ~ 15.5 kHz 45 Hz ~ 20 kHz 50 Hz ~ 10 kHz 50 Hz ~ 12 kHz 50 Hz ~ 15 kHz 50 Hz ~ 16 kHz 50 Hz ~ 16 MHz 50 Hz ~ 17 kHz 50 Hz ~ 20 kHz 50 Hz ~ 4.5 kHz 50 Hz ~ 40 kHz 50 Hz ~ 5.3 kHz 50 Hz ~ 8 kHz 50 Hz ~ 80 kHz 500 Hz ~ 10 kHz 500 Hz ~ 2 kHz 500 Hz ~ 4 kHz 55 Hz ~ 12 kHz 6 Hz ~ 20 kHz 60 Hz ~ 15 kHz 60 Hz ~ 20 kHz 62 Hz ~ 12 kHz 62 Hz ~ 12.5 kHz 62 Hz ~ 13 kHz 62 Hz ~ 15 kHz 7 Hz ~ 36 kHz 70 Hz ~ 15 kHz 70 Hz ~ 20 kHz 70 Hz ~ 5.7 kHz 70 Hz ~ 9.5 kHz 75 Hz ~ 20 kHz 768 kHz ~ 200 MHz 77 Hz ~ 20 kHz 80 Hz ~ 1 kHz 80 Hz ~ 10 kHz 80 Hz ~ 20 kHz 85 Hz ~ 10.6 kHz 85 Hz ~ 15 kHz 90 Hz ~ 16 kHz 95 Hz ~ 20 kHz	- -18dB -18dB ±3dB @ 94dB SPL -20dB ±3dB @ 94dB SPL -22dB -22dB ±3dB @ 94dB SPL -22dB ±4dB @ 94dB SPL -23dB ±1dB @ 94dB SPL -24dB ±1dB @ 94dB SPL -24dB ±3dB -24dB ±3dB @ 94dB SPL -25dB ±3dB -25dB ±3dB @ 94dB SPL -26 ±1dB @ 94dB SPL -26dB -26dB ±1dB -26dB ±1dB @ 94dB SPL -26dB ±3dB -26dB ±3dB @ 94dB SPL -26dB ±4dB @ 94dB SPL -27dB ±3dB -28dB ±1dB -28dB ±3dB -29dB ±1dB @ 94dB SPL -30dB ±1dB -30dB ±3dB -31dB -31dB ±1dB @ 94dB SPL -32.5dB ±1dB @ 94dB SPL -32dB @ 94dB SPL -32dB ±10dB @ 94dB SPL -32dB ±1dB -32dB ±1dB @ 94dB SPL -32dB ±3dB -32dB ±3dB @ 94dB SPL -34dB ±1dB @ 94dB SPL -34dB ±3dB -34dB ±3dB @ 94dB SPL -35dB ±1dB @ 94dB SPL -35dB ±2dB -35dB ±3dB -35dB ±3dB @ 110dB SPL -35dB ±3dB @ 115dB SPL -35dB ±3dB @ 94dB SPL -35dB ±4dB -35dB ±4dB @ 94dB SPL -36dB -36dB ±1dB @ 94dB SPL -36dB ±2dB @ 94dB SPL -36dB ±3dB -36dB ±3dB @ 115dB SPL -36dB ±3dB @ 94dB SPL -37.5dB ±1dB @ 94dB SPL -37dB ±1dB @ 128dB SPL -37dB ±1dB @ 94dB SPL -37dB ±3dB -37dB ±3dB @ 110dB SPL -37dB ±3dB @ 94dB SPL -37dB± 3dB @ 110dB SPL -38.5dB ±4dB @ 74dB SPL -38dB -38dB @ 130dB SPL -38db ±1dB -38db ±1dB @ 127dB -38db ±1dB @ 136dB -38dB ±1dB @ 94dB SPL -38dB ±2dB @ 94dB SPL -38dB ±3dB -38dB ±3dB @ 94dB SPL -38dB±1dB -39dB ± 3dB @ 94dB SPL -39dB ±2dB @ 94dB SPL -39dB ±4dB @ 94dB SPL -40dB -40dB ±1dB @ 130dB SPL -40dB ±1dB @ 94dB SPL -40dB ±2dB -40dB ±2dB @ 94dB SPL -40dB ±3dB -40dB ±3dB @ 100dB SPL -40dB ±3dB @ 94dB SPL -41dB ±1dB @ 94dB SPL -41dB ±3dB -41dB ±3dB @ 94dB SPL -42dB -42dB ±1dB -42dB ±1dB @ 94dB SPL -42dB ±2dB -42dB ±2dB @ 94dB SPL -42dB ±3dB -42dB ±3dB @ 110dB SPL -42dB ±3dB @ 120dB SPL -42dB ±3dB @ 94dB SPL -42dB ±4dB @ 94dB SPL -43dB -43dB ±1dB @ 94dB SPL -43dB ±5dB -43dB ±5dB @ 94dB SPL -44dB -44dB ±0.5dB SPL -44dB ±1dB @ 94dB SPL -44dB ±2dB -44dB ±2dB @ 94dB SPL -44dB ±3dB -44dB ±3dB @ 110dB SPL -44dB ±3dB @ 120dB SPL -44dB ±3dB @ 94dB SPL -45dB ±2dB -45dB ±2dB @ 94dB SPL -45dB ±3dB -45dB ±3dB @ 120dB SPL -45dB ±3dB @ 94dB SPL -45dB ±4dB -45dB ±4dB @ 94dB SPL -46dB ±2dB @ 94dB SPL -46dB ±3dB -46dB ±3dB @ 120dB SPL -46dB ±3dB @ 94dB SPL -46dB ±4dB -47dB ±3dB -47dB ±3dB @ 94dB SPL -47dB ±4dB -47dB ±4dB @ 94dB SPL -48dB ±2dB @ 94dB SPL -48dB ±3dB -48dB ±3dB @ 74dB SPL -49dB ±3dB -49dB ±3dB @ 74dB SPL -50dB ±3dB -50dB ±3dB @ 74dB SPL -50dB ±4dB -50dB ±4dB @ 74dB SPL -50dB ±4dB @ 94dB SPL -51dB ±3dB -51dB ±3dB @ 74dB SPL -51dB ±4dB -51dB ±4dB @ 74dB SPL -51dB ±4dB @ 94dB SPL -52.5dB ±2dB @ 74dB SPL -52.5dB ±4dB @74dB SPL -52dB ±1dB @ 74dB SPL -52dB ±2dB @ 74dB SPL -52dB ±3dB @ 74dB SPL -52dB ±4dB @ 74dB SPL -53.5dB ±3dB @ 74dB SPL -53dB -53dB +2dB, -4dB @ 74dB SPL -53dB ±2dB -53dB ±2dB @ 74dB SPL -53dB ±3dB @ 74dB SPL -54.5dB ±3dB @ 74dB SPL -54.5dB ±4dB @ 74dB SPL -54dB ±3dB -54dB ±3dB @ 74dB SPL -54dB ±3dB @ 94dB SPL -54dB ±4dB -54dB ±4dB @ 94dB SPL -55.5dB ±3dB @ 74dB SPL -55dB ±2dB @ 74dB SPL -55dB ±3dB @ 74dB SPL -55dB ±3dB @ 94dB SPL -55dB ±4dB @ 74dB SPL -56.5dB ±3dB @ 74dB SPL -56.5dB ±3dB @74dB SPL -56dB -56dB ±3dB @ 74dB SPL -56dB ±3dB @ 94dB SPL -56dB ±4dB @ 74dB SPL -57.5dB ±3dB @ 74dB SPL -57dB ±2dB @ 74dB SPL -57dB ±3dB -57dB ±3dB @ 74dB SPL -57dB ±4dB @ 74dB SPL -57dB ±5dB @ 74dB SPL -58.5dB ±3dB @ 74dB SPL -58.5dB ±4dB @ 74dB SPL -58dB ±3dB -58dB ±4dB @ 74dB SPL -59.5dB ±3dB @ 74dB SPL -59dB +4dB, -3dB @ 74dB SPL -59dB ±2.5dB @ 74dB SPL -59dB ±3dB @ 74dB SPL -59dB ±4dB @ 74dB SPL -60dB +2dB, -5dB @ 74dB SPL -60dB ±2.5dB @ 74dB SPL -60dB ±3dB -60dB ±3dB @ 100dB SPL -60dB ±3dB @ 74dB SPL -60dB ±4dB @ 74dB SPL -61.5dB ±1.5dB @ 74dB SPL -61dB +3dB, -4dB @ 74dB SPL -61dB ±3dB @ 74dB SPL -61dB ±4dB @ 74dB SPL -62dB ±4dB @ 74dB SPL -63.5dB ±3dB @ 74dB SPL -63dB ±3dB @ 74dB SPL -64.5dB ±3dB @ 74dB SPL -64dB ±3dB -64dB ±3dB @ 74dB SPL -69dB ±3dB @ 74dB SPL -69dB ±4dB @ 74dB SPL -71dB ±2dB @ 74dB SPL -71dB ±3dB -72dB ±3dB -72dB ±3dB @ 74dB SPL -73dB ±3dB @ 74dB SPL -73dB ±3dB @ 94dB SPL -74dB ±3dB @ 94dB SPL -75.5dB ±3dB @ 74dB SPL -75dB ±2.5dB @ 74dB SPL -87.5dB ±3dB @ 74dB SPL -87dB ±5dB @ 74dB SPL -90dB ±5dB @ 74dB SPL -93.5dB ±5.5dB @ 74dB SPL 12.5mV/Pa	- 26dB 29dB 36dB 38dB 40dB 45dB 48dB 50dB 52dB 55dB 56dB 57.5dB 57dB 58dB 59dB 60dB 61.5dB 61dB 62.5dB 62.6dB 62dB 63.5dB 63dB 64.3dB 64.5dB 64dB 65.5dB 65dB 66.5dB 66dB 67.5dB 67dB 68.5dB 68dB 69dB 70.5dB 70dB 71.5dB 71dB 72dB 73dB 74dB 75dB 76dB 77dB 78dB 80dB	- 1 kOhms 1.5 kOhms 1.7 kOhms 1.8 kOhms 100 Ohms 12 kOhms 120 Ohms 13 kOhms 150 Ohms 170 Ohms 190 Ohms 2 kOhms 2.2 kOhms 2.34 kOhms 2.5 kOhms 2.9 kOhms 200 Ohms 250 Ohms 3 kOhms 3.3 kOhms 3.5 kOhms 3.75 kOhms 3.8 kOhms 3.9 kOhms 300 Ohms 310 Ohms 315 Ohms 338 Ohms 350 Ohms 355 Ohms 380 Ohms 4 kOhms 4.4 kOhms 4.4 Ohms 4.5 kOhms 400 Ohms 450 Ohms 5.1 kOhms 5.2 kOhms 5.25 kOhms 5.5 kOhms 500 Ohms 55 Ohms 6.9 kOhms 60 Ohms 600 Ohms 680 Ohms 700 Ohms 75 Ohms 750 Ohms	- 1 V 1.1 V 1.3 V 1.5 V 1.8 V 10 V 2 V 2.1 V 2.2 V 2.5 V 2.6 V 2.7 V 2.75 V 3 V 4.5 V 5 V 9 V 900 mV 930 mV	- 0 V ~ 10 V 0.3 V ~ 3.6 V 0.9 V ~ 1.3 V 0.9 V ~ 1.6 V 0.9 V ~ 1.9 V 0.9 V ~ 10 V 0.9 V ~ 3 V 1 V ~ 10 V 1 V ~ 12 V 1 V ~ 5 V 1.1 V ~ 10 V 1.3 V ~ 1.6 V 1.3 V ~ 10 V 1.3 V ~ 3 V 1.4 V ~ 5 V 1.5 V ~ 10 V 1.5 V ~ 3.3 V 1.5 V ~ 3.6 V 1.5 V ~ 3.63 V 1.5 V ~ 3.7 V 1.5 V ~ 5.5 V 1.5 V ~ 9 V 1.52 V ~ 3 V 1.52 V ~ 3.6 V 1.52 V ~ 3.63 V 1.6 V ~ 1.9 V 1.6 V ~ 3.3 V 1.6 V ~ 3.6 V 1.62 V ~ 1.98 V 1.62 V ~ 2 V 1.62 V ~ 3.6 V 1.62 V ~ 3.63 V 1.64 V ~ 3.6 V 1.64 V ~ 3.7 V 1.65 V ~ 1.98 V 1.65 V ~ 3.6 V 1.65 V ~ 3.63 V 1.7 V ~ 3.6 V 1.7 V ~ 5 V 1.71 V ~ 1.98 V 1.8 V ~ 3.3 V 1.9 V ~ 3 V 105 V ~ 3.6 V 2 V ~ 10 V 2.1 V ~ 3.6 V 2.3 V ~ 3.6 V 2.4 V ~ 3.2 V 2.4 V ~ 3.3 V 2.4 V ~ 3.6 V 2.5 V ~ 10 V 2.5 V ~ 5.5 V 2.6 V ~ 3 V 3 V ~ 10 V 4.5 V ~ 10 V 4.6 V ~ 3.6 V 9 V ~ 10 V	- 0.2 mA 0.3 mA 0.5 mA 1 mA 1.025 mA 1.05 mA 1.12 mA 1.2 mA 1.3 mA 1.4 A 1.4 mA 1.5 mA 1.6 mA 1.675 mA 10 mA 10 µA 100 µA 105 µA 110 µA 112 µA 115 µA 122 µA 135 µA 140 µA 150 mA 150 µA 155 µA 160 µA 165 µA 17 µA 170 µA 175 µA 180 µA 1830 µA 185 µA 190 µA 2 mA 200 µA 205 µA 220 µA 225 µA 230 µA 235 µA 240 µA 248 µA 25 µA 250 µA 260 µA 285 µA 29 µA 300 µA 310 µA 325 µA 330 µA 340 µA 350 µA 370 µA 375 µA 39 mA 40 µA 400 µA 450 µA 48 µA 5 mA 5 µA 50 µA 500 µA 520 µA 525 µA 540 µA 55 µA 550 µA 590 µA 60 µA 600 µA 620 µA 640 µA 650 µA 670 µA 680 µA 685 µA 7.5 mA 700 µA 715 µA 725 µA 730 µA 735 µA 75 µA 750 µA 775 µA 780 µA 80 µA 800 µA 850 µA 860 µA 90 µA 980 µA	- Bottom Bottom, Side Bottom, Top Side Side, Top Top	- IP50 - Dust Protection IP57 - Dust Protected, Waterproof IP65 - Dust Tight, Water Resistant IP67 - Dust Tight, Waterproof IP68 - Dust Tight, Waterproof IPX7 Waterproof	- Flex Cable PC Pins Pressure Contact Screw Terminals SMD Reflow Solder Pads Solderless (Bullseye) Surface Mount Wire Leads Wire Leads with Connector	- 0.098" L x 0.063" W (2.50mm x 1.60mm) 0.101" Dia (2.56mm) 0.101" Dia (2.57mm) 0.108" L x 0.073" W (2.75mm x 1.85mm) 0.110" Dia (2.80mm) 0.114" L x 0.108" W (2.90mm x 2.76mm) 0.118" (3.00mm) Dia 0.118" Dia (3.00mm) 0.118" L x 0.079" W (3.00mm x 2.00mm) 0.118" L x 0.157" W (3.00mm x 4.00mm) 0.122" L x 0.098" W (3.10mm x 2.50mm) 0.122" L x 0.104" W (3.10mm x 2.65mm) 0.130" Dia (3.30mm) 0.130" L x 0.097" W (3.31mm x 2.46mm) 0.132" L x 0.098" W (3.35mm x 2.50mm) 0.138" L x 0.079" W (3.50mm x 2.00mm) 0.138" L x 0.104" W (3.50mm x 2.65mm) 0.141" L x 0.141" W (3.57mm x 3.57mm) 0.142" L x 0.098" W (3.60mm x 2.50mm) 0.144" L x 0.112" W (3.66mm x 2.85mm) 0.148" L x 0.088" W (3.76mm x 2.24mm) 0.148" L x 0.116" W (3.76mm x 2.95mm) 0.148" L x 0.118" W (3.76mm x 3.00mm) 0.157" Dia (4.00mm) 0.157" L x 0.079" W (4.00mm x 2.00mm) 0.157" L x 0.104" W (4.00mm x 2.65mm) 0.157" L x 0.118" W (4.00mm x 3.00mm) 0.172" L x 0.141" W (4.37mm x 3.58mm) 0.177" Dia (4.50mm) 0.177" L x 0.177" W (4.50mm x 4.50mm) 0.181" Dia (4.60mm) 0.185" Dia (4.70mm) 0.186" L x 0.148" W (4.72mm x 3.76mm) 0.197" Dia (5.00mm) 0.197" L x 0.165" W (5.00mm x 4.20mm) 0.219" L x 0.157" W (5.56mm x 3.99mm) 0.228" Dia (5.80mm) 0.236" (5.90mm) Height 0.236" Dia (6.00mm) 0.242" L x 0.148" W (6.15mm x 3.76mm) 0.276" Dia (7.00mm) 0.283" Dia (7.20mm) 0.295" Dia (7.50mm) 0.301" L x 0.141" W (7.65mm x 3.58mm) 0.303" Dia (7.70mm) 0.310" L x 0.218" W (7.87mm x 5.54mm) 0.310" L x 0.220" W (7.87mm x 5.59mm) 0.315" Dia (8.00mm) 0.335" L x 0.335" W (8.50mm x 8.50mm) 0.339" Dia (8.60mm) 0.340" Dia (8.64mm) 0.368" L x 0.138" W (9.35mm x 3.50mm) 0.370" Dia (9.40mm) 0.382" Dia (9.70mm) 0.394" Dia (10.00mm) 0.402" Dia (10.20mm) 0.461" Dia (11.70mm) 0.500" Dia (12.70mm) 0.551" Dia (14.00mm) 0.630" Dia (16.00mm) 0.630" L x 0.157" W (16.00mm x 4.00mm) 0.634" (16.10mm) 0.646" L x 0.319" W (16.40mm x 8.10mm) 0.709" Dia (18.00mm) 0.748" Dia (19.00mm) 0.871" Dia (22.12mm) 0.984" Dia (25.00mm) 18.900" L x 9.500" W (480.06mm x 241.30mm) 19.000" L x 9.500" W (482.60mm x 241.30mm) 2.000" L x 2.000" W (50.80mm x 50.80mm) 4.000" L x 1.250" W (101.60mm x 31.75mm) 5.200" L x 5.200" W (132.08mm x 132.08mm) 8.000" L x 5.000" W (203.20mm x 127.00mm) 8.860" L x 7.480" W (225.04mm x 189.99mm)	- 0.033" (0.85mm) 0.035" (0.88mm) 0.035" (0.90mm) 0.037" (0.95mm) 0.038" (0.97mm) 0.038" (0.98mm) 0.039" (0.98mm) 0.039" (0.99mm) 0.039" (1.00mm) 0.041" (1.05mm) 0.042" (1.06mm) 0.043" (1.08mm) 0.043" (1.10mm) 0.044" (1.11mm) 0.045" (1.15mm) 0.046" (1.16mm) 0.047" (1.20mm) 0.049" (1.25mm) 0.050" (1.26mm) 0.051" (1.30mm) 0.052" (1.31mm) 0.053" (1.35mm) 0.054" (1.38mm) 0.055" (1.40mm) 0.059" (1.50mm) 0.061" (1.55mm) 0.063" (1.60mm) 0.065" (1.65mm) 0.067" (1.70mm) 0.068" (1.73mm) 0.070" (1.77mm) 0.071" (1.80mm) 0.073" (1.85mm) 0.075" (1.90mm) 0.079" (2.00mm) 0.085" (2.16mm) 0.087" (2.20mm) 0.089" (2.26mm) 0.090" (2.28mm) 0.090" (2.29mm) 0.094" (2.40mm) 0.098" (2.50mm) 0.101" (2.56mm) 0.101" (2.57mm) 0.102" (2.60mm) 0.106" (2.70mm) 0.108" (2.74mm) 0.114" (2.90mm) 0.116" (2.95mm) 0.118" (3.00mm) 0.120" (3.05mm) 0.126" (3.20mm) 0.127" (3.22mm) 0.130" (3.30mm) 0.134" (3.40mm) 0.138" (3.50mm) 0.142" (3.60mm) 0.146" (3.70mm) 0.150" (3.80mm) 0.157" (4.00mm) 0.160" (4.06mm) 0.161" (4.10mm) 0.163" (4.13mm) 0.167" (4.24mm) 0.177" (4.50mm) 0.183" (4.65mm) 0.185" (4.70mm) 0.186" (4.72mm) 0.191" (4.85mm) 0.197" (5.00mm) 0.199" (5.05mm) 0.203" (5.15mm) 0.204" (5.17mm) 0.205" (5.20mm) 0.207" (5.25mm) 0.210" (5.33mm) 0.213" (5.40mm) 0.217" (5.50mm) 0.219" (5.56mm) 0.220" (5.59mm) 0.224" (5.70mm) 0.244" (6.20mm) 0.245" (6.22mm) 0.248" (6.30mm) 0.256" (6.50mm) 0.260" (6.60mm) 0.264" (6.70mm) 0.272" (6.90mm) 0.276" (7.00mm) 0.299" (7.60mm) 0.300" (7.62mm) 0.340" (8.64mm) 0.366" (9.30mm) 1.008" (25.60mm) 1.200" (30.48mm) 1.500" (38.10mm) 1.700" (43.18mm) 1.750" (44.45mm) 14.170" (359.92mm) 6.000" (152.40mm) 6.700" (170.18mm)	- Circular Rectangle Rectangular Round Square	- Automotive	- AEC-Q103

Reset All

Apply All

Result

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Type	Output Type	Direction	Frequency Range	Sensitivity	S/N Ratio	Impedance	Voltage - Rated	Voltage Range	Current - Supply	Port Location	Ratings	Termination	Size / Dimension	Height (Max)	Shape	Grade	Qualification
TO-30453-000 MIC ANALOG OMNI Knowles	1,739	-	RFQ	Datasheet	TO	Tray	Active	-	Analog	Omnidirectional	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TO-30994-000 MIC ANALOG OMNI Knowles	4,400	-	RFQ	Datasheet	TO	Tray	Active	-	Analog	Omnidirectional	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
WP-30113-PO3 MICROPHONE Knowles	3,786	-	RFQ	Datasheet	WP	Tray	Active	Boom	Analog	Omnidirectional	100 Hz ~ 10 kHz	-74dB ±3dB @ 94dB SPL	-	4.4 kOhms	1.3 V	-	50 µA	Top	-	Solder Pads	0.219" L x 0.157" W (5.56mm x 3.99mm)	0.089" (2.26mm)	Rectangular	-	-
WP22502-P16 MICROPHONE ASSEMBLY Knowles	4,729	-	RFQ	Datasheet	-	Tray	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
FG38-30490-C36 MIC COND ANALOG OMNI Knowles	3,288	-	RFQ	Datasheet	FG	Tray	Obsolete	Electret Condenser	Analog	Omnidirectional	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

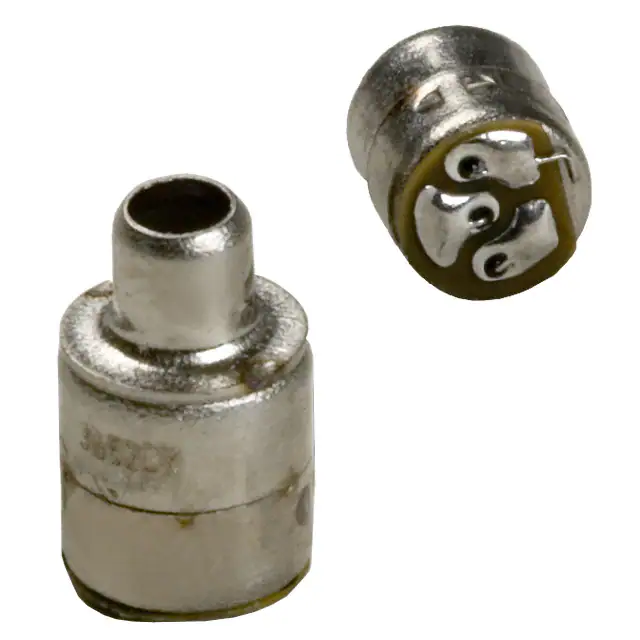

FG-23652-D65 MIC COND ANLG OMNI -53DB 0.101"D Knowles	1,253	-	RFQ	Datasheet	FG	Bulk	Obsolete	Electret Condenser	Analog	Omnidirectional	100 Hz ~ 10 kHz	-53dB ±3dB @ 74dB SPL	-	4.4 kOhms	1.3 V	1.3 V ~ 3 V	50 µA	Top	-	Solder Pads	0.101" Dia (2.57mm)	0.102" (2.60mm)	Circular	-	-

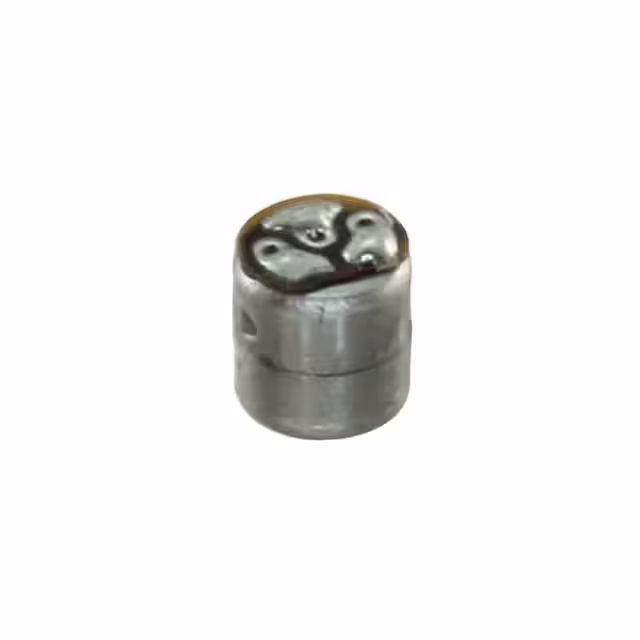

FG-26107-D65 MICROPHONE COND ANALOG OMNI Knowles	3,402	-	RFQ	Datasheet	FG	Tray	Active	Electret Condenser	Analog	Omnidirectional	100 Hz ~ 10 kHz	-53.5dB ±3dB @ 74dB SPL	-	4.4 kOhms	1.3 V	-	50 µA	Side	-	Solder Pads	0.101" Dia (2.57mm)	0.102" (2.60mm)	Circular	-	-
TM-24546-C36 MIC COND ANALOG OMNI -54.5DB Knowles	4,252	-	RFQ	Datasheet	TM	Tray	Obsolete	Electret Condenser	Analog	Omnidirectional	100 Hz ~ 6.4 kHz	-54.5dB ±3dB @ 74dB SPL	-	4.4 kOhms	1.3 V	0.9 V ~ 1.6 V	50 µA	Side	-	Solder Pads	0.141" L x 0.141" W (3.57mm x 3.57mm)	0.070" (1.77mm)	Square	-	-
TM-23568-C56 MIC ELECT OMNI -36DB SENS Knowles	2,055	-	RFQ	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

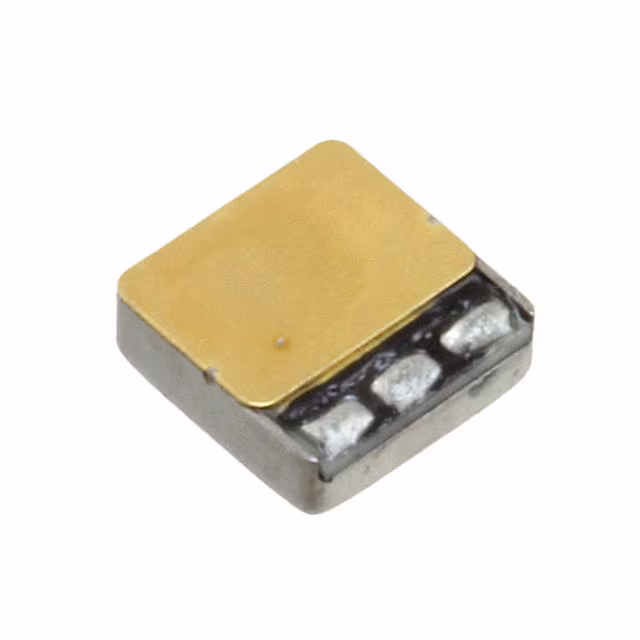

TO38-31018-B20 MIC COND ANALOG OMNI -64.5DB Knowles	4,517	-	RFQ	Datasheet	TO	Tray	Active	Electret Condenser	Analog	Omnidirectional	80 Hz ~ 10 kHz	-64.5dB ±3dB @ 74dB SPL	-	4.4 kOhms	-	0.9 V ~ 1.6 V	29 µA	Side	-	Solder Pads	0.141" L x 0.141" W (3.57mm x 3.57mm)	0.053" (1.35mm)	Square	-	-
TO38-30702-B20 MICROPHONE Knowles	3,421	-	RFQ	Datasheet	-	Tray	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
FB-DW-30294-000 MIC BOOM ANALOG NC -59DB 8MM D Knowles	2,553	-	RFQ	Datasheet	FB-DW	Bulk	Obsolete	Boom	Analog	Noise Cancelling	300 Hz ~ 4 kHz	-59dB +4dB, -3dB @ 74dB SPL	-	2.2 kOhms	1.3 V	1.3 V ~ 10 V	300 µA	Bottom, Top	IP67 - Dust Tight, Waterproof	Wire Leads	0.315" Dia (8.00mm)	0.185" (4.70mm)	Circular	-	-
TM-27830-C36 MIC ELECT OMNI -39.5DB SENS Knowles	1,506	-	RFQ	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BJ-28411-000 MICROPHONE MAG ANALOG NC -87DB Knowles	2,870	-	RFQ	Datasheet	BJ	Bulk	Obsolete	Magnetic	Analog	Noise Cancelling	300 Hz ~ 5 kHz	-87dB ±5dB @ 74dB SPL	-	300 Ohms	-	-	-	Side	-	Solder Pads	0.310" L x 0.220" W (7.87mm x 5.59mm)	0.160" (4.06mm)	Rectangular	-	-
BJ-21591-000 MIC MAG ANLG -75DB 0.31"LX0.22"W Knowles	4,831	-	RFQ	Datasheet	BJ	Bulk	Active	Magnetic	Analog	-	300 Hz ~ 5 kHz	-75dB ±2.5dB @ 74dB SPL	-	3.9 kOhms	-	-	-	Side	-	Solder Pads	0.310" L x 0.220" W (7.87mm x 5.59mm)	0.160" (4.06mm)	Rectangular	-	-

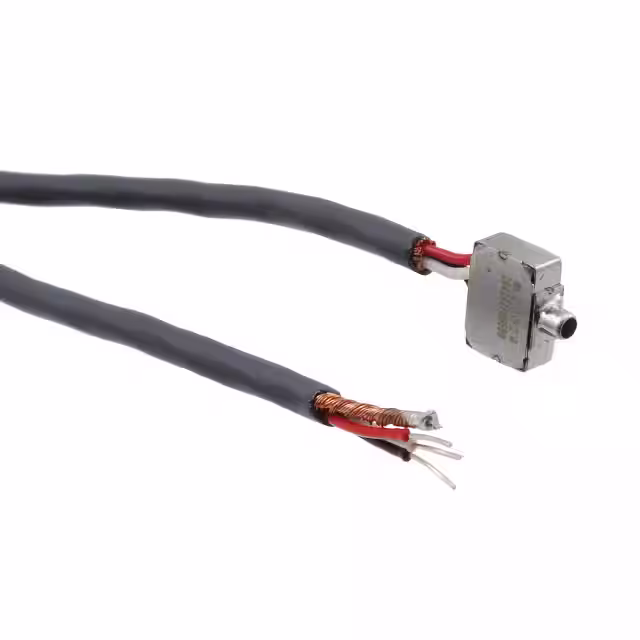

EK-23024-P54 MIC COND ANALOG OMNI -53DB Knowles	2,547	-	RFQ	Datasheet	EK	Tray	Obsolete	Electret Condenser	Analog	Omnidirectional	100 Hz ~ 5.5 kHz	-53dB ±2dB @ 74dB SPL	-	4.4 kOhms	1.3 V	-	50 µA	Side	-	Wire Leads	0.219" L x 0.157" W (5.56mm x 3.99mm)	0.089" (2.26mm)	Rectangular	-	-
EM-31144-P58 MICROPHONE COND ANALOG OMNI Knowles	1,242	-	RFQ	Datasheet	EM	Bulk	Active	Electret Condenser	Analog	Omnidirectional	100 Hz ~ 10 kHz	-	-	-	-	-	-	-	-	Solder Pads	0.141" L x 0.141" W (3.57mm x 3.57mm)	0.090" (2.28mm)	Square	-	-
WP-23501-P17 MIC COND ANALOG NC -54DB Knowles	1,571	-	RFQ	Datasheet	WP	Bulk	Obsolete	Electret Condenser	Analog	Noise Cancelling	100 Hz ~ 4 kHz	-54dB ±3dB @ 74dB SPL	-	2.5 kOhms	1.3 V	1.3 V ~ 10 V	300 µA	Top	Waterproof	Wire Leads	-	-	Rectangular	-	-
WP-23849-P16 MIC COND ANALOG OMNI -52DB Knowles	3,129	-	RFQ	Datasheet	WP	Bulk	Active	Electret Condenser	Analog	Omnidirectional	100 Hz ~ 9.5 kHz	-52dB ±3dB @ 74dB SPL	-	4.4 kOhms	1.3 V	-	50 µA	Bottom	Waterproof	Solder Pads	0.219" L x 0.157" W (5.56mm x 3.99mm)	0.089" (2.26mm)	Rectangular	-	-
TO-31021-B21 MICROPHONE OMNI Knowles	1,933	-	RFQ	Datasheet	TO	Bulk	Active	-	-	Omnidirectional	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
