Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Circuit	Switch Function	Current Rating (Amps)	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Mounting Type	Termination Style	Ingress Protection	Features	Operating Force	Release Force	Operating Position	Pretravel	Differential Travel	Overtravel	Operating Temperature

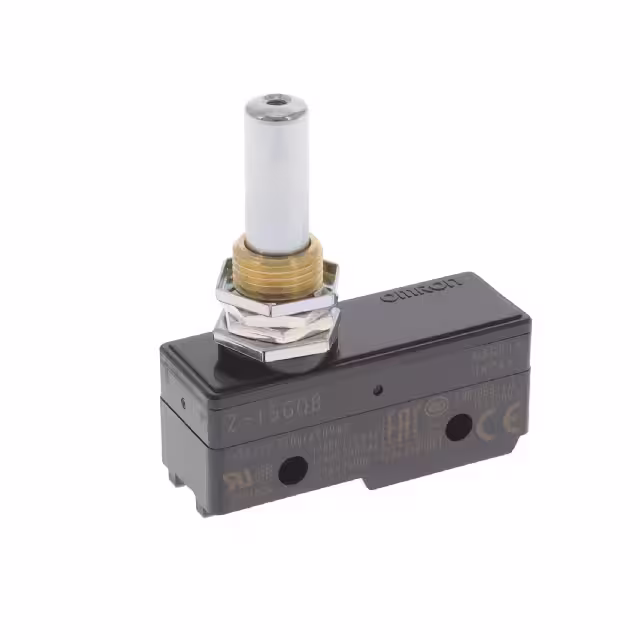

Z-15GQ8 SWITCH SNAP ACTION SPDT 15A 125V Omron Automation and Safety	2,559	-	RFQ	Datasheet	Z	Bulk	Active	SPDT	On-Mom	15A (AC), 6A (DC)	125 V	30 V	Overtravel Plunger	Panel Mount	Solder Lug	IP00	-	250 ~ 350gf	114gf	1.281" (32.5mm)	0.020" (0.5mm)	0.002" (0.05mm)	0.217" (5.5mm)	-25°C ~ 80°C

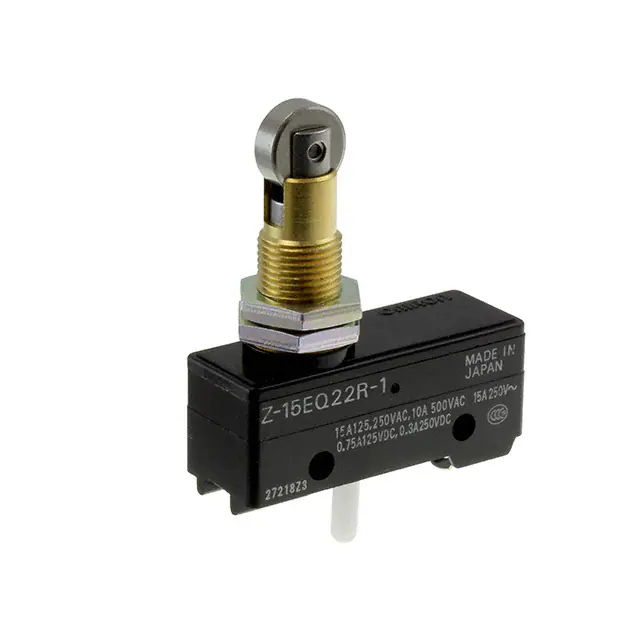

Z-15EQ22R-1 SWITCH SNAP ACTION SPDT 15A 125V Omron Automation and Safety	3,369	-	RFQ	Datasheet	Z	Bulk	Active	SPDT	On-Mom	15A (AC), 6A (DC)	125 V	30 V	Roller Plunger	Chassis Mount	Solder Lug	IP40	-	625 ~ 800gf	114gf	1.313" (33.4mm)	0.030" (0.8mm)	0.005" (0.13mm)	0.141" (3.6mm)	-25°C ~ 80°C

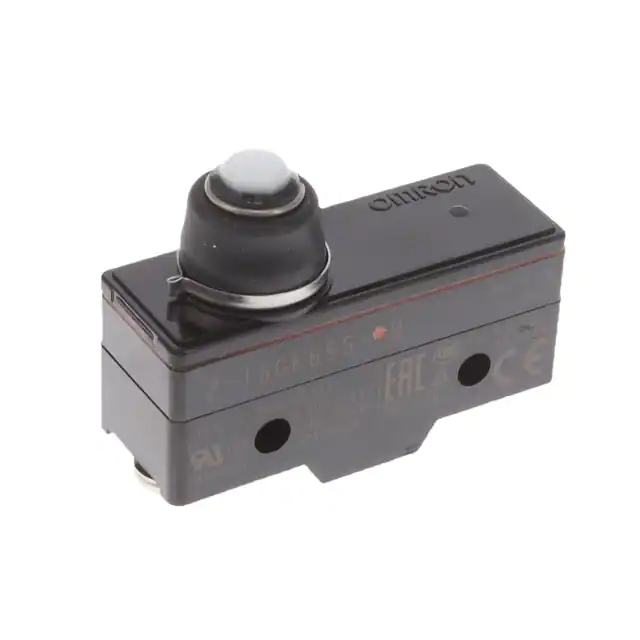

Z-15GK655-B SWITCH SNAP ACTION SPDT 15A 125V Omron Automation and Safety	3,753	-	RFQ	Datasheet	Z	Bulk	Active	SPDT	On-Mom	15A (AC), 6A (DC)	125 V	30 V	Round (Pin Plunger)	Chassis Mount	Screw Terminal	-	-	-	-	-	-	-	-	-25°C ~ 80°C

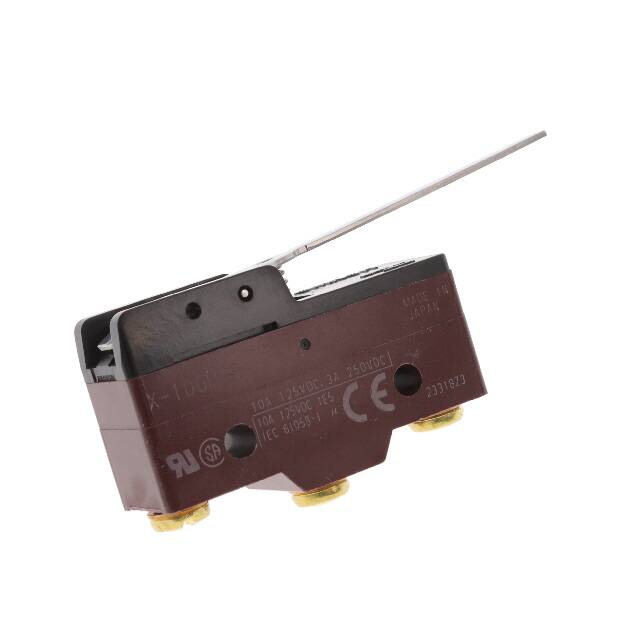

X-10GM-B SWITCH SNAP ACTION SPDT 10A 30V Omron Automation and Safety	4,073	-	RFQ	Datasheet	X	Tray	Active	SPDT	On-Mom	10A (DC)	-	30 V	Lever, Straight	Chassis Mount	Screw Terminal	IP00	-	220gf	25gf	0.831" (21.1mm)	-	0.083" (2.1mm)	0.217" (5.5mm)	-25°C ~ 80°C

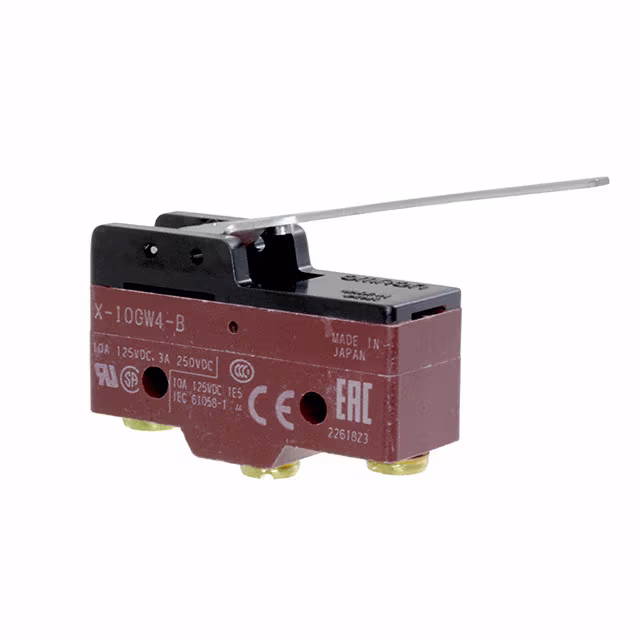

X-10GW4-B SWITCH SNAP ACTION SPDT 10A 30V Omron Automation and Safety	4,309	-	RFQ	Datasheet	X	Bulk	Active	SPDT	On-Mom	10A (DC)	-	30 V	Lever, Straight	Chassis Mount	Screw Terminal	IP00	-	25gf	5.099gf	0.831" (21.1mm)	0.562" (14.3mm)	0.154" (3.9mm)	0.190" (4.8mm)	-25°C ~ 80°C
Z-15GK355-B SWITCH SNAP ACTION SPDT 15A 125V Omron Automation and Safety	2,766	-	RFQ	Datasheet	Z	Tray	Active	SPDT	On-Mom	15A (AC), 6A (DC)	125 V	30 V	Round (Pin Plunger)	Chassis Mount	Screw Terminal	IP62	-	540gf	114gf	1.488" (37.8mm)	0.094" (2.4mm)	0.002" (0.05mm)	0.138" (3.5mm)	-15°C ~ 80°C
Z-01HQ21-B SWITCH SNAP ACT SPDT 0.1A 125V Omron Automation and Safety	1,153	-	RFQ	Datasheet	Z	Bulk	Active	SPDT	On-Mom	100mA (AC/DC)	125 V	30 V	Cross Roller Plunger	Chassis Mount	Screw Terminal	IP00	-	200 ~ 285gf	114gf	-	0.012" (0.3mm)	0.001" (0.025mm)	0.141" (3.58mm)	-25°C ~ 80°C

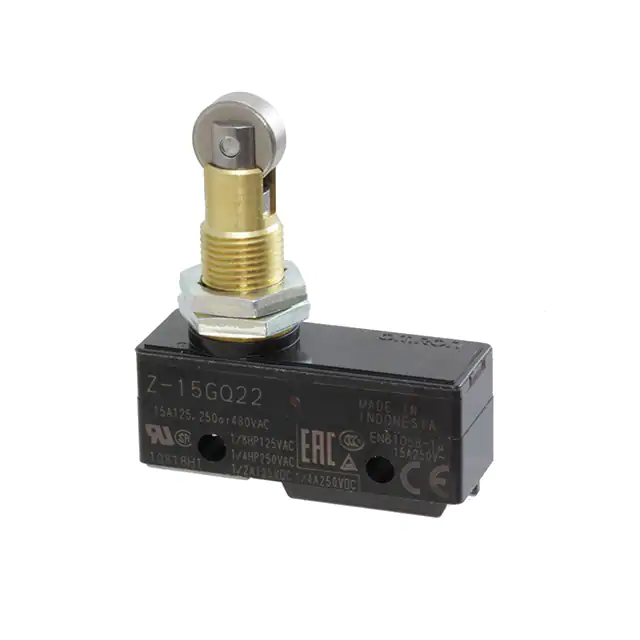

Z-15GQ22 SWITCH SNAP ACTION SPDT 15A 125V Omron Automation and Safety	2,654	-	RFQ	Datasheet	Z	Tray	Active	SPDT	On-Mom	15A (AC), 6A (DC)	125 V	30 V	Roller Plunger	Panel Mount	Solder Lug	IP00	-	250 ~ 350gf	114gf	1.313" (33.4mm)	0.015" (0.4mm)	0.002" (0.05mm)	0.141" (3.6mm)	-25°C ~ 80°C

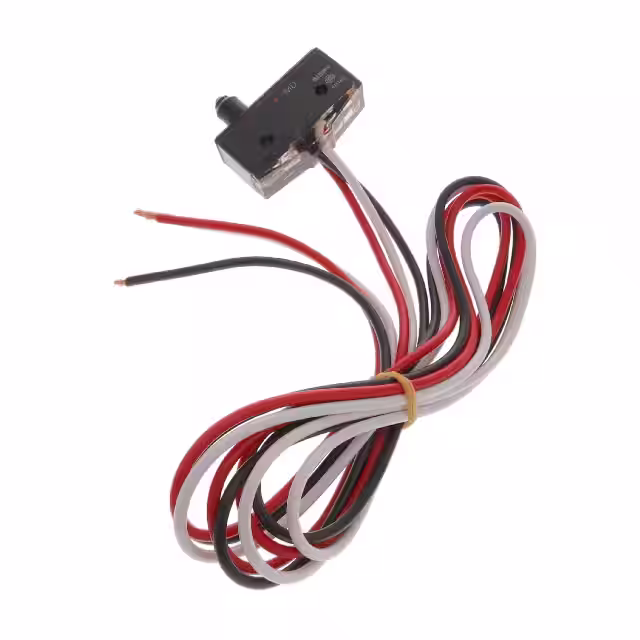

Z-15GS55-MD 1M SWITCH SNAP ACTION SPDT 15A 125V Omron Automation and Safety	1,259	-	RFQ	Datasheet	Z	Bulk	Active	SPDT	On-Mom	15A (AC), 6A (DC)	125 V	30 V	Round (Pin Plunger)	Chassis Mount	Cable Leads	IP62	Cable Length 1m	250 ~ 350gf	114gf	1.110" (28.2mm)	0.015" (0.4mm)	0.002" (0.05mm)	0.062" (1.6mm)	-15°C ~ 80°C

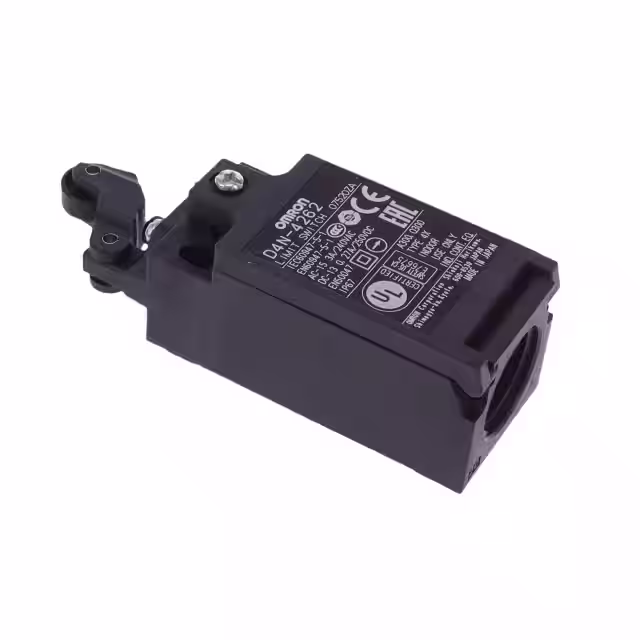

D4N-4262 SWITCH SNAP ACT DPST-NC 3A 240V Omron Automation and Safety	3,057	-	RFQ	Datasheet	D4N	Bulk	Active	DPST-NC	On-Mom	3A (AC), 270mA (DC)	240 V	250 V	Lever, Roller	Chassis Mount	Screw Terminal	IP67 - Dust Tight, Waterproof	-	510gf	82gf	1.457" (37.0mm)	0.157" (4.0mm)	0.060" (1.5mm)	0.197" (5.0mm)	-30°C ~ 70°C
Z-15HQ21-B SWITCH SNAP ACTION SPDT 15A 125V Omron Automation and Safety	1,771	-	RFQ	Datasheet	Z	Bulk	Active	SPDT	On-Mom	15A (AC), 2A (DC)	125 V	30 V	Cross Roller Plunger	Panel Mount	Screw Terminal	IP00	-	200 ~ 285gf	114gf	1.313" (33.4mm)	0.012" (0.3mm)	0.001" (0.025mm)	0.141" (3.6mm)	-25°C ~ 80°C
D4N-2131 SWITCH SNAP ACTION DPST 3A 240V Omron Automation and Safety	2,386	-	RFQ	Datasheet	D4N	Bulk	Active	DPST-NO/NC	On-Mom, Off-Mom	3A (AC), 270mA (DC)	240 V	250 V	Round (Pin Plunger)	Chassis Mount	Screw Terminal	IP67 - Dust Tight, Waterproof	-	663gf	153gf	0.715" (18.2mm)	0.080" (2.0mm)	0.040" (1.0mm)	0.158" (4.0mm)	-30°C ~ 70°C

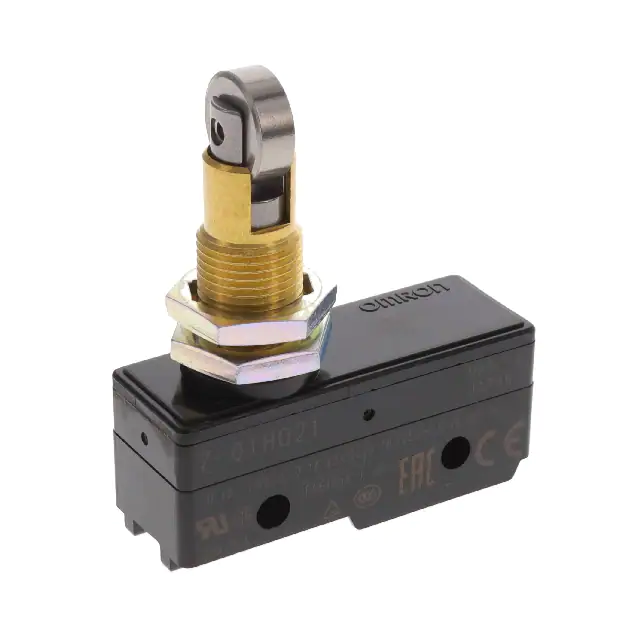

Z-01HQ21 SWITCH PNL MNT CRSS RLR PLUNGR Omron Automation and Safety	1,447	-	RFQ	Datasheet	Z	-	Active	-	-	100mA (AC/DC)	125 V	30 V	Cross Roller Plunger	-	-	-	-	-	-	-	-	-	-	-
X-10GD-B SWITCH SNAP ACTION SPDT 10A 30V Omron Automation and Safety	4,470	-	RFQ	Datasheet	X	Bulk	Active	SPDT	On-Mom	10A (DC)	-	30 V	Round (Pin Plunger)	Chassis Mount	Screw Terminal	IP00	-	510gf	114gf	0.835" (21.2mm)	0.035" (0.9mm)	0.007" (0.18mm)	0.062" (1.6mm)	-25°C ~ 80°C
D4N-2162 SWITCH SNAP ACTION DPST 3A 240V Omron Automation and Safety	1,066	-	RFQ	Datasheet	D4N	Bulk	Active	DPST-NO/NC	On-Mom, Off-Mom	3A (AC), 270mA (DC)	240 V	250 V	Lever, Roller	Chassis Mount	Screw Terminal	IP67 - Dust Tight, Waterproof	-	510gf	82gf	1.457" (37.0mm)	0.157" (4.0mm)	0.060" (1.5mm)	0.197" (5.0mm)	-30°C ~ 70°C

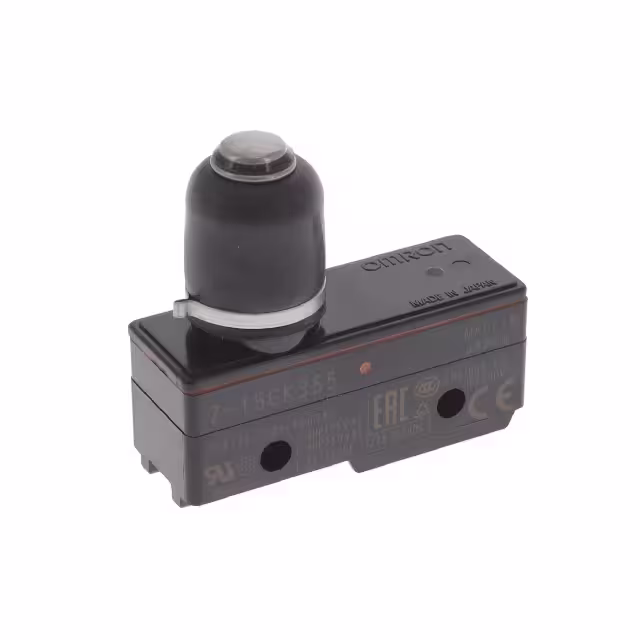

Z-15GK355 SWITCH SNAP ACTION SPDT 15A 125V Omron Automation and Safety	3,989	-	RFQ	Datasheet	Z	Tray	Active	SPDT	On-Mom	15A (AC), 6A (DC)	125 V	30 V	Round (Pin Plunger)	Chassis Mount	Solder Lug	IP62	-	540gf	114gf	1.488" (37.8mm)	0.094" (2.4mm)	0.002" (0.05mm)	0.138" (3.5mm)	-15°C ~ 80°C
1DM79 SWITCH SNAP ACTION SPDT 10A 125V Honeywell Sensing and Productivity Solutions	4,596	-	RFQ	Datasheet	DM	Bulk	Active	SPDT	On-Mom	10A (AC)	125 V	-	Round (Pin Plunger)	Panel Mount, Snap-In	Quick Connect - 0.187" (4.7mm)	-	-	425gf	85gf	0.750" (19.1mm)	-	0.045" (1.1mm)	0.375" (9.5mm)	-37°C ~ 82°C
D4N-1132 SWITCH SNAP ACTION DPST 3A 240V Omron Automation and Safety	1,889	-	RFQ	Datasheet	D4N	Bulk	Active	DPST-NO/NC	On-Mom, Off-Mom	3A (AC), 270mA (DC)	240 V	250 V	Roller Plunger	Chassis Mount	Screw Terminal	IP67 - Dust Tight, Waterproof	-	663gf	153gf	1.125" (28.6mm)	0.080" (2.0mm)	0.040" (1.0mm)	0.158" (4.0mm)	-30°C ~ 70°C
D4N-1A32 SWITCH SNAP ACTION DPST 3A 240V Omron Automation and Safety	3,745	-	RFQ	Datasheet	D4N	Bulk	Active	DPST-NO/NC	On-Mom, Off-Mom	3A (AC), 270mA (DC)	240 V	250 V	Roller Plunger	Chassis Mount	Screw Terminal	IP67 - Dust Tight, Waterproof	-	663gf	153gf	1.125" (28.6mm)	0.080" (2.0mm)	-	0.158" (4.0mm)	-30°C ~ 70°C

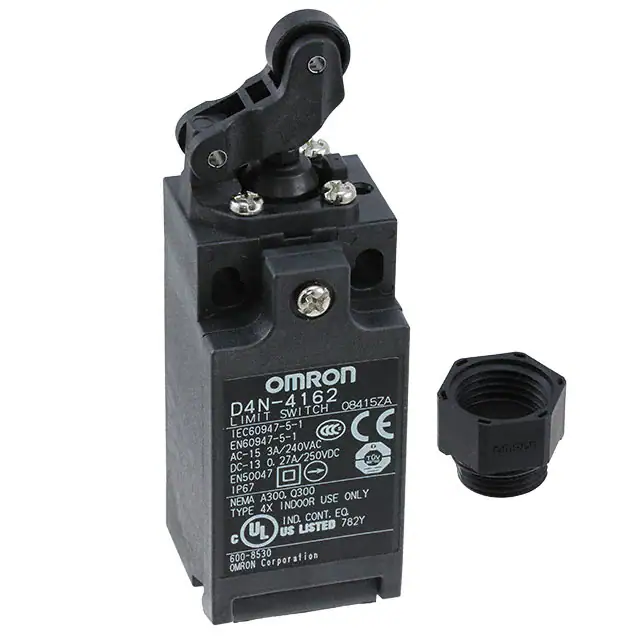

D4N-4162 SWITCH SNAP ACTION DPST 3A 240V Omron Automation and Safety	3,035	-	RFQ	Datasheet	D4N	Bulk	Active	DPST-NO/NC	On-Mom, Off-Mom	3A (AC), 270mA (DC)	240 V	250 V	Lever, Roller	Chassis Mount	Screw Terminal	IP67 - Dust Tight, Waterproof	-	510gf	82gf	1.457" (37.0mm)	0.157" (4.0mm)	0.060" (1.5mm)	0.197" (5.0mm)	-30°C ~ 70°C
