LED Emitters - Infrared, UV, Visible
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Current - DC Forward (If) (Max) | Radiant Intensity (Ie) Min @ If | Wavelength | Voltage - Forward (Vf) (Typ) | Viewing Angle | Orientation | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MTE2066N3-UR660NM 5MM PLASTIC ROUND - (2 PIN |
1,942 |
|
Datasheet |
- | Radial | Bulk | Active | Visible | 50mA | - | 660nm | 2.3V | 80° | Top View | -20°C ~ 80°C (TA) | - | - | Through Hole |
|
MTE2162NK1-UR630NM TO-46 METAL CAN DOMED LENS |
1,270 |
|
Datasheet |
- | TO-46-2 Lens Top Metal Can | Bulk | Active | Visible | 50mA | - | 630nm | 2.2V | 10° | Top View | -20°C ~ 85°C | - | - | Through Hole |
|
MTE2087NK2EMITTER INFARED 870NM TO18 |
2,161 |
|
Datasheet |
- | TO-46-2 Lens Top Metal Can | Bulk | Active | Infrared (IR) | 100mA | - | 870nm | 1.55V | 8° | Top View | -30°C ~ 100°C (TA) | - | - | Through Hole |
|
|
MTE2162N-UR630NM TO-18 METAL CAN DOMED LENS |
2,684 |
|
Datasheet |
- | TO-18-2 Metal Can | Bulk | Active | Visible | 50mA | - | 630nm | 2.2V | 14° | Top View | -20°C ~ 85°C | - | - | Through Hole |
|
|
MTE8800NK2EMITTER IR 880NM TO-46 |
1,863 |
|
Datasheet |
- | TO-46-2 Lens Top Metal Can | Bulk | Active | Infrared (IR) | 100mA | - | 880nm | 1.45V | 8° | Top View | -30°C ~ 100°C (TA) | - | - | Through Hole |
|
MTE5057N-UYGEMITTER VISIBLE 574NM 50MA TO-18 |
3,623 |
|
Datasheet |
Visible Emitter | TO-18-2 Metal Can | Bulk | Active | Visible | 50mA | - | 574nm | 2.3V | 12° | Top View | -20°C ~ 85°C (TA) | - | - | Through Hole |
|

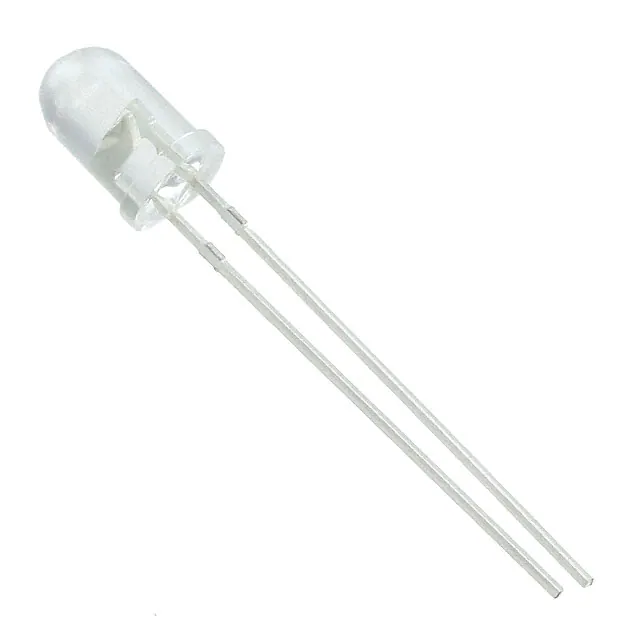

MT5850-IREMITTER IR 850NM 5MM RADIAL |
4,693 |
|
Datasheet |
- | Radial | Bulk | Active | Infrared (IR) | 150mA | - | 850nm | 1.4V | 40° | Top View | -20°C ~ 80°C (TA) | - | - | Through Hole |
|
ELUA3535NU3-P9000U5136481K0-V41GUVA 3535 PACKAGE, 4W, 30 DEGREE |
1,336 |
|
Datasheet |
ELUA3535NU3 | 1414 (3535 Metric) | Tape & Reel (TR) | Active | Ultraviolet (UV) | 1A | - | 395nm (390nm ~ 400nm) | 4.2V | 30° | Top View | -10°C ~ 100°C | - | - | Surface Mount |
|
LS-0730-015730NM AIGAAS LED ASSY |
3,144 |
|
Datasheet |
LS-0730 | TO-46-2 Lens Top Metal Can | Tray | Active | Infrared (IR) | 20mA | - | 730nm (720nm ~ 740nm) | 1.65V | - | Top View | -40°C ~ 85°C (TA) | - | - | Through Hole |
|

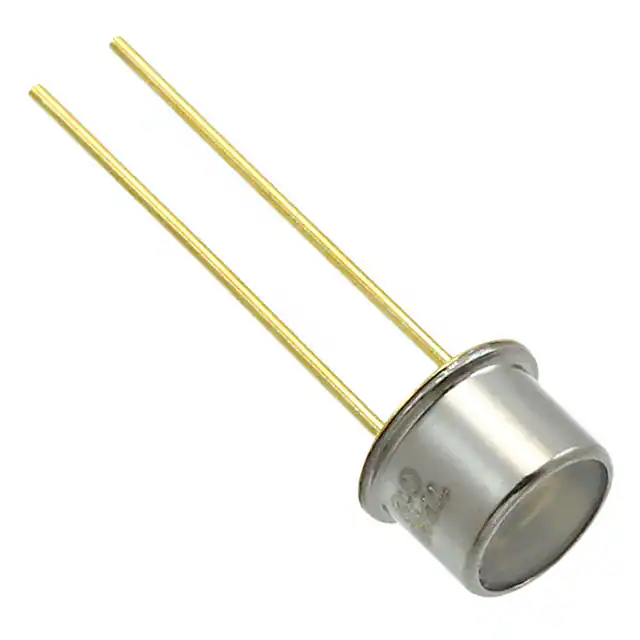

MTE9460WCEMITTER IR 950NM 100MA TO-18 |
3,648 |
|
Datasheet |
- | TO-18-2 Metal Can | Bulk | Active | Infrared (IR) | 100mA | - | 950nm | 1.3V | 90° | Top View | -20°C ~ 85°C (TA) | - | - | Through Hole |
|

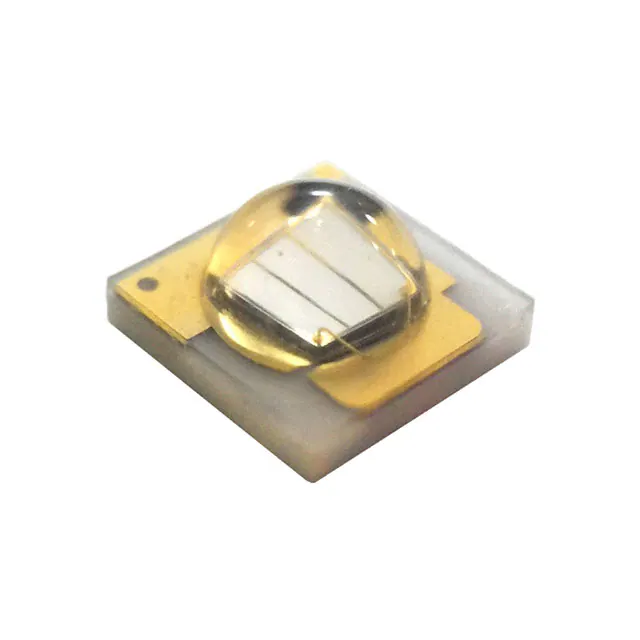

IN-C33BTNU2TOP VIEW 3535 3.5X3.5X2.8 |
2,130 |
|
Datasheet |
IN-C33(X)TN UV | 1414 (3535 Metric) | Tape & Reel (TR) | Active | Ultraviolet (UV) | 1A | - | 365nm ~ 370nm | 3.5V | 60° | Top View | -40°C ~ 125°C | - | - | Surface Mount |
|

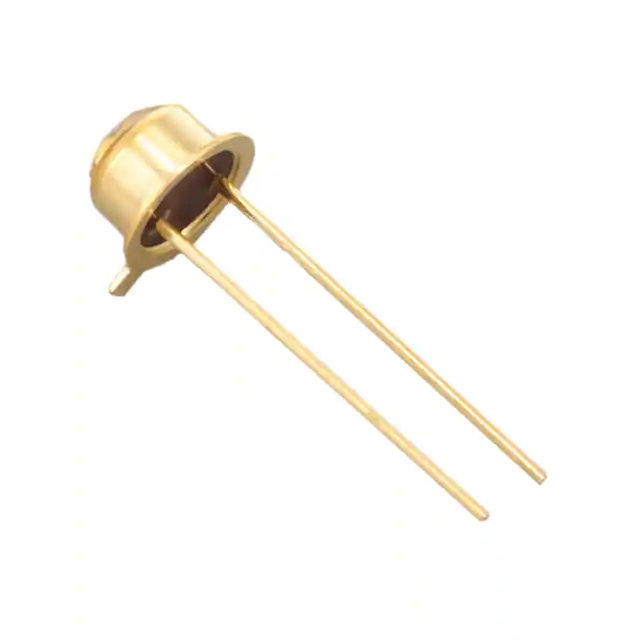

MTE6163M-UHRLED VISIBLE RED 630NM DOME |
1,168 |
|
Datasheet |
Visible Red LED | TO-46-2 Lens Top Metal Can | Tray | Active | Visible | 50mA | - | 630nm | 2.2V | 110° | Top View | -20°C ~ 85°C | - | - | Through Hole |
|

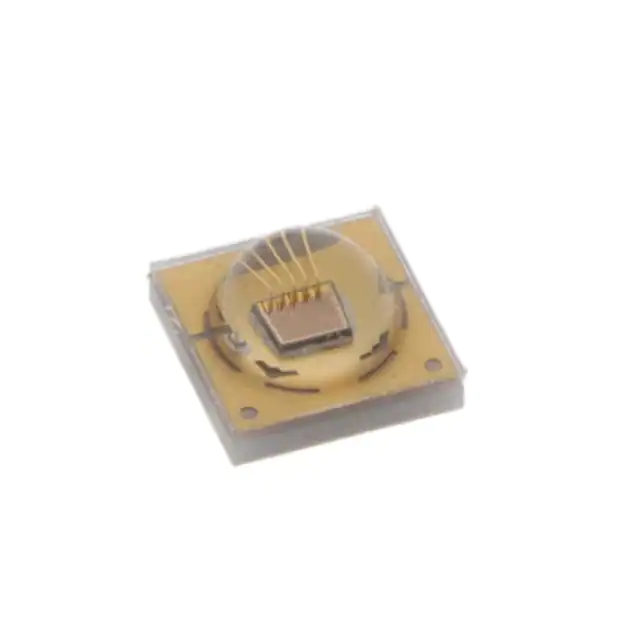

QBHP684E-V850Y23535 VCSEL/ WLP=850NM/ PO=1000MW |
1,084 |
|
Datasheet |
High Power | 1414 (3535 Metric) | Tape & Reel (TR) | Active | Infrared (IR) | 1.2A | - | 850nm | 2.3V | 25° | Top View | -40°C ~ 85°C | - | - | Surface Mount |
|
|
LS-0810-015810NM AIGAAS LED ASSY |
1,730 |
|
Datasheet |
LS-0810 | TO-46-2 Lens Top Metal Can | Tray | Active | Infrared (IR) | 100mA | - | 810nm (805nm ~ 820nm) | 1.6V | - | Top View | -40°C ~ 85°C (TA) | - | - | Through Hole |
|
MTPS7065MT2-BKPLCC-2 SMD FLAT LENS (2 PIN) |
3,172 |
|
Datasheet |
Point Source | 2-PLCC | Bulk | Active | - | 50mA | - | 650nm | 1.9V | 80° | Top View | -20°C ~ 80°C | - | - | Surface Mount |
|

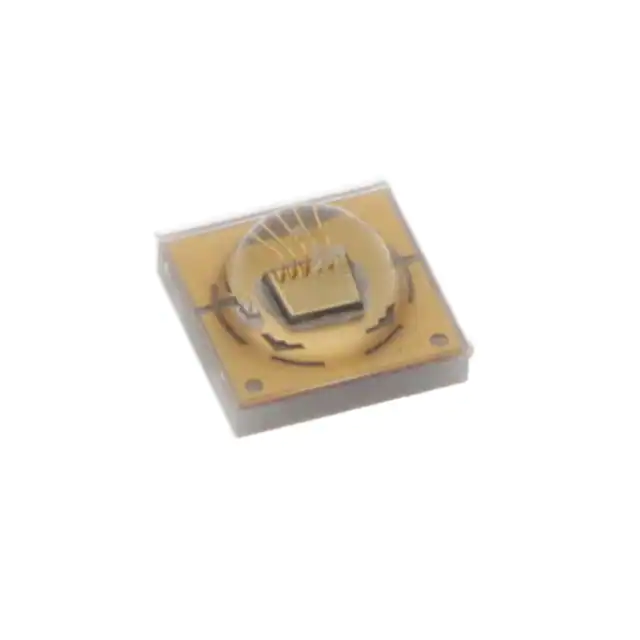

QBHP684E-V940Y23535 VCSEL/ WLP=940NM/ PO=1000MW |
3,392 |
|
Datasheet |
High Power | 1414 (3535 Metric) | Tape & Reel (TR) | Active | Infrared (IR) | 1.2A | - | 940nm | 2.3V | 25° | Top View | -40°C ~ 85°C | - | - | Surface Mount |
|
MTE4047NK2-UB470NM TO-46 METAL CAN DOMED |
4,323 |
|
Datasheet |
- | TO-46-2 | Bulk | Active | Visible | 50mA | - | 470nm | 3V | 10° | Top View | -20°C ~ 85°C (TA) | - | - | Through Hole |
|
MTE5052W-UBGEMITTER VISIBLE 525NM 30MA RAD |
4,883 |
|
Datasheet |
Visible Emitter | Radial | Bulk | Active | Visible | 30mA | - | 525nm | 3.5V | 40° | Top View | -20°C ~ 85°C (TA) | - | - | Through Hole |
|
LS-0370-014370NM INGAN UV LED ASSY |
2,292 |
|
Datasheet |
LS-0370 | TO-46-2 Lens Top Metal Can | Tray | Active | Ultraviolet (UV) | - | - | 370nm ~ 375nm | 3.6V | - | Top View | -40°C ~ 100°C (TA) | - | - | Through Hole |
|
MTE4110D4SWIR EMITTER 1040NM 3MM PLASTIC |
2,828 |
|
Datasheet |
- | Radial | Bulk | Active | Infrared (IR) | 100mA | - | 1040nm | 1.24V | 240° | Top View | -25°C ~ 85°C | - | - | Through Hole |
