Isolators - Gate Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Number of Channels | Voltage - Isolation | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Current - Output High, Low | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Output Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TLP250(D4-LF1,F)PHOTOCOUPLER |
3,226 |
|
Datasheet |
* | - | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TLP250(FANUC-TP,F)PHOTOCOUPLER |
3,154 |
|
Datasheet |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TLP250(TOJS-TP1,F)PHOTOCOUPLER |
1,091 |
|
Datasheet |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FOD3120TSR2OPTOISO 5KV 1CH GATE DVR 8SMD |
2,996 |
|
Datasheet |
OPTOPLANAR® | 8-SMD, Gull Wing | Bulk | Obsolete | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 400ns, 400ns | 100ns | 60ns, 60ns | 2A, 2A | 3A | 1.5V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD | UL |
|
|
IX332BOPTOISO 4.25KV 2CH GT DVR 16SOIC |
2,705 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Optical Coupling | 2 | 4250Vrms | 50kV/µs | 220ns, 220ns | 100ns | 13ns, 10ns | 500mA, 500mA | 2.5A | 1.4V | 20 mA | 15V ~ 30V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC | CSA, UL1577 |
|

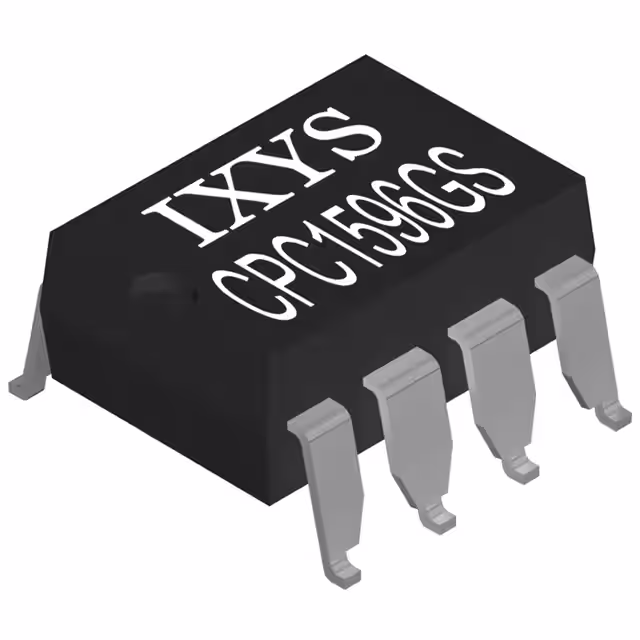

CPC1596GSOPTOISO 3.75KV 1CH GATE DVR 8SMD |
3,540 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Obsolete | Optical Coupling | 1 | 3750Vrms | - | - | - | - | 1A, 1A | 1A | 1.4V | 10 mA | 15V ~ 570V | - | - | -40°C ~ 110°C | Surface Mount | 8-SMD | CSA, UL |
|
|
CPC1596GOPTOISO 3.75KV 1CH GATE DVR 8DIP |
4,584 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Optical Coupling | 1 | 3750Vrms | - | - | - | - | 1A, 1A | 1A | 1.4V | 10 mA | 15V ~ 570V | - | - | -40°C ~ 110°C | Through Hole | 8-DIP | CSA, UL |
|
|
TLP700(TP,F)OPTOISO 5KV 1CH GATE DVR 6SDIP |
3,299 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Bulk | Obsolete | Optical Coupling | 1 | 5000Vrms | 15kV/µs | 500ns, 500ns | - | 50ns, 50ns | 2A, 2A | 2A | 1.57V | 20 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 6-SDIP Gull Wing | CSA, cUL, UL, VDE |
|
|
TLP700F(F)OPTOISO 5KV 1CH GATE DVR 6SDIP |
1,744 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Bulk | Obsolete | Optical Coupling | 1 | 5000Vrms | 15kV/µs | 500ns, 500ns | - | - | - | 2A | - | - | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 6-SDIP Gull Wing | - |
|
|
TLP705AF(D4-TP,F)OPTOISO 5KV 1CH GATE DVR 6SDIP |
1,826 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Bulk | Obsolete | Optical Coupling | 1 | 5000Vrms | 20kV/µs | 200ns, 200ns | 50ns | 35ns, 15ns | 600mA, 600mA | 600mA | 1.57V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 6-SDIP Gull Wing | CSA, cUL, UL, VDE |
|
|
TLP701AF(D4-TP,F)OPTOISO 5KV 1CH GATE DVR 6SDIP |
2,897 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Bulk | Obsolete | Optical Coupling | 1 | 5000Vrms | 20kV/µs | 500ns, 500ns | 350ns | 50ns, 50ns | 600mA, 600mA | 600mA | 1.57V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 6-SDIP Gull Wing | CSA, cUL, UL, VDE |
|
|
TLP700F(ABB-TP,F)OPTOISO 5KV 1CH GATE DVR 6SDIP |
4,008 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Bulk | Obsolete | Optical Coupling | 1 | 5000Vrms | 15kV/µs | 500ns, 500ns | - | - | - | 2A | - | - | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 6-SDIP Gull Wing | - |
|
|
TLP701(MBS-TP,F)OPTOISO 5KV 1CH GATE DVR 6SDIP |
2,348 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Bulk | Obsolete | Optical Coupling | 1 | 5000Vrms | 10kV/µs | 700ns, 700ns | - | 50ns, 50ns | 600mA, 600mA | 600mA | 1.55V | 20 mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 6-SDIP Gull Wing | CSA, cUL, UL, VDE |
|
|
TLP700F(TP,F)OPTOISO 5KV 1CH GATE DVR 6SDIP |
2,716 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Bulk | Obsolete | Optical Coupling | 1 | 5000Vrms | 15kV/µs | 500ns, 500ns | - | - | - | 2A | - | - | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 6-SDIP Gull Wing | - |
|
|
TLP701F(D4SONYTP,FOPTOISO 5KV 1CH GATE DVR 6SDIP |
1,538 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Bulk | Obsolete | Optical Coupling | 1 | 5000Vrms | 10kV/µs | 700ns, 700ns | - | - | - | 600mA | - | - | 10V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 6-SDIP Gull Wing | - |
|
|
TLP705AF(F)OPTOISO 5KV 1CH GATE DVR 6SDIP |
2,540 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Bulk | Obsolete | Optical Coupling | 1 | 5000Vrms | 20kV/µs | 200ns, 200ns | 50ns | 35ns, 15ns | 600mA, 600mA | 600mA | 1.57V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 6-SDIP Gull Wing | CSA, cUL, UL, VDE |
|
|
TLP700A(D4-TP,F)OPTOISO 5KV 1CH GATE DVR 6SDIP |
3,088 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Bulk | Obsolete | Optical Coupling | 1 | 5000Vrms | 20kV/µs | 200ns, 200ns | 50ns | 15ns, 8ns | 2.5A, 2.5A | 2.5A | 1.55V | 20 mA | 15V ~ 30V | - | - | -40°C ~ 110°C | Surface Mount | 6-SDIP Gull Wing | CQC, CSA, cUL, UL, VDE |
|
|
TLP700F(D4,F)OPTOISO 5KV 1CH GATE DVR 6SDIP |
2,820 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Bulk | Obsolete | Optical Coupling | 1 | 5000Vrms | 15kV/µs | 500ns, 500ns | - | - | - | 2A | - | - | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 6-SDIP Gull Wing | - |
|
|
TLP701AF(F)OPTOISO 5KV 1CH GATE DVR 6SDIP |
3,838 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Bulk | Obsolete | Optical Coupling | 1 | 5000Vrms | 20kV/µs | 500ns, 500ns | 350ns | 50ns, 50ns | 600mA, 600mA | 600mA | 1.57V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 6-SDIP Gull Wing | CSA, cUL, UL, VDE |
|
|
TLP701F(F)OPTOISO 5KV 1CH GATE DVR 6SDIP |
1,730 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Bulk | Obsolete | Optical Coupling | 1 | 5000Vrms | 10kV/µs | 700ns, 700ns | - | - | - | 600mA | - | - | 10V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 6-SDIP Gull Wing | - |
