Isolators - Gate Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Number of Channels | Voltage - Isolation | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Current - Output High, Low | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Output Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI82394BD4-AS3RDGT ISO 3.25KV 2CH GT DVR 14SOIC |
1,305 |
|
Datasheet |
- | 14-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 3250Vrms | 35kV/µs | 135ns, 95ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 14-SOIC | CQC, CSA, UL, VDE |
|
|
SI82390CD-AS3RDGT ISO 3.25KV 2CH GT DVR 14SOIC |
3,114 |
|
Datasheet |
- | 14-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 3250Vrms | 35kV/µs | - | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 14-SOIC | CQC, CSA, UL, VDE |
|
|
SI82390BD-AS3RDGT ISO 3.25KV 2CH GT DVR 14SOIC |
2,653 |
|
Datasheet |
- | 14-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 3250Vrms | 35kV/µs | - | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 14-SOIC | CQC, CSA, UL, VDE |
|
|
SI82397AD-AS3RDGT ISO 3.25KV 2CH GT DVR 14SOIC |
2,926 |
|
Datasheet |
- | 14-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 3250Vrms | 35kV/µs | 135ns, 95ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 14-SOIC | CQC, CSA, UL, VDE |
|
|
SI82398CD4-ASRDGTL ISO 2.5KV 2CH GT DVR 16SOIC |
1,671 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 2500Vrms | 35kV/µs | 135ns, 95ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UL, VDE |
|
|
SI82396CD-AS3RDGT ISO 3.25KV 2CH GT DVR 14SOIC |
2,578 |
|
Datasheet |
- | 14-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 3250Vrms | 35kV/µs | 135ns, 95ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 14-SOIC | CQC, CSA, UL, VDE |
|
|
SI82396CD-ASRDGTL ISO 2.5KV 2CH GT DVR 16SOIC |
2,875 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 2500Vrms | 35kV/µs | 135ns, 95ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UL, VDE |
|

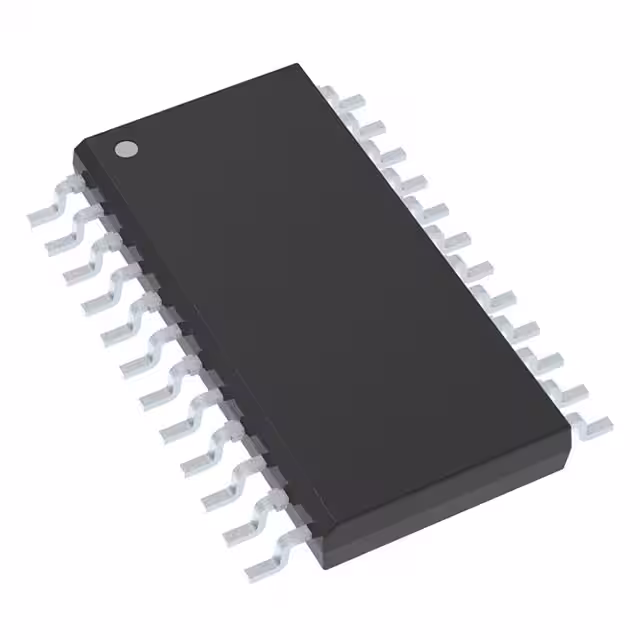

STGAP1STRDGTL ISO 2.5KV 1CH GATE DVR 24SO |
1,642 |
|
Datasheet |
gapDRIVE™ | 24-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Magnetic Coupling | 1 | 2500Vrms | - | 130ns, 130ns | 10ns | 25ns, 25ns (Max) | 2.5A, 2.5A | - | - | - | 4.5V ~ 36V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 24-SO | UL |
|
STGAP1SDGTL ISO 2.5KV 1CH GATE DVR 24SO |
2,586 |
|
Datasheet |
gapDRIVE™ | 24-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Magnetic Coupling | 1 | 2500Vrms | - | 130ns, 130ns | 10ns | 25ns, 25ns (Max) | 2.5A, 2.5A | - | - | - | 4.5V ~ 36V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 24-SO | UL |
|
|
SI8232AB-AS1DGTL ISO 2.5KV 2CH GT DVR 16SOIC |
3,005 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | Capacitive Coupling | 2 | 2500Vrms | 20kV/µs | 45ns, 45ns | 5.6ns | 20ns, 20ns (Max) | 250mA, 500mA | 500mA | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UL, VDE |
|
|
SI8230BB-AS1DGTL ISO 2.5KV 2CH GT DVR 16SOIC |
2,269 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | Capacitive Coupling | 2 | 2500Vrms | 20kV/µs | 45ns, 45ns | 5.6ns | 20ns, 20ns (Max) | 250mA, 500mA | 500mA | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UL, VDE |
|
|
SI8230AB-AS1DGTL ISO 2.5KV 2CH GT DVR 16SOIC |
1,330 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | Capacitive Coupling | 2 | 2500Vrms | 20kV/µs | 45ns, 45ns | 5.6ns | 20ns, 20ns (Max) | 250mA, 500mA | 500mA | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UL, VDE |
|
|
SI8237AB-AS1DGTL ISO 5KV 2CH GATE DVR 16SOIC |
2,844 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | Capacitive Coupling | 2 | 5000Vrms | 20kV/µs | 45ns, 45ns | 5.6ns | 20ns, 20ns (Max) | 250mA, 500mA | 500mA | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UL, VDE |
|
|
SI8231AB-AS1DGTL ISO 2.5KV 2CH GT DVR 16SOIC |
1,231 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | Capacitive Coupling | 2 | 2500Vrms | 20kV/µs | 45ns, 45ns | 5.6ns | 20ns, 20ns (Max) | 250mA, 500mA | 500mA | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UL, VDE |
|
|
SI8231BB-AS1DGTL ISO 2.5KV 2CH GT DVR 16SOIC |
4,622 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | Capacitive Coupling | 2 | 2500Vrms | 20kV/µs | 45ns, 45ns | 5.6ns | 20ns, 20ns (Max) | 250mA, 500mA | 500mA | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UL, VDE |
|
|
SI8232BB-AS1DGTL ISO 2.5KV 2CH GT DVR 16SOIC |
2,417 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | Capacitive Coupling | 2 | 2500Vrms | 20kV/µs | 45ns, 45ns | 5.6ns | 20ns, 20ns (Max) | 250mA, 500mA | 500mA | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UL, VDE |
|
|
SI8237BB-AS1DGTL ISO 2.5KV 2CH GT DVR 16SOIC |
1,220 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | Capacitive Coupling | 2 | 2500Vrms | 20kV/µs | 45ns, 45ns | 5.6ns | 20ns, 20ns (Max) | 250mA, 500mA | 500mA | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UL, VDE |
|
|
SI8275DB-AS1DGTL ISO 2.5KV 2CH GT DVR 16SOIC |
1,851 |
|
Datasheet |
SI827x | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | RF Coupling | 2 | 2500Vrms | 200kV/µs | 75ns, 75ns | 8ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.2V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UL, VDE |
|
|
PS9402-E3-AXOPTOISO 5KV 1CH GATE DVR 16SSOP |
4,596 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | Optical Coupling | 1 | 5000Vrms | 25kV/µs | 200ns, 200ns | 100ns | 50ns, 50ns | 2A, 2A | 2.5A | 1.56V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 110°C | Surface Mount | 16-SSOP | CSA, UL |
|
SI8231AD-D-ISDGTL ISO 5KV 2CH GATE DVR 16SOIC |
4,425 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 2 | 5000Vrms | 20kV/µs | 60ns, 60ns | 5.6ns | 20ns, 20ns (Max) | 250mA, 500mA | 500mA | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
