Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPX1D0520L3R3FIXED IND 3.3UH 4.1A 64.2MOHM SM |
908 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 3.3 µH | ±20% | 4.1 A | 5.5A | Shielded | 64.2mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.079" (2.00mm) |
|
MPX1D1040L6R8FIXED IND 6.8UH 8.3A 24.1MOHM SM |
825 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 6.8 µH | ±20% | 8.3 A | 11.5A | Shielded | 24.1mOhm Max | - | 14MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.157" (4.00mm) |
|
|
MPX1D0520LR22FIXED IND 220NH 15A 5 MOHM SMD |
823 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 220 nH | ±20% | 15 A | 19A | Shielded | 5mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.079" (2.00mm) |
|
SBC6-470-232FIXED IND 47UH 2.3A 80 MOHM TH |
758 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 2.3 A | 5A | Unshielded | 80mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|
1225AS-H-120M=P2FIXED IND 12UH 760MA 350MOHM SMD |
309 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 760 mA | 550mA | Shielded | 350mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.047" (1.20mm) |
|
HCM1A0503-4R7-RFIXED IND 4.7UH 3.1A 60MOHM SMD |
190 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 4.7 µH | ±20% | 3.1 A | 4.2A | Shielded | 60mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.203" L x 0.201" W (5.15mm x 5.10mm) | 0.118" (3.00mm) |
|
0840CDMCCDS-150MCFIXED IND 15UH 4.5A 70 MOHM SMD |
9,057 |
|
Datasheet |
0840CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 15 µH | ±20% | 4.5 A | 4.4A | Shielded | 70mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.307" W (8.10mm x 7.80mm) | 0.157" (4.00mm) |
|

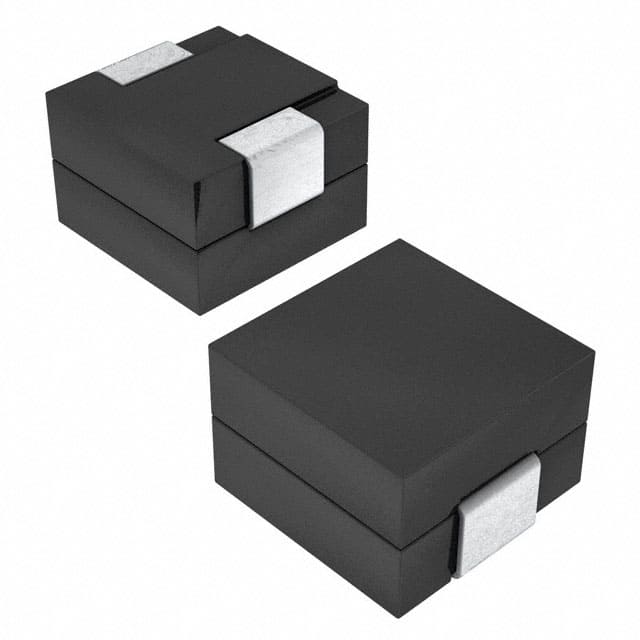

IFLR5151HZERR26M01FIXED IND 260NH 50A 0.35MOHM SMD |
4,686 |
|
Datasheet |
IFLR-5151HZ-01 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | - | 260 nH | ±20% | 50 A | 60A | Shielded | 0.35mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.315" (8.00mm) |
|
P0250.473NLTFIXED IND 47UH 2.6A 86 MOHM SMD |
3,285 |
|
Datasheet |
P0250NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±15% | 2.6 A | 4.5A | Unshielded | 86mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.733" L x 0.596" W (18.62mm x 15.14mm) | 0.290" (7.36mm) |
|
IHLM2525CZERR33M01FIXED IND 330NH 20A 3.9 MOHM SMD |
1,155 |
|
Datasheet |
IHLM-2525CZ-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | 330 nH | ±20% | 20 A | 30A | Shielded | 3.9mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
|
0840CDMCCDS-6R8MCFIXED IND 6.8UH 6A 34 MOHM SMD |
1,000 |
|
Datasheet |
0840CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 6.8 µH | ±20% | 6 A | 6.4A | Shielded | 34mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.307" W (8.10mm x 7.80mm) | 0.157" (4.00mm) |
|
|
0840CDMCCDS-5R6MCFIXED IND 5.6UH 7A 26.5MOHM SMD |
852 |
|
Datasheet |
0840CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 5.6 µH | ±20% | 7 A | 6.5A | Shielded | 26.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.307" W (8.10mm x 7.80mm) | 0.157" (4.00mm) |
|

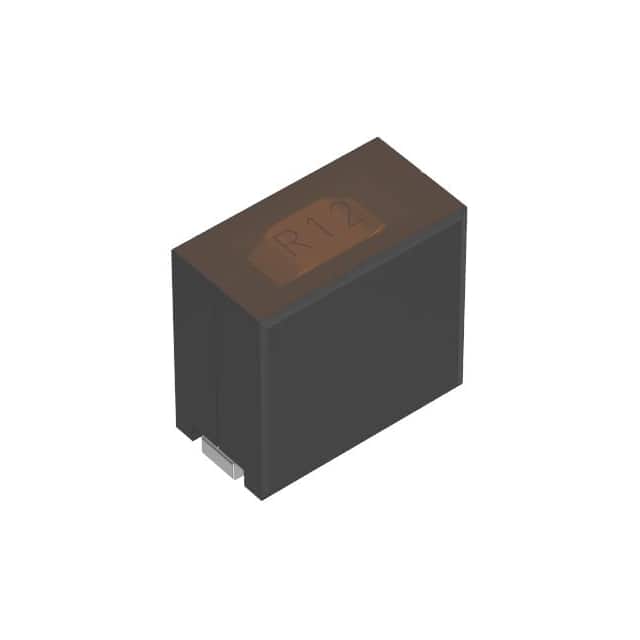

VLBU9664100LT-R18LFIXED IND 180NH 75A 0.138MOHM SM |
669 |
|
Datasheet |
VLBU | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 nH | ±15% | 75 A | - | Unshielded | 0.138mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.378" L x 0.252" W (9.60mm x 6.40mm) | 0.394" (10.00mm) |
|
MWSA1004S-1R5MTFIXED IND 1.5UH 16A 4.2MOHM SMD |
520 |
|
Datasheet |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 1.5 µH | ±20% | 16 A | 24A | Shielded | 4.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
B82472P6333M000FIXED IND 33UH 1.15A 150MOHM SMD |
478 |
|
Datasheet |
B82472P6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.15 A | 1.05A | Shielded | 150mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
B82479A1223M000FIXED IND 22UH 3.5A 47 MOHM SMD |
443 |
|
Datasheet |
B82479A1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 3.5 A | 7A | Unshielded | 47mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|

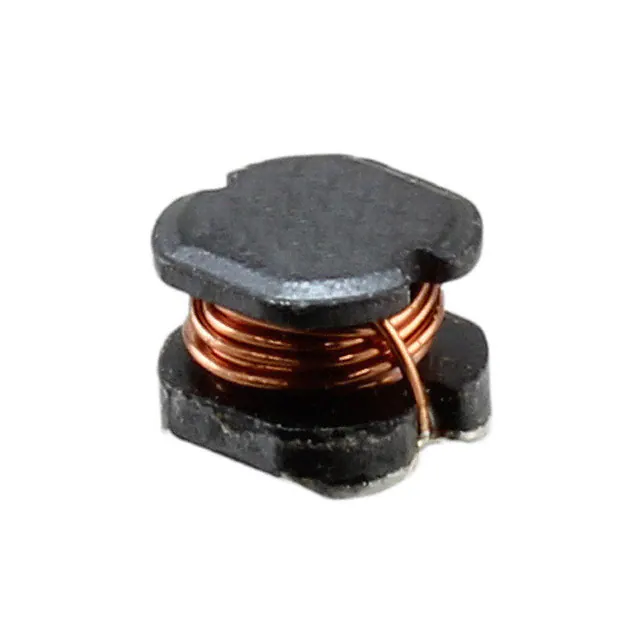

CD43NP-470KCFIXED IND 47UH 440MA 844MOHM SMD |
164 |
|
Datasheet |
CD43 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±10% | 440 mA | - | Unshielded | 844mOhm Max | - | - | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
SD6030-680-RFIXED IND 65.6UH 920MA 355 MOHM |
12,928 |
|
Datasheet |
SD6030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 65.6 µH | ±30% | 920 mA | 520mA | Shielded | 355mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
.jpg)
|
MPI2512V1-1R0-RFIXED IND 1UH 3.9A 44 MOHM SMD |
3,679 |
|
Datasheet |
MPI25-V1 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 3.9 A | 4.5A | Shielded | 44mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
SCIHP0530-3R3FIXED IND 3.3UH 5A SMD |
3,425 |
|
Datasheet |
SCIHP0530 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 5 A | 7A | Shielded | - | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.205" L x 0.193" W (5.20mm x 4.90mm) | 0.118" (3.00mm) |
