Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MWLA0603S-8R2MTFIXED IND 8.2UH 68MOHM 7500MA |
469 |
|
Datasheet |
MWLA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 8.2 µH | ±20% | 4 A | 7.5A | Shielded | 68mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
VLCF5024T-3R3N1R4-2FIXED IND 3.3UH 1.46A 37MOHM SMD |
423 |
|
Datasheet |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 1.46 A | 1.46A | Shielded | 37mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.094" (2.40mm) |
|
VLCF5028T-330MR62-2FIXED IND 33UH 620MA 240MOHM SMD |
400 |
|
Datasheet |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 620 mA | 620mA | Shielded | 240mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.110" (2.80mm) |
|
SDR1806-3R3MLFIXED IND 3.3UH 7.6A 9.8MOHM SMD |
245 |
|
Datasheet |
SDR1806 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 7.6 A | 17A | Unshielded | 9.8mOhm Max | 22 @ 7.96MHz | 40MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.720" L x 0.551" W (18.30mm x 14.00mm) | 0.272" (6.90mm) |
|

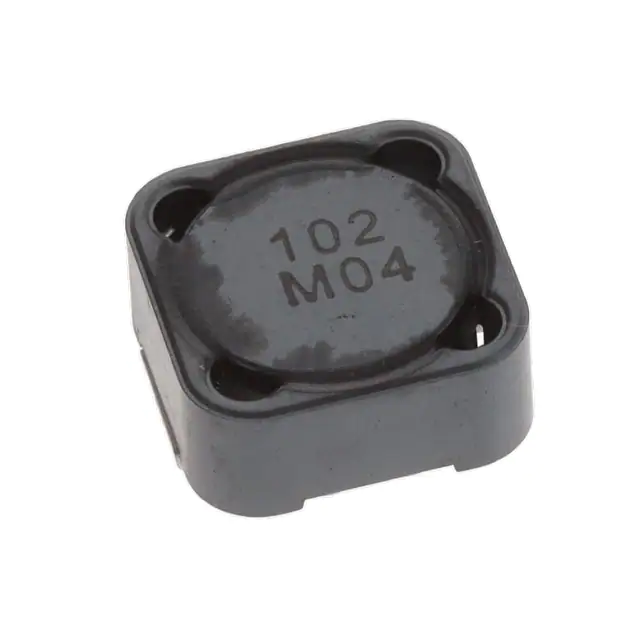

CDRH125L125NP-102MCFIXED IND 1MH 500MA 1.9MOHM SMD |
235 |
|
Datasheet |
CDRH125/L125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 mH | ±20% | 500 mA | 520mA | Shielded | 1.9Ohm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
SBC3-122-281FIXED IND 1.2MH 280MA 2.7 OHM TH |
233 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.2 mH | ±10% | 280 mA | 280mA | Unshielded | 2.7Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.453" (11.50mm) |
|

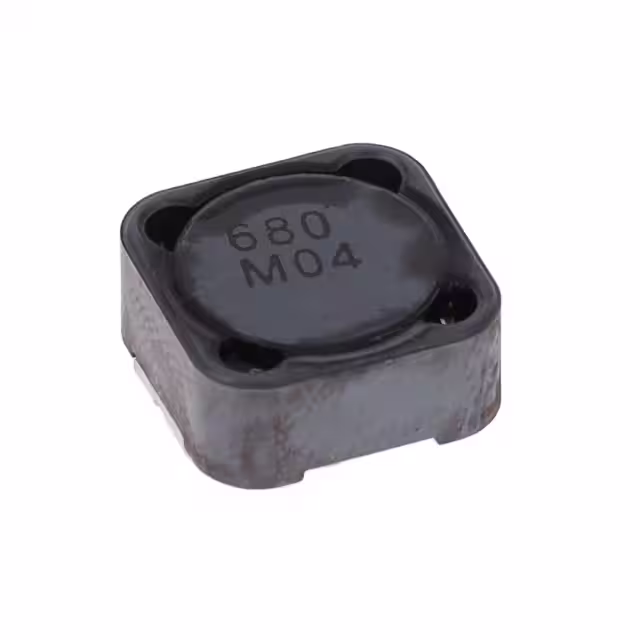

CDRH125L125NP-680MCFIXED IND 68UH 2.05A 131MOHM SMD |
224 |
|
Datasheet |
CDRH125/L125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 68 µH | ±20% | 2.05 A | 2.02A | Shielded | 131mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|

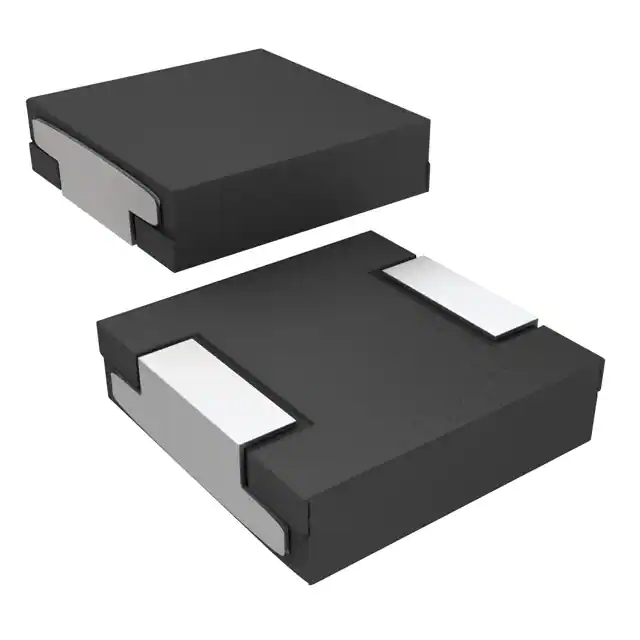

IHLP5050EZERR33M01FIXED IND 330NH 42A 1.1 MOHM SMD |
203 |
|
Datasheet |
IHLP-5050EZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 330 nH | ±20% | 42 A | 80A | Shielded | 1.1mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.197" (5.00mm) |
|
|

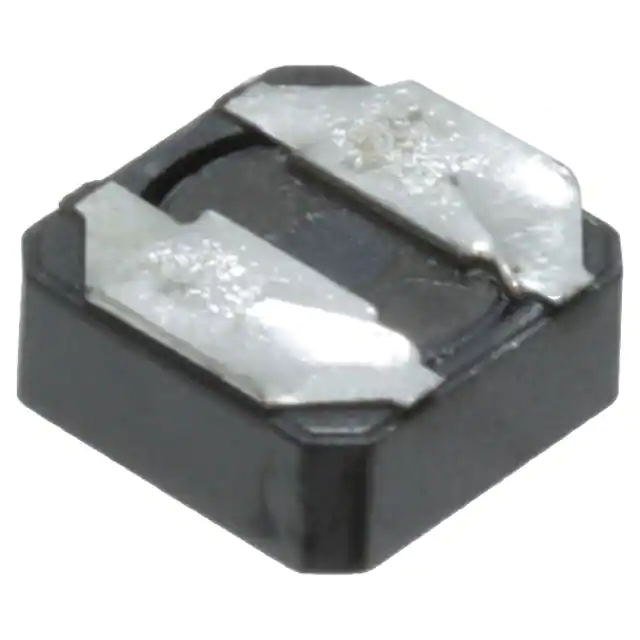

VLCF5024T-150MR71-2FIXED IND 15UH 710MA 152MOHM SMD |
199 |
|
Datasheet |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 710 mA | 710mA | Shielded | 152mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.094" (2.40mm) |
|

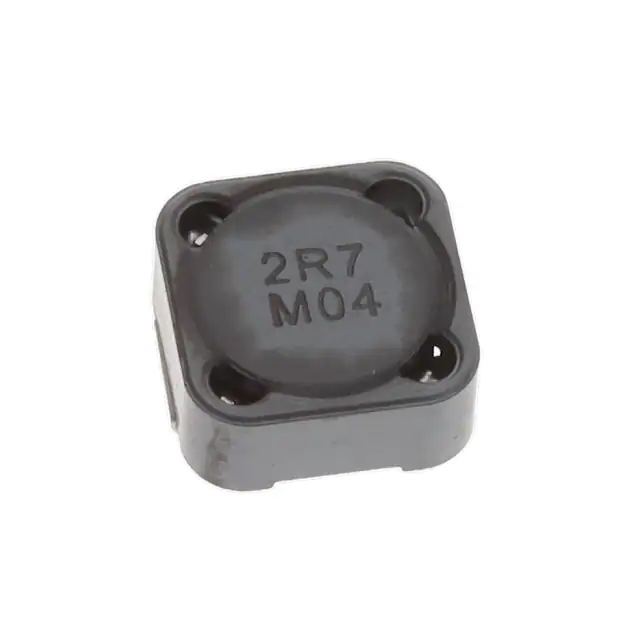

CDRH125L125NP-2R7NCFIXED IND 2.7UH 7.4A 12.8MOHM SM |
166 |
|
Datasheet |
CDRH125/L125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.7 µH | ±30% | 7.4 A | 10.2A | Shielded | 12.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
MWLA0603S-330MTFIXED IND 33UH 240MOHM 2500MA |
120 |
|
Datasheet |
MWLA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 33 µH | ±20% | 2 A | 2.5A | Shielded | 240mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
MWLA0603S-220MTFIXED IND 22UH 190MOHM 3500MA |
101 |
|
Datasheet |
MWLA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 22 µH | ±20% | 2 A | 3.5A | Shielded | 190mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
SDR1307A-470KFIXED IND 47UH 2.7A 82 MOHM SMD |
6,856 |
|
Datasheet |
SDR1307A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 2.7 A | 4.2A | Unshielded | 82mOhm Max | 24 @ 2.52MHz | 7.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" Dia (13.00mm) | 0.287" (7.30mm) |
|

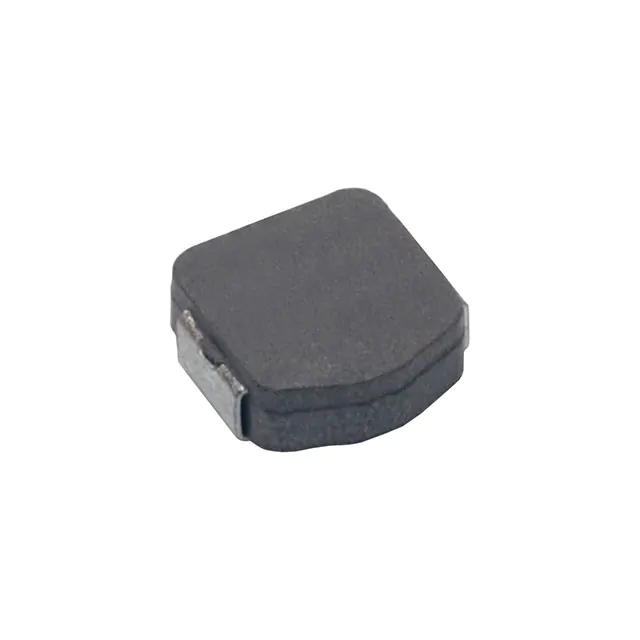

MPX1D0520L100FIXED IND 10UH 2.2A 222.8MOHM SM |
6,765 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 10 µH | ±20% | 2.2 A | 3.5A | Shielded | 222.8mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.079" (2.00mm) |
|

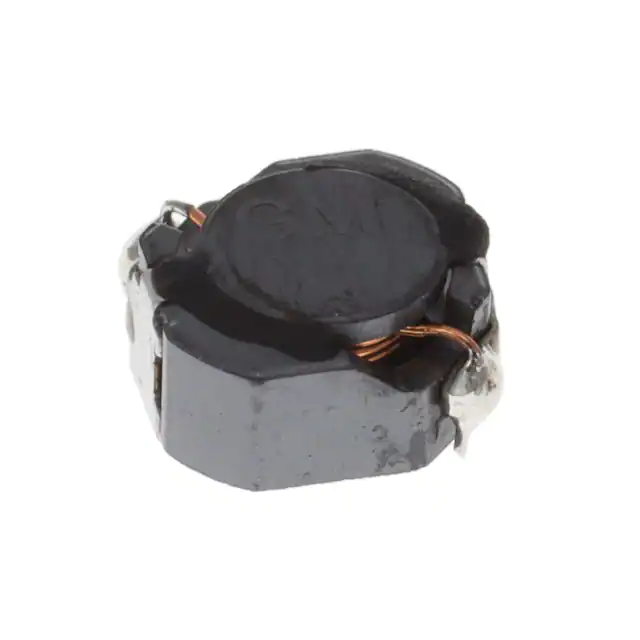

CDRH50D28BT150NP-100MCFIXED IND 10UH 1.75A 95 MOHM SMD |
3,071 |
|
Datasheet |
CDRH50D28B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 1.75 A | 1.7A | Shielded | 95mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|
|
SDR1307A-330KFIXED IND 33UH 3.1A 65 MOHM SMD |
2,205 |
|
Datasheet |
SDR1307A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 3.1 A | 5A | Unshielded | 65mOhm Max | 35 @ 2.52MHz | 10MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" Dia (13.00mm) | 0.287" (7.30mm) |
|
DR125-821-RFIXED IND 820UH 600MA 1.49OHM SM |
1,644 |
|
Datasheet |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±20% | 600 mA | 770mA | Shielded | 1.49Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
|
SDR1307A-100MFIXED IND 10UH 5.6A 21 MOHM SMD |
1,600 |
|
Datasheet |
SDR1307A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 5.6 A | 9.2A | Unshielded | 21mOhm Max | 22 @ 2.52MHz | 22MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" Dia (13.00mm) | 0.287" (7.30mm) |
|
|
SDR1307A-3R3MFIXED IND 3.3UH 7.5A 8.7MOHM SMD |
1,566 |
|
Datasheet |
SDR1307A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 7.5 A | 15A | Unshielded | 8.7mOhm Max | 26 @ 7.96MHz | 38MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" Dia (13.00mm) | 0.287" (7.30mm) |
|
|
SDR1307A-8R2MFIXED IND 8.2UH 5.8A 19 MOHM SMD |
1,555 |
|
Datasheet |
SDR1307A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 5.8 A | 9.8A | Unshielded | 19mOhm Max | 24 @ 7.96MHz | 24MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" Dia (13.00mm) | 0.287" (7.30mm) |
