Ferrite Cores

Manufacturer Series Packaging Product Status Core Type Supplier Device Package Material Diameter Inductance Factor (Al) Tolerance Gap Effective Permeability (µe) Initial Permeability (µi) Core Factor (ΣI/A) mm⁻¹ Effective Length (le) mm Effective Area (Ae) mm² Minimum Core Cross Section (Amin) mm² Effective Magnetic Volume (Ve) mm³ Finish Height Length Width

Reset All
Apply All
Result
Photo Mfr. Part # Availability Price Quantity Datasheet Series Packaging Product Status Core Type Supplier Device Package Material Diameter Inductance Factor (Al) Tolerance Gap Effective Permeability (µe) Initial Permeability (µi) Core Factor (ΣI/A) mm⁻¹ Effective Length (le) mm Effective Area (Ae) mm² Minimum Core Cross Section (Amin) mm² Effective Magnetic Volume (Ve) mm³ Finish Height Length Width
P18/11-3H3-E63

P18/11-3H3-E63

Ferrite Misc

Ferroxcube

3,834
RFQ
P18/11-3H3-E63

Datasheet

- Bulk Active - - - - - - - - - - - - - - - - - -
P18/11-3H3-A400

P18/11-3H3-A400

Ferrite Misc

Ferroxcube

2,981
RFQ
P18/11-3H3-A400

Datasheet

- Bulk Active P P 18 x 11 3H3 0.724" (18.40mm) 400 nH ±3% Gapped 190.0 - 0.597 25.8 43.3 36.0 1120.0 Uncoated 0.209" (5.30mm) - -
P22/13-3F3

P22/13-3F3

Ferrite Misc

Ferroxcube

2,401
RFQ
P22/13-3F3

Datasheet

- Bulk Active P P 22 x 13 3F3 0.866" (22.00mm) 3.55 µH ±25% Ungapped 1410.0 - 0.497 31.5 63.4 50.9 2000.0 Uncoated 0.264" (6.71mm) - -
B65819P0000R049

B65819P0000R049

FERRITE CORE RM 2.4UH N49 2PCS

EPCOS - TDK Electronics

2,064
RFQ
B65819P0000R049

Datasheet

RM7/LP Box Active RM RM 7 LP N49 - 2.4 µH -20%, +30% Ungapped 990.0 1500 0.52 23.5 45.3 39.6 1060.0 Uncoated 0.193" (4.90mm) 0.799" (20.30mm) -

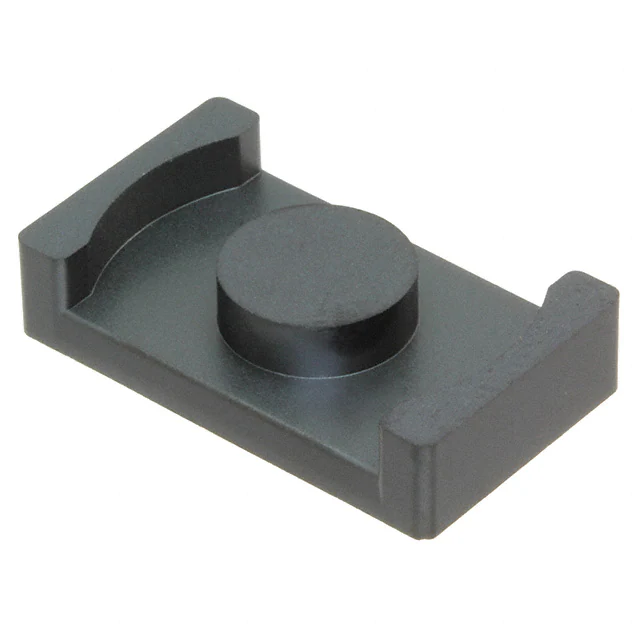

B66347G0000X127

B66347G0000X127

FERRITE CORE ER N27 1PC

EPCOS - TDK Electronics

2,117
RFQ
B66347G0000X127

Datasheet

ER42/22/15 Box Active ER ER 42 x 22 x 15 N27 - - - Ungapped - - - - - - - Uncoated 0.858" (21.80mm) 1.654" (42.00mm) 0.591" (15.00mm)
0059211A2

0059211A2

EDGE 075 PERM GREEN 206 SIZE

Magnetics, a division of Spang & Co.

3,395
RFQ
0059211A2

Datasheet

- Bulk Active Toroid - Edge 0.800" (20.32mm) 41 nH ±8% Ungapped - 75 - 50.9 22.1 - 1120.0 Uncoated 0.250" (6.35mm) - -
PJ42120UG

PJ42120UG

EP CORE

Magnetics, a division of Spang & Co.

1,622
RFQ
PJ42120UG

Datasheet

- Bulk Active EP - J - 9.6 µH - Ungapped - 5000 - 41.1 78.7 60.8 3230.0 Uncoated 0.843" (21.40mm) 0.945" (24.00mm) 0.591" (15.00mm)
0059206A2

0059206A2

EDGE 125 PERM GREEN 206 SIZE

Magnetics, a division of Spang & Co.

4,925
RFQ
0059206A2

Datasheet

- Bulk Active Toroid - Edge 0.800" (20.32mm) 68 nH ±8% Ungapped - 125 - 50.9 22.1 - 1120.0 Uncoated 0.250" (6.35mm) - -
0059210A2

0059210A2

EDGE 090 PERM GREEN 206 SIZE

Magnetics, a division of Spang & Co.

2,760
RFQ
0059210A2

Datasheet

- Bulk Active Toroid - Edge 0.830" (21.08mm) 49 nH ±8% Ungapped - 90 - 50.9 22.1 - 1120.0 Uncoated 0.250" (6.35mm) - -
NJ43723UG

NJ43723UG

RM DESIGN SCP

Magnetics, a division of Spang & Co.

2,024
RFQ
NJ43723UG

Datasheet

- Bulk Active RM - J - 11.8 µH - Ungapped - 5000 - 56.6 146.0 125.0 8340.0 Uncoated 0.482" (12.25mm) 1.472" (37.40mm) 0.634" (16.10mm)
B66367A0610D087

B66367A0610D087

ETD49/25/16 N87 610 +8% -

EPCOS - TDK Electronics

4,842
RFQ
B66367A0610D087

Datasheet

- Tray Active - - - - - - - - - - - - - - - - - -
B65819J0000R048

B65819J0000R048

FERRITE CORE RM N48

EPCOS - TDK Electronics

1,138
RFQ
B65819J0000R048

Datasheet

RM7 Box Active RM RM 7 N48 - - - - - 2300 0.7 30.4 43.0 39.0 1310.0 Uncoated 0.265" (6.75mm) 0.799" (20.30mm) -
PQ32/20-3C95-E315

PQ32/20-3C95-E315

Ferrite Misc

Ferroxcube

2,164
RFQ
PQ32/20-3C95-E315

Datasheet

- Bulk Active PQ PQ 32 x 20 3C95 - 315 nH - Gapped - - 0.331 55.9 169.0 142.0 9440.0 Uncoated 0.406" (10.30mm) 1.299" (33.00mm) 0.866" (22.00mm)
PQ32/20-3C95-A400

PQ32/20-3C95-A400

Ferrite Misc

Ferroxcube

2,408
RFQ
PQ32/20-3C95-A400

Datasheet

PQ32/20 Bulk Active PQ PQ 32 x 20 3C95 - 400 nH - Gapped - - 0.331 55.9 169.0 142.0 9440.0 Uncoated 0.406" (10.30mm) 1.299" (33.00mm) 0.866" (22.00mm)
E42/21/20-3C92-G200

E42/21/20-3C92-G200

FERRITE CORE E 3C92

Ferroxcube

4,547
RFQ
E42/21/20-3C92-G200

Datasheet

- Bulk Active E E 42 x 21 x 20 3C92 - - - - - - - - - - - Uncoated 0.827" (21.00mm) 1.693" (43.00mm) 0.787" (20.00mm)
E42/21/20-3C92-G500

E42/21/20-3C92-G500

FERRITE CORE E 3C92

Ferroxcube

2,512
RFQ
E42/21/20-3C92-G500

Datasheet

- Bulk Active E E 42 x 21 x 20 3C92 - - - - - - - - - - - Uncoated 0.827" (21.00mm) 1.693" (43.00mm) 0.787" (20.00mm)
E42/21/20-3C92-G1200

E42/21/20-3C92-G1200

Ferrite Misc

Ferroxcube

1,921
RFQ
E42/21/20-3C92-G1200

Datasheet

- Bulk Active - - - - - - - - - - - - - - - - - -
E42/21/20-3C92-G900

E42/21/20-3C92-G900

Ferrite Misc

Ferroxcube

1,067
RFQ
E42/21/20-3C92-G900

Datasheet

- Bulk Active - - - - - - - - - - - - - - - - - -
E42/21/20-3C92-E150

E42/21/20-3C92-E150

Ferrite Misc

Ferroxcube

2,572
RFQ
E42/21/20-3C92-E150

Datasheet

- Bulk Active - - - - - - - - - - - - - - - - - -
E42/21/20-3C92-E160

E42/21/20-3C92-E160

Ferrite Misc

Ferroxcube

4,660
RFQ
E42/21/20-3C92-E160

Datasheet

- Bulk Active - - - - - - - - - - - - - - - - - -
Total 10616 Record«Prev1... 364365366367368369370371...531Next»
