DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OD9225-48HBFAN AXIAL 92.5X25MM 48VDC WIRE |
102 |
|
Datasheet |
OD9225 | Box | Active | 48VDC | Square - 92.5mm L x 92.5mm H | 25.00mm | 50.0 CFM (1.40m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | - | 33.0dB | - | 2800 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | - |
|
PF40281B2-1000U-A9HFAN AXIAL 40X28MM 12VDC WIRE |
1,157 |
|
Datasheet |
PF | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 18.0 CFM (0.504m³/min) | 1.160 in H2O (288.9 Pa) | Ball | Tubeaxial | Auto Restart | 48.7dB(A) | 2.64 W | 13000 RPM | 2 Wire Leads | - | - | CCC, CE, cURus, TUV | - |
|

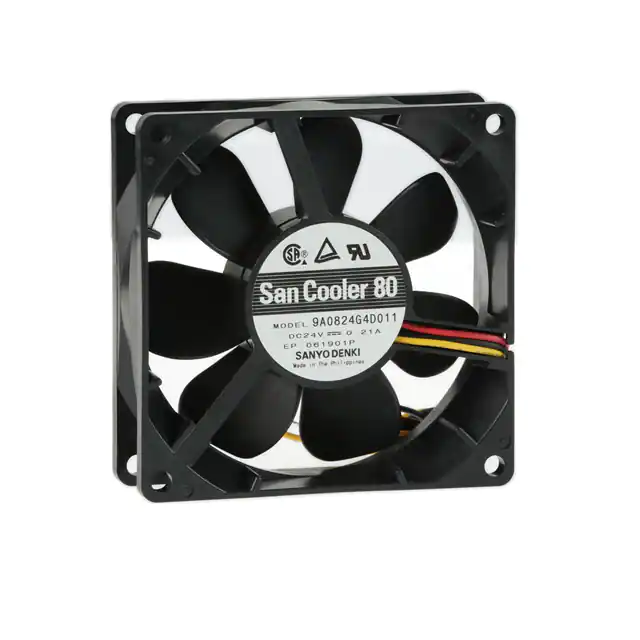

9A0824G4D011FAN AXIAL 80X25MM 24VDC WIRE |
167 |
|
Datasheet |
San Cooler 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 53.0 CFM (1.48m³/min) | 0.323 in H2O (80.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 40.0dB(A) | 5.04 W | 4500 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
BFB0712HH-AFAN BLOWER 75.7X25MM 12VDC WIRE |
2,932 |
|
Datasheet |
BFB | Box | Active | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 25.00mm | 15.3 CFM (0.428m³/min) | 0.977 in H2O (243.4 Pa) | Ball | Blower | Locked Rotor Protection | 51.0dB(A) | 4.08 W | 4400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.199 lb (90.26 g) |
|
109R0612J401FAN AXIAL 60X25MM 12VDC WIRE |
1,068 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 37.1 CFM (1.04m³/min) | 0.622 in H2O (155.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 44.0dB(A) | 5.64 W | 7600 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
|
109R0612J4011FAN AXIAL 60X25MM 12VDC WIRE |
490 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 37.1 CFM (1.04m³/min) | 0.622 in H2O (155.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 44.0dB(A) | 5.64 W | 7600 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
AFB0712HHB-F00FAN AXIAL 70X15MM 12VDC WIRE |
1,741 |
|
Datasheet |
AFB | Tray | Active | 12VDC | Square - 70mm L x 70mm H | 15.00mm | 37.5 CFM (1.05m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.5dB(A) | 3.12 W | 4300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.104 lb (47.17 g) |
|
|
11925SA-12Q-EAD-0FAN AXIAL 119X25MM 12VDC WIRE |
166 |
|
Datasheet |
11925SA | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 25.00mm | 113.0 CFM (3.16m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Auto Restart | 44.0dB | 5.64 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
(4028BG).jpg)
|

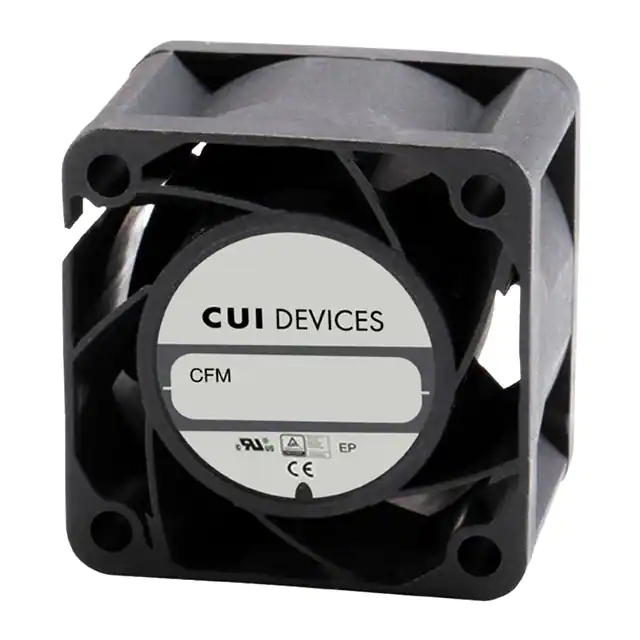

CFM-4028BG-1230-598-22FAN AXIAL 40X28MM 12VDC WIRE |
167 |
|
Datasheet |
CFM-40BG | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 28.0 CFM (0.784m³/min) | 3.230 in H2O (804.6 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 60.0dB(A) | 16.56 W | 23000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

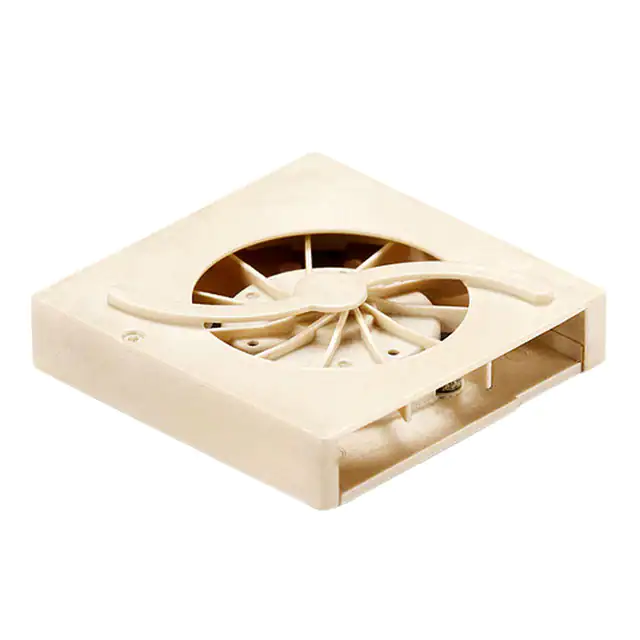

UB3H3-700TCFAN BLOWER 17X3MM VAPO 3VDC WIRE |
517 |
|
Datasheet |
MagLev® UB, Mighty Mini | Tray | Active | 3VDC | Square - 17mm L x 17mm H | 3.00mm | 0.244 CFM (0.007m³/min) | 0.162 in H2O (40.3 Pa) | Vapo-Bearing™ | Blower | Auto Restart | 32.0dB(A) | 100 mW | 12500 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.003 lb (1.36 g) |
|
|
CFM-9225BG-260-545-22DC AXIAL FAN, 92 MM SQUARE, 25 M |
173 |
|
Datasheet |
CFM-92BG | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 106.3 CFM (2.98m³/min) | 0.800 in H2O (199.3 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 54.5dB(A) | 10.8 W | 6000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
109R0848K402FAN AXIAL 80X25MM 48VDC WIRE |
207 |
|
Datasheet |
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 25.00mm | 55.1 CFM (1.54m³/min) | 0.355 in H2O (88.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 41.0dB(A) | 4.8 W | 4600 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|

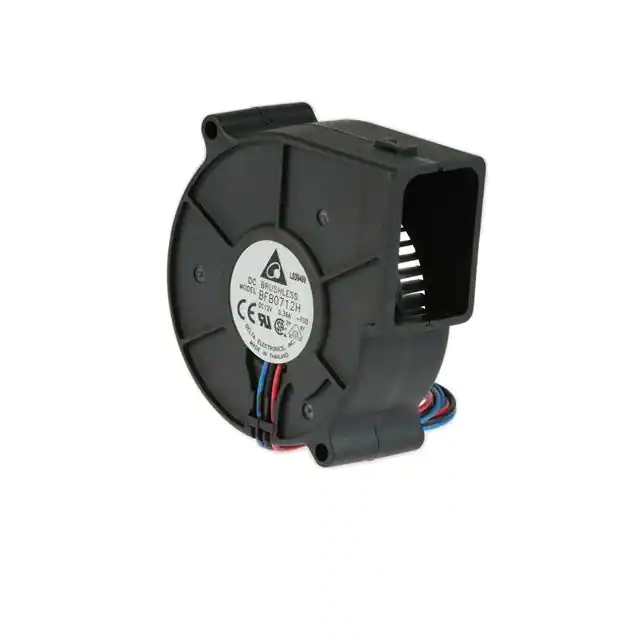

BFB0712H-F00FAN BLOWER 75.7X30MM 12VDC WIRE |
630 |
|
Datasheet |
BFB | Bulk | Active | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 30.00mm | 11.3 CFM (0.316m³/min) | 0.480 in H2O (119.6 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 38.0dB(A) | 2.64 W | 2900 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.211 lb (95.71 g) |
|
9G0924A202FAN AXIAL 92X32MM 24VDC WIRE |
343 |
|
Datasheet |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 32.00mm | 88.3 CFM (2.47m³/min) | 0.462 in H2O (115.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 44.0dB(A) | 7.2 W | 4300 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
|
OD2510-12MB02AFAN AXIAL 25X10MM 12VDC WIRE |
2,388 |
|
Datasheet |
OD2510 | Bulk | Active | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 2.2 CFM (0.061m³/min) | 0.170 in H2O (42.3 Pa) | Sealed Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 24.0dB | 1.44 W | 10000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | 0.018 lb (8.16 g) |
|
AFB0824SHBAV1FAN AXIAL 80X15MM 24VDC WIRE |
773 |
|
Datasheet |
AFB | Box | Active | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 42.7 CFM (1.20m³/min) | 0.216 in H2O (53.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 42.5dB(A) | 3.84 W | 4000 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.128 lb (58.06 g) |
|
DS0402812V2B-BT0FAN AXIAL 40X28MM 12VDC WIRE |
267 |
|
Datasheet |
DS | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 35.0 CFM (0.980m³/min) | 5.888 in H2O (1466.6 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 67.5dB(A) | 28.08 W | 30000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE | - |
|
AFB0524VHD-TZW5FAN AXIAL 50X20MM 24VDC WIRE |
200 |
|
Datasheet |
AFB | Box | Active | 24VDC | Square - 50mm L x 50mm H | 20.00mm | 20.3 CFM (0.568m³/min) | 0.303 in H2O (75.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 40.5dB(A) | 2.4 W | 7000 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.085 lb (38.56 g) |
|
AFB0812HH-T500FAN AXIAL 80X25.4MM 12VDC WIRE |
116 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 37.4 CFM (1.05m³/min) | 0.181 in H2O (45.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 34.0dB(A) | 2.4 W | 3250 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|
|
4580HQ/PF40281B1-D39U-SI9DC FAN 40X28MM TACH/PWM |
105 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 24.9 CFM (0.697m³/min) | 1.950 in H2O (485.7 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 56.0dB(A) | 6.12 W | 17600 RPM | 4 Wire Leads per Fan | IP66 - Dust Tight, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
