DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0802012H2B-2T2FAN 80X20MM 12VDC MOLEX 22-01-10 |
1,467 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 40.2 CFM (1.13m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 36.0dB(A) | 2.88 W | 3400 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
06015KA-12K-AL-00FAN AXIAL 60X15MM 12VDC WIRE |
1,918 |
|
Datasheet |
06015KA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 11.6 CFM (0.325m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.0dB | 840 mW | 3100 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|
|
CBM-7525B-145-494-20DC BLOWER, 75.2 X 74.2 X 25 MM, |
4,189 |
|
Datasheet |
CBM-75B-2 | Box | Active | 12VDC | Rectangular/Rounded - 75.8mm L x 75.7mm H | 25.00mm | 13.4 CFM (0.375m³/min) | 1.100 in H2O (274.0 Pa) | Ball | Blower | Auto Restart, Speed Sensor (Tach) | 49.4dB(A) | 6.96 W | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
B5015E12B1-BSRFAN BLOWER 51X15.7MM 12VDC WIRE |
2,191 |
|
Datasheet |
B5015 | Bulk | Active | 12VDC | Square/Rounded - 51mm L x 51mm H | 15.70mm | 5.0 CFM (0.140m³/min) | 0.880 in H2O (219.2 Pa) | Ball | Blower | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 45.0dB(A) | - | 6500 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
|
|
B5015E12B1-BSR-WSFAN BLOWER 51X15.7MM 12VDC WIRE |
1,387 |
|
Datasheet |
B5015 | Bulk | Active | 12VDC | Square/Rounded - 51mm L x 51mm H | 15.70mm | 5.0 CFM (0.140m³/min) | 0.880 in H2O (219.2 Pa) | Ball | Blower | Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 45.0dB(A) | - | 6500 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
|
|
B5015H05B1-BSRFAN BLOWER 51X15.7MM 5VDC WIRE |
3,364 |
|
Datasheet |
B5015 | Bulk | Active | 5VDC | Square/Rounded - 51mm L x 51mm H | 15.70mm | 4.0 CFM (0.112m³/min) | 0.560 in H2O (139.5 Pa) | Ball | Blower | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 40.0dB(A) | - | 5500 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
|
|
B5015H12B2-BSRFAN BLOWER 51X15.7MM 12VDC WIRE |
3,658 |
|
Datasheet |
B5015 | Bulk | Active | 12VDC | Square/Rounded - 51mm L x 51mm H | 15.70mm | 4.0 CFM (0.112m³/min) | 0.560 in H2O (139.5 Pa) | Ball | Blower | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 40.0dB(A) | - | 5500 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
|
|
B5015M12B2-BSRFAN BLOWER 51X15.7MM 12VDC WIRE |
3,199 |
|
Datasheet |
B5015 | Bulk | Active | 12VDC | Square/Rounded - 51mm L x 51mm H | 15.70mm | 3.0 CFM (0.084m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Blower | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 35.0dB(A) | - | 4500 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
.F.GN.jpg)
|

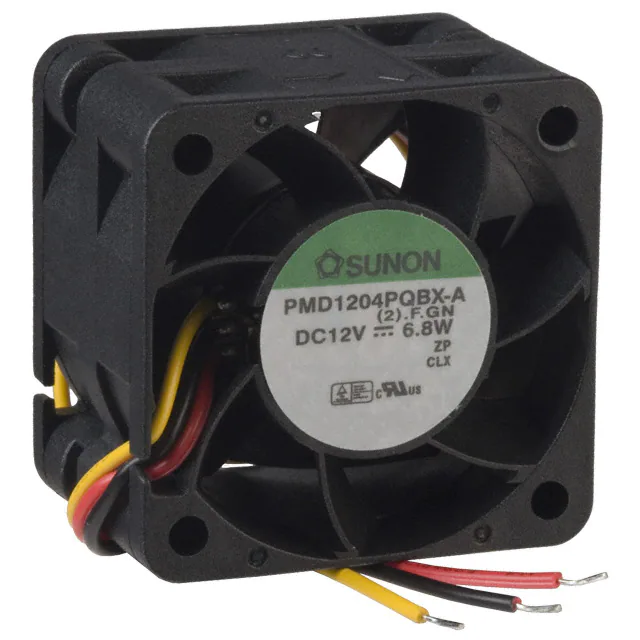

PMD1204PQBX-A.(2).F.GNFAN AXIAL 40X28MM 12VDC WIRE |
4,024 |
|
Datasheet |
PMD | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 23.5 CFM (0.658m³/min) | 1.150 in H2O (286.5 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 51.5dB(A) | 6.8 W | 13000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.088 lb (39.92 g) |
|
OD6010-05HBFAN AXIAL 60X10MM BALL 5VDC WIRE |
1,521 |
|
Datasheet |
OD6010 | Bulk | Active | 5VDC | Square - 60mm L x 60mm H | 10.00mm | - | - | Ball | Tubeaxial | - | - | - | - | 2 Wire Leads | - | - | cURus, TUV | - |
|
|
OD6010-12LBFAN AXIAL 60X10MM 12VDC WIRE |
2,535 |
|
Datasheet |
OD6010 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 10.00mm | - | - | Ball | Tubeaxial | - | - | - | - | 2 Wire Leads | - | - | cURus, TUV | - |
|
|
OD6010-24MBThermal Products |
3,112 |
|
Datasheet |
OD6010 | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 10.50mm | 17.0 CFM (0.476m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Auto Restart | 33.2dB(A) | 3 W | 4250 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD6010-24HBThermal Products |
2,957 |
|
Datasheet |
OD6010 | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 10.50mm | 19.8 CFM (0.554m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Auto Restart | 36.5dB(A) | 3.1 W | 4975 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD6010-12MBThermal Products |
4,449 |
|
Datasheet |
OD6010 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 10.50mm | 17.0 CFM (0.476m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Auto Restart | 33.2dB(A) | 1.9 W | 4250 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
CFM-8038S-130-387FAN AXIAL 80X37.6MM 12VDC WIRE |
4,375 |
|
Datasheet |
CFM-80S | Box | Active | 12VDC | Square - 80mm L x 80mm H | 37.60mm | 37.1 CFM (1.04m³/min) | 0.210 in H2O (52.3 Pa) | Sleeve | Tubeaxial | Auto Restart | 38.7dB(A) | 2.88 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0802512M2B-2T2FAN 80X25MM 12VDC MOLEX 22-01-10 |
3,529 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 69.9 CFM (1.96m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 44.0dB(A) | 7.8 W | 5000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0802512L2B-2T2FAN 80X25MM 12VDC MOLEX 22-01-10 |
3,518 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 66.4 CFM (1.86m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 42.0dB(A) | 4.8 W | 4500 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0802512I2B-2T2FAN 80X25MM 12VDC MOLEX 22-01-10 |
2,005 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 47.6 CFM (1.33m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 35.0dB(A) | 2.4 W | 3500 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
2404KL-04W-B40-B00FAN AXIAL 60X10.3MM 12VDC WIRE |
2,473 |
|
Datasheet |
2404KL | Box | Active | 12VDC | Square - 60mm L x 60mm H | 10.30mm | 16.2 CFM (0.454m³/min) | 0.092 in H2O (23.0 Pa) | Ball | Tubeaxial | - | 33.0dB | 2.4 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
|
MC20100V1-000U-A99FAN AXIAL 20X10MM VAPO 5VDC WIRE |
1,350 |
|
Datasheet |
MagLev® MC | Box | Obsolete | 5VDC | Square - 20mm L x 20mm H | 10.00mm | 1.9 CFM (0.053m³/min) | 0.290 in H2O (72.2 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 25.0dB(A) | 1.05 W | 17000 RPM | 2 Wire Leads | - | - | CUR, TUV, UL | 0.012 lb (5.44 g) |
