DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0602012M2B-2T2FAN 60X20MM 12VDC MOLEX 22-01-10 |
4,762 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 16.4 CFM (0.459m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 29.0dB(A) | 1.32 W | 4000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0602012U2B-2T2FAN 60X20MM 12VDC MOLEX 22-01-10 |
2,750 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 19.6 CFM (0.549m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 33.0dB(A) | 2.04 W | 4800 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0501512U2B-2T2FAN 50X15MM 12VDC MOLEX 22-01-10 |
2,466 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 17.0 CFM (0.476m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 36.0dB(A) | 1.56 W | 6000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0601512U2B-2T2FAN 60X15MM 12VDC MOLEX 22-01-10 |
3,080 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 26.5 CFM (0.742m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 37.0dB(A) | 2.04 W | 5000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0502012H2B-2T2FAN 50X20MM 12VDC MOLEX 22-01-10 |
3,001 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 20.00mm | 20.3 CFM (0.568m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 38.0dB(A) | 2.52 W | 7000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0602012H2B-2T2FAN 60X20MM 12VDC MOLEX 22-01-10 |
4,766 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 18.1 CFM (0.507m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 31.0dB(A) | 1.56 W | 4400 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0502012M2B-2T2FAN 50X20MM 12VDC MOLEX 22-01-10 |
1,828 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 20.00mm | 17.6 CFM (0.493m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 36.0dB(A) | 2.52 W | 6400 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0601012M2B-2T2FAN 60X10MM 12VDC MOLEX 22-01-10 |
1,843 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 10.00mm | 17.1 CFM (0.479m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 33.0dB(A) | 2.04 W | 4200 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
06020SA-24L-EA-00FAN AXIAL 60X20MM 24VDC WIRE |
2,730 |
|
Datasheet |
06020SA | Box | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 16.6 CFM (0.465m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | - | 26.0dB | 1.2 W | 3600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.123 lb (55.79 g) |
|
|
06020SA-12J-EA-00FAN AXIAL 60X20MM 12VDC WIRE |
3,123 |
|
Datasheet |
06020SA | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 12.7 CFM (0.356m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Auto Restart | 21.5dB(A) | 580 mW | 2800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
06020SA-24T-EA-00FAN AXIAL 60X20MM 24VDC WIRE |
2,427 |
|
Datasheet |
06020SA | Box | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | - | - | Ball | Tubeaxial | Auto Restart | - | - | - | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
06020SA-12L-EA-00FAN AXIAL 60X20MM 12VDC WIRE |
1,765 |
|
Datasheet |
06020SA | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 16.6 CFM (0.465m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Auto Restart | 26.0dB(A) | 720 mW | 3600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
06020SA-24L-AA-00FAN AXIAL 60X20MM 24VDC WIRE |
4,544 |
|
Datasheet |
06020SA | Box | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 16.6 CFM (0.465m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Auto Restart | 26.0dB(A) | 1.2 W | 3600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
06020SA-24J-EA-00FAN AXIAL 60X20MM 24VDC WIRE |
4,425 |
|
Datasheet |
06020SA | Box | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | - | - | Ball | Tubeaxial | Auto Restart | - | - | - | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
GM0502PFV1-8 MFAN AXIAL 25X10MM VAPO 5VDC WIRE |
3,494 |
|
Datasheet |
GM | - | Obsolete | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 3.5 CFM (0.098m³/min) | 0.250 in H2O (62.3 Pa) | Vapo-Bearing™ | Tubeaxial | Speed Sensor (Tach) | 23.0dB(A) | 600 mW | 13000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.016 lb (7.26 g) |
|
|
MF35060V1-1000U-G995VDC FAN 35X6MM ALARM |
3,194 |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 35mm L x 35mm H | 6.00mm | 5.5 CFM (0.154m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 26.0dB(A) | 0.6 W | 7600 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF35060V1-1000U-H995VDC FAN 35X6MM PWM |
4,490 |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 35mm L x 35mm H | 6.00mm | 5.5 CFM (0.154m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control | 26.0dB(A) | 0.6 W | 7600 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF35060V2-1000U-G995VDC FAN 35X6MM ALARM |
3,870 |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 35mm L x 35mm H | 6.00mm | 4.3 CFM (0.120m³/min) | 0.070 in H2O (17.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 18.3dB(A) | 0.33 W | 5800 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF35060V2-1000U-H995VDC FAN 35X6MM PWM |
4,880 |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 35mm L x 35mm H | 6.00mm | 4.3 CFM (0.120m³/min) | 0.070 in H2O (17.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control | 18.3dB(A) | 0.33 W | 5800 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
(8020BF)(8038BF).jpg)
|

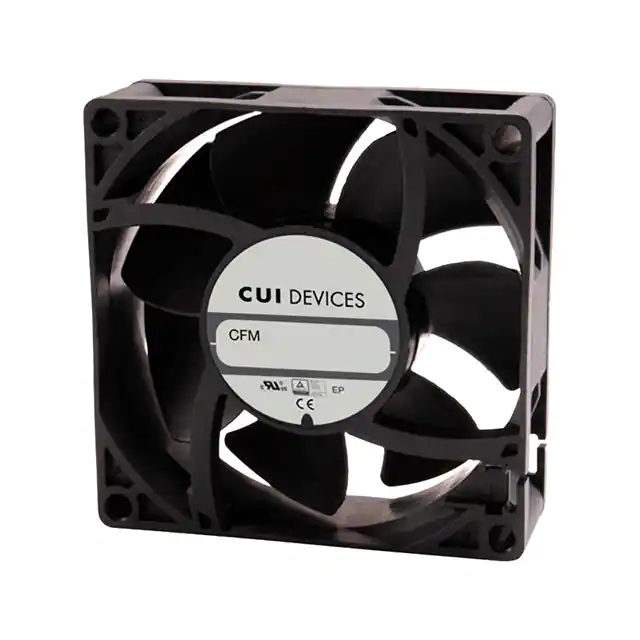

CFM-8015BF-120-213-22FAN AXIAL 80X15.4MM 12VDC WIRE |
3,789 |
|
Datasheet |
CFM-80BF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 15.40mm | 23.2 CFM (0.650m³/min) | 0.040 in H2O (10.0 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 21.3dB(A) | 1.08 W | 2000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
