DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0601512H2B-2T2FAN 60X15MM 12VDC MOLEX 22-01-10 |
3,000 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 23.1 CFM (0.647m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 35.0dB(A) | 1.44 W | 4500 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0601512L2B-2T2FAN 60X15MM 12VDC MOLEX 22-01-10 |
4,674 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 19.0 CFM (0.532m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 29.0dB(A) | 960 mW | 3500 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0601512M2B-2T2FAN 60X15MM 12VDC MOLEX 22-01-10 |
1,370 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 21.7 CFM (0.608m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 32.0dB(A) | 1.2 W | 4000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-7015B-240-357-22DC AXIAL FAN, 70 MM SQUARE, 15 M |
3,827 |
|
Datasheet |
CFM-70B | Box | Active | 24VDC | Square - 70mm L x 70mm H | 15.50mm | 25.7 CFM (0.727m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 35.7dB(A) | 2.88 W | 4000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
AF40200VX-1000U-S995VDC FAN 40X20MM TACH/PWM |
2,028 |
|
Datasheet |
AF | Box | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 11.0 CFM (0.308m³/min) | 0.310 in H2O (77.2 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 30.5dB(A) | 0.9 W | 8600 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
AF40201VX-1000U-S9912VDC FAN 40X20MM TACH/PWM |
1,660 |
|
Datasheet |
AF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 11.0 CFM (0.308m³/min) | 0.310 in H2O (77.2 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 30.5dB(A) | 0.92 W | 8600 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
BFB04505LA-CFAN BLOWER 45X10.3MM 5VDC WIRE |
1,217 |
|
Datasheet |
BFB | Tray | Active | 5VDC | Square - 45mm L x 45mm H | 10.30mm | 2.0 CFM (0.056m³/min) | 0.212 in H2O (52.8 Pa) | Ball | Blower | Locked Rotor Protection | 21.5dB(A) | 400 mW | 3900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.04 lb (18.14 g) |
|
AFB0812SHD-F00FAN AXIAL 80X20MM 12VDC WIRE |
4,104 |
|
Datasheet |
AFB | Tray | Obsolete | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 48.2 CFM (1.35m³/min) | 0.245 in H2O (61.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 41.0dB(A) | 2.64 W | 4000 RPM | 3 Wire Leads | - | - | CE, CSA, UL, VDE | 0.165 lb (74.84 g) |
|

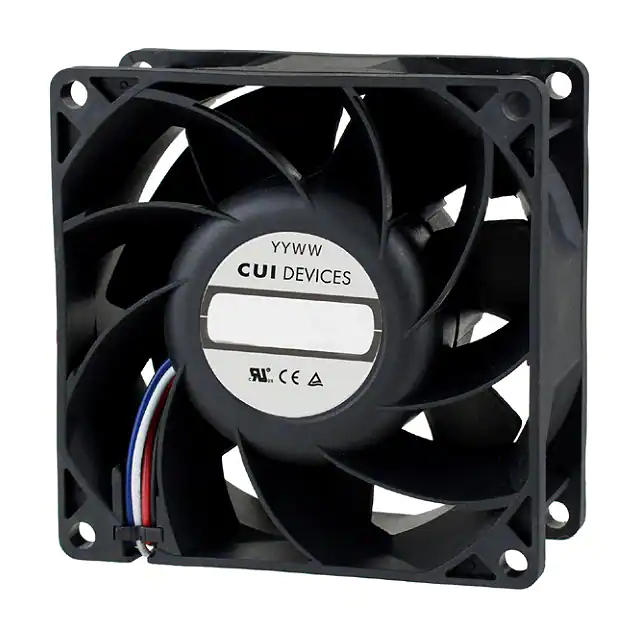

CFM-8038S-140-449FAN AXIAL 80X37.6MM 12VDC WIRE |
3,872 |
|
Datasheet |
CFM-80S | Box | Active | 12VDC | Square - 80mm L x 80mm H | 37.60mm | 49.4 CFM (1.38m³/min) | 0.370 in H2O (92.2 Pa) | Sleeve | Tubeaxial | Auto Restart | 45.0dB(A) | 4.56 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-8038S-230-387FAN AXIAL 80X37.6MM 24VDC WIRE |
2,045 |
|
Datasheet |
CFM-80S | Box | Active | 24VDC | Square - 80mm L x 80mm H | 37.60mm | 37.1 CFM (1.04m³/min) | 0.210 in H2O (52.3 Pa) | Sleeve | Tubeaxial | Auto Restart | 38.7dB(A) | 3.6 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
DC0501012M2B-BT0FAN AXIAL 50X10MM 12VDC WIRE |
1,612 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 50mm L x 50mm H | 10.00mm | 10.5 CFM (0.294m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 30.0dB(A) | 960 mW | 5500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.071 lb (32.21 g) |
|
|
DC0602012J2B-2T2FAN 60X20MM 12VDC MOLEX 22-01-10 |
4,925 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 13.5 CFM (0.378m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 24.0dB(A) | 840 mW | 3200 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0602012L2B-2T2FAN 60X20MM 12VDC MOLEX 22-01-10 |
2,789 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 14.8 CFM (0.414m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 26.0dB(A) | 1.08 W | 3600 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0501005M2B-3T0FAN 50X10MM 5VDC TACH |
2,169 |
|
Datasheet |
- | Bulk | Active | 5VDC | Square - 50mm L x 50mm H | 10.00mm | 10.5 CFM (0.294m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 30.0dB(A) | 400 mW | 5500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0501005H2B-3T0FAN 50X10MM 5VDC TACH |
1,479 |
|
Datasheet |
- | Bulk | Active | 5VDC | Square - 50mm L x 50mm H | 10.00mm | 12.7 CFM (0.356m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 35.0dB(A) | 500 mW | 6500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0401512H2B-2T2FAN 40X15MM 12VDC MOLEX 22-01-10 |
3,891 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 15.00mm | 10.5 CFM (0.294m³/min) | 0.380 in H2O (94.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 36.0dB(A) | 1.92 W | 8600 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0401512M2B-2T2FAN 40X15MM 12VDC MOLEX 22-01-10 |
2,017 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 15.00mm | 8.3 CFM (0.232m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 32.0dB(A) | 1.44 W | 7300 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
G6015E05B-RHRFAN AXIAL 60X15MM BALL 5VDC WIRE |
1,413 |
|
Datasheet |
G6015-H | Bulk | Active | 5VDC | Square - 60mm L x 60mm H | 15.00mm | 20.0 CFM (0.560m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | - | 36.0dB(A) | - | 5200 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.111 lb (50.35 g) |
|
G6015E12B-RHRFAN AXIAL 60X15MM 12VDC WIRE |
4,013 |
|
Datasheet |
G6015-H | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 20.0 CFM (0.560m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | - | 36.0dB(A) | - | 5200 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.111 lb (50.35 g) |
|
|
G6015E24B-RHRFAN AXIAL 60X15MM 24VDC WIRE |
2,828 |
|
Datasheet |
G6015-H | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 20.0 CFM (0.560m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | - | 36.0dB(A) | - | 5200 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.111 lb (50.35 g) |
