DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MF25101V3-1000U-F9912VDC FAN 25X10MM TACH |
1,851 |
|
Datasheet |
MF | Box | Active | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 1.2 CFM (0.034m³/min) | 0.050 in H2O (12.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 4.8dB(A) | 0.21 W | 6000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF35101V3-1000U-F9912VDC FAN 35X10MM TACH |
3,947 |
|
Datasheet |
MF | Box | Active | 12VDC | Square - 35mm L x 35mm H | 10.00mm | 3.6 CFM (0.101m³/min) | 0.070 in H2O (17.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 12.0dB(A) | 0.24 W | 5000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|

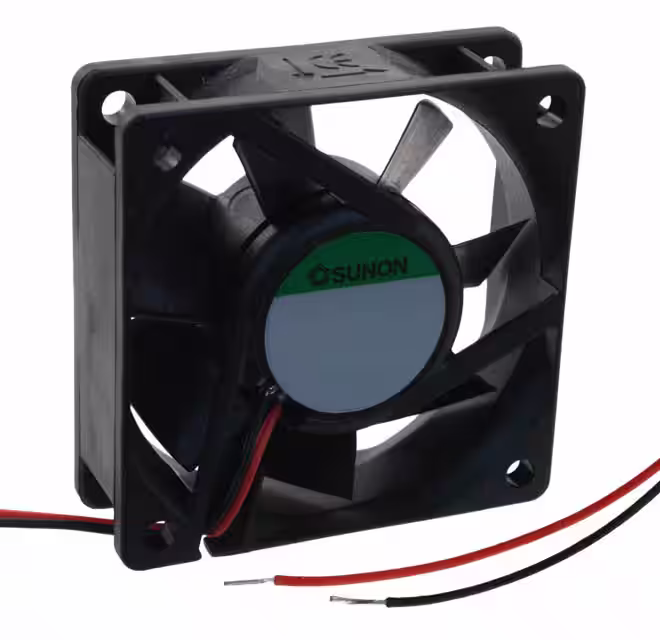

PMD1206PKB1-A.(2).GNFAN AXIAL 60X20MM 12VDC WIRE |
1,184 |
|
Datasheet |
PMD | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 27.5 CFM (0.770m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | - | 39.0dB(A) | 2.6 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.121 lb (54.88 g) |
|

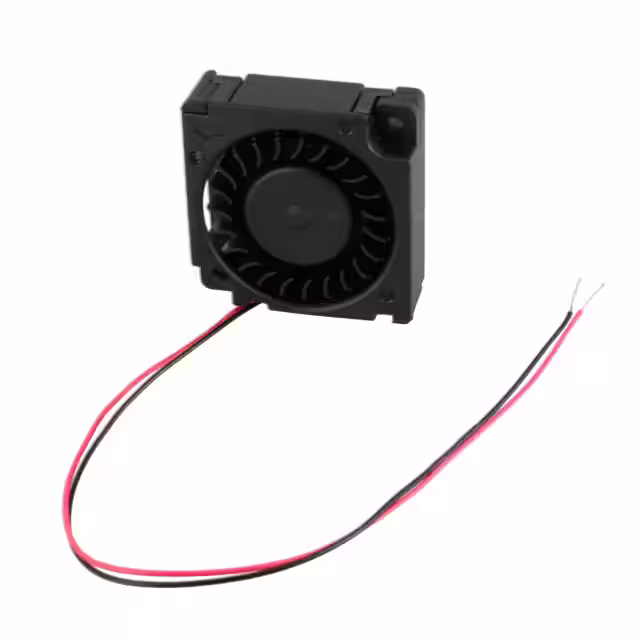

BFB0305MA-CFAN BLOWER 30X10MM 5VDC WIRE |
1,081 |
|
Datasheet |
BFB | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 1.2 CFM (0.034m³/min) | 0.206 in H2O (51.3 Pa) | Ball | Blower | Locked Rotor Protection | 26.0dB(A) | 600 mW | 6500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.023 lb (10.43 g) |
|

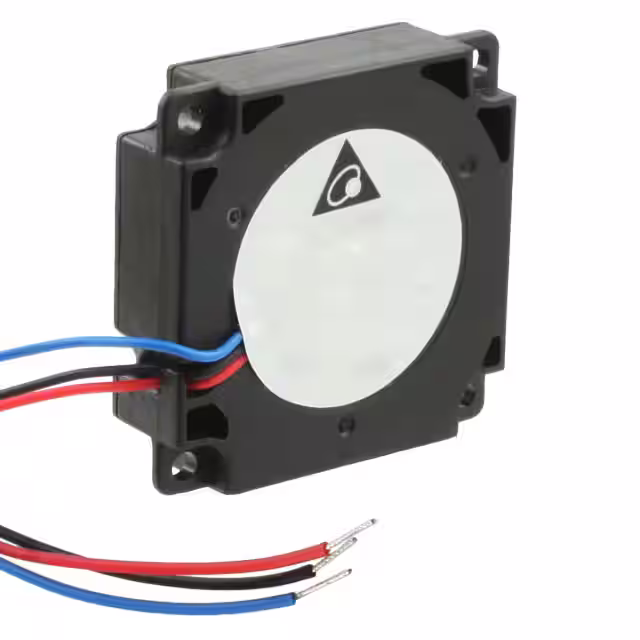

BFB03512HHA-AF00FAN BLOWER 35X10MM 12VDC WIRE |
4,851 |
|
Datasheet |
BFB | Bulk | Obsolete | 12VDC | Square - 35mm L x 35mm H | 10.00mm | 2.1 CFM (0.059m³/min) | 0.443 in H2O (110.3 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 31.0dB(A) | 960 mW | 8500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.025 lb (11.34 g) |
|
|
MF20100V1-1000U-G995VDC FAN 20X10MM ALARM |
4,011 |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 20mm L x 20mm H | 10.00mm | 1.9 CFM (0.053m³/min) | 0.290 in H2O (72.2 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.0dB(A) | 0.53 W | 16500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
6025CF).jpg)
|
CFM-6025CF-265-408-22FAN AXIAL 60X25.4MM 24VDC WIRE |
4,504 |
|
Datasheet |
CFM-60CF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 31.1 CFM (0.871m³/min) | 0.370 in H2O (92.2 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 40.9dB(A) | 5.52 W | 6500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

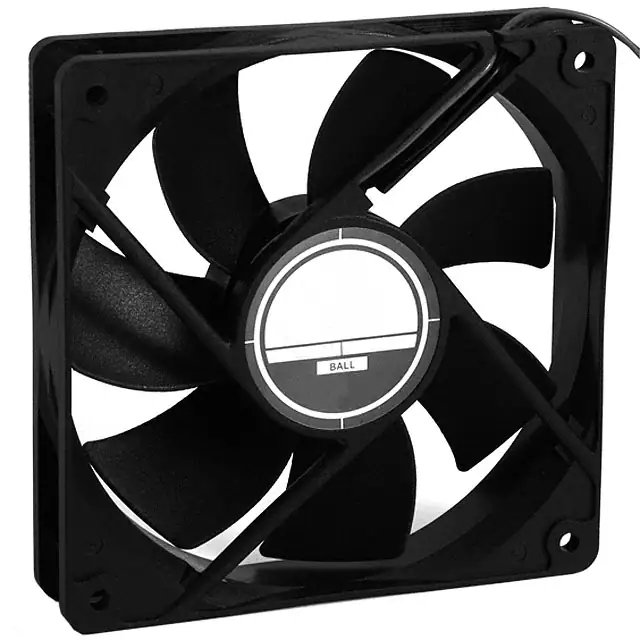

OD1225-12LSSFAN AXIAL 120X25MM 12VDC WIRE |
1,487 |
|
Datasheet |
OD1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 70.0 CFM (1.96m³/min) | 0.150 in H2O (37.3 Pa) | Sealed Sleeve | Tubeaxial | Auto Restart | 25.0dB(A) | 2.5 W | 1900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.341 lb (154.67 g) |
|
|
OD1225-12MSSFAN AXIAL 120X25MM 12VDC WIRE |
4,924 |
|
Datasheet |
OD1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 90.0 CFM (2.52m³/min) | 0.190 in H2O (47.3 Pa) | Sealed Sleeve | Tubeaxial | Auto Restart | 35.0dB(A) | 4 W | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.341 lb (154.67 g) |
|
|
OD1225-24LSSFAN AXIAL 120X25MM 24VDC WIRE |
3,159 |
|
Datasheet |
OD1225 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 70.0 CFM (1.96m³/min) | 0.150 in H2O (37.3 Pa) | Sealed Sleeve | Tubeaxial | Auto Restart | 25.0dB(A) | 2.4 W | 1900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.341 lb (154.67 g) |
|
|
OD1225-24MSSFAN AXIAL 120X25MM 24VDC WIRE |
4,024 |
|
Datasheet |
OD1225 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 90.0 CFM (2.52m³/min) | 0.190 in H2O (47.3 Pa) | Sealed Sleeve | Tubeaxial | Auto Restart | 35.0dB(A) | 4.1 W | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.341 lb (154.67 g) |
|
OD3510-05HSS01AFAN AXIAL 35X10MM 5VDC WIRE |
1,645 |
|
Datasheet |
OD3510 | Bulk | Active | 5VDC | Square - 35mm L x 35mm H | 10.00mm | - | - | Sealed Sleeve | Tubeaxial | Speed Sensor (Tach) | - | - | - | 3 Wire Leads | - | - | - | - |
|
|
OD3510-05HSS02AFAN AXIAL 35X10MM 5VDC WIRE |
3,151 |
|
Datasheet |
OD3510 | Bulk | Active | 5VDC | Square - 35mm L x 35mm H | 10.00mm | - | - | Sealed Sleeve | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | - | - |
|
|
OD3510-05LSS01AFAN AXIAL 35X10MM 5VDC WIRE |
1,822 |
|
Datasheet |
OD3510 | Bulk | Active | 5VDC | Square - 35mm L x 35mm H | 10.00mm | - | - | Sealed Sleeve | Tubeaxial | Speed Sensor (Tach) | - | - | - | 3 Wire Leads | - | - | - | - |
|
|
OD3510-05LSS02AFAN AXIAL 35X10MM 5VDC WIRE |
2,658 |
|
Datasheet |
OD3510 | Bulk | Active | 5VDC | Square - 35mm L x 35mm H | 10.00mm | - | - | Sealed Sleeve | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | - | - |
|
|
OD3510-05MSS01AFAN AXIAL 35X10MM 5VDC WIRE |
2,822 |
|
Datasheet |
OD3510 | Bulk | Active | 5VDC | Square - 35mm L x 35mm H | 10.00mm | - | - | Sealed Sleeve | Tubeaxial | Speed Sensor (Tach) | - | - | - | 3 Wire Leads | - | - | - | - |
|
|
OD3510-05MSS02AFAN AXIAL 35X10MM 5VDC WIRE |
1,137 |
|
Datasheet |
OD3510 | Bulk | Active | 5VDC | Square - 35mm L x 35mm H | 10.00mm | - | - | Sealed Sleeve | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | - | - |
|
|
OD3510-12HSS01AFAN AXIAL 35X10MM 12VDC WIRE |
4,219 |
|
Datasheet |
OD3510 | Bulk | Active | 12VDC | Square - 35mm L x 35mm H | 10.00mm | - | - | Sealed Sleeve | Tubeaxial | Speed Sensor (Tach) | - | - | - | 3 Wire Leads | - | - | - | - |
|
|
OD3510-12HSS02AFAN AXIAL 35X10MM 12VDC WIRE |
4,686 |
|
Datasheet |
OD3510 | Bulk | Active | 12VDC | Square - 35mm L x 35mm H | 10.00mm | - | - | Sealed Sleeve | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | - | - |
|
|
OD3510-12LSS01AFAN AXIAL 35X10MM 12VDC WIRE |
1,773 |
|
Datasheet |
OD3510 | Bulk | Active | 12VDC | Square - 35mm L x 35mm H | 10.00mm | - | - | Sealed Sleeve | Tubeaxial | Speed Sensor (Tach) | - | - | - | 3 Wire Leads | - | - | - | - |
