AC Fans
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UF80A23-BTHRFAN AXIAL 80X38MM 230VAC TERM |
1,373 |
|
Datasheet |
UF80A | Bulk | Active | 230VAC | Square - 80mm L x 80mm H | 38.00mm | 30.0 CFM (0.840m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | - | 36.0dB(A) | 12.00W | 3000 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 0.617 lb (279.87 g) |
|
OA92AP-22-1TBFAN AXIAL 92X26MM 230VAC TERM |
1,393 |
|
Datasheet |
OA92 | Box | Active | 230VAC | Square - 92mm L x 92mm H | 26.00mm | 35.0 CFM (0.980m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | - | 30.0dB | 13.00W | 3000 RPM | 2 Terminals | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | 0.644 lb (292.11 g) |
|
FAA1-12038QBLW31-AFAN AXIAL 119.5X38.5MM 230VAC |
3,788 |
|
Datasheet |
FAA1-12038 | Bulk | Active | 230VAC | Square - 119.5mm L x 119.5mm H | 38.50mm | 71.5 CFM (2.00m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | - | 37.9dB(A) | 9.40W | 2200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 1.2 lbs (544.3 g) |
|
UX12AC23-BTHR-7FAN AXIAL 120X38MM 230VAC TERM |
1,214 |
|
Datasheet |
UX12AC | Bulk | Active | 230VAC | Square - 120mm L x 120mm H | 38.00mm | 130.0 CFM (3.64m³/min) | 0.500 in H2O (124.5 Pa) | Ball | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 47.0dB(A) | 21.00W | 3300 RPM | 2 Terminals | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cUL, TUV, UL | 1.1 lbs (499.0 g) |
|
|
CHACB1H-A-15050BAC 110V 172*151*51 BALL; 190CFM |
2,318 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
4650Z-854FAN AXIAL 119X38MM 230VAC |
4,596 |
|
Datasheet |
4000Z | Bulk | Active | 230VAC | Square - 119mm L x 119mm H | 38.00mm | 94.1 CFM (2.63m³/min) | - | Sintec | Tubeaxial | - | 40.0dB(A) | 19.00W | 2650 RPM | 2 Terminals | IP54/IP65 - Dust Protected, Water Resistant, Dust Tight, Water Resistant | 14 ~ 122°F (-10 ~ 50°C) | CE, CSA, UL, VDE | - |
|
109S005FAN 120X38MM 100VAC |
4,971 |
|
Datasheet |
San Ace 120 | Box | Active | 100VAC | Square - 119mm L x 119mm H | 38.00mm | 95.4 CFM (2.67m³/min) | 0.264 in H2O (65.7 Pa) | Ball | Tubeaxial | - | 43.0dB(A) | 12.00W | 3100 RPM | 2 Terminals | - | -22 ~ 140°F (-30 ~ 60°C) | PSE | 1.2 lbs (544.3 g) |
|
FKA1-17251QBHT31FAN AXIAL 172X50.8MM 230VAC TERM |
4,246 |
|
Datasheet |
FKA1-17251 | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 189.0 CFM (5.29m³/min) | 0.408 in H2O (101.6 Pa) | Ball | Tubeaxial | - | 57.7dB(A) | 50.6W | 2700 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 2.3 lbs (1 kg) |
|

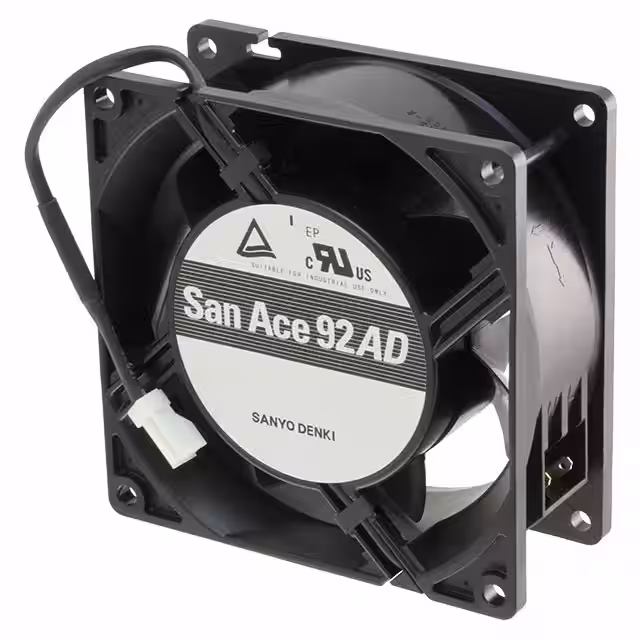

9AD0901M1H1FAN 92X38MM 90/264VAC RBLS LSS |
4,403 |
|
Datasheet |
San Ace 92AD | Box | Active | 100 ~ 240VAC | Square - 92mm L x 92mm H | 38.00mm | 41.7 CFM (1.17m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | - | 33.0dB(A) | 3.00W | 3100 RPM | 2 Position Rectangular Connector | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, PSE, TUV, UL | 0.551 lb (249.93 g) |
|

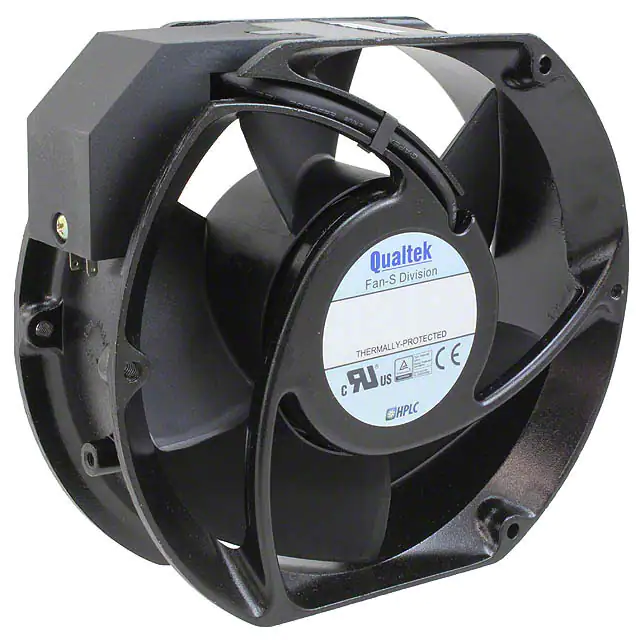

FDA2-17251NBHT4FFAN AXIAL 172X51MM 115VAC TERM |
2,101 |
|
Datasheet |
HPLC, FDA2-17251 | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 151mm H | 51.00mm | 250.0 CFM (7.00m³/min) | 0.610 in H2O (151.9 Pa) | Ball | Tubeaxial | - | 59.0dB(A) | 25.00W | 3100 RPM | 2 Terminals | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 2 lbs (907.2 g) |
|
|
109S034FAN AXIAL 80X25MM 230VAC WIRE |
4,787 |
|
Datasheet |
San Ace 80 | Box | Active | 230VAC | Square - 80mm L x 80mm H | 25.00mm | 22.3 CFM (0.624m³/min) | 0.114 in H2O (28.4 Pa) | - | Tubeaxial | Locked Rotor Protection | 30.0dB(A) | 7.00W | 2700 RPM | 2 Wire Leads | - | -22 ~ 140°F (-30 ~ 60°C) | CE, CSA, PSE, TUV, UL | 0.597 lb (270.79 g) |
|
FDA2-17251QBKT3FFAN AXIAL 172X51MM 230VAC TERM |
4,299 |
|
Datasheet |
HPLC, FDA2-17251 | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 151mm H | 51.00mm | 275.0 CFM (7.70m³/min) | 0.768 in H2O (191.3 Pa) | Ball | Tubeaxial | - | 60.0dB(A) | 27.00W | 3300 RPM | 2 Terminals | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 1.9 lbs (861.8 g) |
|
OA172SAN-11-1WBFAN AXIAL 172X50.8MM 115VAC WIRE |
2,191 |
|
Datasheet |
OA172SAN | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 235.0 CFM (6.58m³/min) | 0.700 in H2O (174.4 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 52.0dB | 35.00W | 3200 RPM | 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | cURus | - |
|
|
9AD1201P4H001FAN 120X25MM 100-240VAC PWM/TACH |
3,066 |
|
Datasheet |
San Ace 120AD | Box | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 25.00mm | 84.0 CFM (2.35m³/min) | 0.249 in H2O (62.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 40.0dB(A) | 3.40W | 3000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV, UKCA | - |
|
FDA2-17255NBHT4FFAN AXIAL 172X55MM 115VAC TERM |
1,057 |
|
Datasheet |
HPLC, FDA2-17255 | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 151mm H | 55.00mm | 240.0 CFM (6.72m³/min) | 0.531 in H2O (132.3 Pa) | Ball | Tubeaxial | - | 61.0dB(A) | 25.00W | 3100 RPM | 2 Terminals | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 1.8 lbs (816.5 g) |
|
FDA2-17255QBHW4FFAN AXIAL 172X55MM 230VAC WIRE |
1,713 |
|
Datasheet |
HPLC, FDA2-17255 | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 151mm H | 55.00mm | 240.0 CFM (6.72m³/min) | 0.531 in H2O (132.3 Pa) | Ball | Tubeaxial | - | 61.0dB(A) | 27.00W | 3100 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 1.8 lbs (816.5 g) |
|
|
8315100214AXIACI120R 115/230VAC 120X38MM |
2,643 |
|
Datasheet |
AxiACi | Box | Active | 115/230VAC | Square - 119mm L x 119mm H | 38.15mm | 84.8 CFM (2.37m³/min) | 0.409 in H2O (102.0 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 36.0dB(A) | 2.70W | 2700 RPM | Terminal Block | - | -40 ~ 167°F (-40 ~ 75°C) | CCC, CE, CSA, EAC, UL, VDE | - |
|
|
8315100213AXIACI120R 115/230VAC 120X38MM |
3,932 |
|
Datasheet |
AxiACi | Box | Active | 115/230VAC | Square - 119mm L x 119mm H | 38.15mm | 93.8 CFM (2.63m³/min) | 0.409 in H2O (102.0 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 40.0dB(A) | 3.60W | 3000 RPM | Terminal Block | - | -40 ~ 158°F (-40 ~ 70°C) | CCC, CE, CSA, EAC, UL, VDE | - |
|
|
9ADA1201H10021120X38MM, ACDC, 100V TO 240V, HI |
4,871 |
|
Datasheet |
San Ace 120AD | Box | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 38.00mm | 118.9 CFM (3.33m³/min) | 0.514 in H2O (128.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 48.0dB(A) | 6.60W | 3800 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
8315100190AXIACI120U 115/230VAC 120X38MM |
3,708 |
|
Datasheet |
AxiACi | Box | Active | 115/230VAC | Square - 119mm L x 119mm H | 38.15mm | 94.2 CFM (2.64m³/min) | 0.409 in H2O (102.0 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 40.0dB(A) | 3.60W | 3000 RPM | 2 Wire Leads | IP65 - Dust Tight, Water Resistant | -40 ~ 158°F (-40 ~ 70°C) | CCC, CE, CSA, EAC, UL, VDE | - |
