AC Fans
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S4E350-AP06-81AC AXIAL FAN |
4,722 |
|
Datasheet |
S4E350 | Bulk | Active | 230VAC | Round - 442mm Dia | 176.3mm | 1295.8 CFM (36.28m³/min) | 0.241 in H2O (60.0 Pa) | Ball | Tubeaxial | - | - | 190W | 1590 RPM | Terminal Block | IP44 | 131°F (55°C) | CE | - |
|
|
S4D400-AP12-77AC AXIAL FAN |
4,570 |
|
Datasheet |
S4D400 | Bulk | Active | 460VAC | Round - 470mm Dia | 132.3mm | 1528.5 CFM (42.80m³/min) | 0.522 in H2O (130.0 Pa) | Ball | Tubeaxial, 3 Phase | - | - | 235W | 1695 RPM | 4 Wire Leads | IP44 | -13 ~ 131°F (-25 ~ 55°C) | CSA, UL | - |
|
|
S4D400-AP12-78AC AXIAL FAN |
3,681 |
|
Datasheet |
S4D400 | Bulk | Active | 230VAC | Round - 470mm Dia | 132.0mm | 2715.0 CFM (76.02m³/min) | 0.482 in H2O (120.0 Pa) | Ball | Tubeaxial | - | - | 185W | 1690 RPM | 4 Wire Leads | IP44 | -13 ~ 140°F (-25 ~ 60°C) | CSA, CE, UL | - |
|
|
S4E450-AP01-07AC AXIAL FAN |
3,699 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
W4E350-CA06-01AC AXIAL FAN |
2,451 |
|
Datasheet |
W4E350 | Bulk | Active | 230VAC | Round - 460mm Dia | 84.50mm | - | 0.361 in H2O (89.9 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protection (TOP) | - | 195W | 1550 RPM | 4 Wire Leads | IP44 | -13 ~ 86°F (-25 ~ 30°C) | CCC, CE | - |
|
|
FC040-4/202954FAN AXIAL 540X188MM 115VAC WIRE |
4,157 |
|
Datasheet |
FC040 | - | Obsolete | 115VAC | Square - 540mm L x 540mm H | 188.0mm | 3830.0 CFM (107.24m³/min) | - | Ball | Tubeaxial | - | 75.0dB(A) | 360W | - | 2 Wire Leads | - | - | - | 20 lbs (9.1 kg) |
|
|
GTW040FUC15E-M001AXIAL ROUND 528MM L X 154MM W W/ |
4,433 |
|
Datasheet |
GTW | Bulk | Active | 230VAC | Round - 528mm Dia | 154.0mm | 3147.0 CFM (88.12m³/min) | 0.795 in H2O (198.0 Pa) | Ball | Motorized Impellers | Alarm, Electronic Commutation (EC), PWM Control, Thermal Overload Protector (TOP) | 72.0dB(A) | 330W | 1650 RPM | 3 Wire Leads with Ferrules, 7 Wire Leads with Ferrules | IP54 - Dust Protected, Water Resistant | -13 ~ 140°F (-25 ~ 60°C) | CE, cURus, TUV, UKCA | - |
|
|
G3G140-AW05-47FAN 230VAC 0.5A 2300RPM BB |
4,696 |
|
Datasheet |
G3G140 | Bulk | Active | 230VAC | Rectangular/Rounded - 226.8mm L x 261.5mm H | 130.0mm | - | - | Ball | - | - | - | - | 2300 RPM | - | - | - | - | - |
|
|
S4D500-AI01-01AC AXIAL FAN |
1,182 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FE077-A/125850FAN AXIAL 3-PH 925X280MM 460VAC |
2,823 |
|
Datasheet |
FE077A | - | Obsolete | 460VAC Y/Delta | Round - 925mm Dia | 280.0mm | 9100.0 ~ 11500.0 CFM (254.8 ~ 322.0m³/min) | - | Ball | Tubeaxial, 3 Phase | - | 79/85dB(A) | 960W, 1450W | - | 2 Wire Leads | - | - | - | 71 lbs (32.2 kg) |
|

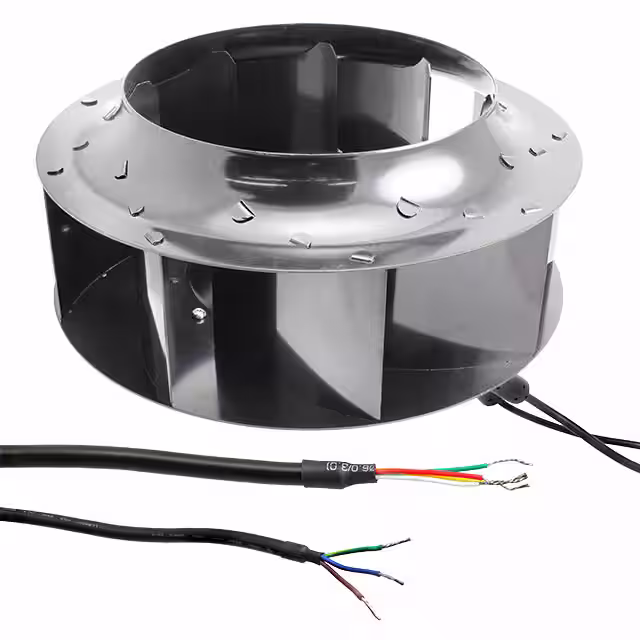

GTB028EUB16 N1FAN BLWR CENT 280X162MM 230VAC |
1,567 |
|
Datasheet |
GTB | Box | Active | 230VAC | Round - 280mm Dia | 162.0mm | 1308.0 CFM (36.62m³/min) | 2.285 in H2O (569.0 Pa) | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 73.0dB(A) | 180W | 2020 RPM | - | IP54 - Dust Protected, Water Resistant | -13 ~ 140°F (-25 ~ 60°C) | TUV, UL | 7.7 lbs (3.5 kg) |
|
|
R3G190-AF50-01EC BACKWARD-CURVED MOTORIZED IMP |
2,366 |
|
Datasheet |
R3G190 | Bulk | Active | 230VAC | Round - 190mm Dia | 108.9mm | 474.1 CFM (13.28m³/min) | - | Ball | Motorized Impellers | PWM Control, Thermal Overload Protector (TOP) | 74.0dB(A) | 135W | 3900 RPM | 3 Wire Leads, 4 Wire Leads | IP44 | -13 ~ 140°F (-25 ~ 60°C) | CSA, UL | - |
|
|
R6E355-AD16-05AC BACKWARD-CURVED MOTORIZED IMP |
2,132 |
|
Datasheet |
R6E355 | Bulk | Active | 230VAC | Round - 360mm Dia | 167.0mm | - | - | Ball | Motorized Impellers | Capacitor, Thermal Overload Protection (TOP) | - | 85W | 1000 RPM | 4 Wire Leads | IP44 | 167°F (75°C) | CCC, GOST | - |
|
|
R6E310-AJ04-01AC BACKWARD-CURVED MOTORIZED IMP |
2,563 |
|
Datasheet |
R6E310 | Bulk | Active | 230VAC | Round - 318mm Dia | 154.0mm | - | - | Ball | Motorized Impellers | Capacitor, Thermal Overload Protection (TOP) | - | 60.0W | 1070 RPM | 4 Wire Leads | IP44 | 167°F (75°C) | CCC, CE | - |
|
|
G2D146-BF02-07MOTORIZED IMPELLER |
1,417 |
|
Datasheet |
G2D146 | Bulk | Active | 230/400VAC | Rectangular/Rounded - 227mm L x 248.5mm H | 130.0mm | - | - | Ball | Blower, Centrifugal | Dual Voltage | - | 300W | 2700 RPM | 6 Wire Leads with Splice Terminals | IP44 | -13 ~ 104°F (-25 ~ 40°C) | CE | - |
|
|
W4D350-CA06-02AC AXIAL FAN |
2,399 |
|
Datasheet |
W4D350 | Bulk | Active | 230/400VAC | Round - 353mm Dia | 102.0mm | 1943.7 CFM (54.42m³/min) | 0.602 in H2O (149.9 Pa) | Ball | - | - | 72.0dB(A) | 190W | 1620 RPM | 2 Wire Leads | IP44 | 104°F (40°C) | - | - |
|
|
S4E330-AA06-07AC AXIAL FAN |
2,745 |
|
Datasheet |
S4E330 | Bulk | Active | 230VAC | Round - 330mm Dia | 157.0mm | 945.3 CFM (26.47m³/min) | - | Ball | Tubeaxial | Capacitor, Thermal Overload Protection (TOP) | - | 130W | 1400 RPM | Terminal Block | IP44 | -40 ~ 122°F (-40 ~ 50°C) | CE | - |
|
|
R6E355-AE16-05AC BACKWARD-CURVED MOTORIZED IMP |
1,528 |
|
Datasheet |
R6E355 | Bulk | Active | 230VAC | Round - 360mm Dia | 190.0mm | - | - | Ball | Motorized Impellers | Capacitor, Thermal Overload Protection (TOP) | - | 90.0W | 890 RPM | 4 Wire Leads | IP44 | 140°F (60°C) | CCC, GOST | - |
|
|
S4E350-AA06-24AC AXIAL FAN |
2,406 |
|
Datasheet |
S4E350 | Bulk | Active | 230VAC | Round - 422mm Dia | 170.9mm | 1098.5 CFM (30.76m³/min) | 0.361 in H2O (89.9 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protection (TOP) | - | 205W | 1550 RPM | Terminal Block | IP44 | -40 ~ 86°F (-40 ~ 30°C) | CE, UL | - |
|
|
A3G250-AD71-01DC AXIAL FAN |
2,447 |
|
Datasheet |
A3G250 | Bulk | Active | 100 ~ 130VAC | Round - 251mm Dia | 105.2mm | - | 0.682 in H2O (170.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | - | 170W | 2850 RPM | 3 Wire Leads, 4 Wire Leads | IP44 | -13 ~ 140°F (-25 ~ 60°C) | CCC, CSA, GOST, UL, VDE | - |
