AC Fans
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S4E315-AP18-30AC AXIAL FAN |
2,926 |
|
Datasheet |
S4E315 | Bulk | Active | 230VAC | Round - 375mm Dia | 120.0mm | 1672.8 CFM (46.84m³/min) | 0.482 in H2O (120.0 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protection (TOP) | 64.0dB(A) | 120W | 1650 RPM | 4 Wire Leads | IP44 | 131°F (55°C) | CCC, CE, GOST | - |
|
|
R4E310-AO32-17MOTORIZED IMPELLER 915MM LEAD |
3,856 |
|
Datasheet |
R4E310 | Bulk | Active | 115VAC | Round - 318mm Dia | 128.0mm | - | - | Ball | Motorized Impellers, 3 Phase | Capacitor, Thermal Overload Protection (TOP) | - | 155W | 1720 RPM | 4 Wire Leads with Splice Terminals | IP44 | -13 ~ 149°F (-25 ~ 65°C) | CSA, UL | 8.3 lbs (3.8 kg) |
|
|
R4E180-AS11-09AC BACKWARD-CURVED MOTORIZED IMP |
1,504 |
|
Datasheet |
R4E180 | Bulk | Active | 230VAC | Round - 180mm Dia | 121.0mm | - | - | Ball | Motorized Impellers | Capacitor, Thermal Overload Protection (TOP) | - | 180W | 1500 RPM | 4 Wire Leads | IP44 | -13 ~ 140°F (-25 ~ 60°C) | CSA, CE, UL | - |
|
|
S2E300-BP02-30FAN AXIAL |
2,950 |
|
Datasheet |
S2E300 | Bulk | Active | 230VAC | Round - 360mm Dia | 104.0mm | - | 0.201 in H2O (50.0 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | - | 350W | 3000 RPM | 4 Wire Leads with Splice Terminals | IP44 | -13 ~ 122°F (-25 ~ 50°C) | CCC, CE, EAC | - |
|
|
D2E146-HT67-31BLOWER |
1,238 |
|
Datasheet |
D2E146 | Bulk | Active | 230VAC | Rectangular/Rounded - 220mm L x 216mm H | 199.0mm | - | 0.803 in H2O (200.0 Pa) | Ball | Blower, Centrifugal | Capacitor, Thermal Overload Protector (TOP) | - | 400W | 2100 RPM | 6 Position Rectangular Connector | IP20 | -13 ~ 122°F (-25 ~ 50°C) | - | - |
|
|
A2D200-AA02-16AC AXIAL FAN |
4,341 |
|
Datasheet |
A2D200 | Bulk | Active | 230/400VAC | Round - 195mm Dia | 73.00mm | - | 1.204 in H2O (300.0 Pa) | Ball | Tubeaxial, 3 Phase | Dual Voltage | - | 70.0W | 3150 RPM | 7 Wire Leads with Splice Terminals | IP54 - Dust Protected, Water Resistant | -13 ~ 167°F (-25 ~ 75°C) | CCC, CE | - |
|
|
W4E250-CI02-01AC AXIAL FAN |
4,993 |
|
Datasheet |
W4E250 | Bulk | Active | 230VAC | Round - 320mm Dia | 97.00mm | - | 0.181 in H2O (45.1 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protection (TOP) | - | 45.00W | 1630 RPM | 4 Wire Leads | IP44 | -13 ~ 140°F (-25 ~ 60°C) | CE | - |
|
|
W2E250-CL08-70FAN AXIAL 320X85MM 115VAC WIRE |
2,944 |
|
Datasheet |
W2E250A | Bulk | Active | 115VAC | Round - 320mm Dia | 85.00mm | 1100.0 CFM (30.80m³/min) | - | Ball | Tubeaxial | - | 71.0dB(A) | 160W | - | 2 Wire Leads | - | - | CE, CSA, UL | 3.1 lbs (1.4 kg) |
|
|
R2D220-AC02-12AC BACKWARD-CURVED MOTORIZED IMP |
2,739 |
|
Datasheet |
R2D220 | Bulk | Obsolete | 415VAC | Round - 252mm Dia | 71.00mm | - | - | Ball | Motorized Impellers | - | - | 100W | 3000 RPM | 4 Position Rectangular Connector | IP44 | 122°F (50°C) | CE | - |
|
|
S4E350-BP06-30AC AXIAL FAN |
3,862 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
W4E315-CS22-71FAN AXIAL |
2,097 |
|
Datasheet |
W4E315 | Bulk | Active | 115VAC | Round - 397mm Dia | 117.0mm | - | 0.321 in H2O (80.0 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | - | 160W | 1510 RPM | 4 Wire Leads with Splice Terminals | IP44 | -13 ~ 158°F (-25 ~ 70°C) | CSA, UL | - |
|
|
FC031-4/105119FAN AXIAL 430X161MM 230VAC WIRE |
1,898 |
|
Datasheet |
FC031 | - | Obsolete | 230VAC | Square - 430mm L x 430mm H | 161.0mm | 1300.0 CFM (36.40m³/min) | - | Ball | Tubeaxial | - | 66.0dB(A) | 160W | - | 2 Wire Leads | - | - | - | 12 lbs (5.4 kg) |
|
W4E420-CP02-71FAN AXIAL 544X80MM 230VAC WIRE |
2,198 |
|
Datasheet |
W4E420A | Bulk | Obsolete | 230VAC | Round - 544mm Dia | 80.00mm | 3310.0 CFM (92.68m³/min) | - | Ball | Tubeaxial | - | 74.0dB(A) | 285W | - | 2 Wire Leads | - | - | CSA, UL, VDE | 11 lbs (5 kg) |
|
|

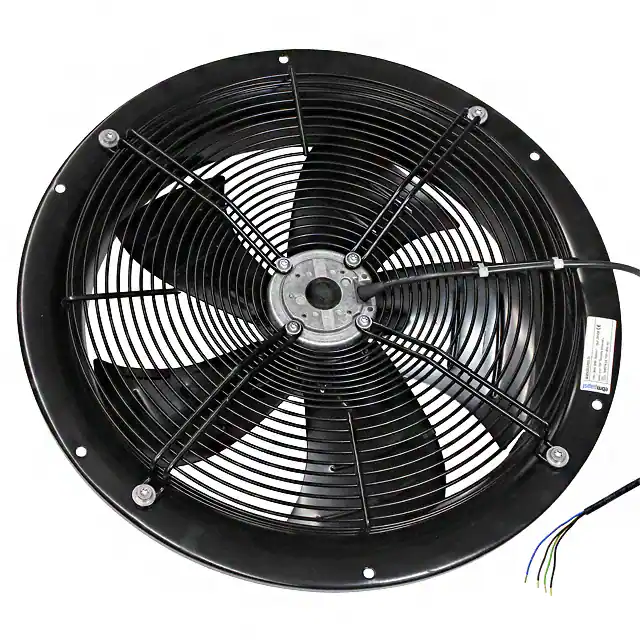

W4E420-CP03-71FAN AXIAL 544X80MM 115VAC WIRE |
4,300 |
|
Datasheet |
W4E420A | Bulk | Obsolete | 115VAC | Round - 544mm Dia | 80.00mm | 3310.0 CFM (92.68m³/min) | - | Ball | Tubeaxial | - | 74.0dB(A) | 285W | - | 2 Wire Leads | - | - | CSA, UL, VDE | 11 lbs (5 kg) |
|
|
W2E250-HJ32-10FAN AXIAL |
1,903 |
|
Datasheet |
W2E250 | Bulk | Active | 115VAC | Square - 320mm L x 320mm H | 80.00mm | - | 0.482 in H2O (120.0 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | - | 175W | 2850 RPM | Terminal Block | IP44 | -13 ~ 167°F (-25 ~ 75°C) | CCC, UL | - |
|
|
A2E300-AC47-02AC AXIAL FAN |
3,616 |
|
Datasheet |
A2E300 | Bulk | Active | 230VAC | Round - 300mm Dia | 97.50mm | - | 0.602 in H2O (149.9 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protection (TOP) | - | 190W | 2900 RPM | 4 Wire Leads | IP44 | -13 ~ 122°F (-25 ~ 50°C) | CCC, CE, EAC | - |
|
|
S4E350-BR06-30AC AXIAL FAN |
3,372 |
|
Datasheet |
S4E350 | Bulk | Active | 230VAC | Round - 422mm Dia | - | 2144 CFM (60.03m³/min) | 0.261 in H2O (65.0 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protection (TOP) | 67.0dB(A) | 180W | 1530 RPM | 4 Wire Leads | IP44 | 122°F (50°C) | CCC, CE | - |
|
|
W2E250-CM06-01FAN AXIAL |
1,014 |
|
Datasheet |
W2E250 | Bulk | Active | 230VAC | Round - 320mm Dia | 90.40mm | - | 0.341 in H2O (85.0 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | - | 150W | 2600 RPM | 4 Wire Leads with Splice Terminals | IP44 | -13 ~ 122°F (-25 ~ 50°C) | CE, EAC | - |
|
|
D2E146-HT67-63BLOWER |
1,955 |
|
Datasheet |
D2E146 | Bulk | Active | 230VAC | Rectangular/Rounded - 220mm L x 216mm H | 199.0mm | - | 0.803 in H2O (200.0 Pa) | Ball | Blower, Centrifugal | Capacitor, Thermal Overload Protector (TOP) | - | 400W | 2100 RPM | 6 Position Rectangular Connector | IP20 | -13 ~ 122°F (-25 ~ 50°C) | - | - |
|
|
G2E120-CR21-20AC CENTRIFUGAL BLOWER |
1,733 |
|
Datasheet |
G2E120 | Bulk | Active | 230VAC | Rectangular/Rounded - 180mm L x 170.5mm H | 110.0mm | - | - | Ball | Blower, Centrifugal | Capacitor, Thermal Overload Protection (TOP) | - | 100W | 2050 RPM | 4 Wire Leads | IP44 | -13 ~ 149°F (-25 ~ 65°C) | CE | - |
