AC Fans
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109-643-30160X51 MM 230V,HIGH ACE, SNSR VL |
1,100 |
|
Datasheet |
San Ace 160 | Box | Active | 230VAC | Square - 160mm L x 160mm H | 51.00mm | 300.4 CFM (8.41m³/min) | 0.669 in H2O (166.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 60.0dB(A) | 33.00W | 3350 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, PSE, TUV, UR | - |
|
|
109-644-20160X51 MM 115V,HIGH ACE,SNSR VLT |
4,733 |
|
Datasheet |
San Ace 160 | Box | Active | 115VAC | Square - 160mm L x 160mm H | 51.00mm | 300.4 CFM (8.41m³/min) | 0.669 in H2O (166.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 60.0dB(A) | 33.00W | 3350 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, PSE, TUV, UR | - |
|
|
109-643-20160X51 MM 230V,HIGH ACE, SNSR VL |
3,363 |
|
Datasheet |
San Ace 160 | Box | Active | 230VAC | Square - 160mm L x 160mm H | 51.00mm | 300.4 CFM (8.41m³/min) | 0.669 in H2O (166.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 60.0dB(A) | 33.00W | 3350 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, PSE, TUV, UR | - |
|
|
A2E250-AE65-55AC AXIAL FAN |
1,615 |
|
Datasheet |
A2E250 | Bulk | Active | 230VAC | Round - 250mm Dia | 83.00mm | 1024.9 CFM (28.7m³/min) | 0.522 in H2O (130.0 Pa) | Ball | Tubeaxial | - | 73.0dB(A) | 165W | 2750 RPM | 2 Wire Leads | IP44 | -13 ~ 122°F (-25 ~ 50°C) | CCC, CE | - |
|
|
OA254EC-11-1TBXCIP68Thermal Products |
4,990 |
|
Datasheet |
OA254EC | Bulk | Active | 115VAC | Round - 254mm Dia | 89.00mm | 830.0 CFM (23.24m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Tubeaxial | Auto Restart | 70.1dB(A) | 75.0W | 2750 RPM | 2 Terminals | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV, UR | - |
|
|
OA254EC-UR-1TBIP68Thermal Products |
3,104 |
|
Datasheet |
OA254EC | Bulk | Active | 115/230VAC | Round - 254mm Dia | 89.00mm | 500.0 CFM (14.00m³/min) | 0.480 in H2O (119.6 Pa) | Ball | Tubeaxial | Auto Restart | 56.2dB(A) | 22.00W | 1700 RPM | 2 Terminals | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV, UR | - |
|
|
109-374-30FAN 172X51MM 115VAC ALARM |
3,552 |
|
Datasheet |
San Ace 172 | Box | Active | 115VAC | Round - 172mm Dia | 51.00mm | 226.1 CFM (6.33m³/min) | 0.787 in H2O (196.0 Pa) | Ball | Tubeaxial | Alarm | 51.0dB(A) | 25.00W | 3500 RPM | 3 Wire Leads | - | -22 ~ 140°F (-30 ~ 60°C) | CE, PSE, TUV, UR | 2.3 lbs (1 kg) |
|
|
109-371-20172X51MM 100V,DYNA ACE, SNSR VLT |
3,447 |
|
Datasheet |
San Ace 172 | Box | Active | 100VAC | Round - 172mm Dia | 51.00mm | 226.1 CFM (6.33m³/min) | 0.787 in H2O (196.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.0dB(A) | 25.00W | 3500 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, PSE, TUV, UR | - |
|
|
109-371-30172X51MM 100V,DYNA ACE, SNSR VLT |
1,580 |
|
Datasheet |
San Ace 172 | Box | Active | 100VAC | Round - 172mm Dia | 51.00mm | 226.1 CFM (6.33m³/min) | 0.787 in H2O (196.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.0dB(A) | 25.00W | 3500 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, PSE, TUV, UR | - |
|
|
R2E160-AY51-17AC BACKWARD-CURVED MOTORIZED IMP |
4,561 |
|
Datasheet |
R2E160 | Bulk | Active | 115VAC | Round - 160mm Dia | 97.50mm | - | - | Ball | Motorized Impellers | Capacitor, Thermal Overload Protection (TOP) | - | 255W | 2200 RPM | 4 Wire Leads | IP44 | -13 ~ 104°F (-25 ~ 40°C) | CSA, CE, UL | - |
|
|
A2E170-AF23-34AC AXIAL FAN |
1,065 |
|
Datasheet |
A2E170 | Bulk | Active | 230VAC | Round - 169.5mm Dia | 63.00mm | - | - | Ball | Tubeaxial | Capacitor, Thermal Overload Protection (TOP) | - | 53W | 3150 RPM | 4 Wire Leads | IP44 | -13 ~ 140°F (-25 ~ 60°C) | CE | - |
|
|
S4S250-BA02-01AC AXIAL FAN |
2,641 |
|
Datasheet |
S4S250 | Bulk | Active | 230VAC | Round - 250mm Dia | 73.00mm | 589 CFM (16.49m³/min) | 0.401 in H2O (100.0 Pa) | Ball | Tubeaxial | Thermal Overload Protection (TOP) | 62.0dB(A) | 75.0W | 1620 RPM | 2 Wire Leads | IP44 | 122°F (50°C) | CE, UL | - |
|
A4D315-AC20-01AC AXIAL FAN |
1,010 |
|
Datasheet |
A4D315 | Bulk | Active | 230VAC/400VAC | Round - 315mm Dia | 101.0mm | - | 0.602 in H2O (149.9 Pa) | Ball | Tubeaxial, 3 Phase | Dual Voltage | - | 120W | 1590 RPM | 7 Wire Leads | IP44 | 140°F (60°C) | CCC | - |
|
|
A4E300-AH26-05AC AXIAL FAN |
4,128 |
|
Datasheet |
A4E300 | Bulk | Active | 230VAC | Round - 294mm Dia | - | - | 0.261 in H2O (65.0 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protection (TOP) | - | 95.0W | 1480 RPM | 2 Wire Leads | IP44 | 131°F (55°C) | CCC, UL | - |
|

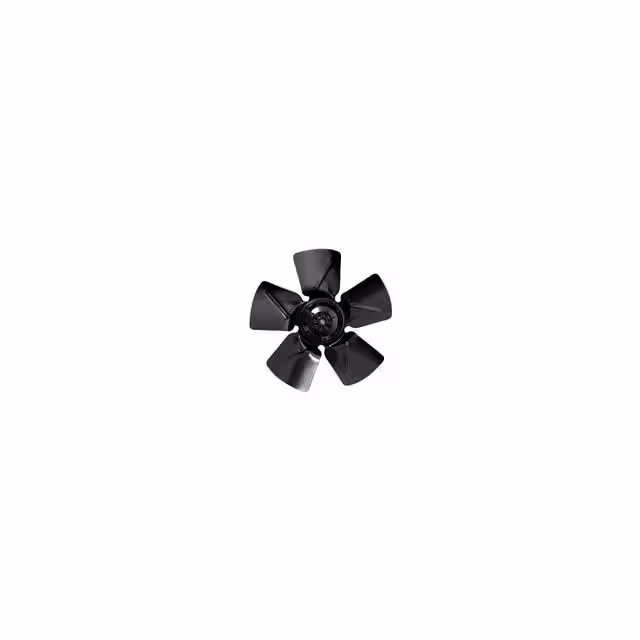

A4D315-AC20-02AC AXIAL FAN |
4,610 |
|
Datasheet |
A4D315 | Bulk | Active | 230/400VAC | Round - 312mm Dia | 101.5mm | - | 0.602 in H2O (149.9 Pa) | Ball | Tubeaxial | Dual Voltage | - | 115W | 1590 RPM | 7 Wire Leads | IP44 | -13 ~ 140°F (-25 ~ 60°C) | CE | - |
|
|
A4E300-AH26-06AC AXIAL FAN |
1,668 |
|
Datasheet |
A4E300 | Bulk | Active | 230VAC | Round - 300mm Dia | 75.00mm | 859.9 CFM (24.08m³/min) | 0.261 in H2O (65.0 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protection (TOP) | 61.0dB(A) | 95.0W | 1480 RPM | 4 Wire Leads | IP44 | 131°F (55°C) | CCC, CE, GOST | - |
|
|
S2E250-BM06-01FAN AXIAL |
1,512 |
|
Datasheet |
S2E250 | Bulk | Active | 230VAC | Round - 290mm Dia | 76.40mm | - | 0.341 in H2O (85.0 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | - | 150W | 2600 RPM | 4 Wire Leads with Splice Terminals | IP44 | -13 ~ 122°F (-25 ~ 50°C) | CCC, CE, EAC | - |
|
|
109-373-30172X51MM 230V,DYNA ACE, SNSR VLT |
1,554 |
|
Datasheet |
San Ace 172 | Box | Active | 230VAC | Round - 172mm Dia | 51.00mm | 226.1 CFM (6.33m³/min) | 0.787 in H2O (196.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.0dB(A) | 25.00W | 3500 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, PSE, TUV, UR | - |
|
|
109-373-20172X51MM 230V,DYNA ACE, SNSR VLT |
2,234 |
|
Datasheet |
San Ace 172 | Box | Active | 230VAC | Round - 172mm Dia | 51.00mm | 226.1 CFM (6.33m³/min) | 0.787 in H2O (196.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.0dB(A) | 25.00W | 3500 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, PSE, TUV, UR | - |
|
|
109-372-20172X51MM 115V,DYNA ACE, SNSR VLT |
1,511 |
|
Datasheet |
San Ace 172 | Box | Active | 200VAC | Round - 172mm Dia | 51.00mm | 226.1 CFM (6.33m³/min) | 0.787 in H2O (196.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.0dB(A) | 25.00W | 3500 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, PSE, TUV, UR | - |
