Automotive Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Coil Type | Coil Current | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Type | Termination Style | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G8JN-1C6T-DC12RELAY AUTOMOTIVE SPDT 35A 12V |
4,265 |
|
Datasheet |
G8JN | Bulk | Obsolete | Non Latching | - | 12VDC | SPDT (1 Form C) | 35 A | 16VDC - Max | 8 VDC | 1 VDC | 20 ms | 10 ms | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
G8JN-1C6T-F-DC12RELAY AUTOMOTIVE SPDT 35A 12V |
2,265 |
|
Datasheet |
G8JN | Bulk | Obsolete | Non Latching | - | 12VDC | SPDT (1 Form C) | 35 A | 16VDC - Max | 8 VDC | 1 VDC | 20 ms | 10 ms | - | Chassis Mount | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
JSM1-12V-4RELAY AUTOMOTIVE SPDT 10A 12V |
1,530 |
|
Datasheet |
JS-M | Bulk | Obsolete | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) | 10 A | 16VDC - Max | 6.3 VDC | 0.9 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
JSM1-12V-5RELAY AUTOMOTIVE SPDT 15A 12V |
3,855 |
|
Datasheet |
JS-M | Bulk | Obsolete | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) | 15 A | 16VDC - Max | 6.3 VDC | 0.9 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
CB1F-D-12VRELAY AUTOMOTIVE SPDT 40A 12V |
1,684 |
|
Datasheet |
CB | Bulk | Obsolete | Non Latching | 117 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | - | Diode, Sealed - Flux Protection | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|

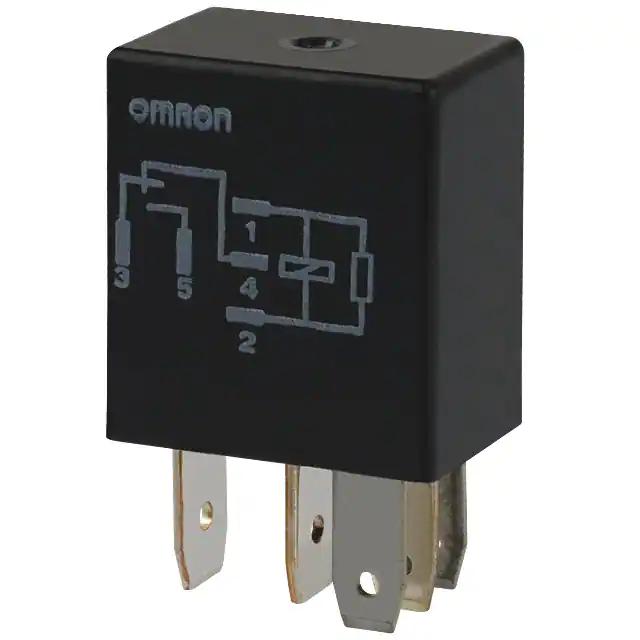

G8H-1C4T-R-DC12RELAY AUTOMOTIVE SPDT 10A 12V |
3,856 |
|
Datasheet |
G8H | Bulk | Obsolete | Non Latching | 120 mA | 12VDC | SPDT (1 Form C) | 10 A | 16VDC - Max | 7 VDC | 0.7 VDC | 20 ms | 10 ms | - | Socketable | Plug In | -40°C ~ 125°C |
|
G8J-1A7P-R-DC12RELAY AUTOMOTIVE SPST 40A 12V |
1,231 |
|
Datasheet |
G8J | Bulk | Obsolete | Non Latching | - | 12VDC | SPST-NO (1 Form A) | 40 A | 16VDC - Max | 8 VDC | 1 VDC | 5 ms | 4 ms | - | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
G8J-1C6T-F-R-DC12RELAY AUTOMOTIVE SPDT 40A 12V |
1,584 |
|
Datasheet |
G8J | Bulk | Obsolete | Non Latching | - | 12VDC | SPDT (1 Form C) | 40 A | 16VDC - Max | 8 VDC | 1 VDC | 5 ms | 4 ms | - | Socketable | Plug In | -40°C ~ 125°C |
|
|
G8J-1C6T-R-DC12RELAY AUTOMOTIVE SPDT 40A 12V |
3,230 |
|
Datasheet |
G8J | Bulk | Obsolete | Non Latching | - | 12VDC | SPDT (1 Form C) | 40 A | 16VDC - Max | 8 VDC | 1 VDC | 5 ms | 4 ms | - | Socketable | Plug In | -40°C ~ 125°C |
|
|
G8J-1C7T-MF-R-DC12RELAY AUTOMOTIVE SPDT 40A 12V |
2,398 |
|
Datasheet |
G8J | Bulk | Obsolete | Non Latching | - | 12VDC | SPDT (1 Form C) | 40 A | 16VDC - Max | 8 VDC | 1 VDC | 5 ms | 4 ms | - | Socketable | Plug In | -40°C ~ 125°C |
|
|
G8J-1C7T-R-DC12RELAY AUTOMOTIVE SPDT 40A 12V |
1,302 |
|
Datasheet |
G8J | Bulk | Obsolete | Non Latching | - | 12VDC | SPDT (1 Form C) | 40 A | 16VDC - Max | 8 VDC | 1 VDC | 5 ms | 4 ms | - | Socketable | Plug In | -40°C ~ 125°C |
|
|
G8JE-1A7T-R-DC12RELAY AUTOMOTIVE SPST 70A 12V |
2,314 |
|
Datasheet |
G8JE | Bulk | Active | Non Latching | - | 12VDC | SPST-NO (1 Form A) | 70 A | 16VDC - Max | 8 VDC | 1 VDC | 5 ms | 4 ms | - | Socketable | Plug In | -40°C ~ 125°C |
|
G8V-1A7T-R-DC12RELAY AUTOMOTIVE SPST 20A 12V |
2,664 |
|
Datasheet |
G8V | Bulk | Obsolete | Non Latching | - | 12VDC | SPST-NO (1 Form A) | 20 A | 16VDC - Max | 8 VDC | 1 VDC | 10 ms | 10 ms | - | Socketable | Plug In | -40°C ~ 125°C |
|
|
G8V-1C7T-R-DC12RELAY AUTOMOTIVE SPDT 10A 12V |
1,380 |
|
Datasheet |
G8V | Bulk | Obsolete | Non Latching | - | 12VDC | SPDT (1 Form C) | 10 A | 16VDC - Max | 8 VDC | 1 VDC | 10 ms | 10 ms | - | Socketable | Plug In | -40°C ~ 125°C |
|

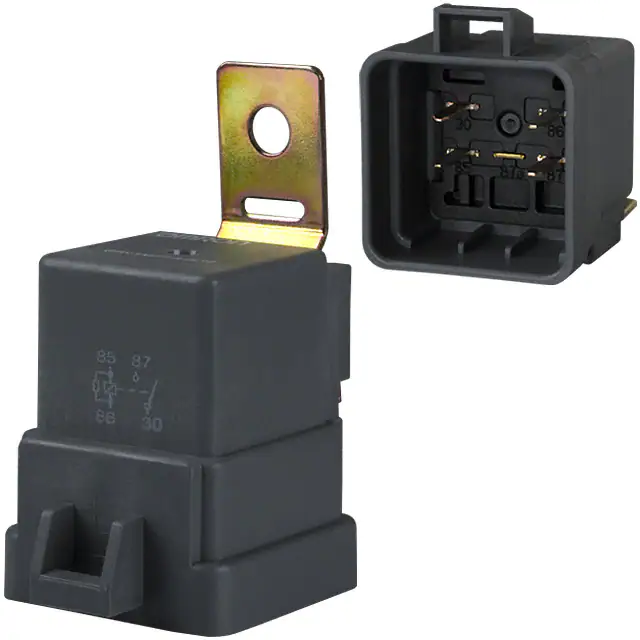

G8W-1A6T-F-R-DC12RELAY AUTOMOTIVE SPST 35A 12V |
1,907 |
|
Datasheet |
G8W | Bulk | Obsolete | Non Latching | - | 12VDC | SPST-NO (1 Form A) | 35 A | 16VDC - Max | 8 VDC | 1 VDC | 20 ms | 10 ms | Resistor | Socketable | Plug In | -40°C ~ 125°C |
|

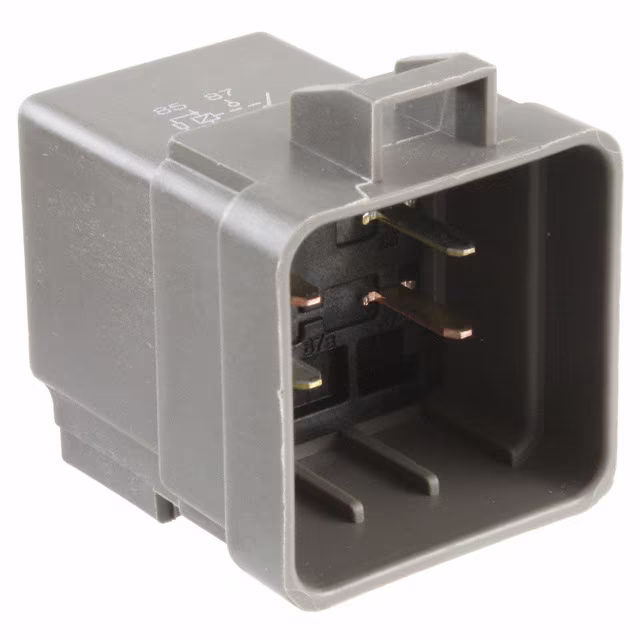

G8W-1A6T-R-DC12RELAY AUTOMOTIVE SPST 35A 12V |
4,396 |
|
Datasheet |
G8W | Bulk | Obsolete | Non Latching | - | 12VDC | SPST-NO (1 Form A) | 35 A | 16VDC - Max | 8 VDC | 1 VDC | 20 ms | 10 ms | Resistor | Socketable | Plug In | -40°C ~ 125°C |
|

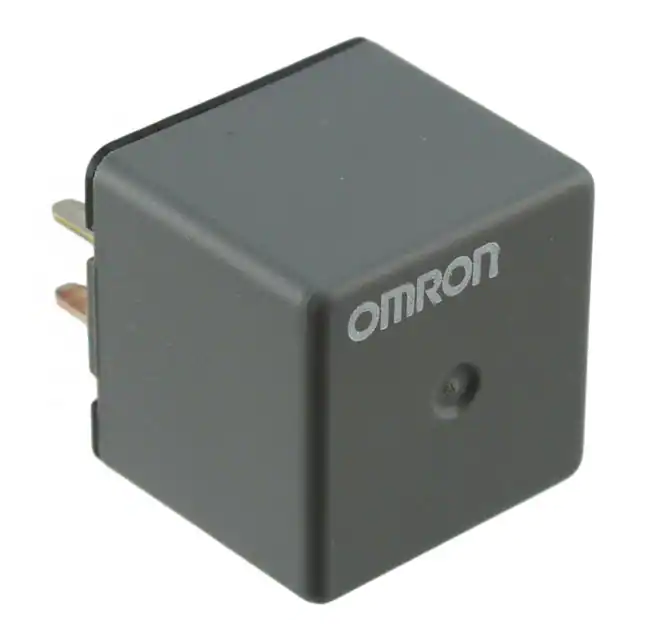

G8W-1A7T-R-DC12RELAY AUTOMOTIVE SPST 35A 12V |
3,259 |
|
Datasheet |
G8W | Tray | Obsolete | Non Latching | - | 12VDC | SPST-NO (1 Form A) | 35 A | 16VDC - Max | 8 VDC | 1 VDC | 20 ms | 10 ms | Resistor | Socketable | Plug In | -40°C ~ 125°C |
|
|
G8W-1C6T-F-R-DC12RELAY AUTOMOTIVE SPDT 20A 12V |
2,108 |
|
Datasheet |
G8W | Bulk | Obsolete | Non Latching | - | 12VDC | SPDT (1 Form C) | 20 A | 16VDC - Max | 8 VDC | 1 VDC | 20 ms | 10 ms | Resistor | Socketable | Plug In | -40°C ~ 125°C |
|
G8W-1C6T-R-DC12RELAY AUTOMOTIVE SPDT 20A 12V |
3,763 |
|
Datasheet |
G8W | Tray | Obsolete | Non Latching | - | 12VDC | SPDT (1 Form C) | 20 A | 16VDC - Max | 8 VDC | 1 VDC | 20 ms | 10 ms | Resistor | Socketable | Plug In | -40°C ~ 125°C |
|

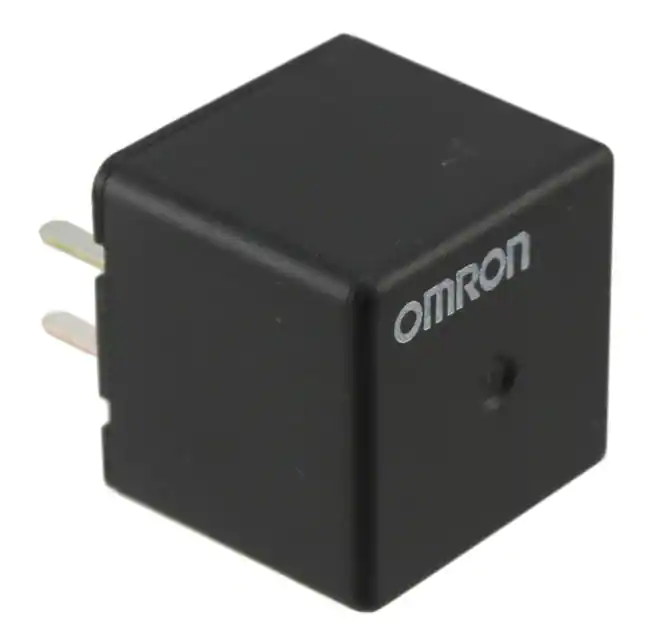

G8W-1C7T-R-DC12RELAY AUTOMOTIVE SPDT 20A 12V |
3,491 |
|
Datasheet |
G8W | Bulk | Obsolete | Non Latching | - | 12VDC | SPDT (1 Form C) | 20 A | 16VDC - Max | 8 VDC | 1 VDC | 20 ms | 10 ms | Resistor | Socketable | Plug In | -40°C ~ 125°C |
