Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Efficiency | Operating Temperature | Features | Mounting Type | Size / Dimension | Approval Agency |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
LM25-23B12AC/DC CONVERTER 12V 25W |
406 |
|
![]() Datasheet |
305RAC / LM-23B | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 12V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 25W | ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 3.15" L x 2.17" W x 0.98" H (80.0mm x 55.0mm x 25.0mm) | ||
![]() |
LM25-23B05AC/DC CONVERTER 5V 25W |
241 |
|
![]() Datasheet |
305RAC / LM-23B | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 5V | - | - | - | - | - | 5 A | - | - | - | - | - | 25W | ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 3.15" L x 2.17" W x 0.98" H (80.0mm x 55.0mm x 25.0mm) | ||
![]() |
VGS-35C-12AC/DC CONVERTER 12V 36W |
114 |
|
![]() Datasheet |
VGS-35C | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 12V | - | - | - | - | - | 3 A | - | - | - | - | - | 36W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | ||
![]() |
LCW15US24AC/DC CONVERTER 24V 15W |
400 |
|
![]() Datasheet |
LCW15 (15W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 24V | - | - | - | - | - | 625 mA | - | - | - | - | - | 15W | ITE (Commercial), Industrial | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off | Chassis Mount | 3.07" L x 2.17" W x 0.98" H (78.0mm x 55.0mm x 25.0mm) | ||
![]() |
LM35-20B24AC/DC CONVERTER 24V 36W |
272 |
|
![]() Datasheet |
LM35-20Bxx (35W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 24V | - | - | - | - | - | 1.5 A | - | - | - | - | - | 36W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | ||
![]() |
LM35-20B12AC/DC CONVERTER 12V 36W |
138 |
|
![]() Datasheet |
LM35-20Bxx (35W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 12V | - | - | - | - | - | 3 A | - | - | - | - | - | 36W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | ||
![]() |
LO45-20B15SMUAC/DC CONVERTER 15V 45W |
347 |
|
![]() Datasheet |
LO45-20BxxSMU (45W) | Tray | Not For New Designs | Open Frame | 1 | 80 ~ 264 VAC, 100 ~ 370 VDC | 15V | - | - | - | - | - | 3 A | - | - | - | - | - | 45W | Household Appliances, ITE (Commercial), Medical | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.04" H (76.2mm x 50.8mm x 26.5mm) | ||
![]() |
PSK-20D-5-TAC/DC CONVERTER 5V 20W |
1,245 |
|
![]() Datasheet |
PSK-20D (20W) | Tray | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 5V | - | - | - | - | - | 4 A | - | - | - | - | - | 20W | Household Appliances, ITE (Commercial), Medical | 4 kV | -40°C ~ 85°C (With Derating) | - | Chassis Mount | 2.99" L x 1.24" W x 1.29" H (76.0mm x 31.5mm x 32.8mm) | ||
![]() |
LM50-20B12AC/DC CONVERTER 12V 50W |
501 |
|
![]() Datasheet |
LM50-20Bxx (50W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 12V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 50W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | ||
![]() |
LM50-23B12AC/DC CONVERTER 12V 50W |
233 |
|
![]() Datasheet |
305RAC / LM-23B | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 12V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 50W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | ||
![]() |
GK220S12-75WAC/DC CONVERTER 12V 75W |
20,000 |
|
![]() Datasheet |
- | Case | Active | - | - | 85 ~ 305 VAC, 100 ~ 430 VDC | 12V | - | - | - | - | - | - | - | - | - | - | - | 75W | - | 3000 V | - | - | - | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | ||
![]() |
GK220S15-75WAC/DC CONVERTER 15V 75W |
20,000 |
|
![]() Datasheet |
- | Case | Active | - | - | 85 ~ 305 VAC, 100 ~ 430 VDC | 15V | - | - | - | - | - | - | - | - | - | - | - | 75W | - | 3000 V | - | - | - | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | ||
|
RAC35-48SG/OFAC/DC CONVERTER 48V 36W |
1,703 |
|
![]() Datasheet |
POWERLINE RAC35-G/OF (35W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 750 mA | - | - | - | - | - | 36W | ITE (Commercial) | 3 kV | -20°C ~ 65°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.01" W x 1.10" H (101.6mm x 51.0mm x 28.0mm) | ||
![]() |

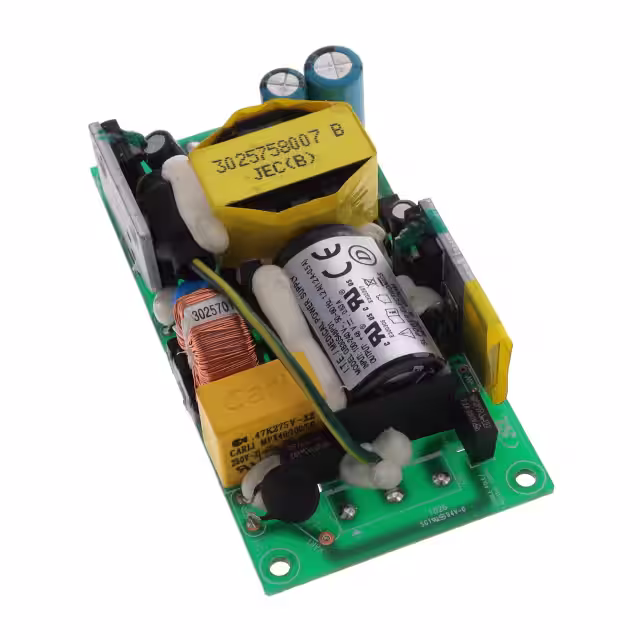

GB30S48P01AC/DC CONVERTER 48V 30W |
4,181 |
|
![]() Datasheet |
GB30S (30W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 630 mA | - | - | - | - | - | 30W | ITE (Commercial), Medical | 4 kV | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.62" L x 1.89" W x 0.82" H (91.9mm x 48.0mm x 20.9mm) | ||
![]() |
GB30S15P01AC/DC CONVERTER 15V 30W |
4,546 |
|
![]() Datasheet |
GB30S (30W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 15V | - | - | - | - | - | 2 A | - | - | - | - | - | 30W | ITE (Commercial), Medical | 4 kV | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.62" L x 1.89" W x 0.82" H (91.9mm x 48.0mm x 20.9mm) | ||
![]() |
LM50-20B05AC/DC CONVERTER 5V 50W |
305 |
|
![]() Datasheet |
LM50-20Bxx (50W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 5V | - | - | - | - | - | 10 A | - | - | - | - | - | 50W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | ||
![]() |

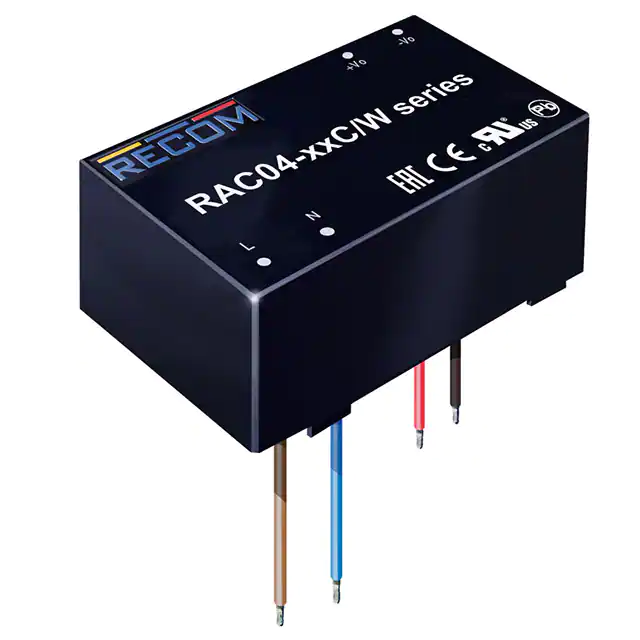

RAC04-05SC/WAC/DC CONVERTER 5V 4W |
2,895 |
|
![]() Datasheet |
POWERLINE RAC04-SC/W (4W) | Box | Obsolete | Enclosed | 1 | 80 ~ 264 VAC | 5V | - | - | - | - | - | 800 mA | - | - | - | - | - | 4W | ITE (Commercial) | 3 kV | -25°C ~ 85°C (With Derating) | DC Input Capable, Remote Sense, Universal Input | Chassis Mount | 1.49" L x 0.94" W x 0.65" H (37.8mm x 23.9mm x 16.4mm) | ||
![]() |
GTM43007-B6019-FW(R)AC/DC CONVERTER 19V 60W |
132 |
|
![]() Datasheet |
GTM43007-BWWVV-FW | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 19V | - | - | - | - | - | 3.15 A | - | - | - | - | - | 60W | Household Appliances, ITE (Commercial), Medical | 4 kV | -10°C ~ 45°C | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 0.89" H (101.6mm x 50.8mm x 22.5mm) | ||
![]() |
ARFS-4501-48RUAC/DC CONVERTER 48V 45W |
537 |
|
![]() Datasheet |
ARFS-4501 | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 930 mA | - | - | - | - | - | 45W | ITE (Commercial) | - | 0°C ~ 70°C (With Derating) | - | Chassis Mount | 4.00" L x 2.00" W x 0.98" H (101.6mm x 50.8mm x 25.0mm) | ||
![]() |
LO45-10B15AC/DC CONVERTER 15V 45W |
290 |
|
![]() Datasheet |
LO45-10Bxx (45W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 15V | - | - | - | - | - | 3 A | - | - | - | - | - | 45W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.18" H (76.2mm x 50.8mm x 30.0mm) |
