Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Efficiency | Operating Temperature | Features | Mounting Type | Size / Dimension | Approval Agency |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
1011629CE-225-4006 |
2,806 |
|
![]() Datasheet |
CE-225 (225W) | Box | Active | Chassis | 4 | 85 ~ 264 VAC | 5V | 12V | 12V | -12V | - | - | 25 A | 8 A | 2 A | 2 A | - | - | 225W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 8.00" L x 4.75" W x 2.00" H (203.2mm x 120.7mm x 50.8mm) | ||
![]() |
1011628CE-225-4005 |
2,093 |
|
![]() Datasheet |
CE-225 (225W) | Box | Active | Chassis | 4 | 85 ~ 264 VAC | 5V | -5.2V | 15V | -15V | - | - | 25 A | 8 A | 2 A | 2 A | - | - | 225W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 8.00" L x 4.75" W x 2.00" H (203.2mm x 120.7mm x 50.8mm) | ||
![]() |
1011632CE-225-4101 |
2,259 |
|
![]() Datasheet |
CE-225 (225W) | Box | Active | Chassis | 4 | 85 ~ 264 VAC | 5V | 24V | 12V | -12V | - | - | 25 A | 8 A | 2 A | 2 A | - | - | 225W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 8.00" L x 4.75" W x 2.00" H (203.2mm x 120.7mm x 50.8mm) | ||
![]() |
NMP650-CHHH-07AC/DC CONVERTER 5V 24V 650W |
2,193 |
|
![]() Datasheet |
NMP (650W) | Box | Active | Enclosed | 2 | 90 ~ 264 VAC, 120 ~ 370 VDC | 5V | 24V | - | - | - | - | 36 A | 30 A | - | - | - | - | 650W | ITE (Commercial), Medical | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 3.50" W x 1.61" H (250.0mm x 89.0mm x 41.0mm) | ||
![]() |
AOPS1500-48AC/DC CONVERTER 48V 1536W |
1,917 |
|
![]() Datasheet |
AOPS1500 (1500W) | Bulk | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 48V | - | - | - | - | - | 32 A | - | - | - | - | - | 1536W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 11.02" L x 4.96" W x 3.23" H (280.0mm x 126.0mm x 82.0mm) | ||
![]() |
AOPS1500-24AC/DC CONVERTER 24V 1512W |
3,281 |
|
![]() Datasheet |
AOPS1500 (1500W) | Bulk | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 24V | - | - | - | - | - | 63 A | - | - | - | - | - | 1512W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 11.02" L x 4.96" W x 3.23" H (280.0mm x 126.0mm x 82.0mm) | ||
![]() |
XS1000-24NS000AC/DC CONVERTER 24V 1008W |
1,077 |
|
![]() Datasheet |
Xsolo (1000W) | Box | Active | Enclosed, Conformal Coated | 1 | 85 ~ 264 VAC, 120 ~ 380 VDC | 24V | - | - | - | - | - | 42 A | - | - | - | - | - | 1008W | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 9.37" L x 5.04" W x 1.60" H (238.0mm x 128.0mm x 40.6mm) | ||
![]() |
1010922NXT-400-1004 |
1,653 |
|
![]() Datasheet |
NXT-400 (400W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 12V | - | - | - | - | - | 33.3 A | - | - | - | - | - | 400W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 8.00" L x 3.88" W x 1.50" H (203.2mm x 98.5mm x 38.0mm) | ||
![]() |
FNP300-1012HGAC/DC CONVERTER 2X12V 308W |
1,561 |
|
![]() Datasheet |
FNP300 (300W) | Bulk | Active | Front End | 2 | 85 ~ 264 VAC | 12V | 12V | - | - | - | - | 25 A | 700 mA | - | - | - | - | 308W | ITE (Commercial) | - | 0°C ~ 55°C | Adjustable Output, Universal Input | Rack Mount | 8.50" L x 4.00" W x 1.58" H (215.9mm x 101.6mm x 40.1mm) | ||
![]() |
HDS800PS15AC/DC CONVERTER 15V 800W |
3,850 |
|
![]() Datasheet |
HDS800 (800W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 15V | - | - | - | - | - | 53.4 A | - | - | - | - | - | 800W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, I2C Interface, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.80" L x 5.00" W x 1.61" H (249.0mm x 127.0mm x 40.9mm) | ||
![]() |
MINT1500B2414E01AC/DC CONVERTER 24V 350W |
2,575 |
|
![]() Datasheet |
MINT1500 (500W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 276 VAC | 24V | - | - | - | - | - | 14.6 A | - | - | - | - | - | 350W (500W Forced Air) | Medical | 4 kV | -10°C ~ 70°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 7.17" L x 3.30" W x 1.50" H (182.1mm x 83.8mm x 38.1mm) | ||
![]() |
MINT1500B4814E01AC/DC CONVERTER 48V 350W |
3,195 |
|
![]() Datasheet |
MINT1500 (500W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 276 VAC | 48V | - | - | - | - | - | 7.3 A | - | - | - | - | - | 350W (500W Forced Air) | Medical | 4 kV | -10°C ~ 70°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 7.17" L x 3.30" W x 1.50" H (182.1mm x 83.8mm x 38.1mm) | ||
![]() |
FSP500-60MRB(S)AC/DC CNVT 3.3V 5V +/-12V -5V |
4,867 |
|
![]() Datasheet |
FSP500-60MRB(S) (500W) | Box | Active | Front End | 5 | 90 ~ 264 VAC | 3.3V | 5V | 12V | -12V | -5V | - | 20 A | 20 A | 40 A | 500 mA | 300 mA | - | 654W | ITE (Commercial) | - | 0°C ~ 50°C | Universal Input | Rack Mount | 7.49" L x 5.91" W x 3.30" H (190.0mm x 150.0mm x 84.0mm) | ||
![]() |

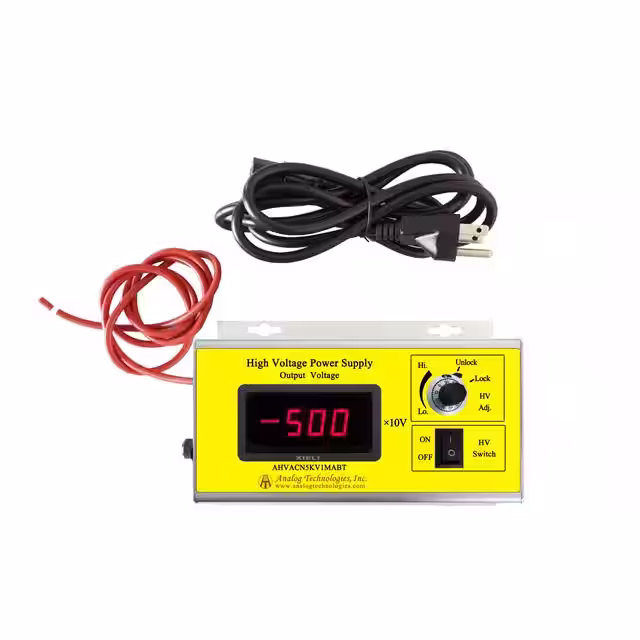

AHVACN5KV1MABTAC/DC CONVERTER 6X5000V |
1,425 |
|
![]() Datasheet |
- | Bulk | Active | Enclosed | 6 | 100 ~ 240 VAC | 5000V | 5000V | 5000V | 5000V | 5000V | 5000V | 1 mA | 1 mA | 1 mA | 1 mA | 1 mA | 1 mA | - | ITE (Commercial) | - | -10°C ~ 55°C | Adjustable Output, Remote On/Off | Chassis Mount | 7.09" L x 4.72" W x 1.97" H (180.0mm x 120.0mm x 50.0mm) | ||
![]() |
1010930NXT-400-1004,RE STBY |
3,568 |
|
![]() Datasheet |
NXT-400 (400W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 12V | - | - | - | - | - | 33.3 A | - | - | - | - | - | 400W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 8.00" L x 3.88" W x 1.50" H (203.2mm x 98.5mm x 38.0mm) | ||
|

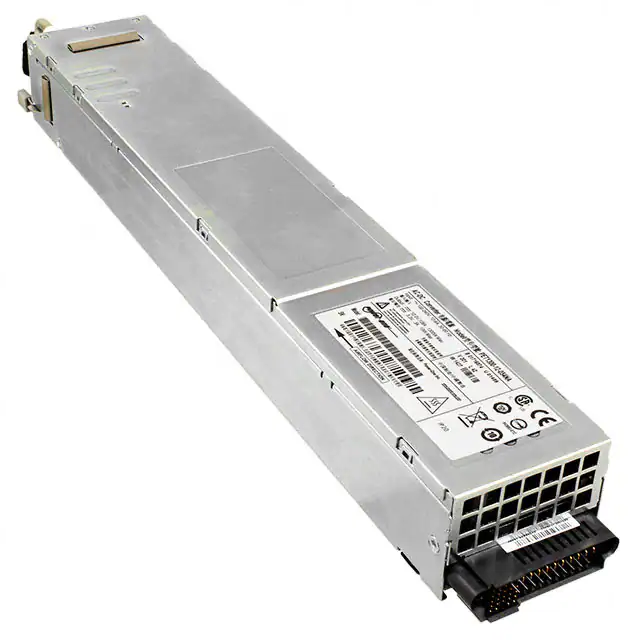

PET1300-12-054NAAC/DC CONVERTER 12V 1300W |
3,252 |
|
![]() Datasheet |
PET1300 (1300W) | Bulk | Active | Front End | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 108 A | - | - | - | - | - | 1300W | ITE (Commercial) | 4.242 kV | 0°C ~ 60°C | Hot Swappable, I2C Interface, Load Sharing, PFC, PMBus™, Standby Output, Universal Input | Rack Mount | 12.66" L x 2.15" W x 1.57" H (321.5mm x 54.5mm x 40.0mm) | ||
![]() |
XS500-24N-001AC/DC CONVERTER 24V 504W |
3,473 |
|
![]() Datasheet |
Xsolo (500W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 380 VDC | 24V | - | - | - | - | - | 21 A | - | - | - | - | - | 504W | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 9.33" L x 5.04" W x 1.54" H (237.0mm x 128.0mm x 39.1mm) | ||
![]() |
1010945NXT-400-1003,LS-RE |
3,010 |
|
![]() Datasheet |
NXT-400 (400W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 5V | - | - | - | - | - | 80 A | - | - | - | - | - | 400W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 8.00" L x 3.88" W x 1.50" H (203.2mm x 98.5mm x 38.0mm) | ||
![]() |
1010944NXT-400-1002,LS-RE |
1,125 |
|
![]() Datasheet |
NXT-400 (400W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 3.3V | - | - | - | - | - | 80 A | - | - | - | - | - | 400W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 8.00" L x 3.88" W x 1.50" H (203.2mm x 98.5mm x 38.0mm) | ||
![]() |
1010947NXT-400-1005,LS-RE |
3,170 |
|
![]() Datasheet |
NXT-400 (400W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 15V | - | - | - | - | - | 26.7 A | - | - | - | - | - | 400W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 8.00" L x 3.88" W x 1.50" H (203.2mm x 98.5mm x 38.0mm) |
