Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Efficiency | Operating Temperature | Features | Mounting Type | Size / Dimension | Approval Agency |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

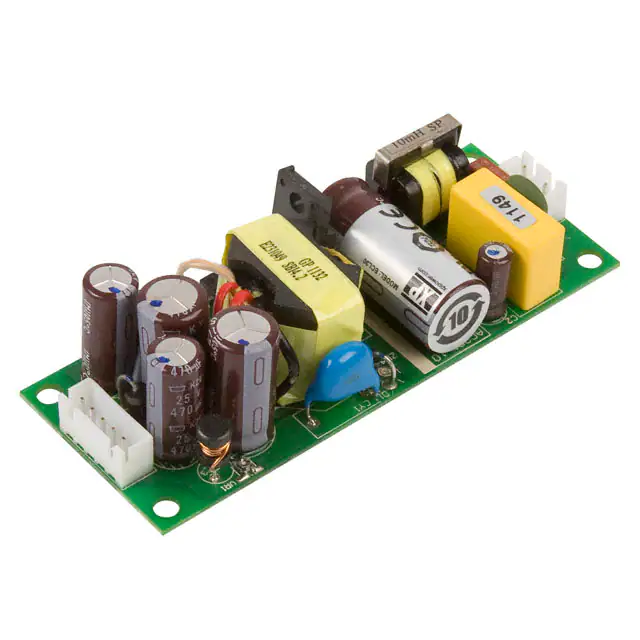

ECL30UD01-TAC/DC CONVERTER +/-12V 30W |
2,623 |
|
![]() Datasheet |
ECL (30W) | Box | Active | Open Frame | 2 | 85 ~ 264 VAC | 12V | -12V | - | - | - | - | 1.3 A | 1.3 A | - | - | - | - | 30W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.46" L x 1.36" W x 0.88" H (87.9mm x 34.6mm x 22.4mm) | ||
![]() |
VMS-180C-48-CNFAC/DC CONVERTER 48V 180W |
1,115 |
|
![]() Datasheet |
VMS-180C-CNF (180W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 3.75 A | - | - | - | - | - | 180W | Household Appliances, Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 4.07" L x 2.44" W x 1.46" H (103.4mm x 62.0mm x 37.0mm) | ||
![]() |
1010422SRP-25-2004 |
3,389 |
|
![]() Datasheet |
SRP-25 (25W) | Box | Active | Open Frame | 2 | 100 ~ 240 VAC | 12V | -12V | - | - | - | - | 1.5 A | 1.5 A | - | - | - | - | 25W | Industrial, ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.25" W x 1.00" H (101.6mm x 57.2mm x 25.4mm) | ||
![]() |
1010419SRP-25-2001 |
4,979 |
|
![]() Datasheet |
SRP-25 (25W) | Box | Active | Open Frame | 2 | 100 ~ 240 VAC | 5V | 24V | - | - | - | - | 3 A | 1 A | - | - | - | - | 25W | Industrial, ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.25" W x 1.00" H (101.6mm x 57.2mm x 25.4mm) | ||
![]() |
1010423SRP-25-2005 |
3,284 |
|
![]() Datasheet |
SRP-25 (25W) | Box | Active | Open Frame | 2 | 100 ~ 240 VAC | 15V | -15V | - | - | - | - | 1.5 A | 1.5 A | - | - | - | - | 25W | Industrial, ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.25" W x 1.00" H (101.6mm x 57.2mm x 25.4mm) | ||
![]() |
1010421SRP-25-2003 |
4,688 |
|
![]() Datasheet |
SRP-25 (25W) | Box | Active | Open Frame | 2 | 100 ~ 240 VAC | 5V | -5V | - | - | - | - | 3 A | 2 A | - | - | - | - | 25W | Industrial, ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.25" W x 1.00" H (101.6mm x 57.2mm x 25.4mm) | ||
![]() |

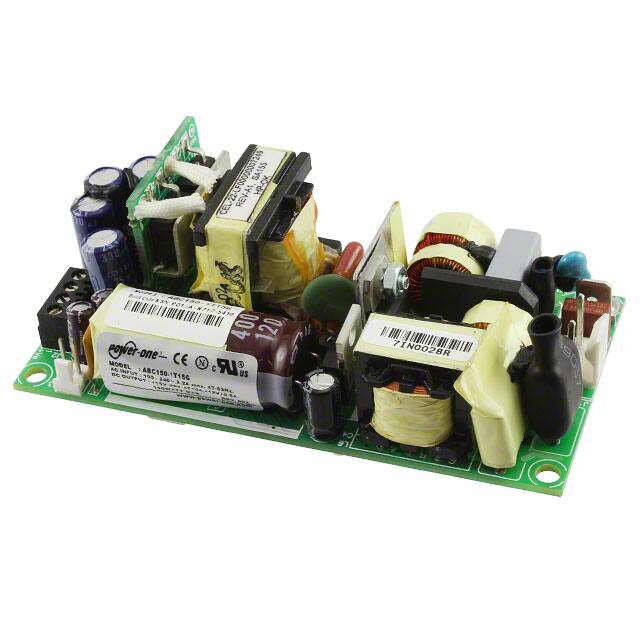

ABC150-1T15GAC/DC CONVERTER 15V 110/150W |
1,211 |
|
![]() Datasheet |
ABC150 (150W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 15V | - | - | - | - | - | 6.67 A | - | - | - | - | - | 110W (150W Forced Air) | ITE (Commercial) | 4.242 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.32" H (101.6mm x 50.8mm x 33.6mm) | ||
|
ABC150-1T12GAC/DC CONVERTER 12V 110/150W |
2,228 |
|
![]() Datasheet |
ABC150 (150W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 8.33 A | - | - | - | - | - | 110W (150W Forced Air) | ITE (Commercial) | 4.242 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.32" H (101.6mm x 50.8mm x 33.6mm) | ||
![]() |
MAD65US05DAC/DC CONVERTER 5V 50W |
4,786 |
|
![]() Datasheet |
MAD65 Single (65W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 5V | - | - | - | - | - | 10 A | - | - | - | - | - | 50W | ITE (Commercial), Medical | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 0.94" H (76.2mm x 50.8mm x 23.9mm) | ||
![]() |

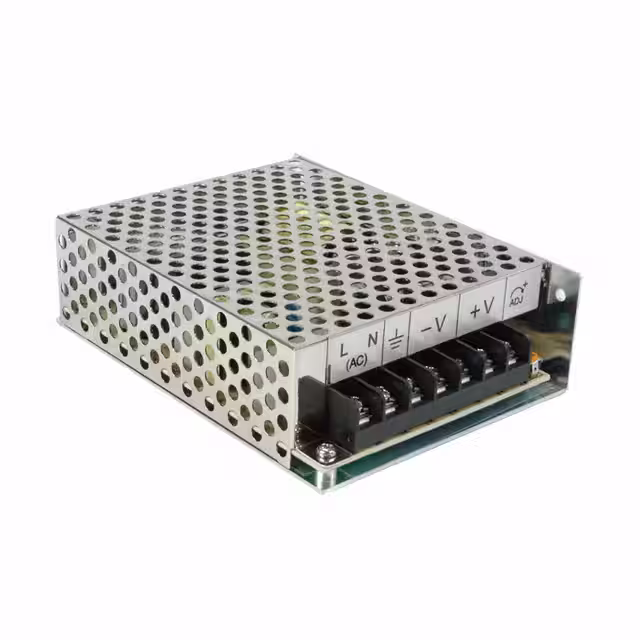

VGS-100-3.3AC/DC CONVERTER 3.3V 100W |
2,531 |
|
![]() Datasheet |
VGS-100 (110W) | Bulk | Obsolete | Enclosed | 1 | 88 ~ 264 VAC | 3.3V | - | - | - | - | - | 20 A | - | - | - | - | - | 100W | ITE (Commercial) | 4.242 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.10" L x 3.84" W x 1.48" H (129.5mm x 97.5mm x 37.5mm) | ||
![]() |
VOF-200C-15-CNFAC/DC CONVERTER 15V 200W |
2,615 |
|
![]() Datasheet |
VOF-200C-CNF (200W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 15V | - | - | - | - | - | 13.3 A | - | - | - | - | - | 200W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 4.07" L x 2.44" W x 1.46" H (103.4mm x 62.0mm x 37.0mm) | ||
![]() |
VOF-200C-24-CNFAC/DC CONVERTER 24V 200W |
2,908 |
|
![]() Datasheet |
VOF-200C-CNF (200W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 8.33 A | - | - | - | - | - | 200W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 4.07" L x 2.44" W x 1.46" H (103.4mm x 62.0mm x 37.0mm) | ||
![]() |
VMS-200C-48-CNFAC/DC CONVERTER 48V 200W |
4,074 |
|
![]() Datasheet |
VMS-200C-CNF (200W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 4.16 A | - | - | - | - | - | 200W | Household Appliances, Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 4.07" L x 2.44" W x 1.46" H (103.4mm x 62.0mm x 37.0mm) | ||
![]() |
VMS-200C-15-CNFAC/DC CONVERTER 15V 200W |
1,138 |
|
![]() Datasheet |
VMS-200C-CNF (200W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 15V | - | - | - | - | - | 13.3 A | - | - | - | - | - | 200W | Household Appliances, Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 4.07" L x 2.44" W x 1.46" H (103.4mm x 62.0mm x 37.0mm) | ||
![]() |
VOF-200C-27-CNFAC/DC CONVERTER 27V 200W |
2,145 |
|
![]() Datasheet |
VOF-200C-CNF (200W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 27V | - | - | - | - | - | 7.4 A | - | - | - | - | - | 200W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 4.07" L x 2.44" W x 1.46" H (103.4mm x 62.0mm x 37.0mm) | ||
![]() |
PSA120-050AC/DC CONVERTER 5V 40W |
4,016 |
|
![]() Datasheet |
PSA120 (120W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 5V | - | - | - | - | - | 15 A | - | - | - | - | - | 40W (75W Forced Air) | ITE (Commercial) | 3 kV | 0°C ~ 50°C | Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.40" H (127.0mm x 76.2mm x 35.6mm) | ||
![]() |
MSD30US24BISOLATED / 30W / VOUT: 24 |
2,128 |
|
![]() Datasheet |
MSD30 (30W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 1.25 A | - | - | - | - | - | 30W | ITE (Commercial), Medical | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.95" L x 1.50" W x 1.00" H (100.3mm x 38.1mm x 25.4mm) | ||
![]() |
LM450-12B12AC/DC CONVERTER 12V 450W |
2,303 |
|
![]() Datasheet |
LM450-12Bxx (450W) | Box | Not For New Designs | Enclosed | 1 | 176 ~ 264 VAC, 240 ~ 373 VDC | 12V | - | - | - | - | - | 37.5 A | - | - | - | - | - | 450W | ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 8.47" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm) | ||
![]() |
LM450-12B15AC/DC CONVERTER 15V 450W |
3,172 |
|
![]() Datasheet |
LM450-12Bxx (450W) | Box | Not For New Designs | Enclosed | 1 | 176 ~ 264 VAC, 240 ~ 373 VDC | 15V | - | - | - | - | - | 30 A | - | - | - | - | - | 450W | ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 8.47" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm) | ||
![]() |
LM450-12B48AC/DC CONVERTER 48V 451W |
3,110 |
|
![]() Datasheet |
LM450-12Bxx (450W) | Box | Not For New Designs | Enclosed | 1 | 176 ~ 264 VAC, 240 ~ 373 VDC | 48V | - | - | - | - | - | 9.4 A | - | - | - | - | - | 451W | ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 8.47" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm) |
