Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Efficiency | Operating Temperature | Features | Mounting Type | Size / Dimension | Approval Agency |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

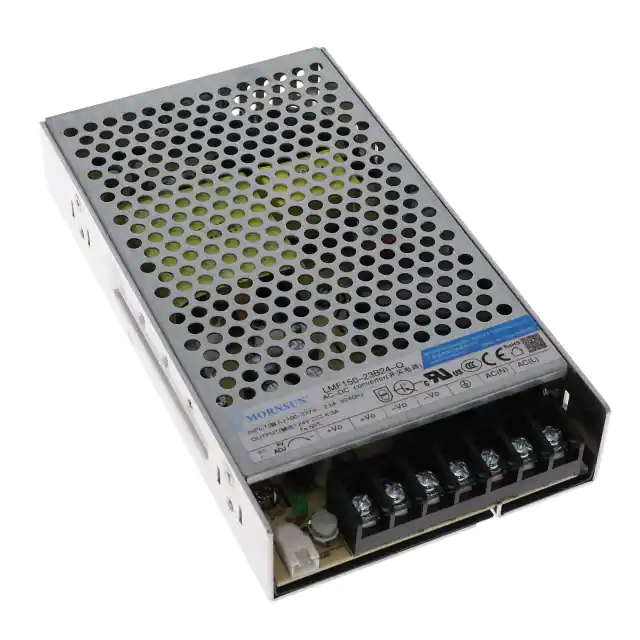

LMF150-23B24-QAC/DC CONVERTER 24V 151W |
1,495 |
|
![]() Datasheet |
LMF150-23Bxx-Q | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 24V | - | - | - | - | - | 6.3 A | - | - | - | - | - | 151W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Remote On/Off, Universal Input | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) | ||
![]() |

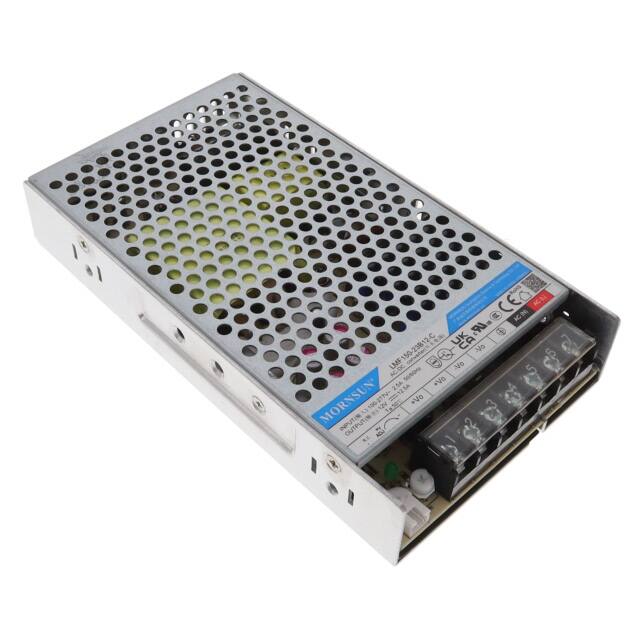

LMF150-23B12-CAC/DC CONVERTER 12V 150W |
2,763 |
|
![]() Datasheet |
LMF150-23Bxx-C | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 12V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 150W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Remote On/Off, Universal Input | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) | ||
![]() |
VOF-180C-27AC/DC CONVERTER 27V 180W |
2,262 |
|
![]() Datasheet |
VOF-180C (180W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 27V | - | - | - | - | - | 6.66 A | - | - | - | - | - | 180W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.4mm) | ||
![]() |
VOF-180C-36AC/DC CONVERTER 36V 180W |
4,424 |
|
![]() Datasheet |
VOF-180C (180W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 36V | - | - | - | - | - | 5 A | - | - | - | - | - | 180W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.4mm) | ||
![]() |
AMEC40-12SMAZAC/DC CONVERTER 12V 40W |
4,893 |
|
![]() Datasheet |
AMEC40-MAZ (40W) | Bulk | Active | Enclosed | 1 | 90 ~ 264 VAC, 130 ~ 370 VDC | 12V | - | - | - | - | - | 3.33 A | - | - | - | - | - | 40W | ITE (Commercial), Medical | 4 kV | -40°C ~ 85°C (With Derating) | Universal Input | Chassis Mount | 4.90" L x 2.56" W x 1.38" H (124.5mm x 65.0mm x 35.1mm) | ||
![]() |

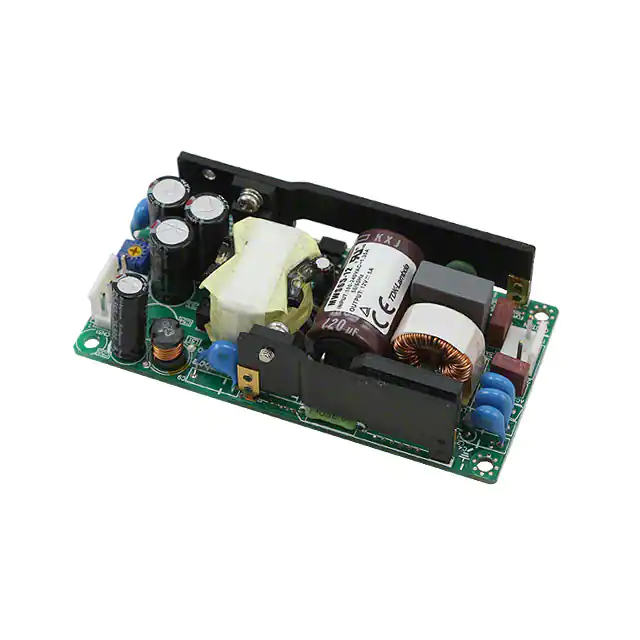

MWS65-12AC/DC CONVERTER 12V 60W |
4,112 |
|
![]() Datasheet |
MWS65 (55-67W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 12V | - | - | - | - | - | 5 A | - | - | - | - | - | 60W | Medical | 4 kV | -20°C ~ 70°C | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.4mm) | ||
![]() |
VMS-180C-15AC/DC CONVERTER 15V 180W |
3,275 |
|
![]() Datasheet |
VMS-180C (180W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 15V | - | - | - | - | - | 12 A | - | - | - | - | - | 180W | Household Appliances, Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.4mm) | ||
![]() |

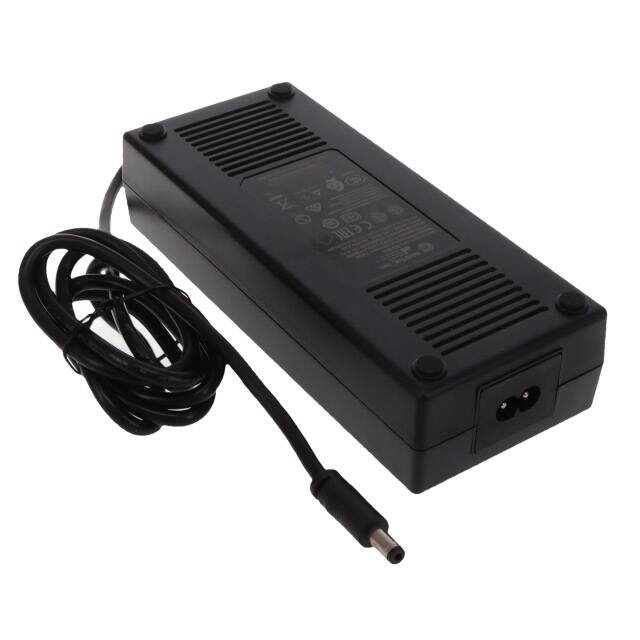

TR9KE10410CCPIMR6BAC/DC CONVERTER 125W |
2,758 |
|
![]() Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||
![]() |
VMS-180C-36AC/DC CONVERTER 36V 180W |
1,835 |
|
![]() Datasheet |
VMS-180C (180W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 36V | - | - | - | - | - | 5 A | - | - | - | - | - | 180W | Household Appliances, Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.4mm) | ||
![]() |
VOF-100C-48-CNFAC/DC CONVERTER 48V 100W |
2,119 |
|
![]() Datasheet |
VOF-100C-CNF (100W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 2.08 A | - | - | - | - | - | 100W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 3.15" L x 2.44" W x 1.57" H (80.0mm x 62.0mm x 40.0mm) | ||
|
EML15US48-SAC/DC CONVERTER 48V 15W |
3,201 |
|
![]() Datasheet |
EML15 (15W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 320 mA | - | - | - | - | - | 15W | Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 2.95" L x 1.36" W x 1.04" H (75.0mm x 34.5mm x 26.4mm) | ||
|
EML15US15-SAC/DC CONVERTER 15V 15W |
3,075 |
|
![]() Datasheet |
EML15 (15W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 1 A | - | - | - | - | - | 15W | Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 2.95" L x 1.36" W x 1.04" H (75.0mm x 34.5mm x 26.4mm) | ||
![]() |
VOF-180C-48AC/DC CONVERTER 48V 180W |
2,932 |
|
![]() Datasheet |
VOF-180C (180W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 3.75 A | - | - | - | - | - | 180W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.4mm) | ||
![]() |
VOF-180C-12AC/DC CONVERTER 12V 180W |
3,413 |
|
![]() Datasheet |
VOF-180C (180W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 12V | - | - | - | - | - | 15 A | - | - | - | - | - | 180W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.4mm) | ||
![]() |
LMF500-23B05UHAC/DC CONVERTER 5V 400W |
2,037 |
|
![]() Datasheet |
LMF500-23BxxUH (500W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 5V | - | - | - | - | - | 80 A | - | - | - | - | - | 400W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable, PFC | Chassis Mount | 9.13" L x 3.19" W x 1.22" H (232.0mm x 81.0mm x 31.0mm) | ||
![]() |
AMEOF225-48SHAMJZ-FAC/DC CONVERTER 48V 140W |
1,308 |
|
![]() Datasheet |
AMEOF225-HAMJZ (140W ) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 4.7 A | - | - | - | - | - | 140W (226W Forced Air) | Household Appliances, ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 4.07" L x 2.44" W x 1.46" H (103.4mm x 62.0mm x 37.1mm) | ||
![]() |
AMEOF225-24SHAMJZ-FAC/DC CONVERTER 24V 140W |
3,182 |
|
![]() Datasheet |
AMEOF225-HAMJZ (140W ) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 9.4 A | - | - | - | - | - | 140W (226W Forced Air) | Household Appliances, ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 4.07" L x 2.44" W x 1.46" H (103.4mm x 62.0mm x 37.1mm) | ||
![]() |
AMEOF225-36SHAMJZ-FAC/DC CONVERTER 36V 140W |
2,985 |
|
![]() Datasheet |
AMEOF225-HAMJZ (140W ) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 36V | - | - | - | - | - | 6.25 A | - | - | - | - | - | 140W (225W Forced Air) | Household Appliances, ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 4.07" L x 2.44" W x 1.46" H (103.4mm x 62.0mm x 37.1mm) | ||
![]() |
AMEOF225-27SHAMJZ-FAC/DC CONVERTER 27V 130W |
4,380 |
|
![]() Datasheet |
AMEOF225-HAMJZ (130W ) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 27V | - | - | - | - | - | 8.35 A | - | - | - | - | - | 130W (225W Forced Air) | Household Appliances, ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 4.07" L x 2.44" W x 1.46" H (103.4mm x 62.0mm x 37.1mm) | ||
![]() |
AMEOF225-12SHAMJZ-FAC/DC CONVERTER 12V 140W |
3,945 |
|
![]() Datasheet |
AMEOF225-HAMJZ (140W ) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 12V | - | - | - | - | - | 18.75 A | - | - | - | - | - | 140W (225W Forced Air) | Household Appliances, ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 4.07" L x 2.44" W x 1.46" H (103.4mm x 62.0mm x 37.1mm) |
