Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Efficiency | Operating Temperature | Features | Mounting Type | Size / Dimension | Approval Agency |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
LM350-20B15R2AC/DC CONVERTER 15V 350W |
2,716 |
|
![]() Datasheet |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC, 240 ~ 370 VDC | 15V | - | - | - | - | - | 23.3 A | - | - | - | - | - | 350W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 7.05" L x 4.17" W x 1.18" H (179.0mm x 106.0mm x 30.0mm) | ||
![]() |
LM350-20B36R2AC/DC CONVERTER 36V 349W |
3,641 |
|
![]() Datasheet |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC, 240 ~ 370 VDC | 36V | - | - | - | - | - | 9.7 A | - | - | - | - | - | 349W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 7.05" L x 4.17" W x 1.18" H (179.0mm x 106.0mm x 30.0mm) | ||
![]() |
LM350-22B24R2-QAC/DC CONVERTER 24V 350W |
4,667 |
|
![]() Datasheet |
LM-R2 | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 176 ~ 264 VAC, 240 ~ 370 VDC | 24V | - | - | - | - | - | 14.6 A | - | - | - | - | - | 350W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 7.05" L x 4.17" W x 1.18" H (179.0mm x 106.0mm x 30.0mm) | ||
![]() |
LM350-20B48R2AC/DC CONVERTER 48V 350W |
1,304 |
|
![]() Datasheet |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC, 240 ~ 370 VDC | 48V | - | - | - | - | - | 7.3 A | - | - | - | - | - | 350W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 7.05" L x 4.17" W x 1.18" H (179.0mm x 106.0mm x 30.0mm) | ||
![]() |
LM350-22B24R2-CAC/DC CONVERTER 24V 350W |
4,277 |
|
![]() Datasheet |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 176 ~ 264 VAC, 240 ~ 370 VDC | 24V | - | - | - | - | - | 14.6 A | - | - | - | - | - | 350W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 7.05" L x 4.17" W x 1.18" H (179.0mm x 106.0mm x 30.0mm) | ||
![]() |
LM350-22B12R2-CAC/DC CONVERTER 12V 348W |
3,429 |
|
![]() Datasheet |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 176 ~ 264 VAC, 240 ~ 370 VDC | 12V | - | - | - | - | - | 29 A | - | - | - | - | - | 348W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 7.05" L x 4.17" W x 1.18" H (179.0mm x 106.0mm x 30.0mm) | ||
![]() |
LM150-20B15AC/DC CONVERTER 15V 150W |
1,277 |
|
![]() Datasheet |
LM150-20Bxx (150W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 15V | - | - | - | - | - | 10 A | - | - | - | - | - | 150W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) | ||
![]() |
LM150-23B15AC/DC CONVERTER 15V 150W |
1,326 |
|
![]() Datasheet |
305RAC / LM-23B | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 431 VDC | 15V | - | - | - | - | - | 10 A | - | - | - | - | - | 150W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) | ||
![]() |
Switching Power Supply ALRS12V20ATAC/DC CONVERTER 12V 240W |
2,883 |
|
![]() Datasheet |
- | Bulk | Active | Enclosed | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 20 A | - | - | - | - | - | 240W | ITE (Commercial) | 1.5 kV | -10°C ~ 60°C | Adjustable Output, Universal Input | Chassis Mount | 7.80" L x 3.82" W x 1.63" H (198.0mm x 97.0mm x 41.5mm) | ||
![]() |
Switching Power Supply ALRS24V10ATAC/DC CONVERTER 24V 240W |
2,076 |
|
![]() Datasheet |
- | Tape & Box (TB) | Active | Enclosed | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 10 A | - | - | - | - | - | 240W | ITE (Commercial) | 1.5 kV | -10°C ~ 60°C | Adjustable Output, IP20, Universal Input | Chassis Mount | 7.87" L x 4.53" W x 1.97" H (199.9mm x 115.1mm x 50.0mm) | ||
![]() |
LM350-22B24R2-CQAC/DC CONVERTER 24V 350W |
2,195 |
|
![]() Datasheet |
LM-R2 | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 176 ~ 264 VAC, 240 ~ 370 VDC | 24V | - | - | - | - | - | 14.6 A | - | - | - | - | - | 350W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 7.05" L x 4.17" W x 1.18" H (179.0mm x 106.0mm x 30.0mm) | ||
![]() |

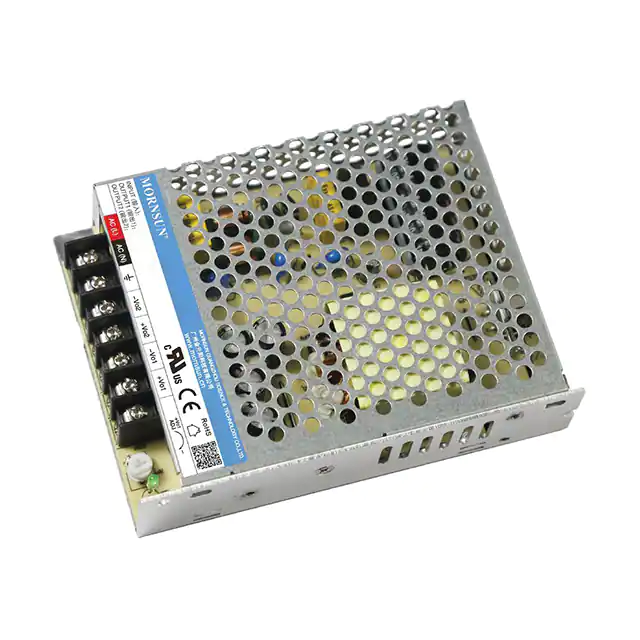

LM75-10D0512-30AC/DC CONVERTER 5V 12V 71W |
3,680 |
|
![]() Datasheet |
LM75-10Dxx (75W) | Box | Not For New Designs | Enclosed | 2 | 90 ~ 264 VAC, 120 ~ 373 VDC | 5V | 12V | - | - | - | - | 7 A | 3 A | - | - | - | - | 71W | Household Appliances, ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.08" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) | ||
![]() |
LM75-10D0524-20AC/DC CONVERTER 5V 24V 73W |
4,386 |
|
![]() Datasheet |
LM75-10Dxx (75W) | Box | Not For New Designs | Enclosed | 2 | 90 ~ 264 VAC, 120 ~ 373 VDC | 5V | 24V | - | - | - | - | 5 A | 2 A | - | - | - | - | 73W | Household Appliances, ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.08" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) | ||
![]() |

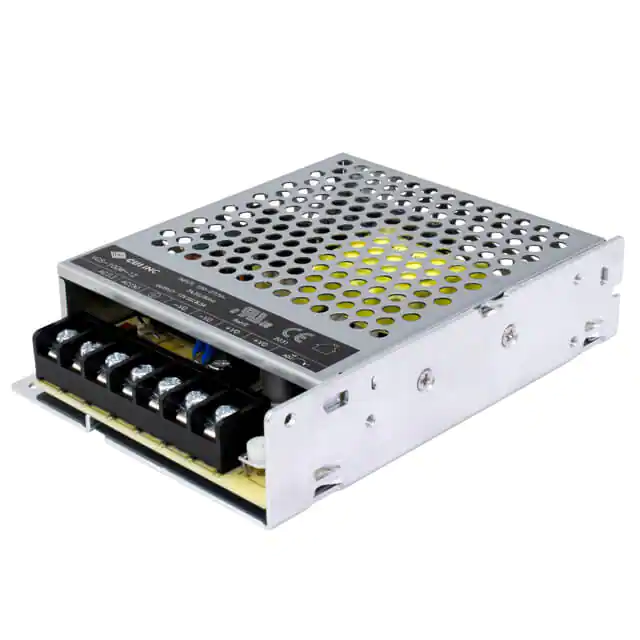

VGS-100W-12AC/DC CONVERTER 12V 102W |
4,151 |
|
![]() Datasheet |
VGS-100W (100W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 431 VDC | 12V | - | - | - | - | - | 8.5 A | - | - | - | - | - | 102W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | - | Chassis Mount | 5.08" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) | ||
![]() |
LM350-20B48R2-CAC/DC CONVERTER 48V 350W |
2,481 |
|
![]() Datasheet |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC, 240 ~ 370 VDC | 48V | - | - | - | - | - | 7.3 A | - | - | - | - | - | 350W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 7.05" L x 4.17" W x 1.18" H (179.0mm x 106.0mm x 30.0mm) | ||
![]() |
LM350-20B12R2-QAC/DC CONVERTER 12V 348W |
4,984 |
|
![]() Datasheet |
LM-R2 | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC, 240 ~ 370 VDC | 12V | - | - | - | - | - | 29 A | - | - | - | - | - | 348W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 7.05" L x 4.17" W x 1.18" H (179.0mm x 106.0mm x 30.0mm) | ||
![]() |
LM350-20B24R2-CAC/DC CONVERTER 24V 1790W |
2,005 |
|
![]() Datasheet |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC, 240 ~ 370 VDC | 24V | - | - | - | - | - | 14.6 A | - | - | - | - | - | 350.4W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 7.05" L x 4.17" W x 1.18" H (179.0mm x 106.0mm x 30.0mm) | ||
![]() |
CFM61S480-TAC/DC CONVERTER 48V 60W |
3,145 |
|
![]() Datasheet |
CFM61S (60W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 1.25 A | - | - | - | - | - | 60W | ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 2.70" L x 2.00" W x 1.29" H (68.6mm x 50.8mm x 32.8mm) | ||
![]() |
VSK-S5-3R3UA-TAC/DC CONVERTER 3.3V 5W |
1,584 |
|
![]() Datasheet |
VSK-S5-T (5.5W) | Tray | Obsolete | Enclosed | 1 | 85 ~ 264 VAC | 3.3V | - | - | - | - | - | 1.25 A | - | - | - | - | - | 5W | ITE (Commercial) | 4 kV | -25°C ~ 70°C | Universal Input | Chassis Mount | 2.99" L x 1.24" W x 0.94" H (76.0mm x 31.5mm x 23.4mm) | ||
![]() |
VSK-S5-15UA-TAC/DC CONVERTER 15V 5W |
2,785 |
|
![]() Datasheet |
VSK-S5-T (5.5W) | Tray | Obsolete | Enclosed | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 333 mA | - | - | - | - | - | 5W | ITE (Commercial) | 4 kV | -25°C ~ 70°C | Universal Input | Chassis Mount | 2.99" L x 1.24" W x 0.94" H (76.0mm x 31.5mm x 23.4mm) |
