Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Efficiency | Operating Temperature | Features | Mounting Type | Size / Dimension | Approval Agency |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
LM75-23B24AC/DC CONVERTER 24V 77W |
4,427 |
|
![]() Datasheet |
LM75-23Bxx (75W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 24V | - | - | - | - | - | 3.2 A | - | - | - | - | - | 77W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | ||
![]() |
VGS-35C-5AC/DC CONVERTER 5V 35W |
1,019 |
|
![]() Datasheet |
VGS-35C | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 5V | - | - | - | - | - | 7 A | - | - | - | - | - | 35W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | ||
![]() |
PSK-10D-15-TAC/DC CONVERTER 15V 10W |
2,442 |
|
![]() Datasheet |
PSK-10D (10W) | Tray | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 15V | - | - | - | - | - | 660 mA | - | - | - | - | - | 10W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | - | Chassis Mount | 2.99" L x 1.24" W x 1.17" H (76.0mm x 31.5mm x 29.8mm) | ||
![]() |
LM150-23B24R2AC/DC CONVERTER 24V 156W |
4,712 |
|
![]() Datasheet |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 80 ~ 305 VAC, 100 ~ 430 VDC | 24V | - | - | - | - | - | 6.5 A | - | - | - | - | - | 156W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | ||
![]() |
LM150-23B48R2AC/DC CONVERTER 48V 158W |
4,808 |
|
![]() Datasheet |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 80 ~ 305 VAC, 100 ~ 430 VDC | 48V | - | - | - | - | - | 3.3 A | - | - | - | - | - | 158W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | ||
![]() |
LM150-23B15R2AC/DC CONVERTER 15V 150W |
1,631 |
|
![]() Datasheet |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 80 ~ 305 VAC, 100 ~ 430 VDC | 15V | - | - | - | - | - | 10 A | - | - | - | - | - | 150W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | ||
![]() |
LM150-23B54R2AC/DC CONVERTER 54V 151W |
4,541 |
|
![]() Datasheet |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 80 ~ 305 VAC, 100 ~ 430 VDC | 54V | - | - | - | - | - | 2.8 A | - | - | - | - | - | 151W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | ||
![]() |
LM150-23B36R2AC/DC CONVERTER 36V 155W |
4,845 |
|
![]() Datasheet |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 80 ~ 305 VAC, 100 ~ 430 VDC | 36V | - | - | - | - | - | 4.3 A | - | - | - | - | - | 155W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | ||
![]() |
LM150-23B12R2AC/DC CONVERTER 12V 150W |
1,315 |
|
![]() Datasheet |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 80 ~ 305 VAC, 100 ~ 430 VDC | 12V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 150W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | ||
![]() |
PSK-10D-3-TAC/DC CONVERTER 3.3V 8.6W |
2,896 |
|
![]() Datasheet |
PSK-10D (10W) | Tray | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 3.3V | - | - | - | - | - | 2.6 A | - | - | - | - | - | 8.6W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | - | Chassis Mount | 2.99" L x 1.24" W x 1.17" H (76.0mm x 31.5mm x 29.8mm) | ||
![]() |
VGS-75W-5AC/DC CONVERTER 5V 70W |
3,505 |
|
![]() Datasheet |
VGS-75W (75W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 5V | - | - | - | - | - | 14 A | - | - | - | - | - | 70W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | - | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | ||
![]() |
VGS-100C-15AC/DC CONVERTER 15V 105W |
4,486 |
|
![]() Datasheet |
VGS-100C | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 15V | - | - | - | - | - | 7 A | - | - | - | - | - | 105W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.08" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) | ||
![]() |
PSK-15D-3-TAC/DC CONVERTER 3.3V 13W |
2,905 |
|
![]() Datasheet |
PSK-15D (15W) | Tray | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 3.3V | - | - | - | - | - | 4 A | - | - | - | - | - | 13W | Household Appliances, ITE (Commercial), Medical | 4 kV | -40°C ~ 85°C (With Derating) | - | Chassis Mount | 2.99" L x 1.24" W x 1.27" H (76.0mm x 31.5mm x 32.3mm) | ||
![]() |
VGS-100C-48AC/DC CONVERTER 48V 110W |
4,966 |
|
![]() Datasheet |
VGS-100C | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 48V | - | - | - | - | - | 2.3 A | - | - | - | - | - | 110W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.08" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) | ||
![]() |

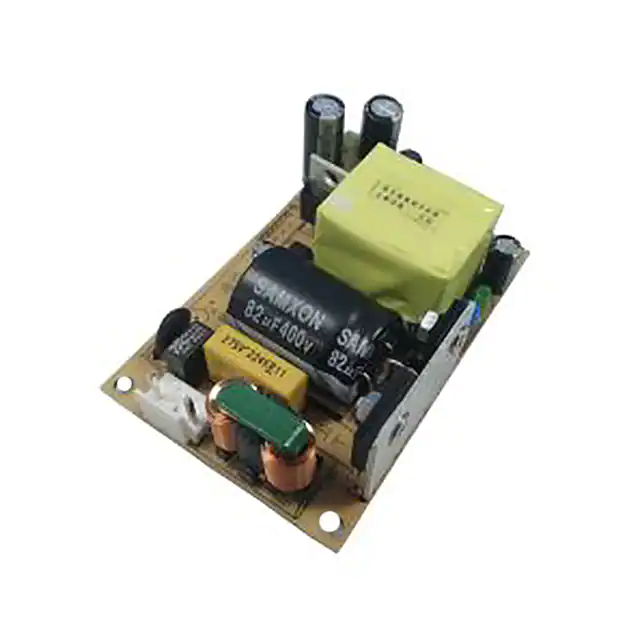

LO65-10B15AC/DC CONVERTER 15V 65W |
2,881 |
|
![]() Datasheet |
LO65-10Bxx (65W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 15V | - | - | - | - | - | 4.34 A | - | - | - | - | - | 65W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.18" H (76.2mm x 50.8mm x 30.0mm) | ||
![]() |
LO65-10B09AC/DC CONVERTER 9V 59W |
3,104 |
|
![]() Datasheet |
LO65-10Bxx (65W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 9V | - | - | - | - | - | 6.6 A | - | - | - | - | - | 59W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.18" H (76.2mm x 50.8mm x 30.0mm) | ||
![]() |

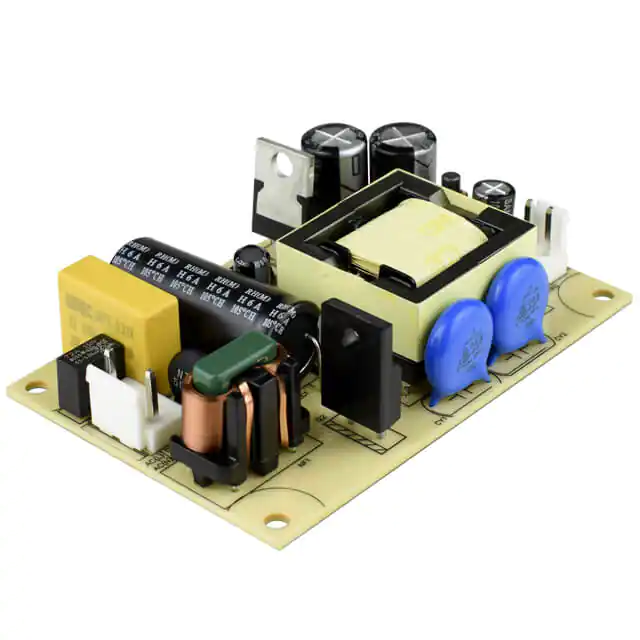

VOF-30C-S48AC/DC CONVERTER 48V 30W |
1,541 |
|
![]() Datasheet |
VOF-30C (30W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 48V | - | - | - | - | - | 625 mA | - | - | - | - | - | 30W | Household Appliances, ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.06" H (76.2mm x 50.8mm x 27.0mm) | ||
![]() |
VOF-30C-S5AC/DC CONVERTER 5V 21W |
1,578 |
|
![]() Datasheet |
VOF-30C (30W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 5V | - | - | - | - | - | 4.1 A | - | - | - | - | - | 21W | Household Appliances, ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.06" H (76.2mm x 50.8mm x 27.0mm) | ||
![]() |

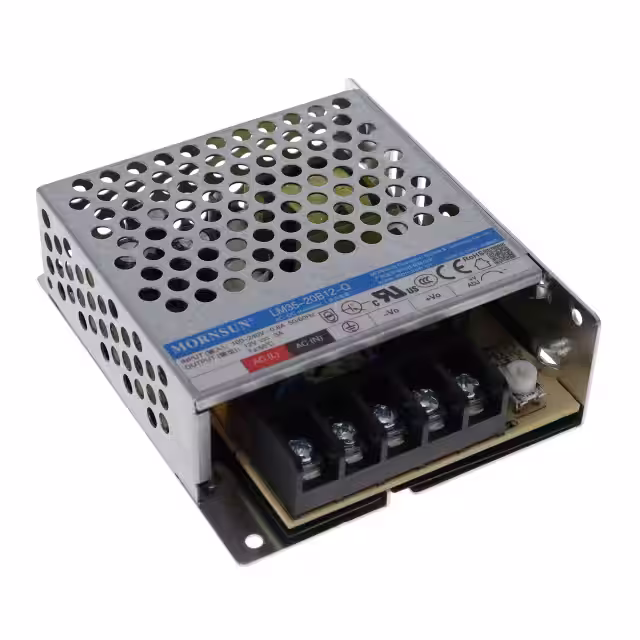

LM35-20B12-QAC/DC CONVERTER 12V 36W |
4,394 |
|
![]() Datasheet |
LM35-20Bxx-Q (35W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 12V | - | - | - | - | - | 3 A | - | - | - | - | - | 36W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | ||
![]() |

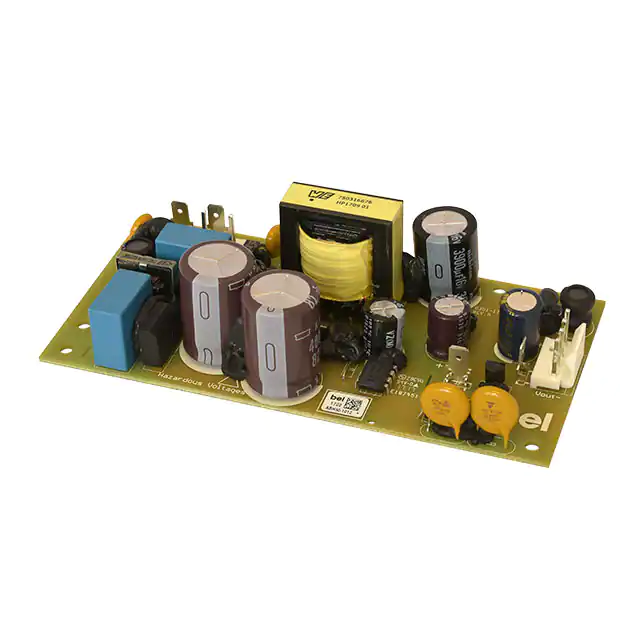

ABH50-1012AC/DC CONVERTER 12V 50W |
4,752 |
|
![]() Datasheet |
ABH50 (50W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 50W | ITE (Commercial) | 3 kV | -5°C ~ 50°C | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 2.50" W x 1.34" H (127.0mm x 63.5mm x 34.0mm) |
