Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Efficiency | Operating Temperature | Features | Mounting Type | Size / Dimension | Approval Agency |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
RACM65-24S/OFAC/DC CONVERTER 24V 65W |
3,754 |
|
![]() Datasheet |
MEDLINE RACM65 (65W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 2.71 A | - | - | - | - | - | 65W | Medical | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.04" H (76.2mm x 50.8mm x 26.5mm) | ||
![]() |

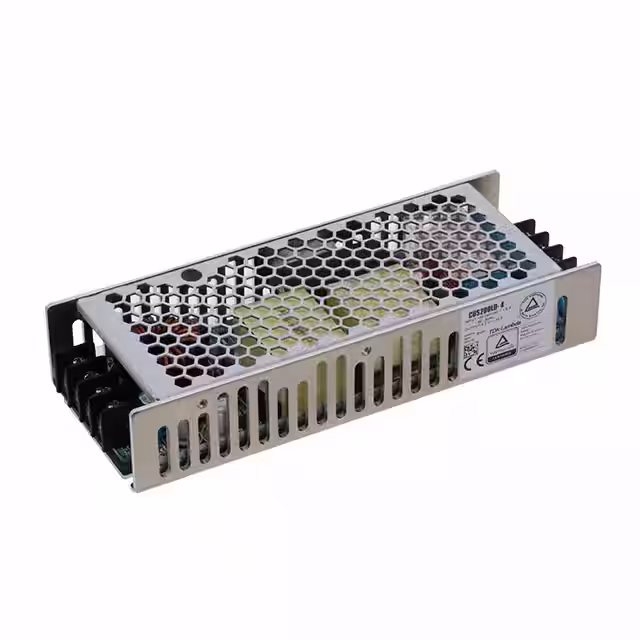

CUS200LD-4AC/DC CONVERTER 4.2V 100W |
4,106 |
|
![]() Datasheet |
CUS200LD (79-153W) | Box | Active | Enclosed | 1 | 85 ~ 265 VAC | 4.2V | - | - | - | - | - | 24 A | - | - | - | - | - | 100W (126W Forced Air) | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.30" L x 2.44" W x 1.22" H (160.0mm x 62.0mm x 31.0mm) | ||
![]() |

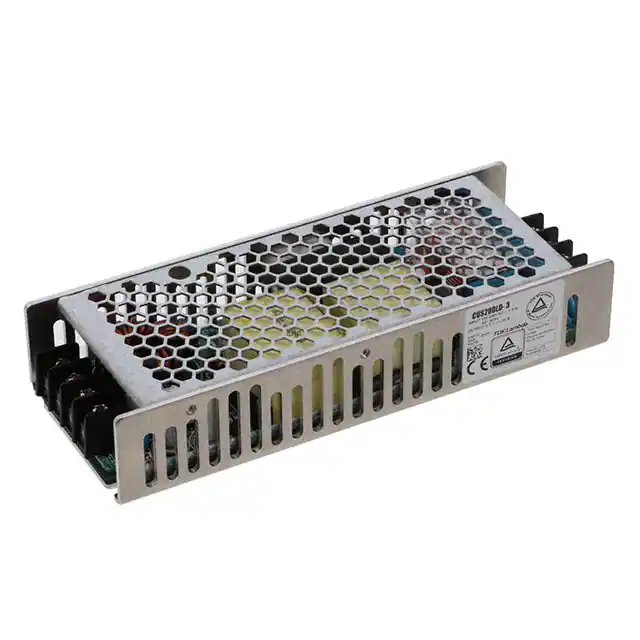

CUS200LD-3AC/DC CONVERTER 3.3V 79W |
2,484 |
|
![]() Datasheet |
CUS200LD (79-153W) | Box | Active | Enclosed | 1 | 85 ~ 265 VAC | 3.3V | - | - | - | - | - | 24 A | - | - | - | - | - | 79W (99W Forced Air) | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.30" L x 2.44" W x 1.22" H (160.0mm x 62.0mm x 31.0mm) | ||
![]() |
MULP180-1012-2AC/DC CONVERTER 12V 120W |
1,360 |
|
![]() Datasheet |
MULP180 (180W) | Bulk | Active | Open Frame | 1 | 80 ~ 264 VAC, 390VDC | 12V | - | - | - | - | - | 10 A | - | - | - | - | - | 120W (180W Forced Air) | Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 0.75" H (101.6mm x 50.8mm x 19.1mm) | ||
![]() |
TPI 180-115A-MAC/DC CONVERTER 15V 150W |
3,324 |
|
![]() Datasheet |
TPI 180A-M (180W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 240 VAC, 120 ~ 370 VDC | 15V | - | - | - | - | - | 12 A | - | - | - | - | - | 150W (180W Forced Air) | ITE (Commercial) | 3 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.24" H (76.2mm x 50.8mm x 31.5mm) | ||
![]() |
TPI 180-153A-MAC/DC CONVERTER 53V 150W |
2,893 |
|
![]() Datasheet |
TPI 180A-M (180W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 240 VAC, 120 ~ 370 VDC | 53V | - | - | - | - | - | 3.4 A | - | - | - | - | - | 150W (180W Forced Air) | ITE (Commercial) | 3 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.24" H (76.2mm x 50.8mm x 31.5mm) | ||
![]() |
TPI 180-136A-MAC/DC CONVERTER 36V 150W |
3,940 |
|
![]() Datasheet |
TPI 180A-M (180W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 240 VAC, 120 ~ 370 VDC | 36V | - | - | - | - | - | 5 A | - | - | - | - | - | 150W (180W Forced Air) | ITE (Commercial) | 3 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.24" H (76.2mm x 50.8mm x 31.5mm) | ||
![]() |
TML 40124CAC/DC CONVERTER 24V 40W |
4,061 |
|
![]() Datasheet |
TML (40W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 100 ~ 375 VDC | 24V | - | - | - | - | - | 1.667 A | - | - | - | - | - | 40W | ITE (Commercial) | 3 kV | -40°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.41" L x 2.50" W x 1.28" H (112.0mm x 63.5mm x 32.5mm) | ||
![]() |
TML 40112CAC/DC CONVERTER 12V 40W |
4,279 |
|
![]() Datasheet |
TML (40W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 100 ~ 375 VDC | 12V | - | - | - | - | - | 3.333 A | - | - | - | - | - | 40W | ITE (Commercial) | 3 kV | -40°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.41" L x 2.50" W x 1.28" H (112.0mm x 63.5mm x 32.5mm) | ||
![]() |
TXLN 200-148AC/DC CONVERTER 48V 202W |
3,559 |
|
![]() Datasheet |
TXLN 200 (200W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 375 VDC | 48V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 202W | ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.35" L x 4.53" W x 1.18" H (212.0mm x 115.0mm x 30.0mm) | ||
![]() |
SE-450-15AC/DC CONVERTER 15V 450W |
3,014 |
|
![]() Datasheet |
SE-450 (450W) | Box | Not For New Designs | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC, 254 ~ 370 VDC | 15V | - | - | - | - | - | 30 A | - | - | - | - | - | 450W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Remote Sense | Chassis Mount | 8.86" L x 4.88" W x 1.97" H (225.0mm x 124.0mm x 50.0mm) | ||
![]() |

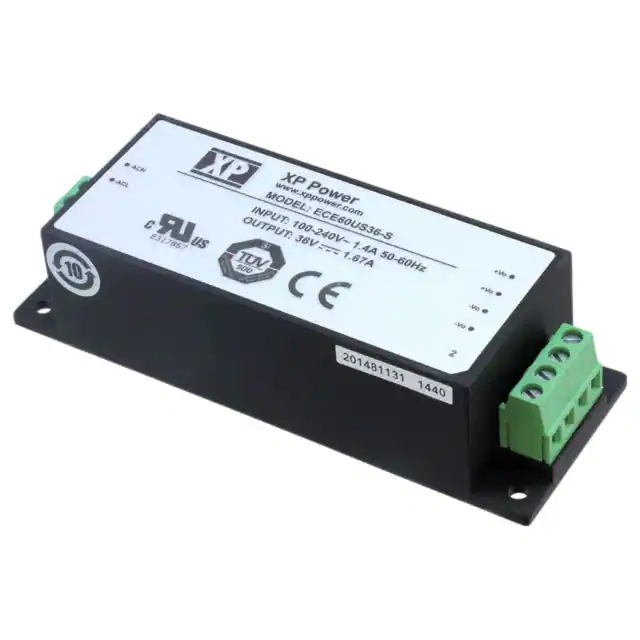

ECE60US36-SAC/DC CONVERTER 36V 60W |
2,452 |
|
![]() Datasheet |
ECE60 (60W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 36V | - | - | - | - | - | 1.67 A | - | - | - | - | - | 60W | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 4.09" L x 1.57" W x 1.12" H (104.0mm x 40.0mm x 28.5mm) | ||
|
RACM40-15SAC/DC CONVERTER 15V 40W |
4,943 |
|
![]() Datasheet |
MEDLINE RACM40 (40W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 2.67 A | - | - | - | - | - | 40W | Medical | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.60" L x 2.38" W x 1.31" H (91.4mm x 60.5mm x 33.3mm) | ||
![]() |
TXM 150-124AC/DC CONVERTER 24V 151W |
3,478 |
|
![]() Datasheet |
TXM 150 (150W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 24V | - | - | - | - | - | 6.3 A | - | - | - | - | - | 151W | ITE (Commercial) | 3 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.30" L x 3.87" W x 1.14" H (160.0mm x 98.3mm x 29.0mm) | ||
|

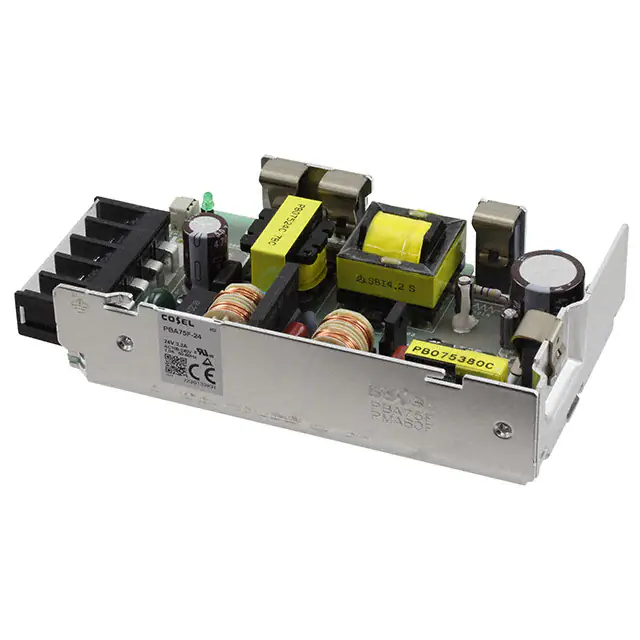

PBA75F-24AC/DC CONVERTER 24V 75W |
1,517 |
|
![]() Datasheet |
PBA (75W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 3.2 A | - | - | - | - | - | 75W | ITE (Commercial) | - | - | DC Input Capable, Universal Input | Chassis Mount | - | ||
![]() |
TPI 180-124A-MAC/DC CONVERTER 24V 150W |
4,543 |
|
![]() Datasheet |
TPI 180A-M (180W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 240 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 7.5 A | - | - | - | - | - | 150W (180W Forced Air) | ITE (Commercial) | 3 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.24" H (76.2mm x 50.8mm x 31.5mm) | ||
![]() |
TML 40212CAC/DC CONVERTER +/-12V 40W |
1,534 |
|
![]() Datasheet |
TML (40W) | Box | Active | Enclosed | 2 | 90 ~ 264 VAC, 100 ~ 375 VDC | 12V | -12V | - | - | - | - | 1.666 A | 1.666 A | - | - | - | - | 40W | ITE (Commercial) | 3 kV | -40°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.41" L x 2.50" W x 1.28" H (112.0mm x 63.5mm x 32.5mm) | ||
![]() |
PBW50F-15AC/DC CONVERTER +/-15V 50W |
3,491 |
|
![]() Datasheet |
PBW (50W) | Box | Active | Enclosed | 2 | 85 ~ 264 VAC | 15V | -15V | - | - | - | - | 1.7 A | 2.4 A | - | - | - | - | 50W | ITE (Commercial) | - | - | DC Input Capable, Universal Input | Chassis Mount | - | ||
![]() |
TPP 100-148AC/DC CONVERTER 48V 100W |
2,879 |
|
![]() Datasheet |
TPP 100 (100W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 2.09 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | 4 kV | -25°C ~ 85°C (With Derating) | Adjustable Output, IP20, Universal Input | Chassis Mount | 3.60" L x 2.44" W x 1.54" H (91.4mm x 62.0mm x 39.1mm) | ||
![]() |
CUT75-5FF/AAC/DC CONVERTER 5V +/-15V 75W |
2,514 |
|
![]() Datasheet |
CUT75 (75W) | Bulk | Active | Open Frame | 3 | 85 ~ 265 VAC | 5V | 15V | -15V | - | - | - | 8 A | 2.5 A | 1 A | - | - | - | 75W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.06" H (127.0mm x 76.2mm x 26.9mm) |
