Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Efficiency | Operating Temperature | Features | Mounting Type | Size / Dimension | Approval Agency |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CUS60M-15AC/DC CONVERTER 15V 60W |
2,614 |
|
![]() Datasheet |
CUS60M (60W) | Box | Active | Open Frame | 1 | 85 ~ 265 VAC | 15V | - | - | - | - | - | 4 A | - | - | - | - | - | 60W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | PFC, Remote Sense | Chassis Mount | 3.00" L x 2.00" W x 1.05" H (76.2mm x 50.8mm x 26.7mm) | ||
![]() |

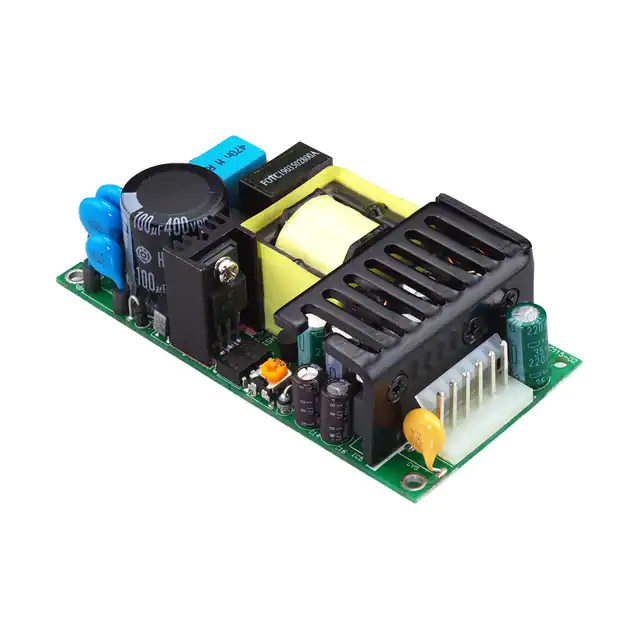

CFM40D-02AC/DC CONVERTER 5V 24V 40W |
4,718 |
|
![]() Datasheet |
CFM40D (40W) | Box | Active | Open Frame | 2 | 90 ~ 264 VAC | 5V | 24V | - | - | - | - | 3.2 A | 1 A | - | - | - | - | 40W | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.13" H (101.6mm x 50.8mm x 28.6mm) | ||
![]() |
CFM40T-07AC/DC CONVERTER 3.3V 5V -12V 30W |
2,058 |
|
![]() Datasheet |
CFM40T (40W) | Box | Active | Open Frame | 3 | 90 ~ 264 VAC | 3.3V | 5V | -12V | - | - | - | 5 A | 2 A | 300 mA | - | - | - | 30W | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.13" H (101.6mm x 50.8mm x 28.6mm) | ||
![]() |
CFM40D-01AC/DC CONVERTER 5V 12V 40W |
4,312 |
|
![]() Datasheet |
CFM40D (40W) | Box | Active | Open Frame | 2 | 90 ~ 264 VAC | 5V | 12V | - | - | - | - | 3.2 A | 2 A | - | - | - | - | 40W | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.13" H (101.6mm x 50.8mm x 28.6mm) | ||
![]() |
TPI 30-105A-JPAC/DC CONVERTER 5V 30W |
1,393 |
|
![]() Datasheet |
TPI 30A-J (30W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 5V | - | - | - | - | - | 6 A | - | - | - | - | - | 30W (40W Forced Air) | ITE (Commercial) | 3 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.34" L x 1.36" W x 0.77" H (84.8mm x 34.5mm x 19.6mm) | ||
![]() |
TPP 15-112A-JAC/DC CONVERTER 12V 15W |
1,176 |
|
![]() Datasheet |
TPP 15A-J (15W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 12V | - | - | - | - | - | 1.25 A | - | - | - | - | - | 15W | ITE (Commercial), Medical | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 2.61" L x 1.00" W x 0.64" H (66.3mm x 25.4mm x 16.3mm) | ||
![]() |
TPP 15-115A-JAC/DC CONVERTER 15V 15W |
2,505 |
|
![]() Datasheet |
TPP 15A-J (15W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 15V | - | - | - | - | - | 1 A | - | - | - | - | - | 15W | ITE (Commercial), Medical | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 2.61" L x 1.00" W x 0.64" H (66.3mm x 25.4mm x 16.3mm) | ||
![]() |
TPP 15-109A-JAC/DC CONVERTER 9V 15W |
1,880 |
|
![]() Datasheet |
TPP 15A-J (15W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 9V | - | - | - | - | - | 1.67 A | - | - | - | - | - | 15W | ITE (Commercial), Medical | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 2.61" L x 1.00" W x 0.64" H (66.3mm x 25.4mm x 16.3mm) | ||
![]() |
RQ-85DAC/DC CNVRTR 5V 12V 24V -12V 84W |
1,360 |
|
![]() Datasheet |
RQ-85 (85W) | Box | Active | Enclosed | 4 | 88 ~ 264 VAC, 125 ~ 373 VDC | 5V | 12V | 24V | -12V | - | - | 6 A | 2 A | 1 A | 500 mA | - | - | 84W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.50" H (159.0mm x 97.0mm x 38.0mm) | ||
|

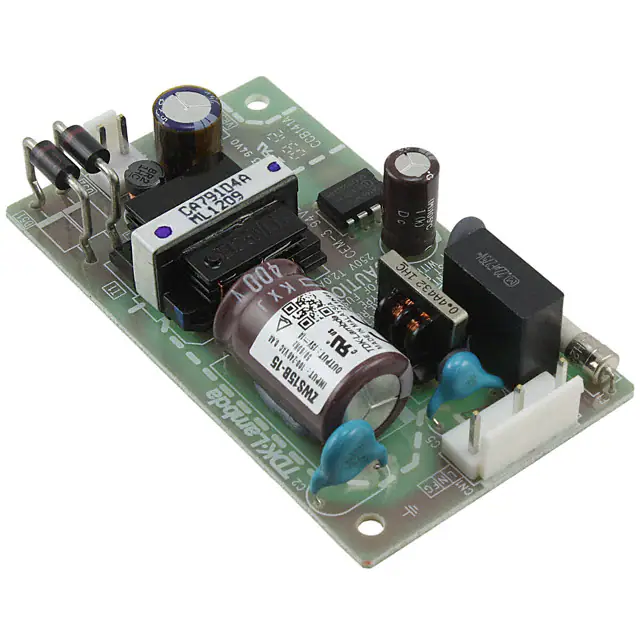

ZWS15B-15AC/DC CONVERTER 15V 15W |
3,705 |
|
![]() Datasheet |
ZWS15B (15W) | Bulk | Active | Open Frame | 1 | 85 ~ 265 VAC | 15V | - | - | - | - | - | 1 A | - | - | - | - | - | 15W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 4.93" L x 1.97" W x 0.83" H (125.2mm x 50.0mm x 21.0mm) | ||
![]() |
LHA50F-3R3-YAC/DC CONVERTER 3.3V 26W |
3,838 |
|
![]() Datasheet |
LHA (50W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 3.3V | - | - | - | - | - | 8 A | - | - | - | - | - | 26W | ITE (Commercial) | 3 kV | -10°C ~ 70°C | Adjustable Output, Universal Input | Chassis Mount | 4.41" L x 1.97" W x 0.93" H (112.0mm x 50.0mm x 23.6mm) | ||
![]() |
LHA50F-36AC/DC CONVERTER 36V 50W |
4,707 |
|
![]() Datasheet |
LHA (50W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 36V | - | - | - | - | - | 1.4 A | - | - | - | - | - | 50W | ITE (Commercial) | 3 kV | -10°C ~ 70°C | Adjustable Output, Universal Input | Chassis Mount | 4.41" L x 1.97" W x 0.93" H (112.0mm x 50.0mm x 23.6mm) | ||
![]() |
LHA50F-12AC/DC CONVERTER 12V 52W |
4,608 |
|
![]() Datasheet |
LHA (50W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 4.3 A | - | - | - | - | - | 52W | ITE (Commercial) | 3 kV | -10°C ~ 70°C | Adjustable Output, Universal Input | Chassis Mount | 4.41" L x 1.97" W x 0.93" H (112.0mm x 50.0mm x 23.6mm) | ||
![]() |
LHA50F-48AC/DC CONVERTER 48V 53W |
4,021 |
|
![]() Datasheet |
LHA (50W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 1.1 A | - | - | - | - | - | 53W | ITE (Commercial) | 3 kV | -10°C ~ 70°C | Adjustable Output, Universal Input | Chassis Mount | 4.41" L x 1.97" W x 0.93" H (112.0mm x 50.0mm x 23.6mm) | ||
![]() |
TXM 035-105AC/DC CONVERTER 5V 30W |
1,513 |
|
![]() Datasheet |
TXM 035 (35W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 5V | - | - | - | - | - | 6 A | - | - | - | - | - | 30W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.50" W x 1.30" H (101.6mm x 63.5mm x 33.0mm) | ||
![]() |
TXM 035-124AC/DC CONVERTER 24V 36W |
3,491 |
|
![]() Datasheet |
TXM 035 (35W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 24V | - | - | - | - | - | 1.5 A | - | - | - | - | - | 36W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.50" W x 1.30" H (101.6mm x 63.5mm x 33.0mm) | ||
![]() |
TXM 035-112AC/DC CONVERTER 12V 36W |
2,419 |
|
![]() Datasheet |
TXM 035 (35W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 12V | - | - | - | - | - | 3 A | - | - | - | - | - | 36W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.50" W x 1.30" H (101.6mm x 63.5mm x 33.0mm) | ||
![]() |

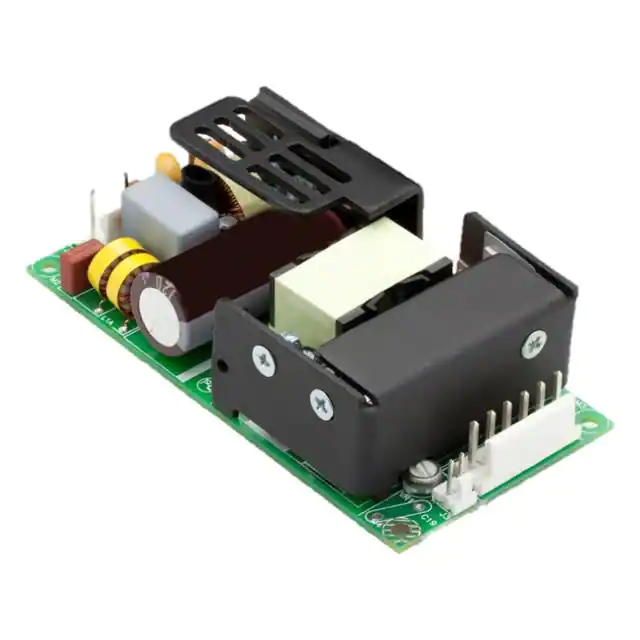

LFWLT60-1000AC/DC CONVERTER 5.2V 52W |
3,432 |
|
![]() Datasheet |
WLT60 (60W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 5.2V | - | - | - | - | - | 10 A | - | - | - | - | - | 52W | ITE (Commercial) | 4.242 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.12" H (101.6mm x 50.8mm x 28.5mm) | ||
![]() |
LFWLT60-1003AC/DC CONVERTER 24V 65W |
4,968 |
|
![]() Datasheet |
WLT60 (60W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 2.7 A | - | - | - | - | - | 65W | ITE (Commercial) | 4.242 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.12" H (101.6mm x 50.8mm x 28.5mm) | ||
![]() |
RACM90-24SK/ENCAC/DC CONVERTER 24V 90W |
1,002 |
|
![]() Datasheet |
RACM90-K (90W) | Tray | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 3.75 A | - | - | - | - | - | 90W | ITE (Commercial) | 4 kV | -40°C ~ 90°C (With Derating) | Baseplate, DC Input Capable, PFC, Universal Input | Chassis Mount | 4.66" L x 2.47" W x 1.52" H (118.3mm x 62.7mm x 38.7mm) |
