Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Efficiency | Operating Temperature | Features | Mounting Type | Size / Dimension | Approval Agency |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
TMPW 25-124-T25 WATT AC/DC ENCAPSULATED CHASS |
4,759 |
|
![]() Datasheet |
TMPW 25-T (25W) | Box | Active | Enclosed | 1 | 90 ~ 305 VAC, 100 ~ 430 VDC | 24V | - | - | - | - | - | 1.042 A | - | - | - | - | - | 25W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 70°C | - | Chassis Mount | 3.48" L x 1.50" W x 0.95" H (88.4mm x 38.1mm x 24.1mm) | ||
![]() |
ECL15US12-TAC/DC CONVERTER 12V 15W |
1,795 |
|
![]() Datasheet |
ECL (15W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 1.25 A | - | - | - | - | - | 15W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.10" L x 1.25" W x 0.78" H (78.7mm x 31.7mm x 20.0mm) | ||
|
ZPSA40-5AC/DC CONVERTER 5V 40W |
2,657 |
|
![]() Datasheet |
ZPSA40 (40W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 5V | - | - | - | - | - | 6 A | - | - | - | - | - | 40W | ITE (Commercial) | 3 kV | 0°C ~ 70°C | - | Chassis Mount | 4.00" L x 2.00" W x 1.07" H (101.6mm x 50.8mm x 27.1mm) | ||
|
ZPSA40-28AC/DC CONVERTER 28V 40W |
4,609 |
|
![]() Datasheet |
ZPSA40 (40W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 28V | - | - | - | - | - | 1.43 A | - | - | - | - | - | 40W | ITE (Commercial) | 3 kV | 0°C ~ 70°C | - | Chassis Mount | 4.00" L x 2.00" W x 1.07" H (101.6mm x 50.8mm x 27.1mm) | ||
![]() |
RSP-75-24AC/DC CONVERTER 24V 77W |
2,670 |
|
![]() Datasheet |
RSP-75 (75W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 3.2 A | - | - | - | - | - | 77W | ITE (Commercial) | 4 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) | ||
![]() |

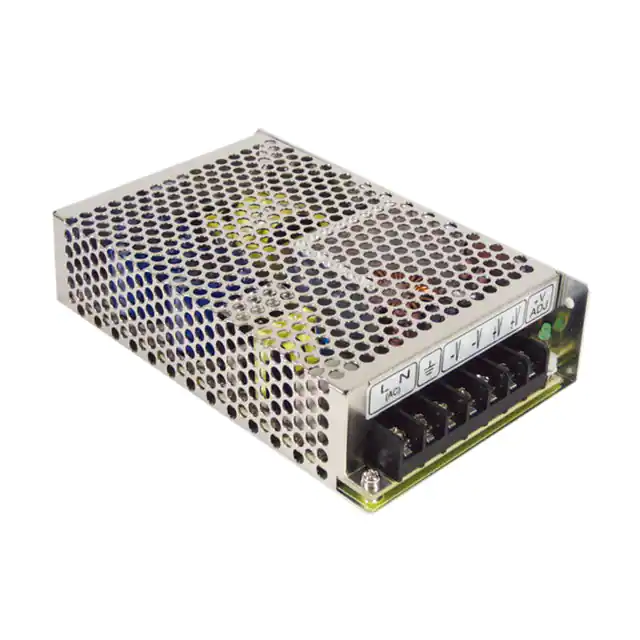

RT-85AAC/DC CONVERTER 5V 12V -5V 85W |
1,644 |
|
![]() Datasheet |
RT-85 (85W) | Box | Active | Enclosed | 3 | 88 ~ 264 VAC, 125 ~ 373 VDC | 5V | 12V | -5V | - | - | - | 8 A | 3.5 A | 500 mA | - | - | - | 85W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.50" H (159.0mm x 97.0mm x 38.0mm) | ||
![]() |
AWSP60-12AC/DC CONVERTER 12V 60W |
1,774 |
|
![]() Datasheet |
AWSP60 | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 5 A | - | - | - | - | - | 60W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.30" L x 3.86" W x 1.50" H (160.0mm x 98.0mm x 38.0mm) | ||
![]() |

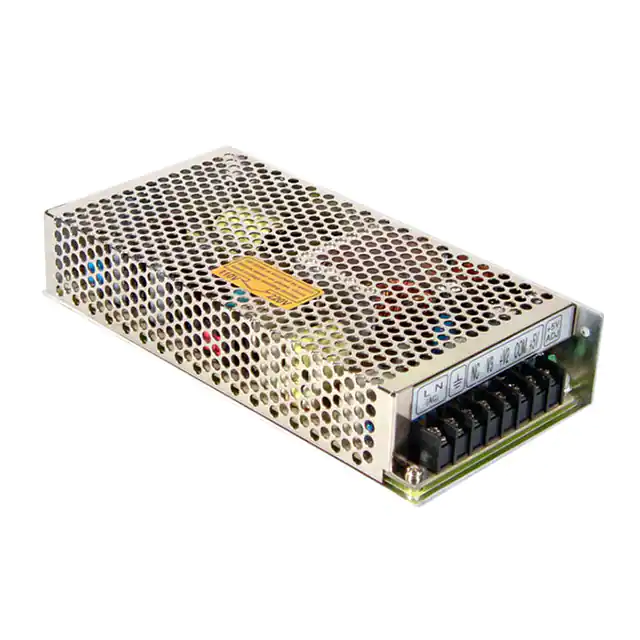

RT-125BAC/DC CONVERTER 5V +/-12V 132W |
4,265 |
|
![]() Datasheet |
RT-125 (125W) | Box | Active | Enclosed | 3 | 88 ~ 132 VAC, 176 ~ 264 VAC, 248 ~ 373 VDC | 5V | 12V | -12V | - | - | - | 12 A | 5 A | 1 A | - | - | - | 132W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 7.83" L x 3.86" W x 1.50" H (199.0mm x 98.0mm x 38.0mm) | ||
![]() |
RT-125DAC/DC CONVERTER 5V 24V 12V 136W |
2,074 |
|
![]() Datasheet |
RT-125 (125W) | Box | Active | Enclosed | 3 | 88 ~ 132 VAC, 176 ~ 264 VAC, 248 ~ 373 VDC | 5V | 24V | 12V | - | - | - | 8 A | 3 A | 2 A | - | - | - | 136W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 7.83" L x 3.86" W x 1.50" H (199.0mm x 98.0mm x 38.0mm) | ||
![]() |
RT-125CAC/DC CONVERTER 5V +/-15V 133W |
2,092 |
|
![]() Datasheet |
RT-125 (125W) | Box | Active | Enclosed | 3 | 88 ~ 132 VAC, 176 ~ 264 VAC, 248 ~ 373 VDC | 5V | 15V | -15V | - | - | - | 10 A | 4.5 A | 1 A | - | - | - | 133W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 7.83" L x 3.86" W x 1.50" H (199.0mm x 98.0mm x 38.0mm) | ||
![]() |
TMPW 25-112-T25 WATT AC/DC ENCAPSULATED CHASS |
4,959 |
|
![]() Datasheet |
TMPW 25-T (25W) | Box | Active | Enclosed | 1 | 90 ~ 305 VAC, 100 ~ 430 VDC | 12V | - | - | - | - | - | 2.083 A | - | - | - | - | - | 25W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 70°C | - | Chassis Mount | 3.48" L x 1.50" W x 0.95" H (88.4mm x 38.1mm x 24.1mm) | ||
![]() |
RPS-120S-48AC/DC CONVERTER 48V 120W |
100 |
|
![]() Datasheet |
RPS-120S (120W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC, 113 ~ 370 VDC | 48V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 120W (150W Forced Air) | Medical | 4 kV | -30°C ~ 85°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.10" H (76.2mm x 50.8mm x 28.0mm) | ||
![]() |
GTM43007-A3006-FW(R)AC/DC CONVERTER 6V 30W |
1,393 |
|
![]() Datasheet |
GTM43007-AWWVV-FW | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 6V | - | - | - | - | - | 5 A | - | - | - | - | - | 30W | Household Appliances, ITE (Commercial), Medical | 4 kV | -10°C ~ 45°C | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 0.93" H (76.2mm x 50.8mm x 23.6mm) | ||
![]() |
ZPSA60-15AC/DC CONVERTER 15V 60W |
2,945 |
|
![]() Datasheet |
ZPSA60 (60W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 15V | - | - | - | - | - | 4 A | - | - | - | - | - | 60W | ITE (Commercial) | 3 kV | 0°C ~ 70°C | - | Chassis Mount | 4.00" L x 2.00" W x 1.07" H (101.6mm x 50.8mm x 27.1mm) | ||
![]() |
LRS-350N2-48O/P +48V7.3A |
1,142 |
|
![]() Datasheet |
LRS-350N2 (350W) | Box | Active | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC, 240 ~ 370 VDC | 48V | - | - | - | - | - | 7.3 A | - | - | - | - | - | 350W | ITE (Commercial) | 3.75 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 8.46" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm) | ||
![]() |
LRS-350N2-24O/P +24V14.6A |
1,010 |
|
![]() Datasheet |
LRS-350N2 (350W) | Box | Active | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC, 240 ~ 370 VDC | 24V | - | - | - | - | - | 14.6 A | - | - | - | - | - | 350W | ITE (Commercial) | 3.75 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 8.46" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm) | ||
|
LS100-15AC/DC CONVERTER 15V 100W |
1,271 |
|
![]() Datasheet |
LS (100W) | Bulk | Active | Enclosed | 1 | 88 ~ 264 VAC | 15V | - | - | - | - | - | 7 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 6.30" L x 3.80" W x 1.50" H (160.0mm x 96.5mm x 38.1mm) | ||
![]() |
NPS43-MAC/DC CONVERTER 12V 45W |
1,993 |
|
![]() Datasheet |
NPS40-M (60W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 3.75 A | - | - | - | - | - | 45W (60W Forced Air) | ITE (Commercial), Medical | - | 0°C ~ 80°C (With Derating) | Adjustable Output, DC Input Capable, Remote Sense, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 21.8mm) | ||
![]() |
RD-125-1248AC/DC CONVERTER 12V 48V 138W |
4,287 |
|
![]() Datasheet |
RD-125 (125W) | Box | Active | Enclosed | 2 | 88 ~ 132 VAC, 176 ~ 264 VAC, 248 ~ 373 VDC | 12V | 48V | - | - | - | - | 2.3 A | 2.3 A | - | - | - | - | 138W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 7.83" L x 3.86" W x 1.50" H (199.0mm x 98.0mm x 38.0mm) | ||
![]() |
LFWLT60-1001AC/DC CONVERTER 12V 65W |
2,237 |
|
![]() Datasheet |
WLT60 (60W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 5.4 A | - | - | - | - | - | 65W | ITE (Commercial) | 4.242 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.12" H (101.6mm x 50.8mm x 28.5mm) |
